Part Number:
ZURUY62W-1
1.6x1.25mm BI-COLOR SMD CHIP LED LAMP
Features
1.6mmx1.25mm SMT LED, 0.65mm THICKNESS.
BI-COLOR,LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
MOISTURE SENSITIVITY LEVEL : LEVEL 3.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.2(0.008") unless otherwise noted.
3.Specifications are subject to change without notice.
Operating Characteristics
(TA=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
UR
UY
(GaAs (GaAsP
P/GaP) /GaP)
5
30
160
75
5
30
140
75
Unit
V
mA
mA
mW
Reverse Current (Max.)
(V
R
=5V)
Wavelength of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength of Dominant
Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
Luminous
Intensity
(IF=20mA)
mcd
min.
ZURUY62W-1
Red
Yellow
GaAsP/GaP
GaAsP/GaP
Water Clear
4
2.6
typ.
11
7
627
590
120°
V
F
V
F
I
R
UR
(GaAsP/
GaP)
2.0
2.5
10
UY
(GaAsP/
GaP)
2.1
2.5
10
Unit
V
V
uA
λ
P
627
590
nm
λ
D
625
588
nm
Δλ
45
35
nm
-40 ~ +85
-40 ~ +85
°
C
C
15
20
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
Published Date : FEB 23,2008
Drawing No : SDSA2837
V4
Checked : B.L.LIU
P.1/5
www.SunLED.com
Part Number:
ZURUY62W-1
1.6x1.25mm BI-COLOR SMD CHIP LED LAMP
UR
Published Date : FEB 23,2008
Drawing No : SDSA2837
V4
Checked : B.L.LIU
P.2/5

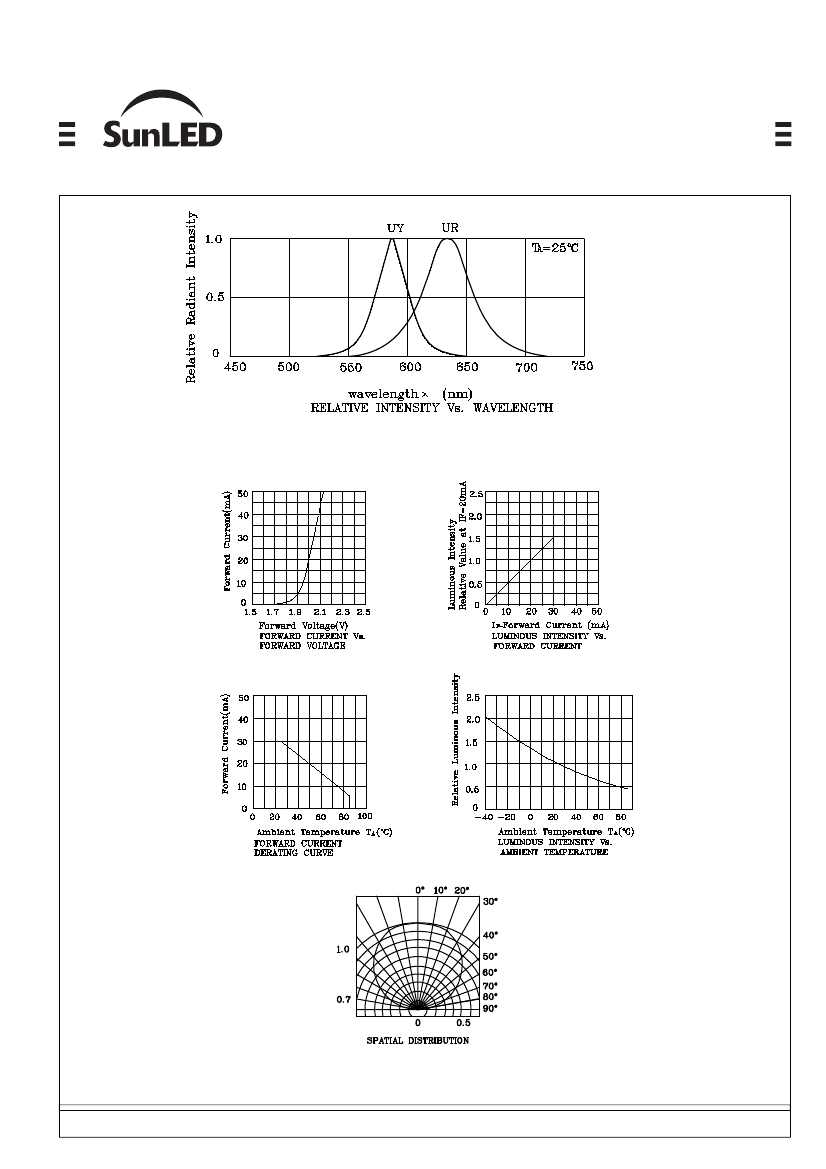

www.SunLED.com
Part Number:
ZURUY62W-1
1.6x1.25mm BI-COLOR SMD CHIP LED LAMP
UY
Published Date : FEB 23,2008
Drawing No : SDSA2837
V4
Checked : B.L.LIU
P.3/5
www.SunLED.com
Part Number:
ZURUY62W-1
1.6x1.25mm BI-COLOR SMD CHIP LED LAMP

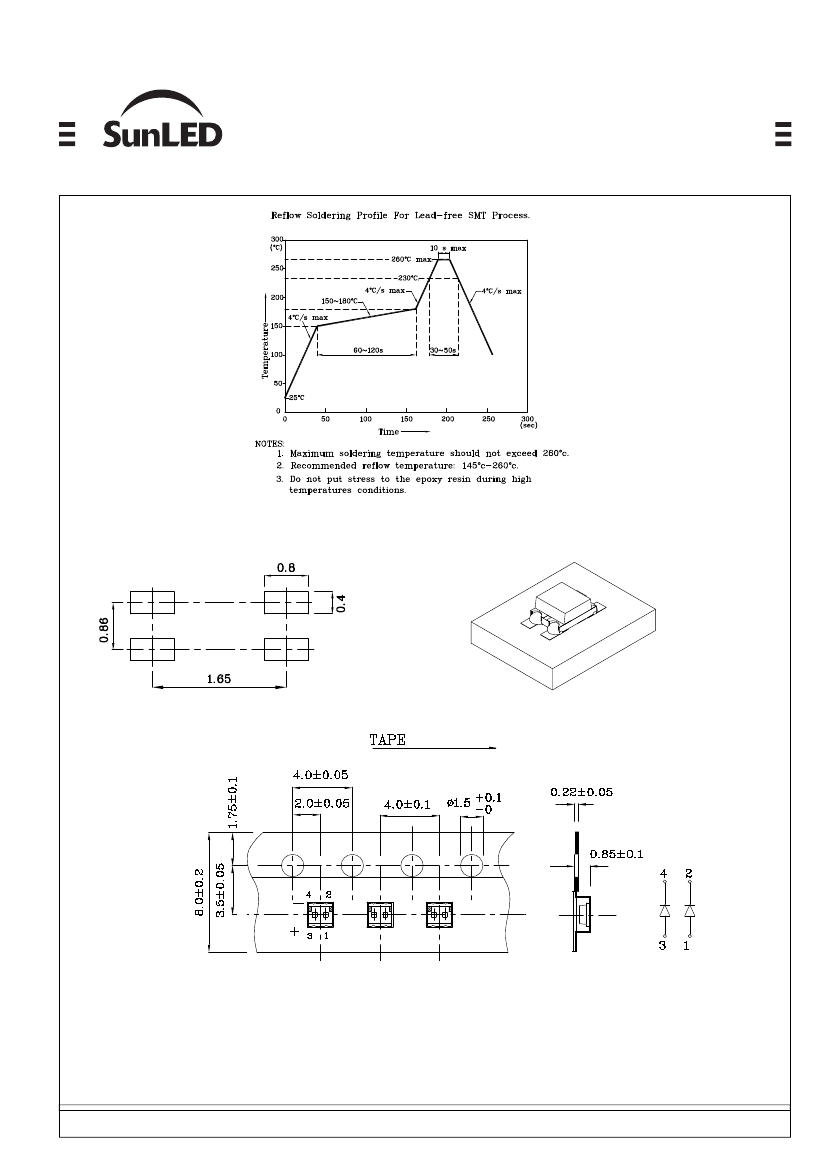

Recommended Soldering Pattern
(Units : mm; Tolerance: ±0.1)
The device has a single mounting surface. The device
must be mounted according to the specifications.
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 23,2008
Drawing No : SDSA2837
V4
Checked : B.L.LIU
P.4/5
www.SunLED.com
Part Number:
ZURUY62W-1
1.6x1.25mm BI-COLOR SMD CHIP LED LAMP

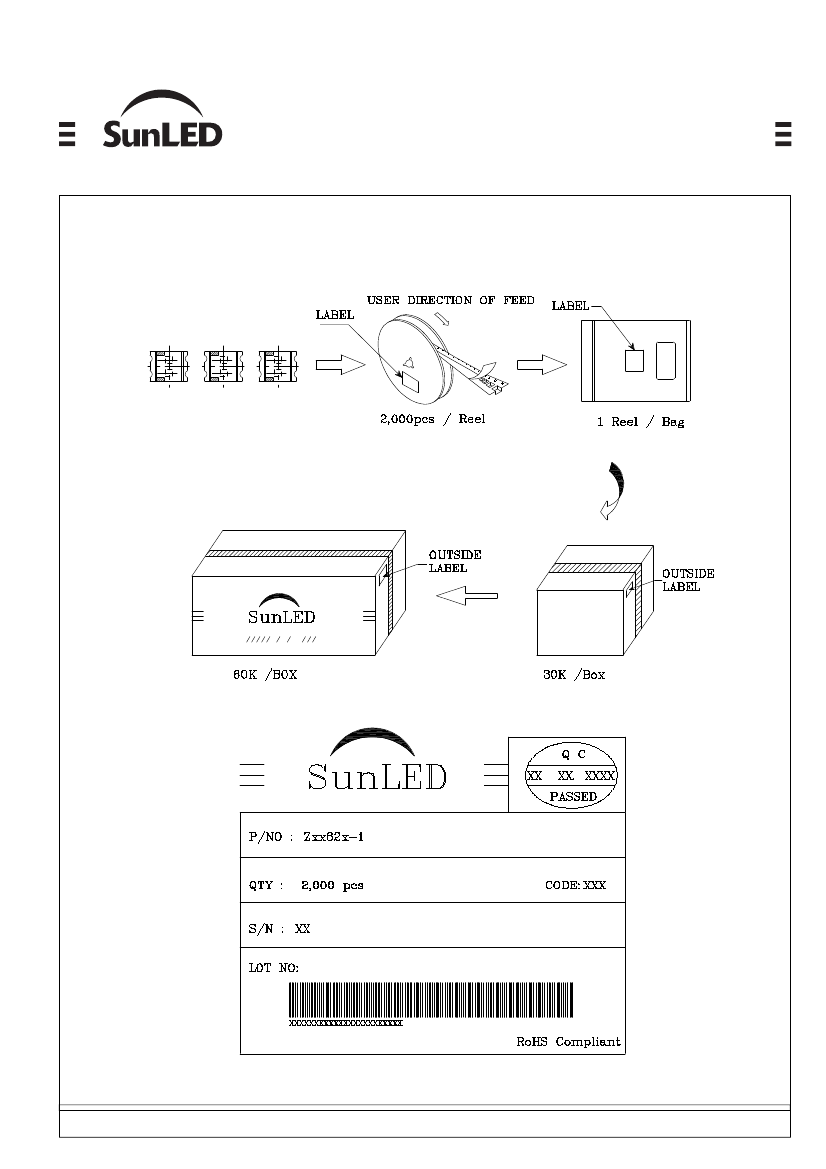

PACKING & LABEL SPECIFICATIONS
ZURUY62W-1
Published Date : FEB 23,2008
Drawing No : SDSA2837
V4
Checked : B.L.LIU
P.5/5
