TBC8121-0112500 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TBC8121-0112500

Preview

TBC8121-0112500: DescriptionSnap Acting/Limit Switch, Momentary, 25A, 12VDC, Solder Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size28KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric Compare View All

TBC8121-0112500 Overview

Snap Acting/Limit Switch, Momentary, 25A, 12VDC, Solder Terminal, Panel Mount

TBC8121-0112500 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	7.6 mm
body height	18 mm
Body length or diameter	21 mm
Maximum contact current (DC)	25 A
Contact (DC) maximum rated R load	25A@12VDC
Maximum contact voltage (DC)	12 V
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MOMENTARY
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

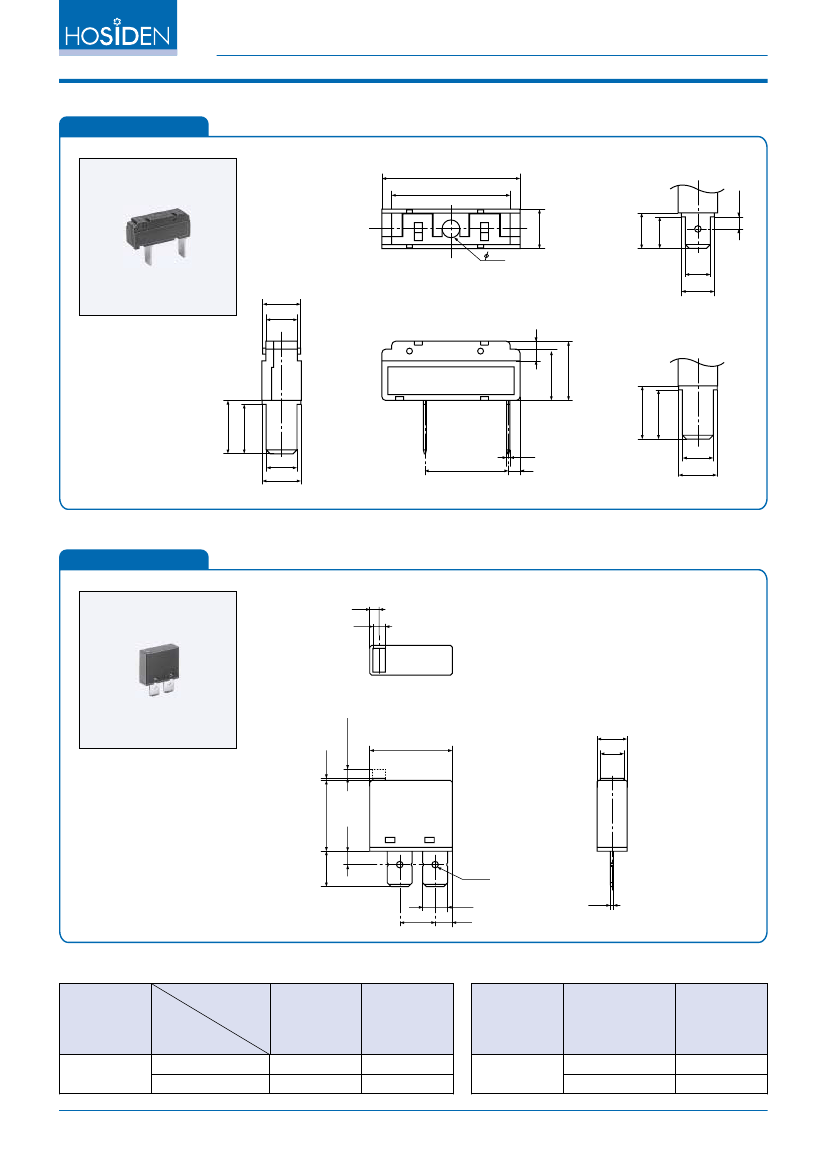

Circuit Protectors TBC7000&TBC8000 Series

Unit:mm

TBC7121

35

4.06

10

9

4.5

6.35

8.35

9.6

8

5

TAB #250

50/60Hz JAPAN

30

HOSiDEN

13

15

13.5

0.8

3

13.5

12.5

8

7.8

9.8

TAB #375

7.8

9.8

21.5

TBC8121

2.4

3.2

( 2.9 Max.)

7.6

21

6

18

9

3.4

(0.5)

1.65

6.35

9

4.4

0.8

Terminals

Rated Voltage

Rated

Current

125 VAC/30 VDC

25

TBC7121-0112501 TBC7121-0112500

for TAB #250

A

20

for TAB #375

Rated Voltage

Rated Current

A

20

Model No.

TBC7121-0112001 TBC7121-0112000

12 VDC

TBC8121-0112000

TBC8121-0112500

25

TBC8121-0112500 Related Products

	TBC8121-0112500	TBC7121-0112501	TBC8121-0112000	TBC7121-0112500	TBC7121-0112000	TBC7121-0112001
Description	Snap Acting/Limit Switch, Momentary, 25A, 12VDC, Solder Terminal, Panel Mount	Snap Acting/Limit Switch, Momentary, 25A, 30VDC, Quick Connect Terminal, Panel Mount	Snap Acting/Limit Switch, Momentary, 20A, 12VDC, Solder Terminal, Panel Mount	Snap Acting/Limit Switch, Momentary, 25A, 30VDC, Quick Connect Terminal, Panel Mount	Snap Acting/Limit Switch, Momentary, 20A, 30VDC, Quick Connect Terminal, Panel Mount	Snap Acting/Limit Switch, Momentary, 20A, 30VDC, Quick Connect Terminal, Panel Mount
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	7.6 mm	10 mm	7.6 mm	10 mm	10 mm	10 mm
body height	18 mm	15 mm	18 mm	15 mm	15 mm	15 mm
Body length or diameter	21 mm	35 mm	21 mm	35 mm	35 mm	35 mm
Maximum contact current (DC)	25 A	25 A	20 A	25 A	20 A	20 A
Contact (DC) maximum rated R load	25A@12VDC	25A@30VDC	20A@12VDC	25A@30VDC	20A@30VDC	20A@30VDC
Maximum contact voltage (DC)	12 V	30 V	12 V	30 V	30 V	30 V
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
surface mount	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Termination type	SOLDER	QUICK CONNECT	SOLDER	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
Contact (AC) maximum rated R load	-	25A@125VAC	-	25A@125VAC	20A@125VAC	20A@125VAC
Maximum contact current (AC)	-	25 A	-	25 A	20 A	20 A
Maximum contact voltage (AC)	-	125 V	-	125 V	125 V	125 V
Maker	-	-	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation
