A-Series, UWR Models
Single Output
High-Density, " x 2"
6 Amp/5 Watt, .2-5V
OUT
DC/DC's
Features
■
■
■
■
■
■
1.2-2.5V
OUT
models source 6 Amps
3.3V
OUT
models source 4.25 Amps
5/12/15V
OUT
models deliver full 15 Watts
Synchronous-rectifier topologies
Guaranteed efficiencies to 88%
Choice of 3 input voltage ranges:
10-18V, 18-36V, 36-75V
–40 to +60/70°C ambient w/o derating
Fully isolated (1500Vdc); I/O protected
UL1950/EN60950 certified
CE mark (75V
IN
models)
Standard 1" x 2" packages and pinouts
Optional V
OUT
trim and on/off control
Pin compatible with Lucent LC/LW Series
■
■
■
■
■
■
■

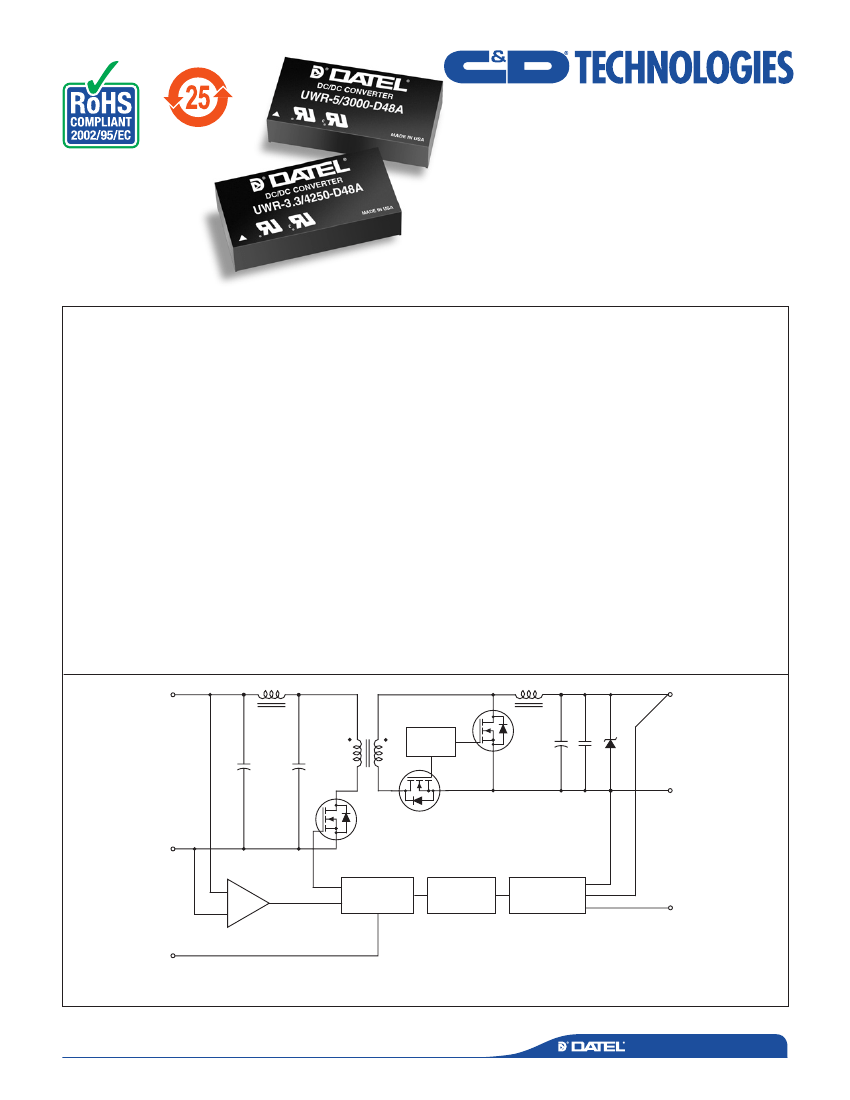

The new .2, .5V, .8V and 2.5V models in C&D’s flagship 7-5 Watt A-Series
can source a continuous 6 Amps. This is the most "low-voltage" current available
from a standard " x 2" package, and these power converters exemplify C&D’s
relentless drive to bring you more power/current, from standard packages, without
compromising reliability or resorting to thermal specmanship.
By combining a high-frequency, high-efficiency (to 88%), synchronous-rectifier
topology with the newest components and time-tested, fully automated, SMT-on-pcb
construction, these UWR Models are able to bring you 7-5W (@ up to 6A) in the
standard " x 2" package from which most competitors can only get 5-0W (@ 3-
4A). All UWR’s deliver their full output power over ambient temperature ranges from
–40°C to as high as +70°C (model and input voltage dependent) without heat sinks
or supplemental forced-air cooling. Devices derate to +00°C.
Output voltages are ,2, .5, .8, 2, 2.5, 3.3, 5, 2 or 5 Volts. Input voltage
ranges are 0-8V (D2 models), 8-36V (D24 models) or 36-75V (D48 models).
All models feature input pi filters, input undervoltage and overvoltage lockout, input
reverse-polarity protection, output overvoltage protection, output current limiting,
and continuous short-circuit protection. On/off control and output-trim functions are
optional (see Optional Functions). All models are certified to IEC950, UL950 and
EN60950 safety requirements. D48 models (36-75V inputs) are CE marked.
UWR 7-5W DC/DC’s are packaged in low-cost, light-weight, diallyl phthalate
(UL94V-0 rated) plastic packages with standoffs. EMC compliance is achieved via a
low-noise design rather than through expensive metal shielding.
+V
OUT
(4)
+V
IN
(1)
SWITCH
CONTROL
➀
COMMON
(6)
–V
IN
(2)
PWM
CONTROLLER
UVLO & OVLO
COMPARATORS
OPTO
ISOLATION
REFERENCE &
ERROR AMP
TRIM
(5)
(OPTIONAL)
ON/OFF
CONTROL
(3)
(OPTIONAL)
➀
1.2 to 5V-output models use the synchronous-rectifier configuration shown above.
12V and 15V-output models employ a standard forward architecture.
Figure 1. Simplified Schematic
Typical topology is shown.
DC/DC CONVERTERS
www.cd4power.com
MDC_UWR15W_E05
Page of 2
POWER ELECTRONICS DIVISION
UWR Models
Single Output, High Density, 1" x 2" 6 Amp/15 Watt, 1.2-15V
OUT
DC/DC's
➀
Input
Regulation (Max.)
Line
Load
➂
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.075%
±0.1%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.25%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
➃
➄
➅
➆
Performance Specifications and Ordering Guide
Output
Root Model
➆
UWR-1.2/6000-D12A
UWR-1.2/6000-D24A
UWR-1.2/6000-D48A
UWR-1.5/6000-D12A
UWR-1.5/6000-D24A
UWR-1.5/6000-D48A
UWR-1.8/6000-D12A
UWR-1.8/6000-D24A
UWR-1.8/6000-D48A
UWR-2/6000-D12A
UWR-2/6000-D24A
UWR-2/6000-D48A
UWR-2.5/6000-D12A
UWR-2.5/6000-D24A
UWR-2.5/6000-D48A
UWR-3.3/4250-D12A
UWR-3.3/4250-D24A
UWR-3.3/4250-D48A
UWR-3.3/4500-D48ANT
➄
UWR-5/3000-D12A
UWR-5/3000-D24A
UWR-5/3000-D48A
UWR-5/3000-D48ANST
➅
UWR-12/1250-D12A
UWR-12/1250-D24A
UWR-12/1250-D48A
UWR-15/1000-D12A
UWR-15/1000-D24A
UWR-15/1000-D48A
V
OUT
(Volts)
1.2
1.2
1.2
1.5
1.5
1.5
1.8
1.8
1.8
2
2
2
2.5
2.5
2.5
3.3
3.3
3.3
3.3
5
5
5
5
12
12
12
15
15
15
I
OUT
(mA)
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
4250
4250
4250
4500
3000
3000
3000
3000
1250
1250
1250
1000
1000
1000
R/N (mVp-p)
➁
Typ.
Max.
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
85
85
85
85
85
85
85
85
85
85
85
85
85
85
55
55
55
55
55
55
55
55
55
55
55
55
55
50
55
100
100
100
100
100
100
100
100
100
100
100
100
100
100
V
IN
Nom.
(Volts)
12
24
48
12
24
48
12
24
48
12
24
48
12
24
48
12
24
48
48
12
24
48
48
12
24
48
12
24
48
Range
(Volts)
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
36-75
10-18
18-36
36-75
36-75
10-18
18-36
36-75
10-18
18-36
36-75
I
IN
➃
(mA)
85/914
50/454
40/226
75/914
40/454
25/226
70/1084
35/539
25/268
80/1176
55/588
25/291
80/1489
45/727
25/367
80/1375
45/672
35/336
35/356
110/1471
55/710
35/355
35/355
45/1471
45/718
20/359
45/1471
45/718
20/359
Efficiency
Min.
Typ.
TBD
TBD
TBD
77.5%
78%
78.5%
81%
82.5%
83%
83%
83%
84%
83%
84.75%
84%
83%
84.5%
85%
85%
83%
85.5%
85.5%
85.5%
82.5%
85%
85%
82.5%
85%
85%
78%
79%
80%
79.5%
80%
80.5%
83%
84.5%
85%
85%
85%
86%
86%
86%
86%
86%
87%
87%
87%
85%
88%
88%
88%
85%
87%
87%
85%
87%
87%
Package
(Case,
Pinout)
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
➀
Typical at T
A
= +25°C under nominal line voltage and full-load conditions, unless otherwise noted.
➁
Ripple/Noise (R/N) is tested/speciifed over a 20MHz bandwidth. All models are specified with two
external 0.47µF multi-layer ceramic capacitors located 2-3 inches from the module being tested.
➂
Load regulation is specified over 10%-100% load conditions. 1.5-5V models are stable and
regulate under no-load conditions. 12/15V models have minimum loading requirements
See Performance/Functional Specifications.
P A R T
N U M b E R
S T R U C T U R E
Nominal line voltage, no-load/full-load conditions.
See page 12.
Special trim version. See Trim Equations, page 5. Quantity order required.
These are incomplete model numbers. Please refer to the Part Number Structure when
ordering.
S P E C I F I C A T I O N S
M E C h A N I C A L
U WR
-
5
/
3000
-
D48 A CT LX
-
C
Output Configuration:
U
= Unipolar
Wide Range Input
Nominal Output Voltage:
1.2, 1.5, 1.8, 2, 2.5, 3.3, 5, 12 or 15 Volts
Maximum Output Current
in mA
†
RoSh-6 Compliant
†
Optional Functions
See Last Page
A-Series
High Reliability
Input Voltage Range:
D12
= 10-18 Volts (12V nominal)
D24
= 18-36 Volts (24V nominal)
D48
= 36-75 Volts (48V nominal)
0.49
(2.45)
2.00
(50.80)
PLASTIC CASE
Case C14
STANDOFF
0.020 (0.5)
0.20 MIN
(5.08)
0.040 ±0.002 DIA.
(.06 ±0.05)
0.800
(20.32)
0.60
(5.24)
Not all model combinations are available, contact C&D for availabilty.
.00
(25.40)
4
1
2
3
5
0.00
(2.54)
0.800
(20.32)
Pin
1
2
3
I/O Connections
Function P22
Pin
Function P22
+Input
4
+Output
–Input
5
Trim*
On/Off Control*
6
Common
6
BOTTOM VIEW
0.400
(0.6)
* Pins 3 and 5 are optional.
See Optional Functions and
Technical Notes for details.
0.200
(5.08)
DIMENSION ARE IN INCHES (MM)
0.0
(2.54)
DC/DC CONVERTERS
www.cd4power.com
MDC_UWR15W_E05
Page 2 of 2
POWER ELECTRONICS DIVISION
UWR Models
Single Output, High Density, 1" x 2" 6 Amp/15 Watt, 1.2-15V
OUT
DC/DC's
Dynamic Characteristics (continued)
Switching Frequency
1.2V and 2V models
1.5V D48 models
1.8V D12 models
1.8V D24 models
1.8V D48 models
2.5 and 1.5 D12/D24 models
3.3-12V models
Operating Temperature
(Ambient):
Without Derating
➆
With Derating
Case Temperature:
Maximum Allowable
Storage Temperature
TBD
260kHz (±30kHz)
280kHz (±30kHz)
250kHz (±30kHz)
210kHz (±20kHz)
340kHz (±40kHz)
310kHz (±30kHz)
Performance/Functional Specifications
Typical @ T
A
= +25°C under nominal line voltage and full-load conditions, unless noted.
➀➁
Input
Input Voltage Range:
D12A Models
D24A Models
D48A Models
Overvoltage Shutdown:
D12A Models
D24A Models
D48A Models
Start-Up Threshold:
➂
D12A Models
D24A Models
D48A Models
Undervoltage Shutdown:
➂
D12A Models
D24A Models
D48A Models
Input Current:
Normal Operating Conditions
Standby Mode (Off, OV, UV)
Input Filter Type
Reverse-Polarity Protection
On/Off Control
(Optional, Pin 3):
➃ ➄
D12AC, D24AC, & D48AC Models
D12AN, D24AN, & D48AN Models
10-18 Volts (12V nominal)
18-36 Volts (24V nominal)
36-75 Volts (48V nominal)
18.5-21 Volts (20V typical)
37-41 Volts (38V typical)
77-81 Volts (78.5V typical)
9.4-10 Volts (9.6V typical)
16.5-18 Volts (17V typical)
34-36 Volts (35V typical)
7-8.5 Volts (8V typical)
15.5-17.5 Volts (16.5V typical)
32.5-35.5 Volts (34V typical)
See Ordering Guide
5mA
Pi
Brief duration, 10A maximum
On = open or 13V to +V
IN
, I
IN
= 50µA max.
Off = 0-0.8V, I
IN
= 1mA max.
On = 0-0.8V, I
IN
= 2.6mA max.
Off = open or 3.3-5.5V, I
IN
= 1mA max.
±1.5% (±2% for model UWR-1.2/6000)
Environmental
–40 to +60/70°C
to +100°C (See Derating Curves)
+100°C
–40 to +105°C
Physical
Dimensions
Shielding
Case Material
Pin Material
Weight
2" x 1" x 0.49" (51 x 25 x 12.45mm)
None
Diallyl phthalate, UL94V-0 rated
Gold-plated copper alloy with nickel
underplate
1.4 ounces (39.7 grams)
Output
V
OUT
Accuracy
(50% load):
Minimum Loading for Specification:
➁
1.2V/1.5V/1.8V/2.5V/3.3V/5V Outputs No load
12V/15V Outputs
10% of I
OUT
max.
Minimum Loading for Stability:
➁
1.2V/1.5V/1.8V/2.5V/3.3V/5V Outputs
12V/15V Outputs
Ripple/Noise
(20MHz BW)
➀ ➅
Line/Load Regulation
Efficiency
Isolation Voltage:
Input-to-Output
Isolation Capacitance
Isolation Resistance
Current Limiting:
1.2V-5V Outputs
12V and 15V Outputs
Overvoltage Protection
Temperature Coefficient
Transient Response
(50% load step)
1.2V-2.5V models
3.3V-15V models
Start-Up Time:
➂
V
IN
to V
OUT
On/Off to V
OUT
No load
25mA
See Ordering Guide
See Ordering Guide
See Ordering Guide
1500Vdc minimum (functional)
470pF
100MΩ
Hiccup technique, auto-recovery
Power-limiting technique, auto-recovery
Zener/transorb clamp, magnetic feedback
±0.04% per °C
➀
All models are specified with two external 0.47µF multi-layer ceramic capacitors installed
across their output pins.
➁
See Minimum Output Loading Requirements under Technical Notes.
➂
See Technical Notes for details.
➃
The On/Off Control and Trim functions are optional and must be installed by C&D.
See Optional Functions or contact C&D for details.
➄
The On/Off Control is designed to be driven with open-collector logic or the application of
appropriate voltages (referenced to –Input, pin 2). Applying a voltage to the On/Off Control
pin when no input voltage is applied to the converter may cause permanent damage.
See Technical Notes.
➅
Output noise maybe further reduced with the addition of additional external output
capacitors. See Technical Notes.
➆
Operating temperature range without derating is model and input-voltage dependent.
See Temperature Derating.
Absolute Maximum Ratings
Input Voltage:
Continuous:
D12 Models
D24 Models
D48 Models
Transient (100msec):
D12 Models
D24 Models
D48 Models
Input Reverse-Polarity Protection
Output Overvoltage Protection:
1.2V/1.5/1.8V Outputs
2V/2.5V/3.3V Outputs
5V/12V/15V Outputs
Output Current
22 Volts
44 Volts
88 Volts
50 Volts
50 Volts
100 Volts
Current must be <10 Amps. Brief
duration only. Fusing recommended.
2.1/2.2/2.3 Volts, unlimited duration
TBD/3.4/4.4 Volts, unlimited duration
7.1/16/18 Volts, unlimited duration
Current limited. Devices can
withstand sustained output short
circuits without damage.
+100°C
–40 to +105°C
+300°C
Dynamic Characteristics
200µsec max. to ±2% of final value
200µsec max. to ±1.5% of final value
50msec
30msec
Case Temperature
Storage Temperature
Lead Temperature
(soldering, 10 sec.)
These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.
DC/DC CONVERTERS
www.cd4power.com
MDC_UWR15W_E05
Page 3 of 2
POWER ELECTRONICS DIVISION
T E C h N I C A L
N O T E S
UWR Models
Single Output, High Density, 1" x 2" 6 Amp/15 Watt, 1.2-15V
OUT
DC/DC's
Trimming Output Voltages
These converters have a trim capability (pin 5) that allows users to adjust the
output voltage ±5%. Adjustments to the output voltage can be accomplished
via a trim pot, Figure 2, or a single fixed resistor as shown in Figures 3 and 4.
A single fixed resistor can increase or decrease the output voltage depending
on its connection. Fixed resistors should have an absolute TCR less than
100ppm/°C to minimize sensitivity to changes in temperature.
A single resistor connected from the Trim (pin 5) to the +Output (pin 4), see
Figure 3, will decrease the output voltage. A resistor connected from the Trim
(pin 5) to Output Common (pin 6) will increase the output voltage.
Trim adjustment greater than 5% can have an adverse effect on the convert-
er's performance and is not recommended.
4
Floating Outputs
Since these are isolated DC/DC converters, their outputs are "floating."
Designers will usually use the output Common (pin 6) as the ground/return of
the load circuit. You can, however, use the +Output (pin 4) as ground/return to
effectively reverse the output polarity.
Minimum Output Loading Requirements
1.2 to 5V models employ a synchronous-rectifier design topology. All models
regulate within spec and are stable under no-load conditions. 12/15V models
employ a traditional forward architecture and require 10% loading (125mA for
12V models, 100mA for 15V models) to achieve their listed regulation specs.
12/15V models also have a minimum-load-for-stability requirement (20mA).
For 12/15V models, operation below 20mA or 10% loading will be stable but
regulation may degrade. A 100µF output capacitor is recommended below
10% loading. Users should verify whether this relaxed regulation will have
any effect on output circuits. If so, add a small load of 10% or greater.
Operation under no-load conditions will not damage 12/15V converters.
However they may not meet all listed specifications.
Filtering and Noise Reduction
All A-Series UWR DC/DC Converters achieve their rated ripple and noise
specifications using the external input and output capacitors specified in the
Performance/Functional Specifications table. In critical applications, input/
output noise may be further reduced by installing additional external I/O caps.
Input capacitors should be selected for bulk capacitance, low ESR and high
rms-ripple-current ratings. Output capacitors should be selected for low ESR
and appropriate frequency response. All caps should have appropriate volt-
age ratings and be mounted 2-3 inches from the converter to achieve
published ratings.
The most effective combination of external I/O capacitors will be a function
of your particular load and layout conditions. Our Applications Engineers will
be happy to recommend potential solutions and can discuss the possibility of
our modifying a given device’s internal filtering to meet your specific require-
ments. Contact our Applications Engineering Group for additional details.
Input Fusing
Certain applications and/or safety agencies may require the installation of
fuses at the inputs of power conversion components. Fuses should also be
used if the possibility of sustained, non-current-limited, input-voltage polarity
reversals exists. For C&D A-Series UWR 7-15 Watt DC/DC Converters, you
should use slow-blow type fuses with values no greater than the following.
V
IN
Range
"D12A" Models
"D24A" Models
"D48A" Models
Fuse Value
3 Amps
2 Amps
1 Amp
+INPUT
+OUTPUT
2
–INPUT
TRIM
5
20kΩ
5-22
Turns
LOAD
3
ON/OFF
CONTROL
COMMON
6
Figure 2. Trim Connections Using A Trim Pot
+INPUT
+OUTPUT
4
R
TRIM DOWN
2
–INPUT
TRIM
5
LOAD
3
ON/OFF
CONTROL
COMMON
6
Figure 3. Trim Connections To Decrease Output Voltage Using Fixed Resistors
+INPUT
+OUTPUT
4
2
–INPUT
TRIM
5
LOAD
R
TRIM UP
3
ON/OFF
CONTROL
COMMON
6
Figure 4. Trim Connections To Increase Output Voltage Using Fixed Resistors
DC/DC CONVERTERS
www.cd4power.com
MDC_UWR15W_E05
Page 4 of 2
POWER ELECTRONICS DIVISION
UWR Models
Single Output, High Density, 1" x 2" 6 Amp/15 Watt, 1.2-15V
OUT
DC/DC's
Trim Equation
Model
Trim Equation
Model
Start-Up Threshold and Undervoltage Shutdown
Under normal start-up conditions, devices will not begin to regulate until the
ramping-up input voltage exceeds the Start-Up Threshold Voltage (35V for
"D48A" models). Once operating, devices will not turn off until the input volt-
age drops below the Undervoltage Shutdown/Lockout limit (34V for "D48A"
models). Subsequent re-start will not occur until the input is brought back
up to the Start-Up Threshold. This built-in hysteresis obviously avoids any
indeterminate on/off situations at a single voltage.
Start-Up Time
The V
IN
to V
OUT
Start-Up Time is the interval between the time at which
a ramping input voltage crosses the turn-on threshold point and the fully-
loaded output voltage enters and remains within its specified accuracy band.
Actual measured times will vary with input source impedance, external input
capacitance, and the slew rate and final value of the input voltage as it
appears to the converter.
The On/Off to V
OUT
Start-Up Time assumes the converter is turned off via
the On/Off Control with the nominal input voltage already applied to the
converter. The specification defines the interval between the time at which the
converter is turned on and the fully-loaded output voltage enters and remains
within its specified accuracy band.
Accuracy of adjustment is subject to tolerances or resistor values and
factory-adjusted output accuracy. V
O
= desired output voltage.
DC/DC CONVERTERS
www.cd4power.com
MDC_UWR15W_E05
Page 5 of 2
Industrial Control Electronics
京公网安备 11010802033920号
EEWORLD
