DPD48J15 datasheet, PDF - EEWORLD Datasheet

DPD48J15: DescriptionAnalog Circuit, Hybrid; CategoryAnalog mixed-signal IC The signal circuit; File Size215KB，8 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

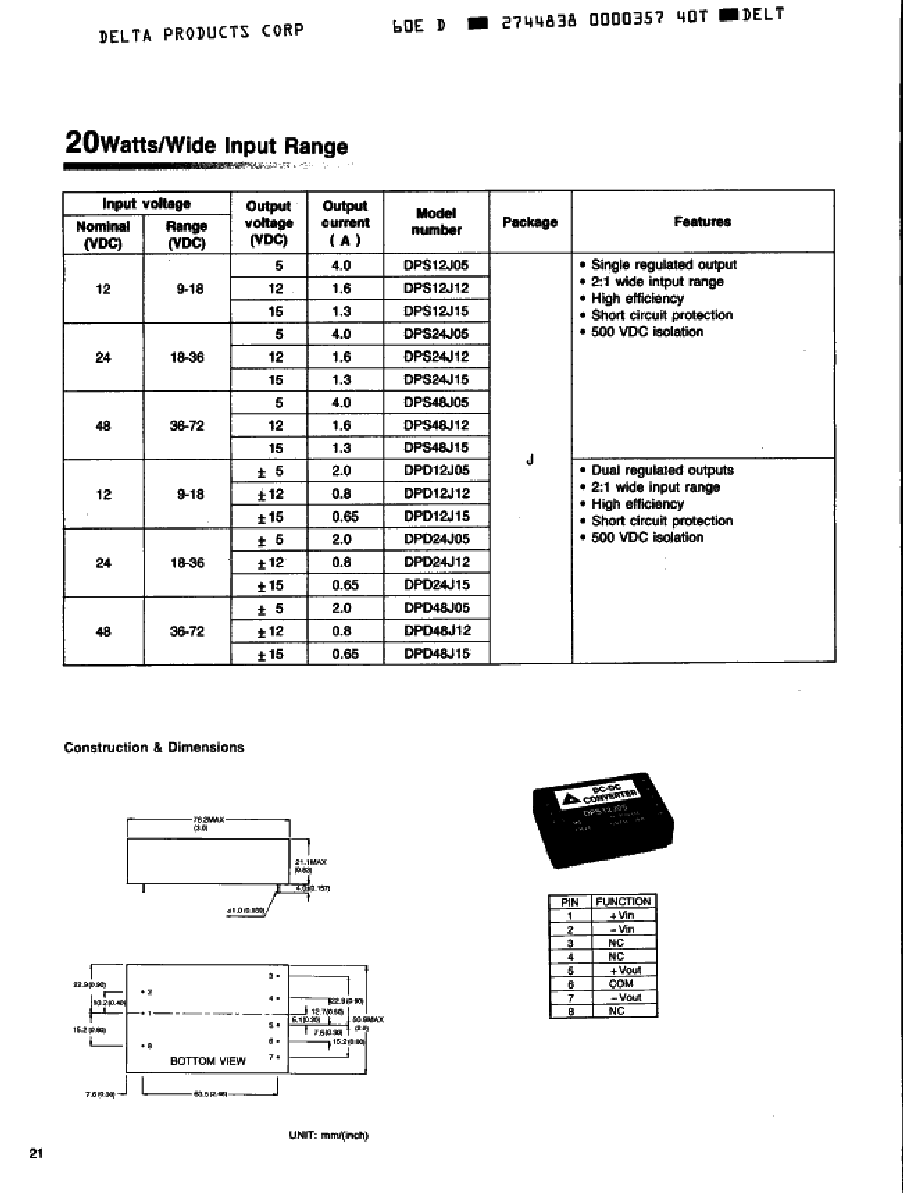

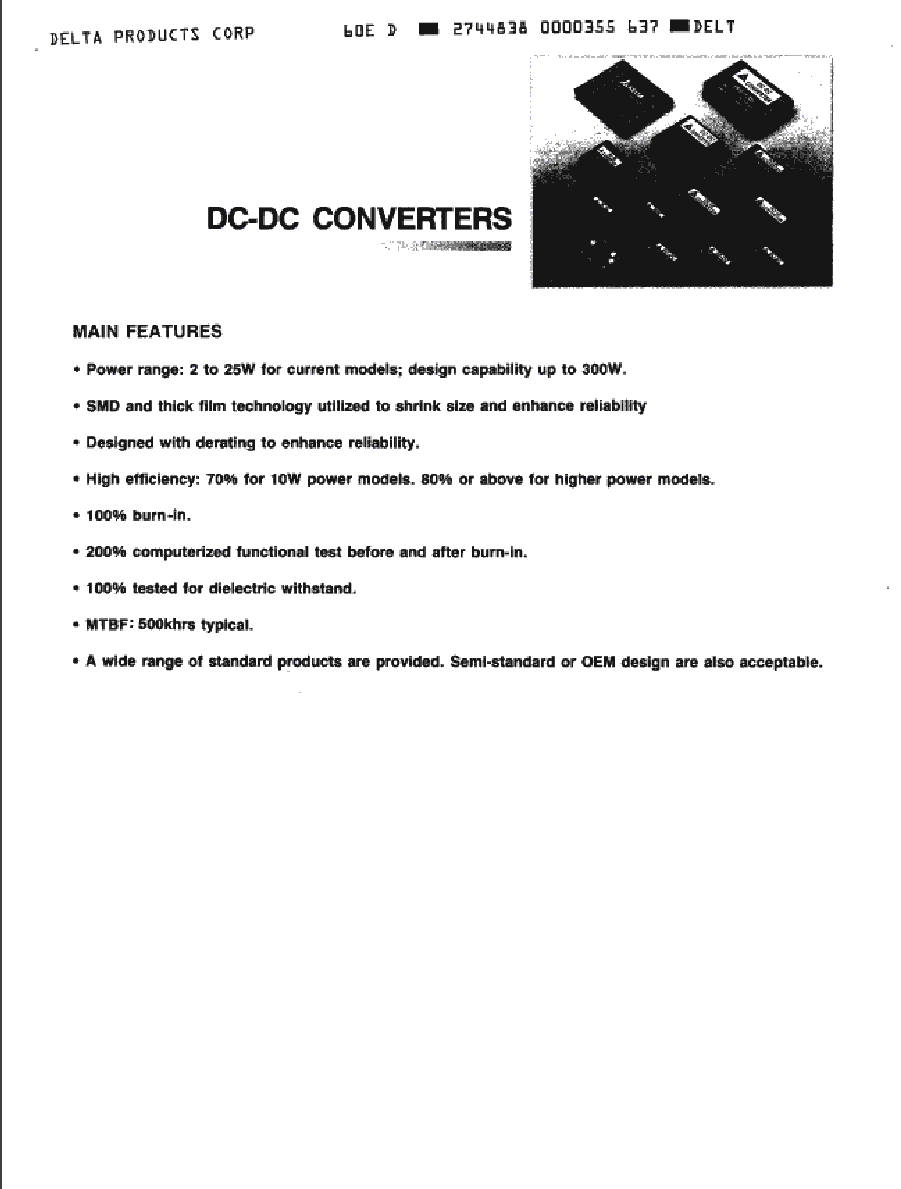

DPD48J15 Overview

Analog Circuit, Hybrid

Parameter Name	Attribute value
package instruction	, MODULE,8LEAD,2.5
Reach Compliance Code	compliant
Maximum input voltage	72 V
Minimum input voltage	36 V
Number of terminals	8
Maximum output current	0.65 A
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,8LEAD,2.5
Package form	MICROELECTRONIC ASSEMBLY
technology	HYBRID
Base Number Matches	1

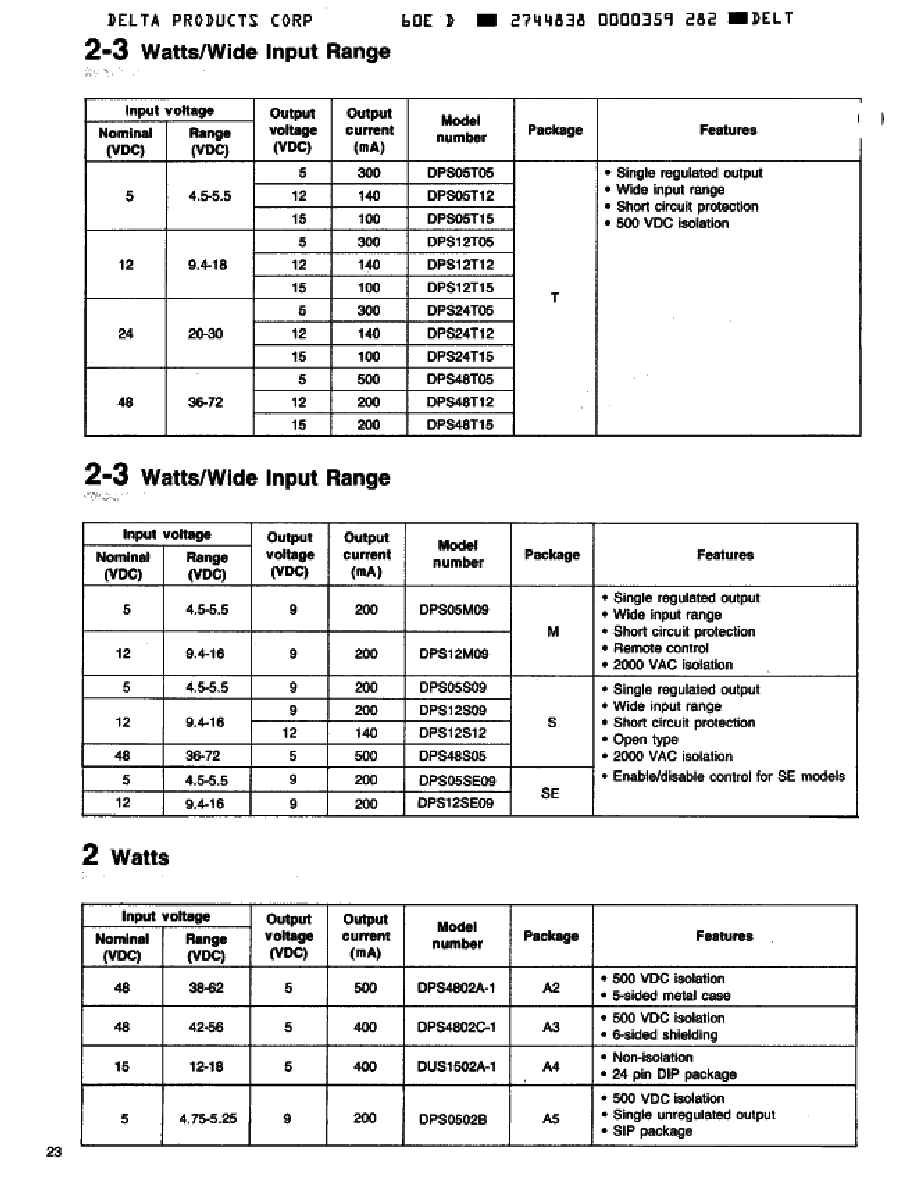

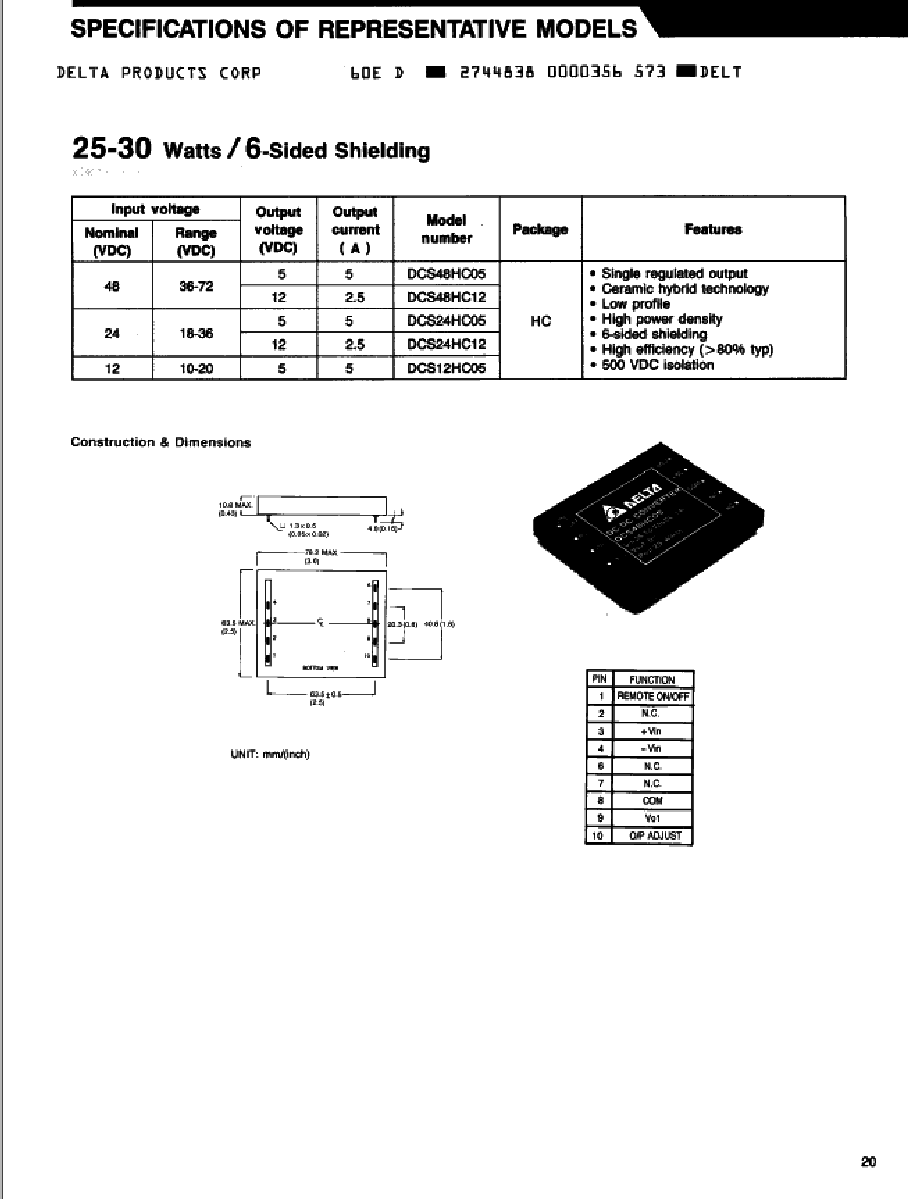

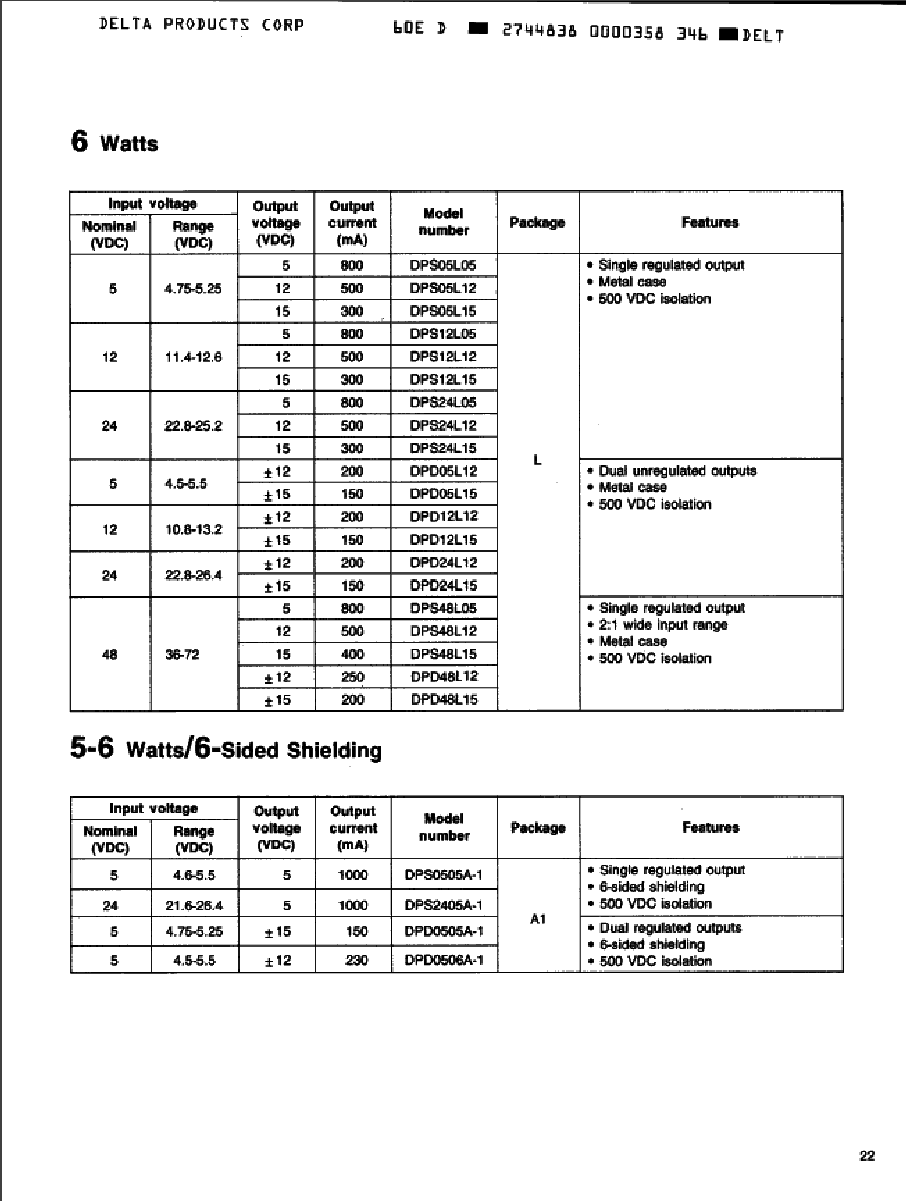

	DPD48J15	DPD12J05	DPD48J05	DPD48J12	DPD24J05	DPD24J12	DPD24J15	DPD24L15	DPD24L12
Description	Analog Circuit, Hybrid	Analog Circuit, Hybrid	Analog Circuit, Hybrid	Analog Circuit, Hybrid	Analog Circuit, Hybrid	Analog Circuit, Hybrid	Analog Circuit, Hybrid	Analog Circuit, Hybrid	Analog Circuit, Hybrid
package instruction	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,5LEAD,.8	, MODULE,5LEAD,.8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum input voltage	72 V	18 V	72 V	72 V	36 V	36 V	36 V	26.4 V	26.4 V
Minimum input voltage	36 V	9 V	36 V	36 V	18 V	18 V	18 V	22.8 V	22.8 V
Number of terminals	8	8	8	8	8	8	8	5	5
Maximum output current	0.65 A	2 A	2 A	0.8 A	2 A	0.8 A	0.65 A	0.15 A	0.2 A
Nominal output voltage	15 V	5 V	5 V	12 V	5 V	12 V	15 V	15 V	12 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	METAL
Encapsulate equivalent code	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,5LEAD,.8	MODULE,5LEAD,.8
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Base Number Matches	1	1	1	1	1	1	1	-	-
