DT35-2008AS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> DT35-2008AS

Preview

DT35-2008AS: DescriptionTelecom Transformer; CategoryPower management transformer; File Size51KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

DT35-2008AS Overview

Telecom Transformer

DT35-2008AS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1
Maximum DC unbalanced current	0.06 mA
high	12.5 mm
length	14 mm
Manufacturer's serial number	DT35-2008AS
Installation features	SURFACE MOUNT
physical size	14.0mm X 13.5mm X 12.5mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Telecommunication

DT35-2004AS

DT35-2005AS

DT35-2008AS

10

COMMON MODE CHOKE

Transformers

DT35-XXXXXX

DELTAXXXX

A

10

6

5

B

XXXX : DATE CODE

WHITE DOT ON PIN1

0.3

0.4x0.7 TIN PLATED

PHOSPHOR BRONZE

D

6

1

6

N1

N2

SEC

C

E

PRI

5

10

1

5

DIMENSIONS IN mm

A

12.5 MAX.

B

13.5 MAX.

C

17.10 0.2

D

2.54 0.2

E

14.0 MAX.

F

G

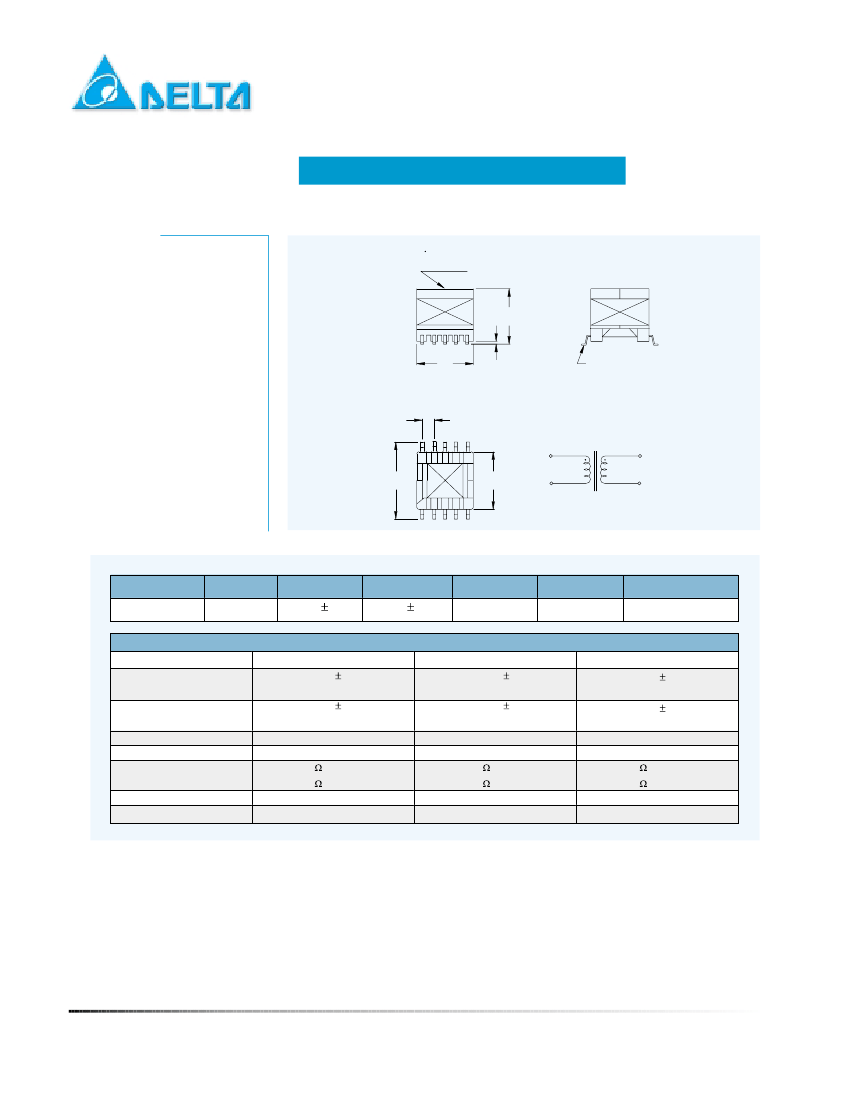

ELECTRICAL CHARACTERISTICS

DT35-2004AS

T.R

L

L.K

C

D.C.R

HI-POT

SCHEMATIC

(N1:N2): 1:1 5%

@10KHz 0.1V

PRI: 3.0mH

5%

@10KHz 0.1V 100mA

----------------

N1: 2.5

N2: 2.5

Max.

1

DT35-2005AS

(N1:N2): 1:1 5%

@10KHz 0.1V

PRI: 6.0mH

5%

@10KHz 0.1V

----------------

N1: 4.0

N2: 4.0

Max.

1

DT35-2008AS

(N1:N2): 1:1 5%

@10KHz 0.1V

PRI: 9.0mH

10%

@10KHz 0.1V 60mA

----------------

N1: 5.0

N2: 5.0

Max.

1

1500 VAC 2 SEC

1250 VAC 1 SEC

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

31-1, SHIEN PAN ROAD, KUEI SAN INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.

TEL: 886-3-3626301 FAX: 886-3-3618901

http://www.deltaww.com

6

DT35-2008AS Related Products

	DT35-2008AS	DT35-2005AS	DT35-2004AS
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer
Reach Compliance Code	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1
high	12.5 mm	12.5 mm	12.5 mm
length	14 mm	14 mm	14 mm
Manufacturer's serial number	DT35-2008AS	DT35-2005AS	DT35-2004AS
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
physical size	14.0mm X 13.5mm X 12.5mm	14.0mm X 13.5mm X 12.5mm	14.0mm X 13.5mm X 12.5mm
surface mount	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	13.5 mm	13.5 mm	13.5 mm
Maximum DC unbalanced current	0.06 mA	-	0.1 mA
Base Number Matches	1	1	-
