ATTENUATOR
CHIP 2 WATT
DATA SHEET

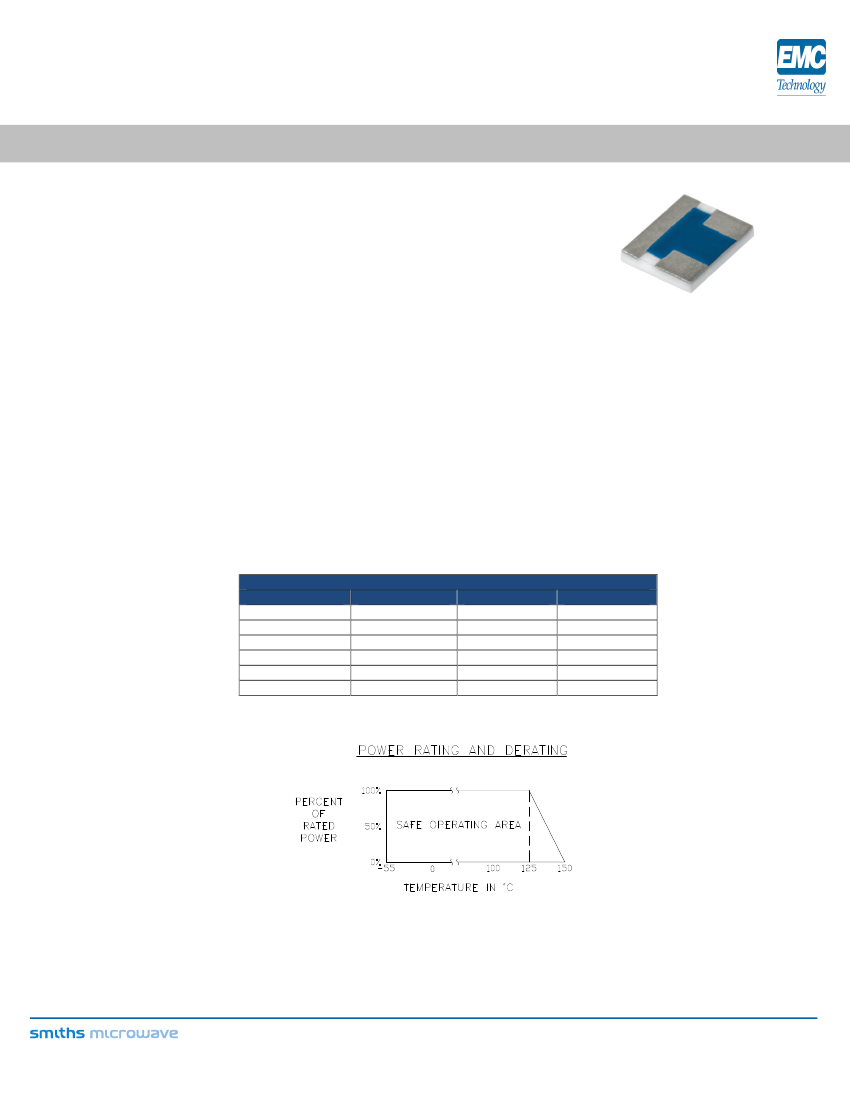

FEATURES
Small Footprint
High Power
Surface Mount
Low VSWR
Easy Installation
Wide Attenuation Offering
PART SERIES: TS03XXS
APPLICATIONS
Mobile Networks
Broadcast
High Power Amplifiers
Isolators/Circulators
Military
Instrumentation
SHEET 1 OF 3
Dwg 1000445
EN 16-0604
Revision L
GENERAL DESCRIPTION
EMC Technology offers the widest selection of chip attenuators worldwide. Chip components are offered in Alumina, Aluminum Nitride,
Beryllium Oxide, and CVD diamond for maximum performance.
ORDERING INFORMATION
Part Identifier:
TS03XXS
(XX) – dB Value
SPECIFICATIONS
1.0 ELECTRICAL
Nominal Impedance:
Frequency Range:
Attenuation Values Available:
Attenuation Accuracy:
ATTENUATION ACCURACY
dB
DC – 4 GHz
4 – 8 GHZ
8 – 12.4 GHz
0
+0.3, -0.0
+0.5, -0.0
+0.5, -0.0
1–3
±0.3
±0.5
±0.5
4–6
±0.4
±0.5
±0.5
7 – 10
±0.5
±0.5
±0.75
11 – 15
±0.75
+0.5,-3.0
+0.5,-3.5
16 - 20
±1.0
+0.5,-4.0
+1.0,-6.0
2 Watts full rated power to 125°c, derated linearly to 0 watts at 150°c.
50 ohms
DC – 12.4 GHz
0 – 20 in 1 dB increments
Input Power CW:
Peak Power:
VSWR:
50 watts for 10us pulse width @ 1% duty cycle.
DC – 4 GHz - 1.25:1
4 – 8 GHz - 1.35:1
8 - 12 GHz - 1.50:1
Form 423F110
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
ATTENUATOR
CHIP 2 WATT
DATA SHEET
PART SERIES: TS03XXS
SHEET 2 OF 3
Dwg 1000445
EN 16-0604
Revision L
2.0 ENVIRONMENTAL
Operating Temperature:
Non-operating Temperature:
Temperature Coefficient:
Altitude Non-Operating:
Altitude Operating:
Vibration:
Shock:
Moisture Resistance:
-55˚C to +150˚C
-55˚C to +150˚C
+/-200 PPM / ˚C max
Sea Level to 50,000 Feet.
Sea Level to 50,000 Feet.
Per MIL-STD-202, METHOD 204, COND. D.
Per MIL-STD-202, METHOD 213, COND. I.
Per MIL-STD-202, METHOD 106 Except Sub cycle Steps 7a and
7b. Polarization and Load Are Not Applicable.
3.0 MARKING
Unit Marking:
“dB Value”
4.0 QUALITY ASSURANCE
Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.
Visual and Mechanical Inspection for Conformance to Outline Drawing
Measure Attenuation and VSWR
Data Retention - Standard
5.0 PACKAGING
Standard Packaging:
Tape and Reel
6.0 MECHANICAL
Resistive Film:
Terminal Material:
Metric Dimensions:
Workmanship
Thin Film, Tantalum Nitride
Thick Film, Nickel Barrier, Solder Fused
Provided for reference only
PER MIL-R-55342
Form 423F110
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
ATTENUATOR
CHIP 2 WATT
DATA SHEET
PART SERIES: TS03XXS
SHEET 3 OF 3
Dwg 1000445
EN 16-0604
Revision L
Unless Otherwise Specified:
TOLERANCE: X.XXX = ± 0.005

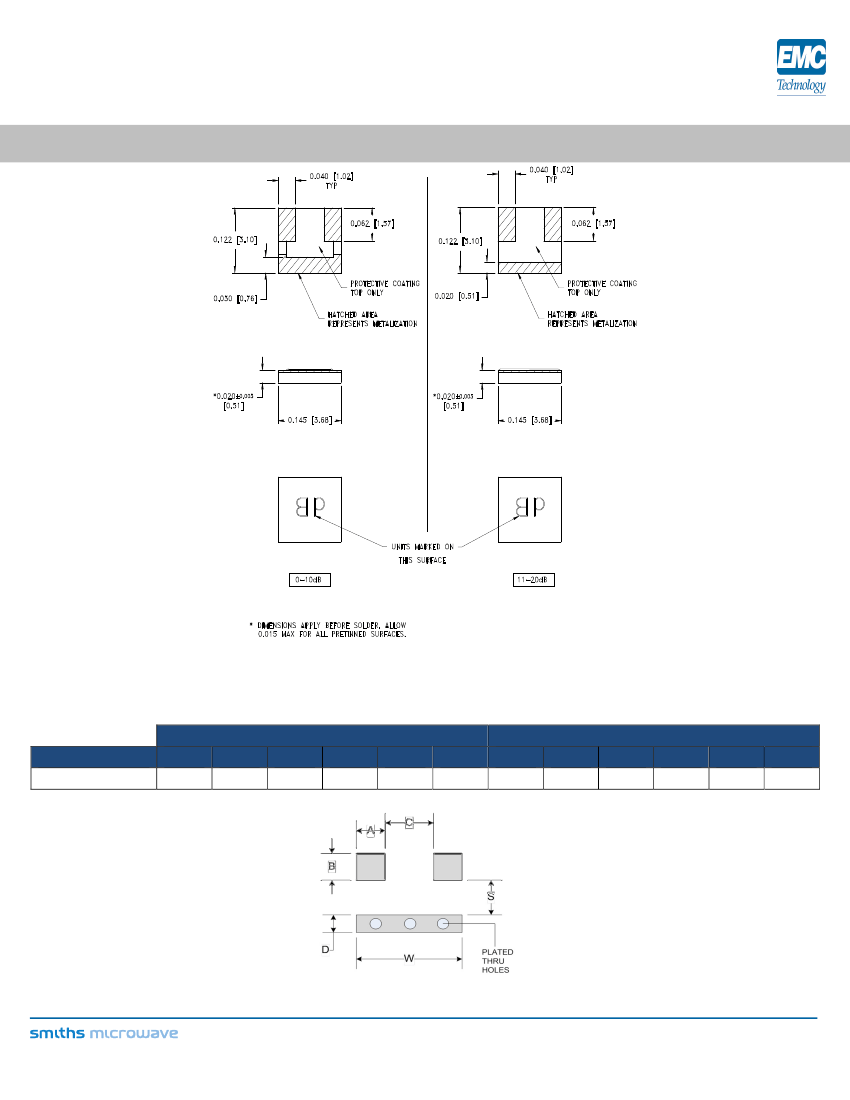

7.0 SUGGESTED MOUNTING FOOTPRINT
Inches
Part Number
TS03XXS
A
0.043
B
0.065
C
0.065
D
0.025
S
0.040
W
0.150
A
1.09
B
1.65
C
1.65
mm
D
0.64
S
1.02
W
3.81
Form 423F110
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
