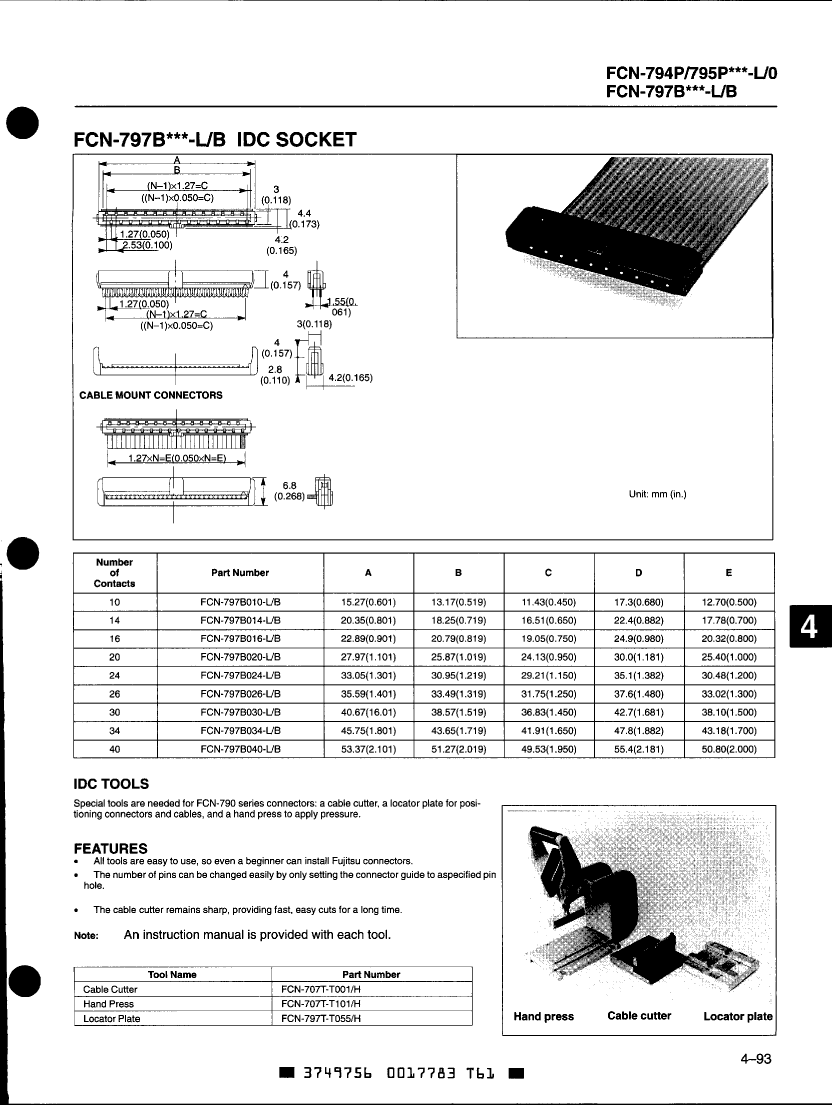

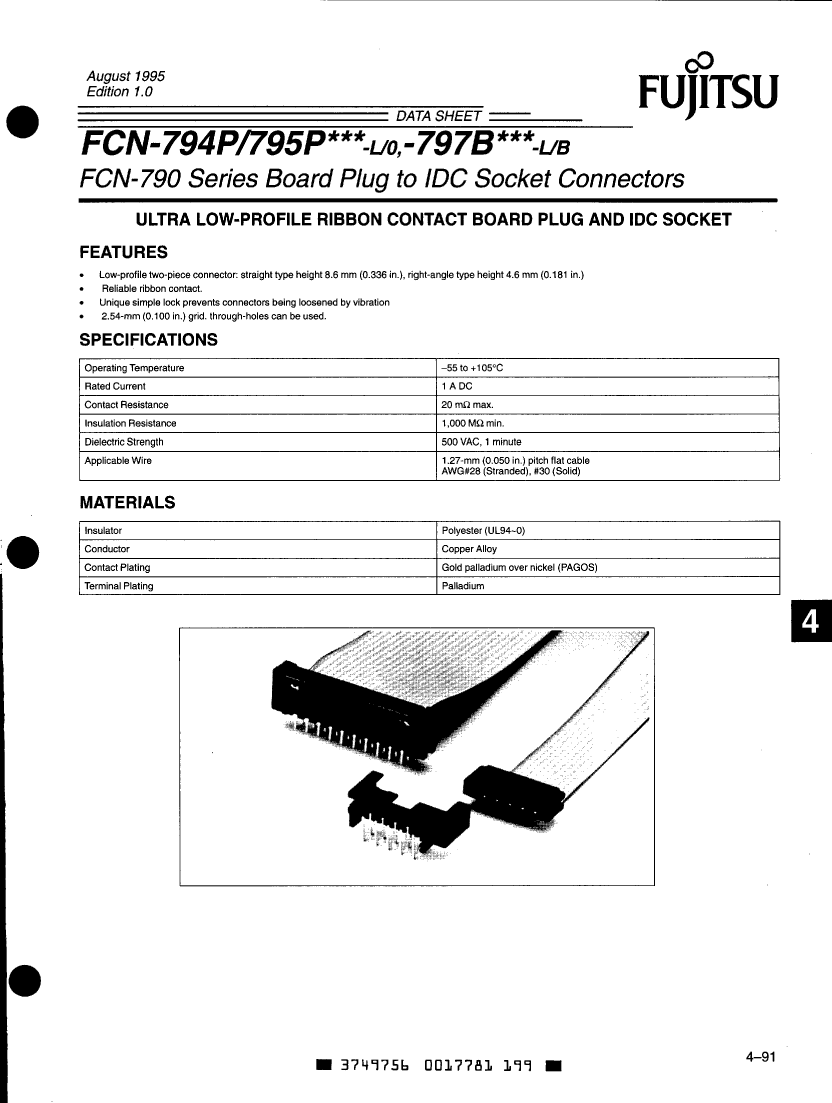

Board Connector, 16 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.173 inch |
| subject depth | 0.268 inch |
| body length | 0.901 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | PD-NI OVER NI |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | STAGGERED |
| Contact resistance | 20 mΩ |
| Dielectric withstand voltage | 500VAC V |
| Durability | 500 Cycles |
| Insulation resistance | 1000000000 Ω |
| insulator material | POLYESTER |
| Manufacturer's serial number | FCN-797B |
| Plug contact pitch | 0.1 inch |
| Installation type | CABLE |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Plating thickness | 3u inch |
| polarization key | CENTER |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Termination type | IDC |
| Total number of contacts | 16 |
| Maximum wire diameter | 28 AWG |
| Minimum wire diameter | 30 AWG |
| Base Number Matches | 1 |
| FCN-797B016-L/B-HN | FCN-797B010-L/B-HN | FCN-797B014-L/B-HN | FCN-797B020-L/B-HN | FCN-797B024-L/B-HN | FCN-797B026-L/B-HN | FCN-797B030-L/B-HN | BZW04-33B | FCN-797B040-L/B-HN | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 16 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug | Board Connector, 10 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug | Board Connector, 14 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug | Board Connector, 20 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug | Board Connector, 24 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug | Board Connector, 26 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug | Board Connector, 30 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug | 400 Watts Transient Voltage Suppressor Diodes | Board Connector, 40 Contact(s), Female, 0.1 inch Pitch, IDC Terminal, Plug |
| Reach Compliance Code | unknown | unknown | unknown | compliant | unknown | unknown | unknown | - | unknown |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 | - | - | - | EAR99 |
| body width | 0.173 inch | 0.173 inch | 0.173 inch | 0.173 inch | 0.173 inch | 0.173 inch | 0.173 inch | - | 0.173 inch |
| subject depth | 0.268 inch | 0.268 inch | 0.268 inch | 0.268 inch | 0.268 inch | 0.268 inch | 0.268 inch | - | 0.268 inch |
| body length | 0.901 inch | 0.601 inch | 0.801 inch | 1.101 inch | 1.301 inch | 1.401 inch | 1.601 inch | - | 2.101 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | - | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | - | AU ON NI |
| Contact completed and terminated | PD-NI OVER NI | PD-NI OVER NI | PD-NI OVER NI | PD-NI OVER NI | PD-NI OVER NI | PD-NI OVER NI | PD-NI OVER NI | - | PD-NI OVER NI |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | - | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | - | COPPER ALLOY |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | - | STAGGERED |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | - | 20 mΩ |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | - | 500VAC V |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | - | 500 Cycles |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - | 1000000000 Ω |
| insulator material | POLYESTER | POLYESTER | POLYESTER | POLYESTER | POLYESTER | POLYESTER | POLYESTER | - | POLYESTER |
| Manufacturer's serial number | FCN-797B | FCN-797B | FCN-797B | FCN-797B | FCN-797B | FCN-797B | FCN-797B | - | FCN-797B |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - | 0.1 inch |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | - | CABLE |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | - | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | - | -55 °C |
| Plating thickness | 3u inch | 3u inch | 3u inch | 3u inch | 3u inch | 3u inch | 3u inch | - | 3u inch |
| polarization key | CENTER | CENTER | CENTER | CENTER | CENTER | CENTER | CENTER | - | CENTER |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | - | 1 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | - | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Termination type | IDC | IDC | IDC | IDC | IDC | IDC | IDC | - | IDC |
| Total number of contacts | 16 | 10 | 14 | 20 | 24 | 26 | 30 | - | 40 |
| Maximum wire diameter | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG | - | 28 AWG |
| Minimum wire diameter | 30 AWG | 30 AWG | 30 AWG | 30 AWG | 30 AWG | 30 AWG | 30 AWG | - | 30 AWG |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 |
