3SK318YB-TL-E: DescriptionSilicon N-Channel Dual Gate MOS FET UHF RF Amplifier; CategoryDiscrete semiconductor The transistor; File Size174KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

3SK318YB-TL-E Overview

Silicon N-Channel Dual Gate MOS FET UHF RF Amplifier

3SK318YB-TL-E Parametric

Parameter Name	Attribute value
Parts packaging code	SC-82A
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW NOISE
Configuration	SINGLE
Minimum drain-source breakdown voltage	6 V
Maximum drain current (ID)	0.02 A
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, DEPLETION MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	18 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

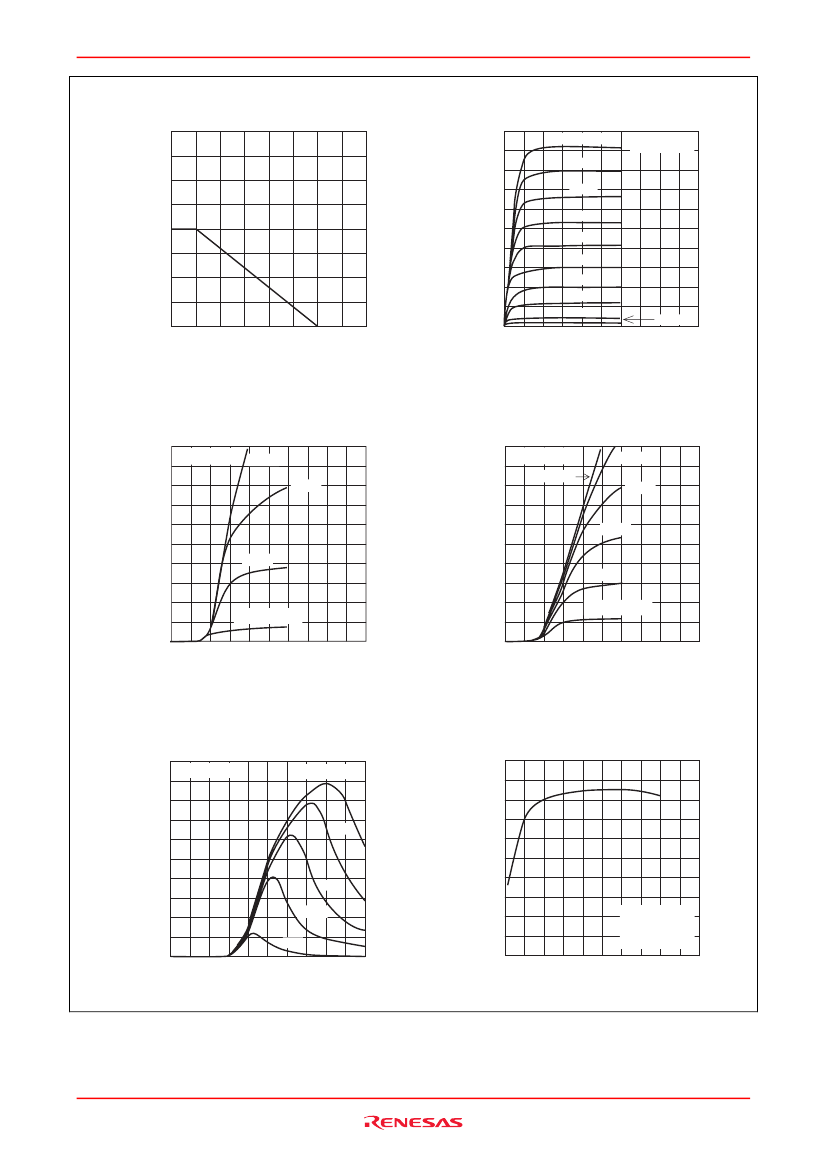

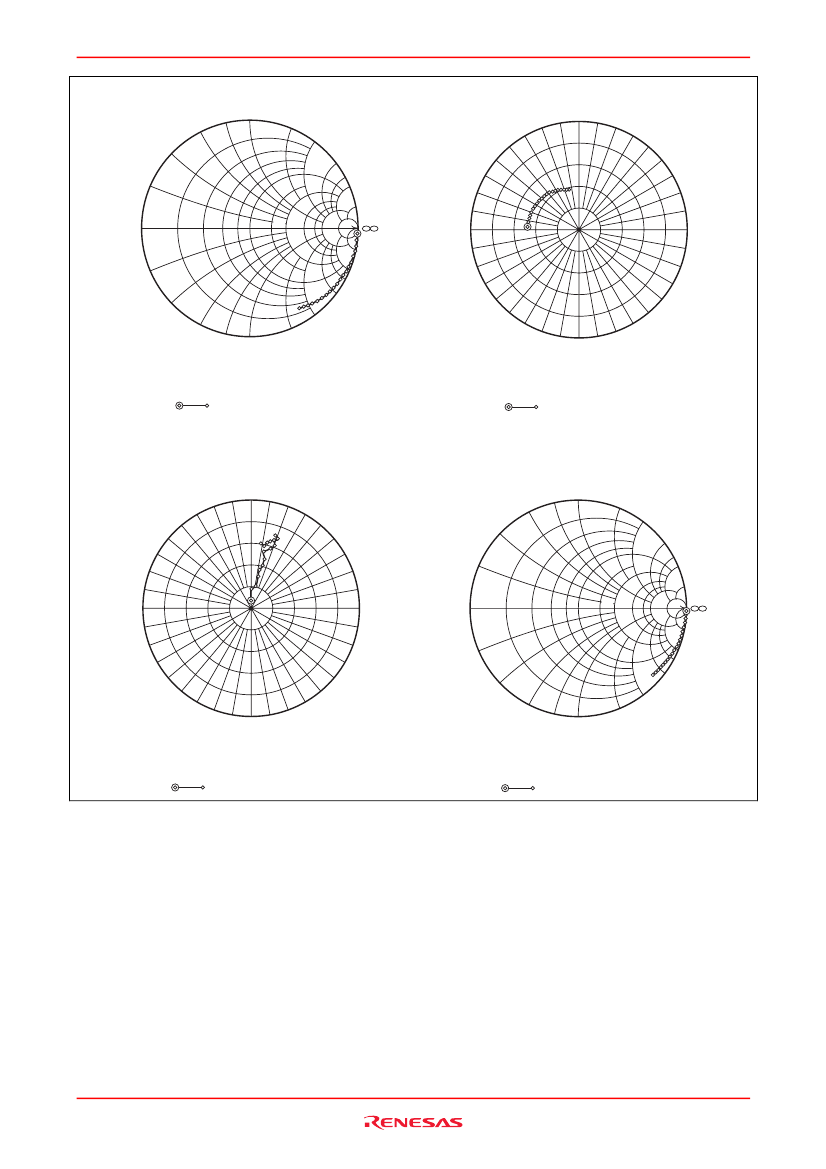

Preview

Download Datasheet

View All

3SK318

Silicon N-Channel Dual Gate MOS FET

UHF RF Amplifier

REJ03G0819-0200

(Previous ADE-208-600)

Rev.2.00

Aug.10.2005

Features

•

Low noise characteristics;

(NF= 1.4 dB typ. at f= 900 MHz)

•

Excellent cross modulation characteristics

•

Capable low voltage operation; +B= 5V

Outline

RENESAS Package code: PTSP0004ZA-A

(Package name: CMPAK-4)

1. Source

2. Gate1

3. Gate2

4. Drain

Note:

Marking is “YB–“.

Rev.2.00 Aug 10, 2005 page 1 of 7

3SK318YB-TL-E Related Products

	3SK318YB-TL-E	3SK318
Description	Silicon N-Channel Dual Gate MOS FET UHF RF Amplifier	Silicon N-Channel Dual Gate MOS FET UHF RF Amplifier
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Contacts	4	4
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE
Configuration	SINGLE	SINGLE
Minimum drain-source breakdown voltage	6 V	6 V
Maximum drain current (ID)	0.02 A	0.02 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4
Number of components	1	1
Number of terminals	4	4
Operating mode	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Minimum power gain (Gp)	18 dB	18 dB
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
