RD74LVC1G125WPE Overview

Bus Buffer with 3-state Output

RD74LVC1G125WPE Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	BGA
package instruction	VFBGA,
Contacts	5
Reach Compliance Code	compli
series	LVC/LCX/Z
JESD-30 code	R-PBGA-B5
length	1.1 mm
Logic integrated circuit type	BUFFER
Number of functions	1
Number of entries	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	VFBGA
Package shape	RECTANGULAR
Package form	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	0.4 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.65 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.4 mm
Terminal location	BOTTOM
width	0.7 mm

Preview

Download Datasheet

View All

RD74LVC1G125

Bus Buffer with 3–state Output

REJ03D0731–0100

Rev.1.00

Apr 13, 2006

Description

The RD74LVC1G125 has bus buffer with 3–state output in a 5-pin package. Low voltage and high-speed operation is

suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the

battery life.

Features

The basic gate function is lined up as renesas uni logic series.

Supply voltage range: 1.65 to 5.5 V

Operating temperature range: –40 to +85°C

All inputs: V

(Max.) = 5.5 V (@V

= 0 V to 5.5 V)

All outputs: V

(Max.) = 5.5 V (@V

= 0 V)

Output current:

±4 mA (@V

= 1.65 V)

±8 mA (@V

= 2.3 V)

±24 mA (@V

= 3.0 V)

±32 mA (@V

= 4.5 V)

•

Ordering Information

Part Name

RD74LVC1G125WPE

Package Type

WCSP–5 pin

Package Code

(Previous Code)

SXBG0005LB–A

(TBS–5CV)

Package

Abbreviation

Taping Abbreviation

(Quantity)

E (3,000 pcs/reel)

•

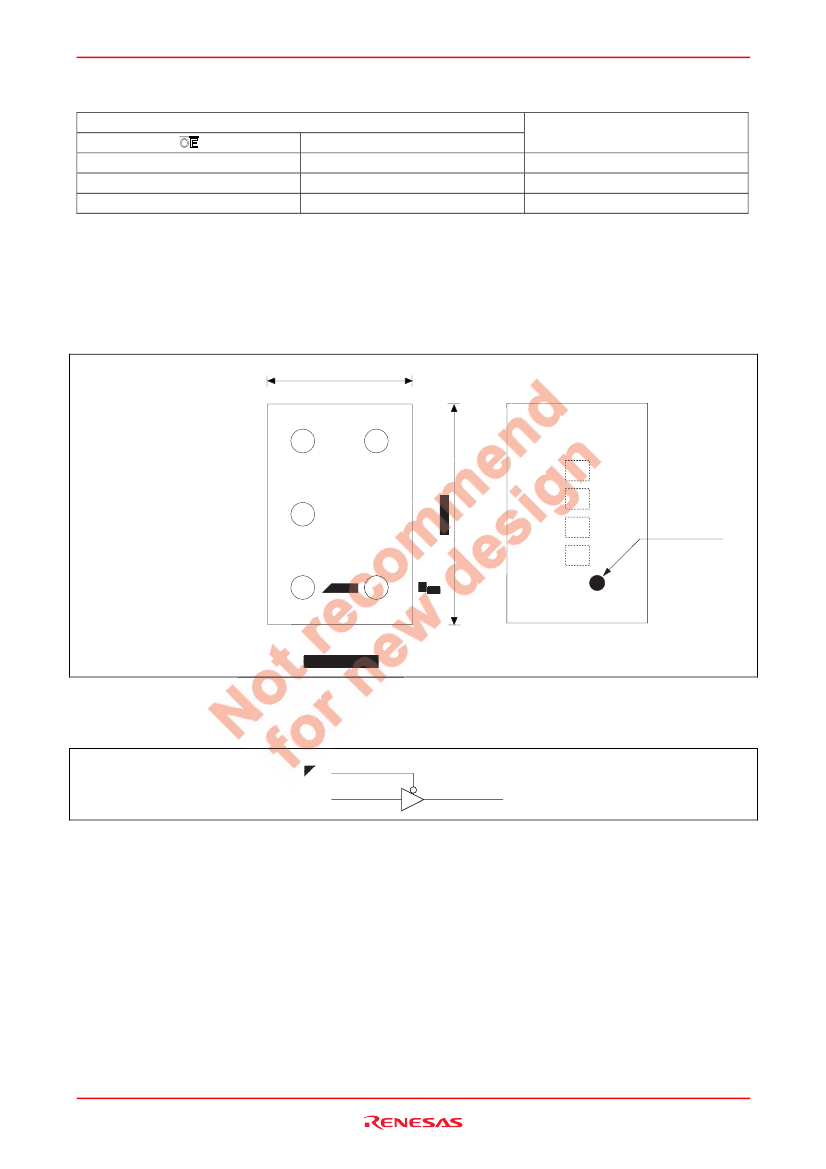

Article Indication

Marking

Year code

Month code

EBYM

Rev.1.00 Apr 13, 2006 page 1 of 7
