BNC31201-HM-50 datasheet, PDF - EEWORLD Datasheet

BNC31201-HM-50: DescriptionRF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerRegal Electronics; Websitehttp://regalusa.net

Download Datasheet Parametric Compare View All

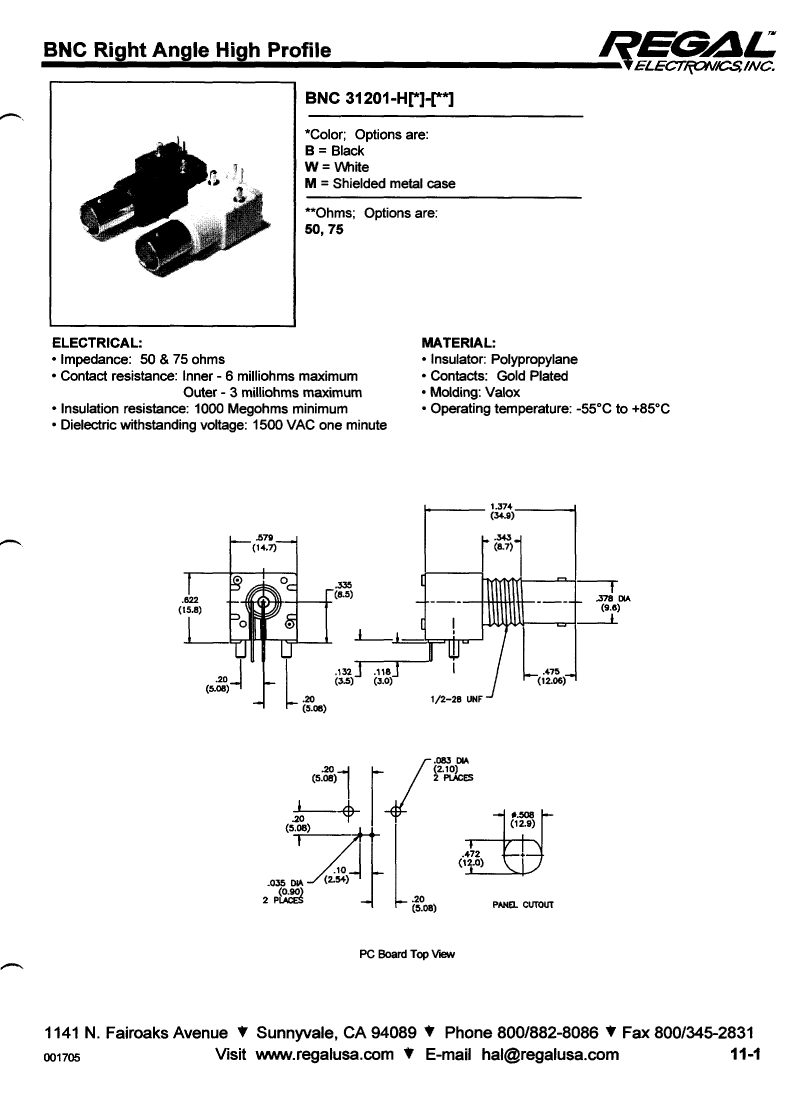

BNC31201-HM-50 Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	HIGH PROFILE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYPROPYLENE
MIL compliance	NO
Manufacturer's serial number	BNC31201
Installation method	RIGHT ANGLE
Installation type	BOARD
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

	BNC31201-HM-50	BNC31201-HB-50	BNC31201-HB-75	BNC31201-HM-75	BNC31201-HW-50	BNC31201-HW-75
Description	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	HIGH PROFILE	HIGH PROFILE	HIGH PROFILE	HIGH PROFILE	HIGH PROFILE	HIGH PROFILE
Characteristic impedance	50 Ω	50 Ω	75 Ω	75 Ω	50 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BNC31201	BNC31201	BNC31201	BNC31201	BNC31201	BNC31201
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Panel mounting	YES	YES	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1
