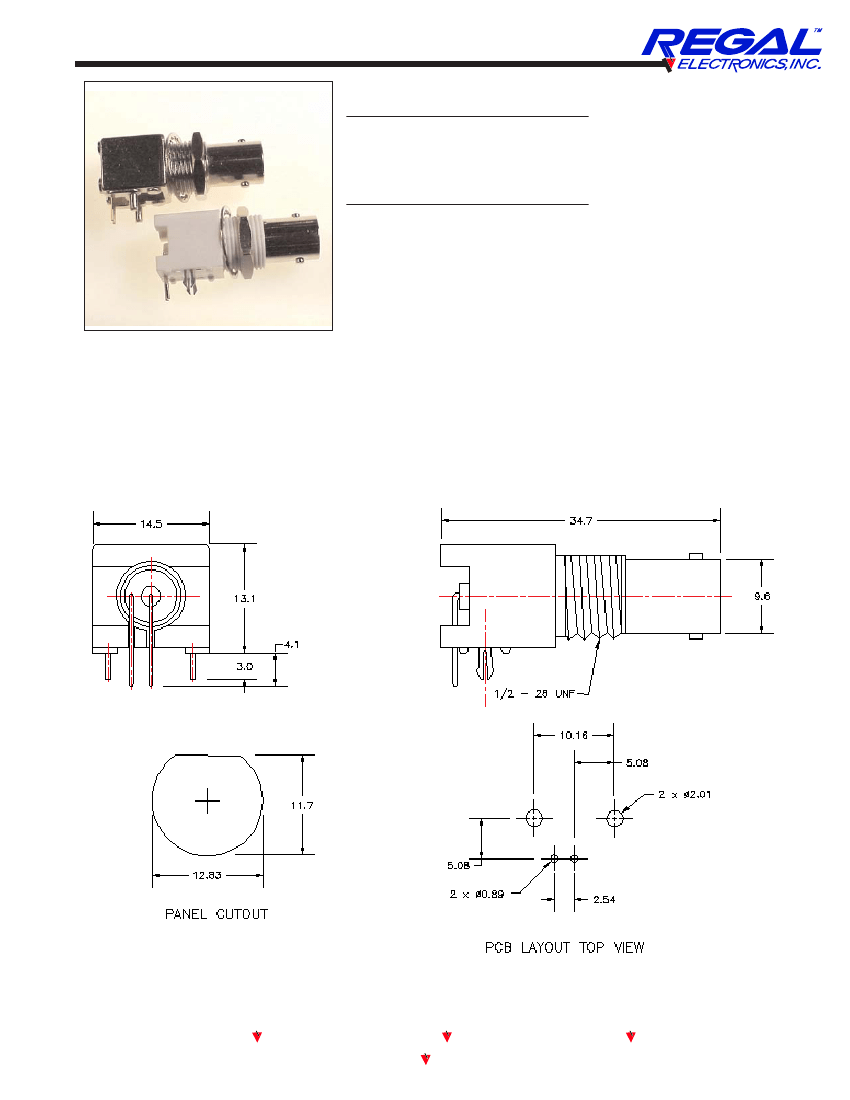

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Other features | ROHS COMPLIANT |
| body width | 0.516 inch |
| subject depth | 1.366 inch |
| body length | 0.571 inch |
| Body/casing type | PLUG |
| Characteristic impedance | 75 Ω |
| Connector type | RF BNC CONNECTOR |
| Contact point gender | FEMALE |
| Contact resistance | 3 mΩ |
| Contact style | COAX |
| Dielectric withstand voltage | 2100VAC V |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYPROPYLENE |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating frequency | 3 GHz |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Panel mounting | YES |
| polarization key | POLARIZED HOUSING |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.161 inch |
| Termination type | SOLDER |
| Total number of contacts | 1 |
| Base Number Matches | 1 |
| BNC31201-LM-75R | BNC31201-LB-50R | BNC31201-LB-75R | BNC31201-LM-50R | BNC31201-LW-50R | BNC31201-LW-75R | |
|---|---|---|---|---|---|---|
| Description | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Plug |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.516 inch | 0.516 inch | 0.516 inch | 0.516 inch | 0.516 inch | 0.516 inch |
| subject depth | 1.366 inch | 1.366 inch | 1.366 inch | 1.366 inch | 1.366 inch | 1.366 inch |
| body length | 0.571 inch | 0.571 inch | 0.571 inch | 0.571 inch | 0.571 inch | 0.571 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Characteristic impedance | 75 Ω | 50 Ω | 75 Ω | 50 Ω | 50 Ω | 75 Ω |
| Connector type | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact resistance | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ |
| Contact style | COAX | COAX | COAX | COAX | COAX | COAX |
| Dielectric withstand voltage | 2100VAC V | 2100VAC V | 2100VAC V | 2100VAC V | 2100VAC V | 2100VAC V |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| insulator material | POLYPROPYLENE | POLYPROPYLENE | POLYPROPYLENE | POLYPROPYLENE | POLYPROPYLENE | POLYPROPYLENE |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating frequency | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Panel mounting | YES | YES | YES | YES | YES | YES |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.161 inch | 0.161 inch | 0.161 inch | 0.161 inch | 0.161 inch | 0.161 inch |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 1 | 1 | 1 | 1 | 1 | 1 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Insulator color | - | BLACK | BLACK | - | WHITE | WHITE |
