PTHF-109-03-H-Q-368 datasheet, PDF

PTHF-109-03-H-Q-368: DescriptionBoard Connector, 36 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Socket,; CategoryThe connector The connector; File Size698KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PTHF-109-03-H-Q-368 Overview

Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Socket,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	PTHF
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	36
Base Number Matches	1

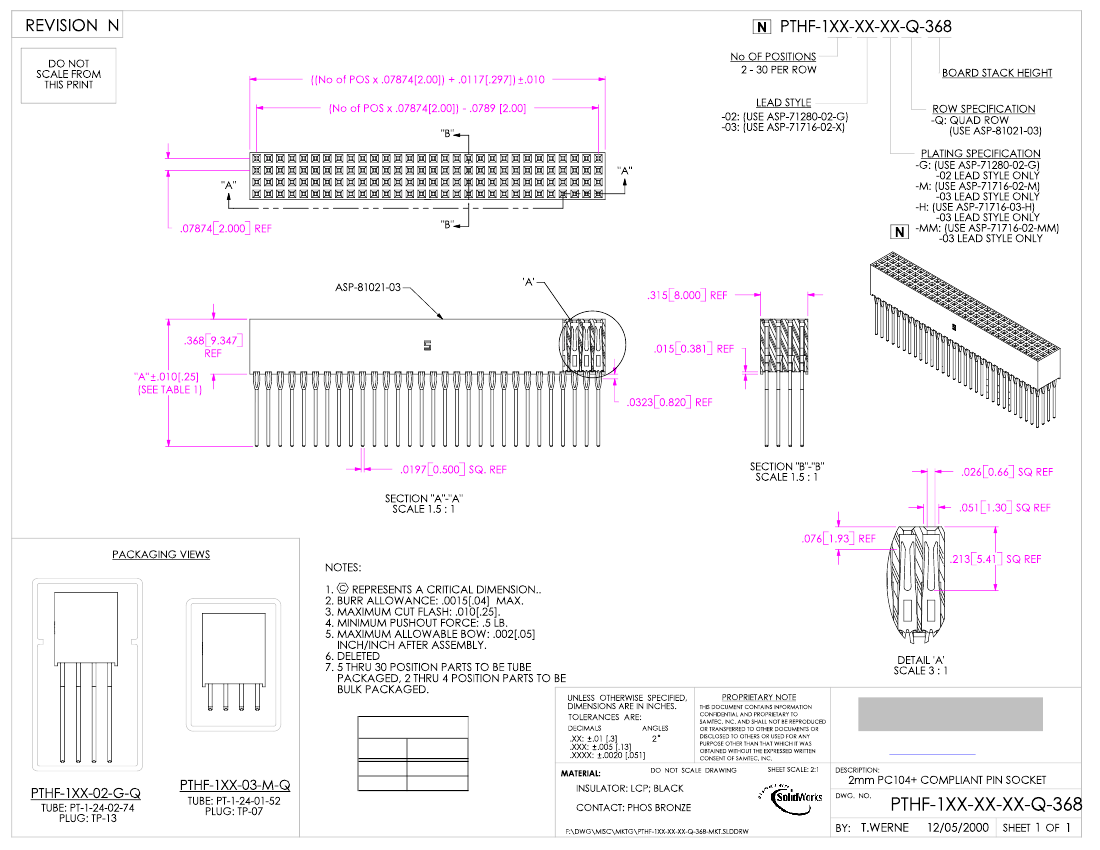

TABLE 1

STYLE

-02

-03

"A"

.850[21.59]

.486[12.34]

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e -M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
