REVISION F
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
GENDER
-J: JACK
BNC7T-J-C-XX-ST-BH3
TYPE
-C: CABLE
BTNC-NUT-001-X
BTNC-GKT-001
TERMINATION
-BH3: BULKHEAD 3
(RG179 CABLE)
ORIENTATION
-ST: STRAIGHT
PLATING SPECIFICATION
-HN: HEAVY GOLD/NICKEL
(SEE NOTES 7 & 8)
(SUB-BNC7T-J-C-N-ST-BH3)
(BTNC-NUT-001-N)
(BTNC-LWAS-001-N)
(BTNC-GKT-001)
(BNC7T-SKT-003-H)
(BTNC-FER-001-N)
-MN: MEDIUM GOLD/NICKEL
(SEE NOTES 7 & 8)
(SUB-BNC7T-J-C-N-ST-BH3)
(BTNC-NUT-001-N)
(BTNC-LWAS-001-N)
(BTNC-GKT-001)
(BNC7T-SKT-003-M)
(BTNC-FER-001-N)
SUB-BNC7T-J-C-X-ST-BH3
BNC7T-SKT-003-X
BNC7-INS-001
BTNC-LWAS-001-X
DO NOT
SCALE FROM
THIS PRINT
BTNC-FER-001-X
BNC-FER-002-X

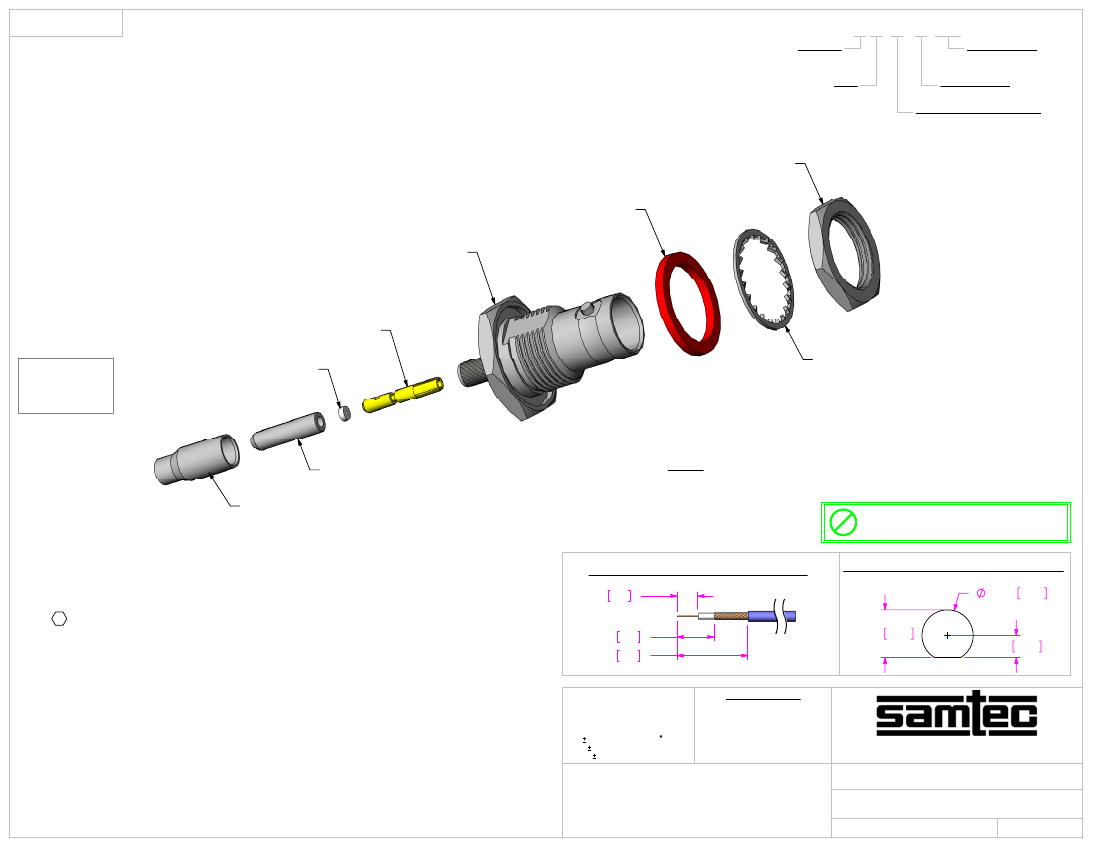

BNC7T-J-C-XX-ST-BH3 SHOWN
FIG. 1
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
RECOMMENDED CABLE STRIPPING
RECOMMENDED MOUNTING HOLE
4.00[.157] MAX PANEL THICKNESS
NOTES:
1. C REPRESENTS A CRITICAL DIMENSION.
2. CENTER CONTACT PUSHOUT FORCE: 26.69 N [6 LB] MIN.
3. SEE SHEET 3 FOR TERMINATION INFORMATION.
4. COMPONENTS TO BE SHIPPED UNASSEMBLED.
5. SAMPLE ORDERS: TO BE PACKAGED IN INDIVIDUAL KIT FORM,
PRODUCTION ORDERS: EACH COMPONENT TO BE BULK PACKAGED.
6. RoHs COMPLIANT.
7. COMPONENT PLATING DESIGNATIONS:
-H: .000030" MIN. GOLD OVER .000050" MIN. NICKEL.
-M: .000010" MIN. GOLD OVER .000050" MIN. NICKEL.
-N: .000100" MIN. NICKEL.
8. ASSEMBLY PLATING DESIGNATIONS:
-HN: (CENTER CONTACT)-H:
(OUTER CONTACT)-N:
(REMAINING METAL PARTS)-N:
-MN: (CENTER CONTACT)-M:
(OUTER CONTACT)-N:
(REMAINING METAL PARTS)-N:
5.3 .21
9.4 .37
18.0 .71
F:\DWG\SW\Exisprod\Assembly\Rf\Bnc\Bnc7t-j-c-xx-st-bh3\BNC7T-J-C-XX-ST-BH3.SLDDRW
13.00 .512
12.10 .476
5.60 .220
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
SHELL, FERRULES, NUT, WASHER: BRASS
CONTACT: COPPER ALLOY
DIELECTRIC: PTFE
GASKET: SILICONE
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
TRUE 75 OHM, BNC ST PLUG, RG 179
BNC7T-J-C-XX-ST-BH3
06/25/2008
SHEET
1
OF
3
BY:
G HERMAN
REVISION F

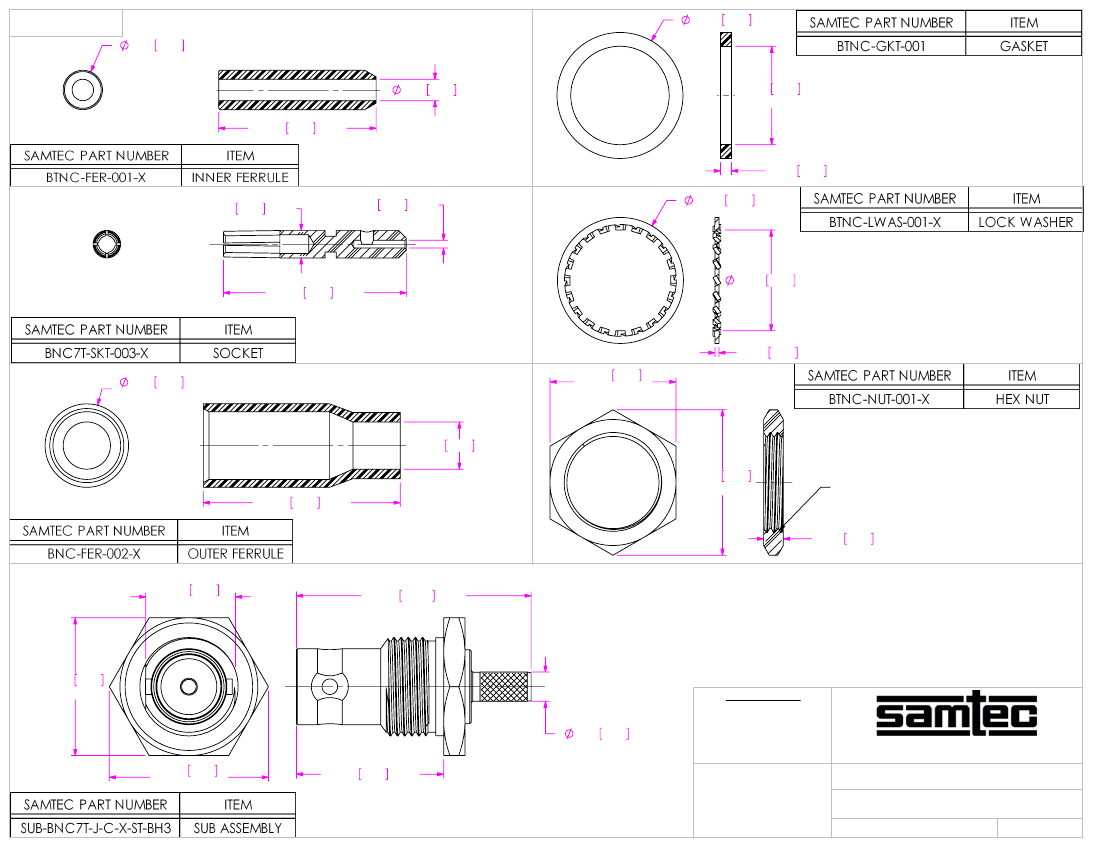

3.00 .118 REF
16.00 .630 REF
1.63 .064 REF
12.00 .472 REF
12.50 .492
REF
1.40 .055 REF
2.10 .083 REF
0.60 .024 REF
16.00 .630 REF
13.94 .549 REF
12.80 .504 REF
0.50 .020 REF
5.30 .209
REF
16.00 .630
HEX REF
3.00 .118 REF
18.48 .727
REF
1/2-28 UNEF-2B
REF
2.50 .098 REF
12.50 .492 REF
11.38 .448
FLAT REF
29.80 1.173 REF
17.50 .689
HEX REF
3.71 .146 REF
20.21 .796
REF
18.70 .736 REF
F:\DWG\SW\Exisprod\Assembly\Rf\Bnc\Bnc7t-j-c-xx-st-bh3\BNC7T-J-C-XX-ST-BH3.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
TRUE 75 OHM, BNC ST PLUG, RG 179
SHEET SCALE: 3.5:1
BNC7T-J-C-XX-ST-BH3
06/25/2008
SHEET
2
OF
3
BY:
G HERMAN
REVISION F
5.3 .209 REF
RG179 CABLE

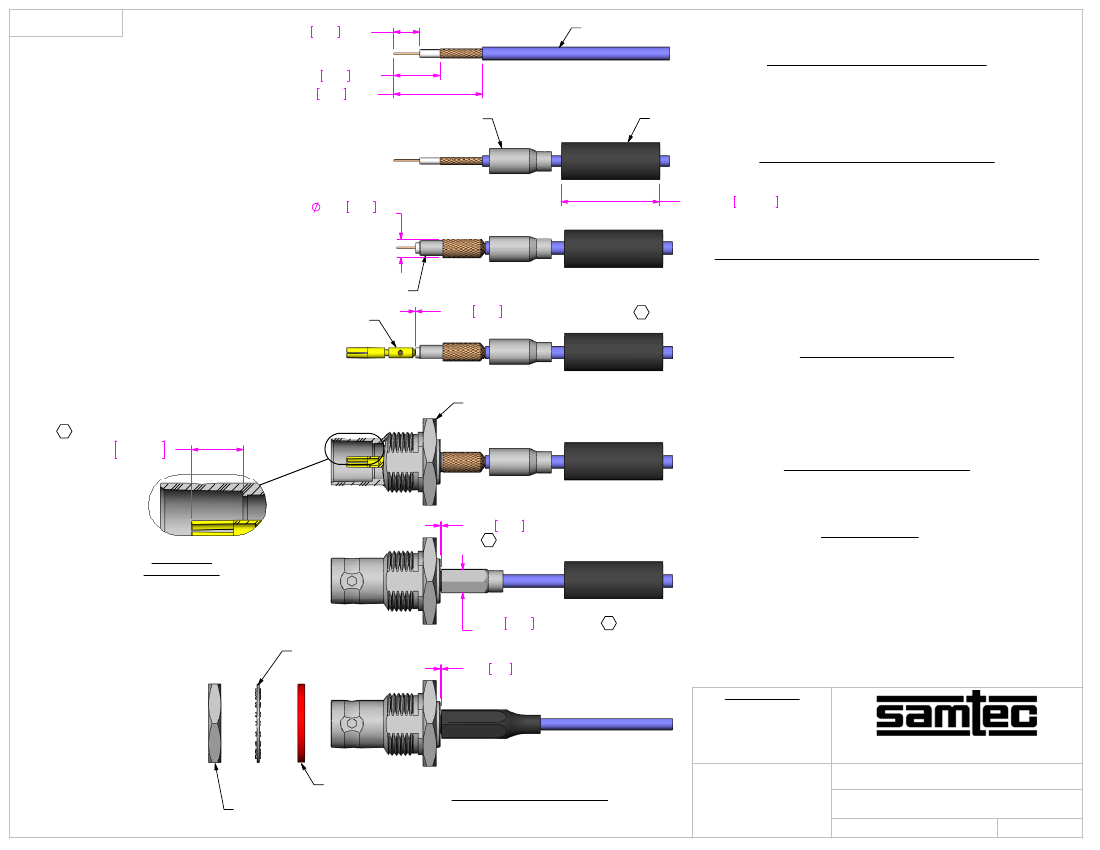

STRIP AND TIN INNER CONDUCTOR
9.4 .370 REF
18.0 .709 REF
BNC-FER-002-X
HST-0.187-02-BLK
ADD HEAT SHRINK TUBE AND FERRULE
20.0±2.5 .79±.10
3.71 .146
(MIN. FLARED ID)
FLARE SHIELD, ADD INNER FERRULE AND INSULATOR
BTNC-FER-001-X
(ASSEMBLE WITH TAPERED END UNDER BRAID)
BNC7T-SKT-003-X
0.10 .004 GAP MAX ALLOWABLE
C
SOLDER SIGNAL SOCKET
SUB-BNC7T-J-C-X-ST-BH3
C
5.25
- 0.17
.207
- .007
+0.03
+.001
ADD SUB-BNC7T-J-C-X-ST-BH3
DETAIL 'A'
SCALE 2.5 : 1
0.25 .010 GAP MAX ALLOWABLE
C
(USE RF CRIMP HAND TOOL #CAT-HT-126667-21 OR EQUIVALENT)
CRIMP FERRULE
BTNC-LWAS-001-X
4.52 .178 HEX CRIMP
C
(ACROSS ALL FACES)
2.5 .10 GAP MAX ALLOWABLE
F:\DWG\SW\Exisprod\Assembly\Rf\Bnc\Bnc7t-j-c-xx-st-bh3\BNC7T-J-C-XX-ST-BH3.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
BTNC-GKT-001
BTNC-NUT-001-X
APPLY HEAT SHRINK TUBE
TRUE 75 OHM, BNC ST PLUG, RG 179
SHEET SCALE: 1.25:1
BNC7T-J-C-XX-ST-BH3
06/25/2008
BY:
G HERMAN
SHEET
3
OF
3
