BCR6AM-12LA

Description
Triac Medium Power Use
CategoryAnalog mixed-signal IC    Trigger device
File Size109KB,7 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric Compare View All

BCR6AM-12LA Overview

Triac Medium Power Use

BCR6AM-12LA Parametric

Parameter NameAttribute value
MakerRenesas Electronics Corporation
Parts packaging codeTO-220AB
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codecompli
Shell connectionMAIN TERMINAL 2
ConfigurationSINGLE
Critical rise rate of commutation voltage - minimum value10 V/us
Maximum DC gate trigger current30 mA
Maximum DC gate trigger voltage1.5 V
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Maximum leakage current2 mA
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum rms on-state current6 A
Off-state repetitive peak voltage600 V
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Trigger device typeTRIAC

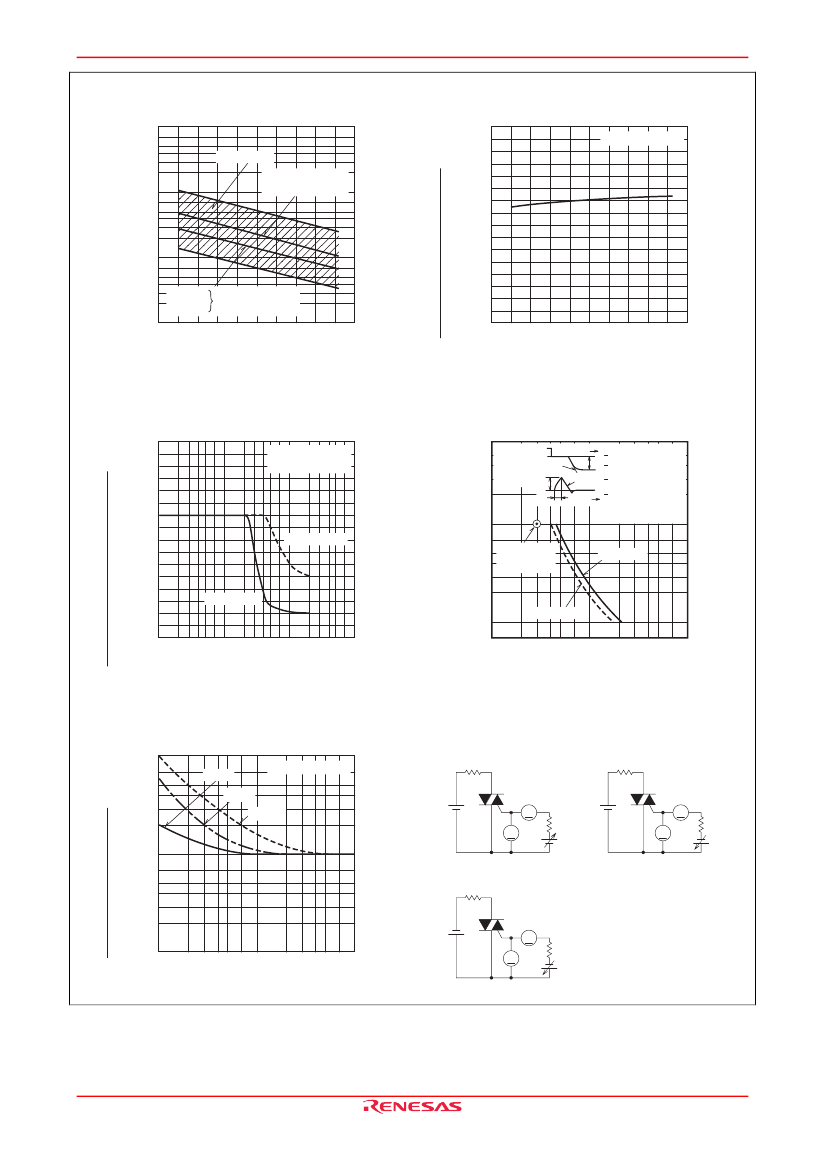

BCR6AM-12LA
Triac
Medium Power Use
REJ03G0294-0300
Rev.3.00
Nov 30, 2007
Features
I
T (RMS)
: 6 A
V
DRM
: 600 V
I
FGTI
, I
RGTI
, I
RGT III
: 30 mA (20 mA)
Note6
Non-Insulated Type
Planar Passivation Type
Outline
RENESAS Package code: PRSS0004AA-A
(Package name: TO-220)
4
2, 4
1.
2.
3.
4.
T
1
Terminal
T
2
Terminal
Gate Terminal
T
2
Terminal
3
1
12
3
Applications
Contactless AC switch, light dimmer, electronic flasher unit, control of household equipment such as TV sets, stereo
systems, washing machine, infrared kotatsu, carpet, electric fan, solenoid driver, small motor control, solid state relay,
copying machine, electric heater control, and other general purpose control applications
Maximum Ratings
Parameter
Repetitive peak off-state voltage
Note1
Non-repetitive peak off-state voltage
Note1
Symbol
V
DRM
V
DSM
Voltage class
12
600
720
Unit
V
V
REJ03G0294-0300
Page 1 of 6
Rev.3.00
Nov 30, 2007
