OSC-2
Oscillator Board (Dumping Resistor Mounting Type)
Function
The OSC-2 is a clock oscillator board that is fitted on an
emulation pod or a temporary target board, etc. Users can mount
the desired oscillation module on its board.
REJ01J0001-0100Z
Rev.1.00
2004.04.16
Dimensions
25.0(D)×32.0(W)mm

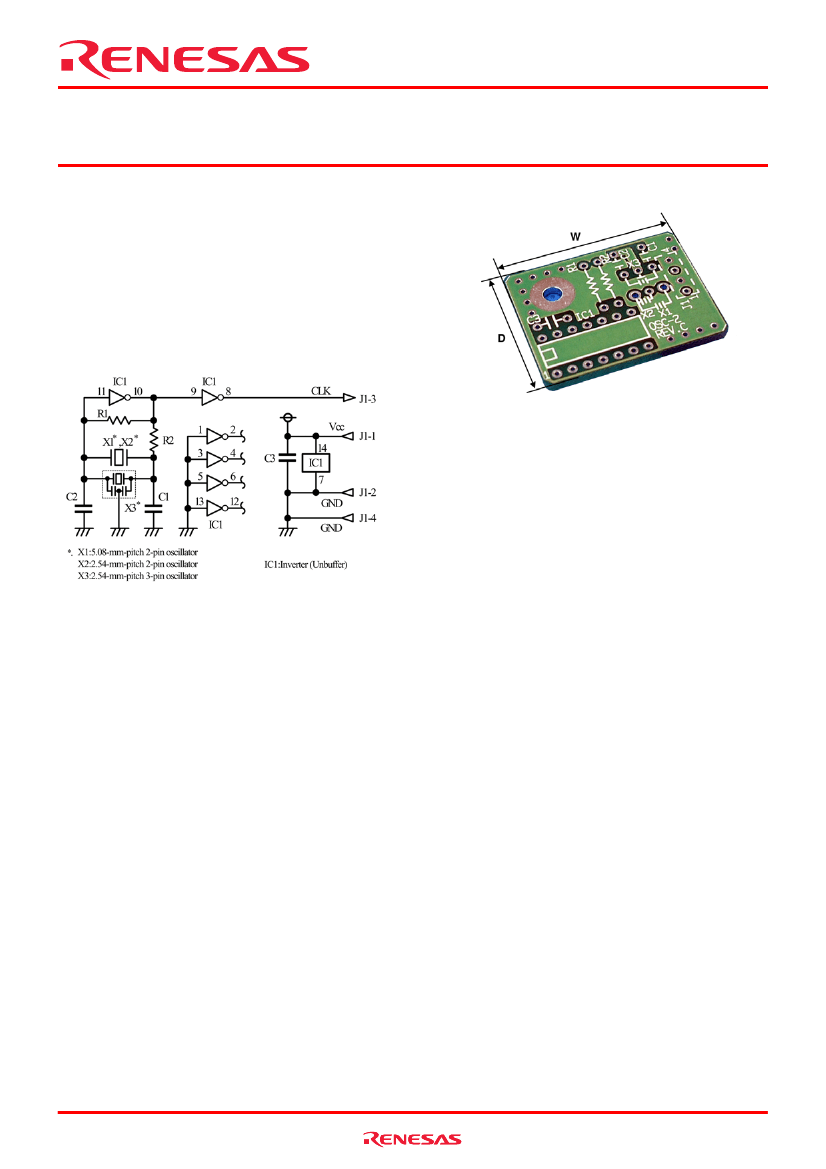

Circuit Diagram
回路図
[Ordering Information] See Appendix H "Ordering Information".
*All brand names and product names are trademarks or registered trademarks of their respective companies.
Rev.1.00 2004.06 Page 111 of 135
OSC-3
Oscillator Board (Oscillation Module Mounting Type)
Function
The OSC-3 is a clock oscillator board that is fitted on an
emulation pod or a temporary target board, etc. Users can mount
the desired oscillation module on its board.
REJ01J0001-0100Z
Rev.1.00
2004.04.16
Suitable Oscillation Module
We recommend SG51P series oscillation module made by SEIKO
EPSON CORPORATION. For inquiries about more information
of SG51P series, contact
EPSON TOYOCOM CORPORATION.
Dimensions
25.0(D)×31.0(W)mm

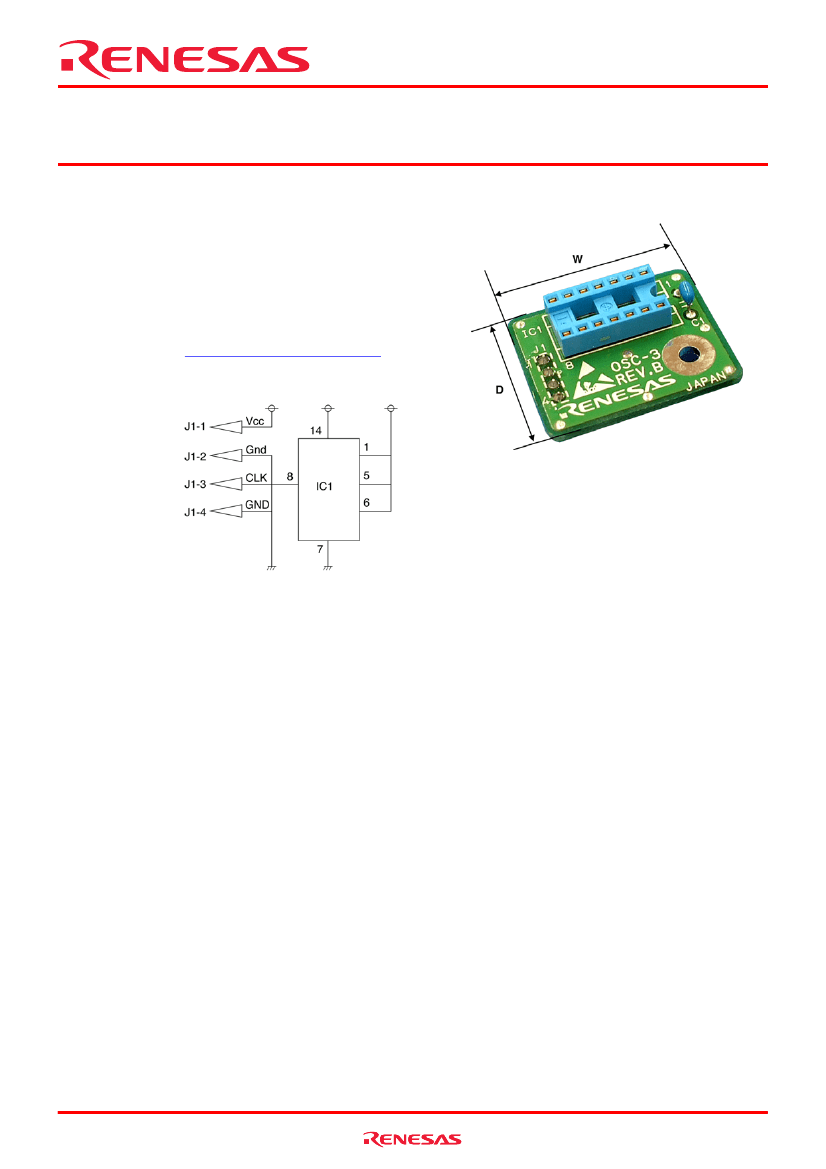

Circuit Diagram
[Ordering Information] See Appendix H "Ordering Information".
*All brand names and product names are trademarks or registered trademarks of their respective companies.
Rev.1.00 2004.06 Page 112 of 135
OSC-4
Oscillator Board (8 and 16MHz Selection Type)
Function

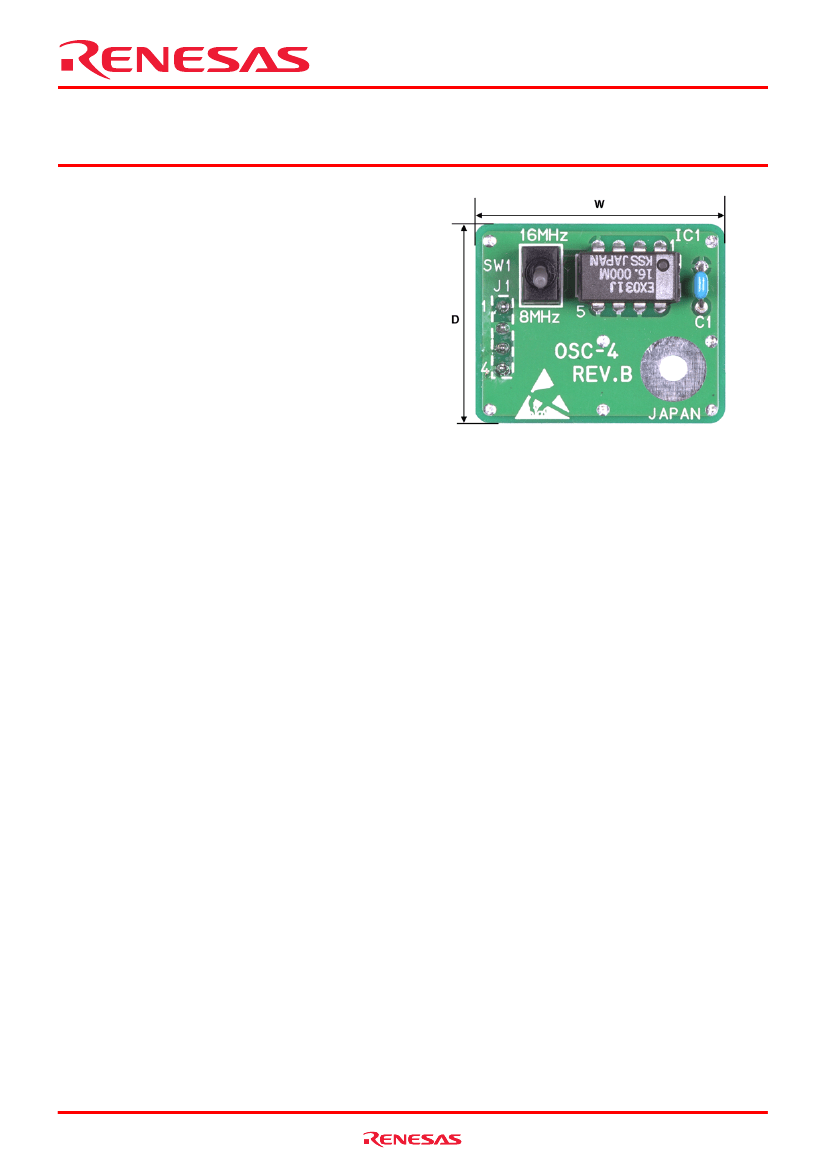

The OSC-4 is a clock oscillator board that is fitted on an
emulation pod or a temporary target board, etc. (already
assembled). It has two oscillation frequencies (8 and 16MHz) that
can be selected by a switch.
REJ01J0001-0100Z
Rev.1.00
2004.04.16
Dimensions
25.0(D)×31.0(W)mm
[Ordering Information] See Appendix H "Ordering Information".
*All brand names and product names are trademarks or registered trademarks of their respective companies.
Rev.1.00 2004.06 Page 113 of 135
