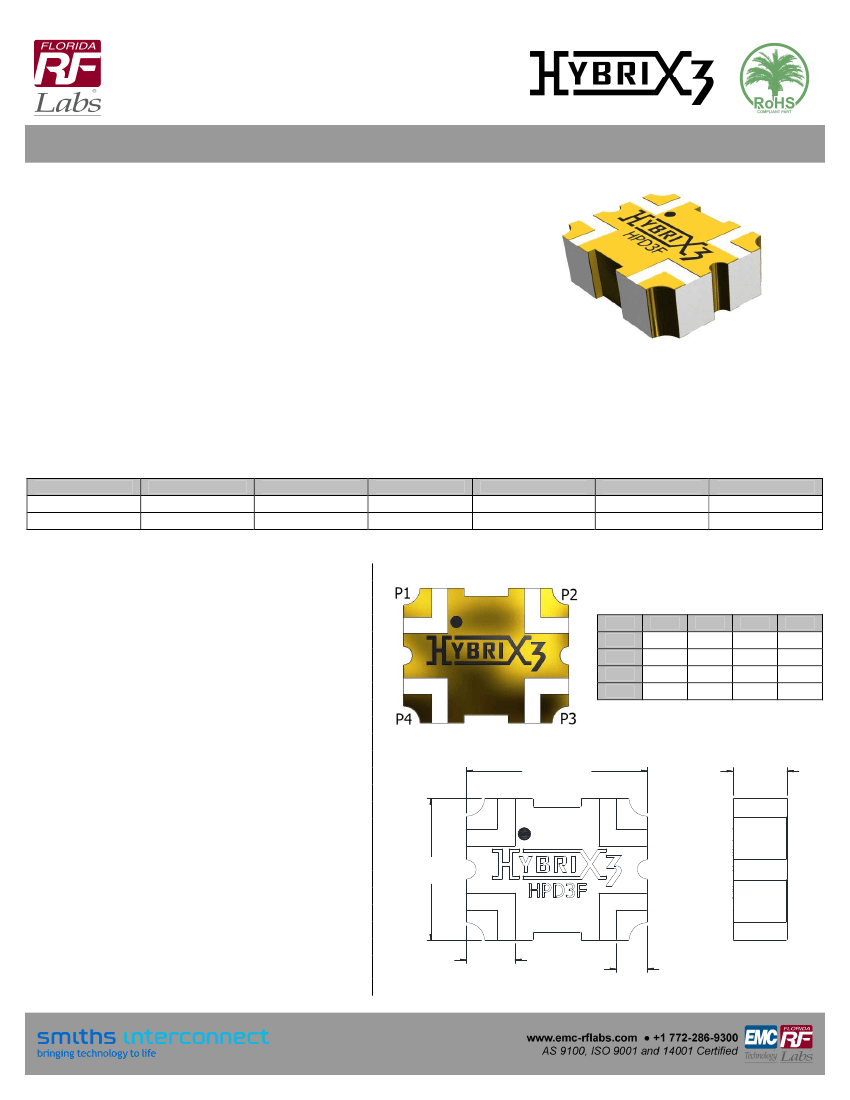

COUPLER

90º HYBRID 80 WATT

DATA SHEET

FEATURES

Low Profile Surface Mount Package

High Power

Low Insertion Loss

High Isolation

100% Tested

PART NUMBER: HPD3F

APPLICATIONS

Power Amplifiers

Modulator

Demodulator

Signal Distribution Network

Antenna Feeds

Switch Networks

SHEET 1 OF 2

EN 12-0363

03/20/12

GENERAL DESCRIPTION

Florida RF Labs offers high performance hybrid couplers in a low profile, surface mount package. These couplers are designed for

demanding applications where high power, low loss and excellent isolation are required.

SPECIFICATIONS

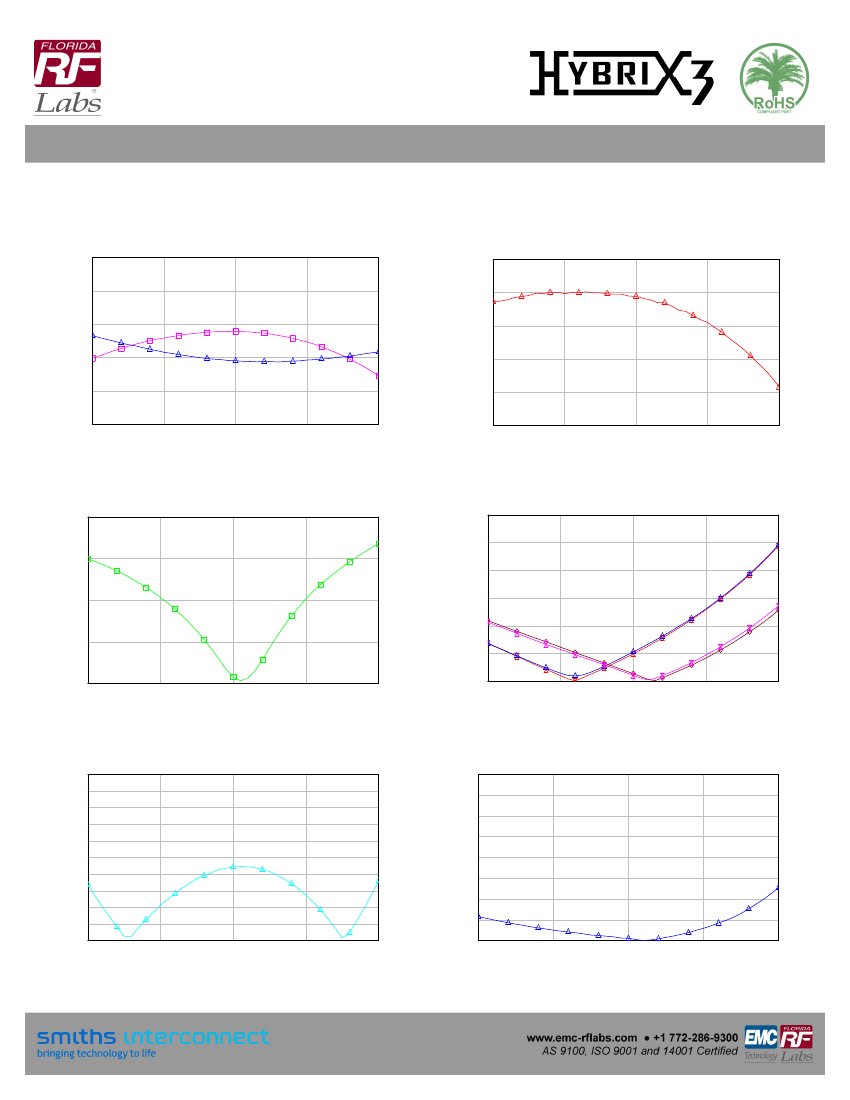

1.0 ELECTRICAL

Frequency

800 to 960 MHz

960 to 1000 MHz

Isolation

20 dB Min

18 dB Min

Insertion Loss

0.4 dB Max

VSWR

1.22 Max

1.35 Max

Amplitude Balance

± 0.3 dB Max

Phase Error

90º ±3

Power Handling

80 Watts CW

2.0 MECHANICAL

Operating Temperature:

Substrate:

Conductor:

Plating:

Application Note:

-55 ºC to 125 ºC

LTCC

Silver

Gold

AN0030 (General Hybrid

And Directional Coupler)

PIN CONFIGURATION

Port

P1

P2

P3

P4

P1

-

Iso

-90º

0º

P2

Iso

-

0º

-90º

P3

-90º

0º

-

Iso

P4

0º

-90º

Iso

-

3.0 UNIT MARKING

Logo, Part Number and Pin 1 Identification

MECHANICAL OUTLINE

4.0 PACKAGING

Standard:

Tape And Reel

0.250±0.006

[6.35±0.15 mm]

0.075±0.006

[1.90±0.10 mm]

5.0 PART NUMBERING

Part Identifier:

HPD3F

0.200±0.006

[5.08±0.15 mm]

8X 0.067±0.006

[1.70±0.08 mm]

8X 0.043±0.003

[1.09±0.08 mm]

Note: Specifications are subject to change without notice.

Unless Otherwise Specified:

TOLERANCE: .XXX =

± .010
