152 RMH
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, High Voltage
FEATURES
•
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
•
Radial leads, cylindrical aluminum case,
insulated with a blue vinyl sleeve
•
Pressure relief
•
Charge and discharge proof
Fig. 1 Component outline.
148 RUS
Pb-free
Available
RoHS*
COMPLIANT
•
Miniaturized, ultra high CV-product per unit volume
•
Long useful life:
3000 to 4000 hours at 105
°C,
high reliability
•
Lead (Pb)-Free versions are RoHS compliant
low
voltage
APPLICATIONS
•
High-reliability and professional applications
•
Lighting, monitors, consumer electronics,
general industrial
•
Filtering of high voltages in power supplies
044 RSH
85
°C
152 RMH
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 105
°C
Useful life at 105
°C:
case Ø D = 10 and 12.5 mm
case Ø D = 16 and 18 mm
Useful life at 40
°C,
1.6
×
I
R
applied:
case Ø D = 10 and 12.5 mm
case Ø D = 16 and 18 mm
Shelf life at 0 V, 105
°C
Based on sectional specification
Climatic category IEC 60068
200 000 hours
260 000 hours
1000 hours
IEC 60384-4/EN130300
40/105/56
3000 hours
4000 hours
VALUE
10 x 12 to 18 x 35
1.0 to 220 µF
± 20 %
200 to 450 V
- 40 to + 105
°C
2000 hours
MARKING
The capacitors are marked (where possible)
with the following information:
•
Rated capacitance value (in µF)
•
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
•
Rated voltage (in V)
•
Date code, in accordance with IEC 60062
•
Code indicating factory of origin
•
Name of manufacturer
•
Upper category temperature (105
°C)
•
Negative terminal identification
•
Series number (152)
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
1.0
2.2
4.7
6.8
10
22
33
47
68
100
220
U
R
(V)
200
-
-
-
-
-
10 x 12
10 x 16
-
10 x 20
-
12.5 x 20
-
12.5 x 25
16 x 20
16 x 35
250
-
-
-
-
-
10 x 16
12.5 x 20
-
12.5 x 20
-
12.5 x 25
16 x 20
-
16 x 25
-
400
-
10 x 12
10 x 16
10 x 12
10 x 16
10 x 20
12.5 x 25
16 x 20
16 x 20
-
16 x 25
-
16 x 35
18 x 35
-
450
10 x 12
10 x 16
10 x 20
-
12.5 x 20
1 2.5 x 20
16 x 25
18 x 20
16 x 35
18 x 25
18 x 35
-
-
-
-
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 28320
Revision: 13-Jul-07
For technical questions, contact: aluminumcaps1@vishay.com
www.vishay.com
151
152 RMH
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, High Voltage
DIMENSIONS
in millimeters,
AVAILABLE FORMS
ØD
ØD
F
15
min
5 min
1
4 +0
-
F
ØD
ØD
Fig.2
Form CA:
Long leads.
Fig.3
Form CB:
Cut leads.
Fig.4
Form TFA:
Taped in box (ammopack).
Table 1
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØD
x
L
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 25
16 x 35
18 x 20
18 x 25
18 x 35
Note
1. Detailed tape dimensions see section ‘PACKAGING’.
CASE
CODE
14
15
16
17
18
19a
19
21
1820
1825
22
ØD
Ø D
max
10.5
10.5
10.5
13.0
13.0
16.5
16.5
16.5
18.5
18.5
18.5
L
max
F
PACKAGING QUANTITIES
MASS
(g)
≈
1.6
≈
1.9
≈
2.2
≈
4.0
≈
5.0
≈
6.0
≈
8.0
≈
11.0
≈
8.0
≈
10.0
≈
14.5
FORM
CA
1000
500
500
500
250
250
250
100
100
100
100
FORM
CB
500
500
500
500
250
250
250
100
100
100
100
FORM
TFA
800
800
800
500
500
250
250
-
-
-
-
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
13.5
17.5
22.0
22.0
27.0
22.0
27.0
37.5
22.0
27.0
37.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
www.vishay.com
152
For technical questions, contact: aluminumcaps1@vishay.com
Document Number: 28320
Revision: 13-Jul-07
152 RMH
Aluminum Capacitors
Radial Miniature, High Voltage
ELECTRICAL DATA
SYMBOL
DESCRIPTION
C
R
rated capacitance at 100 Hz, tolerance ± 20 %
rated RMS ripple current at 100 Hz, 105
°C
I
R
max. leakage current after 1 minute at U
R
I
L1
Tan
δ
max. dissipation factor at 100 Hz
Z
max. impedance at 10 kHz
Note
1. Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20
°C,
P = 86 to 106 kPa, RH = 45 to 75 %
.
Table 2
Vishay BCcomponents
ORDERING EXAMPLE*
Electrolytic capacitor 152 series
4.7 µF/400 V; ± 20 %
Nominal case size: Ø 10 x 16 mm; Form TFA
Catalog number: 2222 152 36478.
* To ensure delivery of lead (Pb)-free parts during the
transition period, please contact your Vishay sales agent.
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
10
22
33
47
68
100
220
10
22
33
47
47
100
2.2
4.7
4.7
6.8
10
22
22
33
47
68
100
1.0
2.2
4.7
6.8
10
22
22
33
33
47
NOMINAL
CASE SIZE
ØD x L
(mm)
10
×
12
10
×
16
10
×
20
12.5
×
20
12.5
×
25
16
×
20
16
×
35
10
×
16
12.5
×
20
12.5
×
20
12.5
×
25
16
×
20
16
×
25
10
×
12
10
×
12
10
×
16
10
×
16
10
×
20
12.5
×
25
16
×
20
16
×
20
16
×
25
16
×
35
18
×
35
10 x 12
10
×
16
10
×
20
12.5
×
20
12.5
×
20
16
×
25
18
×
20
16
×
35
18
×
25
18
×
35
I
R
100 Hz
105
°
C
(mA)
85
120
150
240
310
340
630
105
180
180
310
310
340
44
48
65
65
80
150
150
190
240
310
380
30
50
65
80
90
150
150
200
200
260
I
L1
1 min
(µA)
130
202
268
352
478
670
1390
145
235
318
423
423
820
96
127
126
152
190
334
334
466
634
886
1270
67
99
133
162
205
367
367
516
516
705
Tan
δ
100 Hz
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
Z
10 kHz
(Ω)
6.3
3.2
2.3
0.9
0.6
0.4
0.2
6.3
2.3
1.5
0.9
0.9
0.4
28.0
24.0
18.0
12.0
9.0
3.8
3.8
2.6
2.0
1.7
0.9
94.0
26.0
20.0
16.0
10.0
4.6
4.6
3.4
3.4
2.0
CATALOG NUMBER 2222 152 .....
BULK PACKAGING
TAPED
FORM CA
52109
52229
52339
52479
52689
52101
52221
53109
53229
53339
53479
93475
53101
56228
96475
56478
56688
56109
56229
96225
56339
56479
56689
56101
57108
57228
57478
57688
57109
57229
97225
57339
97335
57479
FORM CB
62109
62229
62339
62479
62689
62101
62221
63109
63229
63339
63479
93476
63101
66228
96476
66478
66688
66109
66229
96226
66339
66479
66689
66101
67108
67228
67478
67688
67109
67229
97226
67339
97336
67479
FORM TFA
32109
32229
32339
32479
32689
32101
-
33109
33229
33339
33479
93473
33101
36228
96473
36478
36688
36109
36229
96223
36339
36479
-
-
37108
37228
37478
37688
37109
37229
-
-
-
-
200
250
400
450
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
Equivalent series inductance (ESL)
Resistance
Equivalent series resistance (ESR)
Document Number: 28320
Revision: 13-Jul-07
CONDITIONS
U
R
= 200 to 250 V
U
R
= 400 to 450 V
U
s
≤
1.15
×
U
R
U
s
≤
1.10
×
U
R
U
rev
≤
1 V
I
L1
≤
0.03 C
R
x U
R
+ 70 µA
I
L5
≤
0.015 C
R
x U
R
+ 30 µA
typ. 16 nH
typ. 18 nH
ESR = tan
δ
/ 2πfC
R
www.vishay.com
153
VALUE
after 1 minute at U
R
after 5 minutes at U
R
case Ø D = 10 mm
case Ø D
≥
12.5 mm
calculated from tan
δ
max
and C
R
(see Table 2)
For technical questions, contact: aluminumcaps1@vishay.com
152 RMH
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, High Voltage

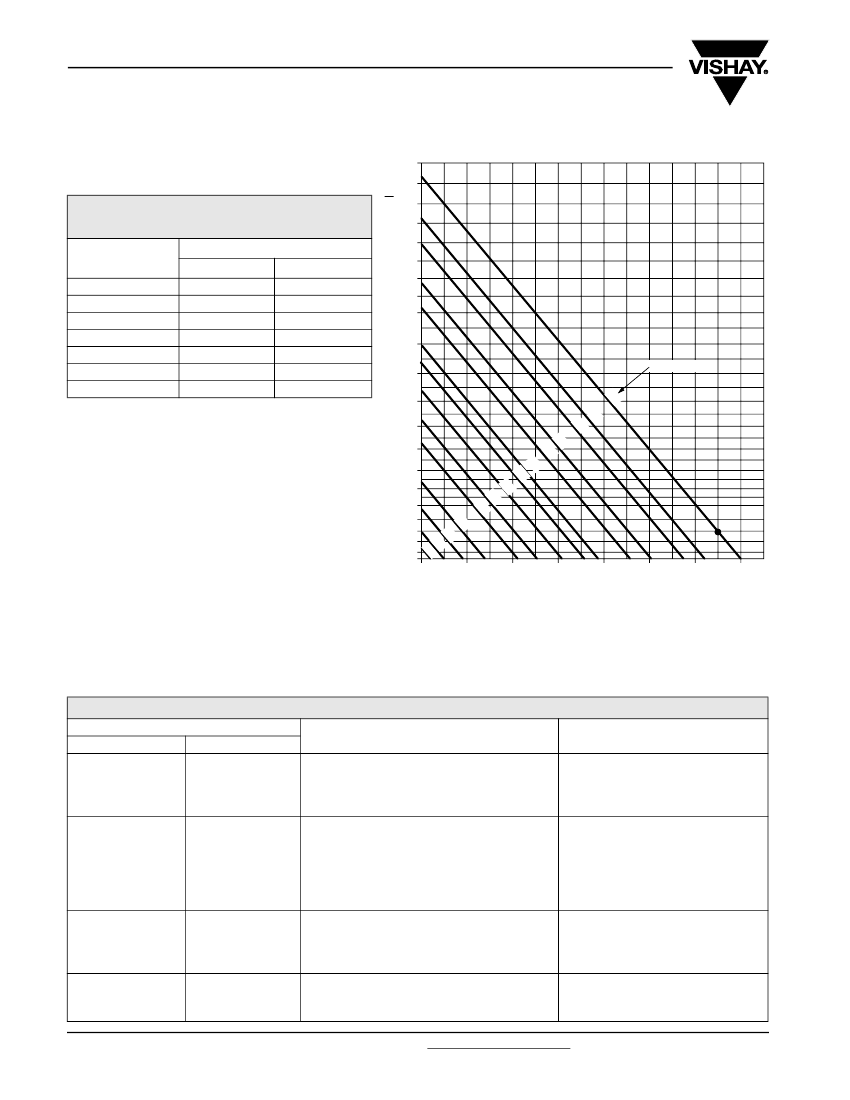

RIPPLE CURRENT AND USEFUL LIFE
Table 3
I
A
I
R
3.8
3.7
3.6
3.5
3.4
3.3
3.2
3.1
3.0
CCC206
MULTIPLIER OF RIPPLE CURRENT (I
R
)
AS A FUNCTION OF FREQUENCY
FREQUENCY (Hz)
50
100
300
1000
3000
10 000
≥100
000
I
R
MULTIPLIER
U
R
≤
250 V
0.75
1.00
1.50
2.00
2.20
2.50
3.00
U
R
>
250 V
0.75
1.00
1.30
1.60
1.90
2.20
2.50
2.8
lifetime multiplier
2.6
1.
2.4
1.
5
0
2.2
3.
0
0
2.
2.0
0
6.
4.
0
1.8
12
8
.
0
1.6
20
1.4
1.2
1.0
0.8
0.5
0.0
60
10
0
15
30
(1)
I
A
= actual ripple current at 100 Hz.
I
R
= rated ripple current at 100 Hz, 105
°C.
(1) Useful life at 105
°C
and I
R
applied.
case Ø D = 10 and 12.5 : 3000 hours
case Ø D = 16 and 18 : 4000 hours
40
0
0
20
50
60
70
80
90
100
110
T
amb
(°C)
Fig.5 Multiplier of useful life as a function of ambient
temperature and ripple current load.
Table 4
TEST PROCEDURES AND REQUIREMENTS
TEST
NAME OF TEST
REFERENCE
IEC 60384-4/
EN130300
subclause 4.13
PROCEDURE
(quick reference)
T
amb
= 105
°C;
U
R
applied;
2000 hours
REQUIREMENTS
ΔC/C:
± 20 %
tan
δ ≤
2 x spec. limit
Z
≤
2 x spec. limit
I
L5
≤
spec. limit
ΔC/C:
± 50 %
tan
δ ≤
3 x spec. limit
Z
≤
3 x spec. limit
I
L5
≤
spec. limit
no short or open circuit
total failure percentage:
≤
1 %
ΔC/C:
± 20 %
tan
δ ≤
2 x spec. limit
Z
≤
2 x spec. limit
I
L5
≤
2
×
spec. limit
ΔC/C:
± 15 %
I
L5
≤
spec. limit
tan
δ ≤
spec. limit
Document Number: 28320
Revision: 13-Jul-07
Endurance
CECC 30301
subclause 1.8.1
Useful life
T
amb
= 105
°C;
U
R
and I
R
applied;
case Ø D = 10 and 12.5 : 3000 hours
case Ø D = 16 and 18 : 4000 hours
Shelf life
(storage at high
temperature)
IEC 60384-4/
EN130300
subclause 4.17
T
amb
= 105
°C;
no voltage applied;
1000 hours
after test: U
R
to be applied for 30 minutes,
24 to 48 hours before measurement
T
amb
= 105
°C:
125 hours at U = - 1 V,
followed by 125 hours at U
R
Reverse voltage
IEC 60384-4/
EN130300
subclause 4.15
www.vishay.com
154
For technical questions, contact: aluminumcaps1@vishay.com
Legal Disclaimer Notice
Vishay
Notice
Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc.,
or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, by
estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Vishay's
terms and conditions of sale for such products, Vishay assumes no liability whatsoever, and disclaims any express
or implied warranty, relating to sale and/or use of Vishay products including liability or warranties relating to fitness
for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify Vishay for any damages resulting from such improper use or sale.
Document Number: 91000
Revision: 08-Apr-05
www.vishay.com
1
京公网安备 11010802033920号
EEWORLD
