170-A-CWH: DescriptionPushbutton Switch, SPST, Momentary, Wire Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size723KB，2 Pages; ManufacturerCarling Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

170-A-CWH Overview

Pushbutton Switch, SPST, Momentary, Wire Terminal, Panel Mount-threaded

170-A-CWH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
body width	14.63 mm
body height	15.34 mm
Body length or diameter	35.1 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	125 V
Electrical life	25000 Cycle(s)
Installation features	PANEL MOUNT-THREADED
Maximum operating force	11.12 N
Maximum operating temperature	85 °C
Minimum operating temperature
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

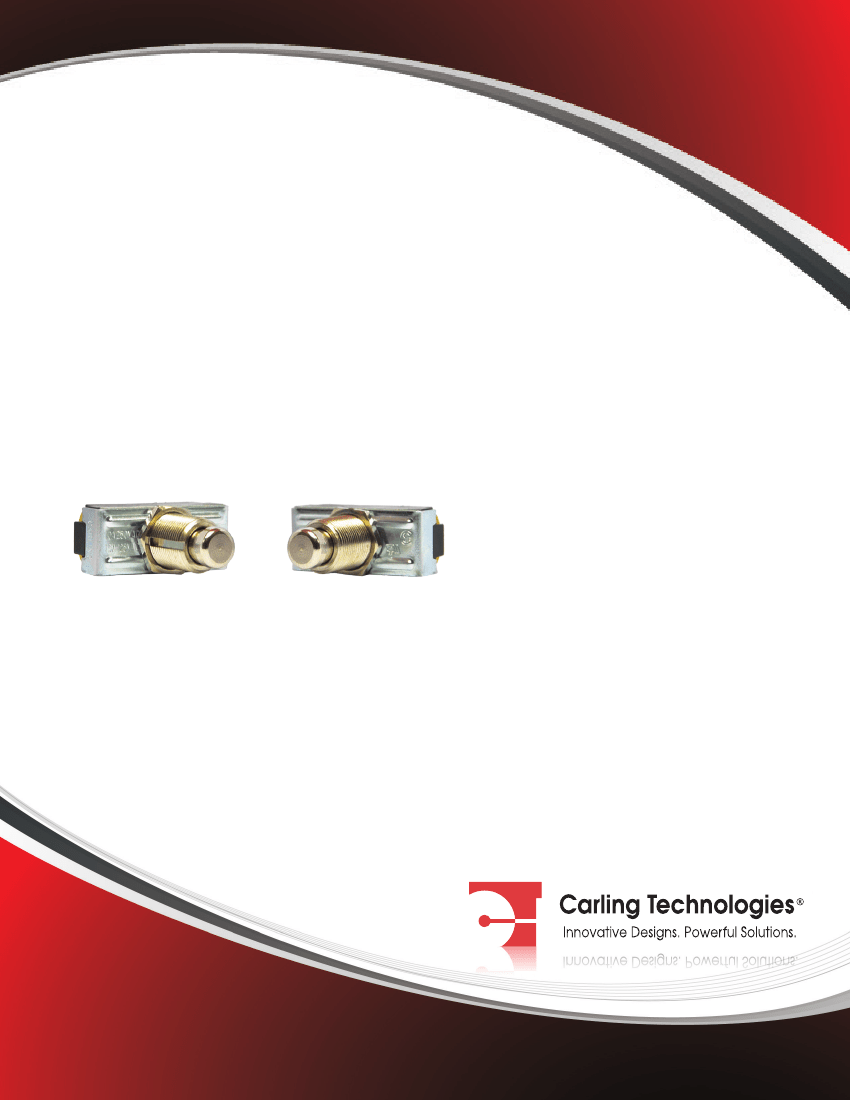

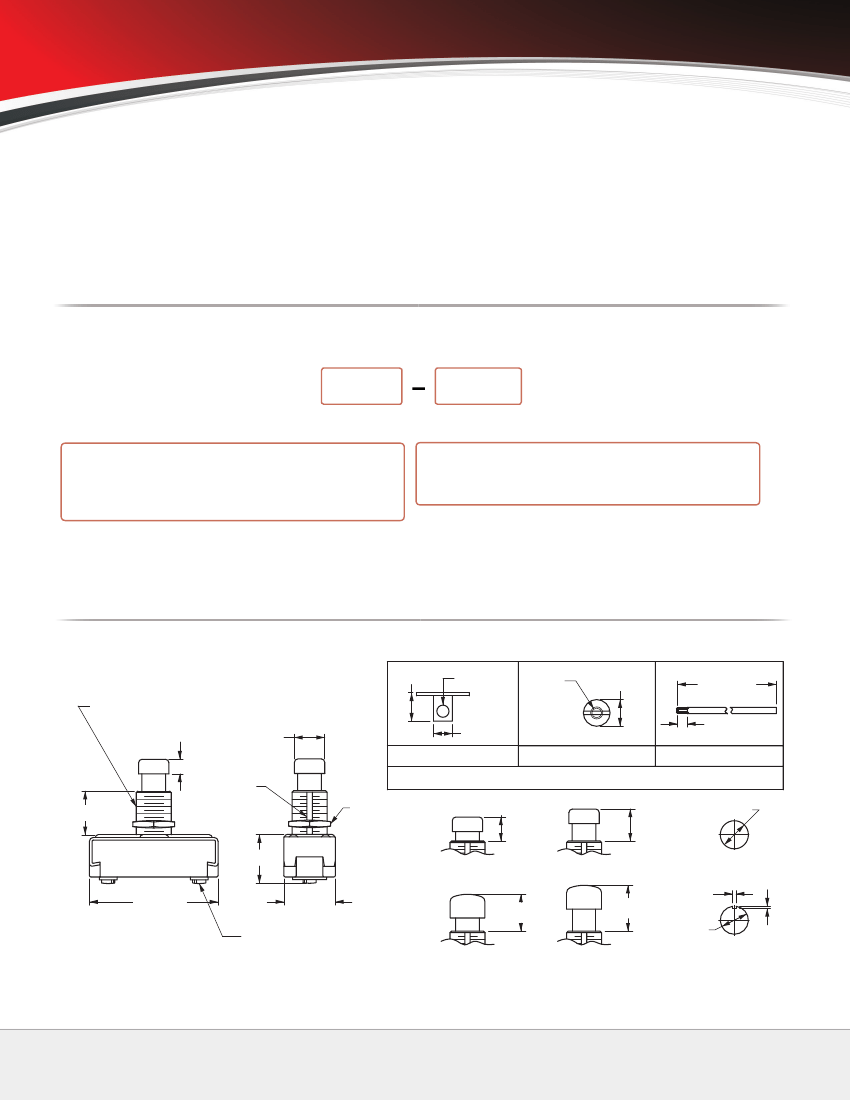

170/172-Series

Pushbutton Switches

The 170/172-Series pushbutton switches are single pole, high amperage switches

suitable for shallow back panel applications. These switches are momentary action

and require an actuation force of 2.5 lbs. The 170/172-Series switches are equipped

with a slow-make, slow-break contact mechanism and are rated at 15 amps at 125VAC.

Carling Technologies, Inc.

60 Johnson Avenue • Plainville, CT 06062-1177

Phone: (860) 793-9281 • Fax: (860) 793-9231

Email: sales@carlingtech.com • www.carlingtech.com

170-A-CWH Related Products

	170-A-CWH	172-A-CBL	170-B-CBL	172-A-CWH	170-B-CWH
Description	Pushbutton Switch, SPST, Momentary, Wire Terminal, Panel Mount-threaded	Pushbutton Switch, SPST, Momentary, Wire Terminal, Panel Mount-threaded,	Pushbutton Switch, SPST, Momentary, Solder Terminal, Panel Mount-threaded,	Pushbutton Switch, SPST, Momentary, Wire Terminal, Panel Mount-threaded	Pushbutton Switch, SPST, Momentary, Solder Terminal, Panel Mount-threaded,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	14.63 mm	14.63 mm	14.63 mm	14.63 mm	14.63 mm
body height	15.34 mm	15.34 mm	15.34 mm	15.34 mm	15.34 mm
Body length or diameter	35.1 mm	35.1 mm	35.1 mm	35.1 mm	35.1 mm
Contact (AC) maximum rated R load	15A@125VAC	15A@125VAC	15A@125VAC	15A@125VAC	15A@125VAC
Maximum contact current (AC)	15 A	15 A	15 A	15 A	15 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V
Electrical life	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating force	11.12 N	11.12 N	11.12 N	11.12 N	11.12 N
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
surface mount	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPST	SPST	SPST	SPST	SPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	WIRE	WIRE	SOLDER	WIRE	SOLDER
Base Number Matches	1	1	1	1	1
Factory Lead Time	-	4 weeks	4 weeks	-	4 weeks
