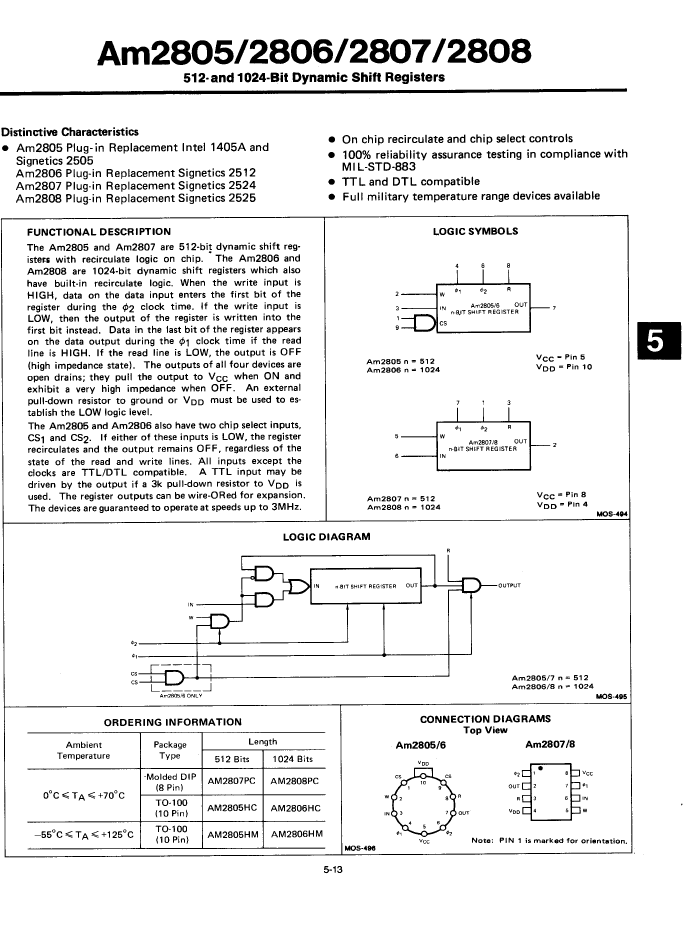

Serial In Serial Out, 1024-Bit, Right Direction, True Output, CMOS, PDIP8, PLASTIC, DIP-8
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP8,.3 |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| Counting direction | RIGHT |
| JESD-30 code | R-PDIP-T8 |
| JESD-609 code | e0 |
| length | 9.779 mm |
| Logic integrated circuit type | SERIAL IN SERIAL OUT |
| Number of digits | 1024 |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | OPEN-DRAIN |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| propagation delay (tpd) | 100 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| minfmax | 7 MHz |
| Base Number Matches | 1 |
| AM2808PC | AM2805HM | AM2806HM | AM2807PC | AM2806HC | |
|---|---|---|---|---|---|
| Description | Serial In Serial Out, 1024-Bit, Right Direction, True Output, CMOS, PDIP8, PLASTIC, DIP-8 | Serial In Serial Out, 512-Bit, Right Direction, True Output, CMOS, MBCY10, METAL CAN, TO-100, 10 PIN | Serial In Serial Out, 1024-Bit, Right Direction, True Output, CMOS, MBCY10, METAL CAN, TO-100, 10 PIN | Serial In Serial Out, 512-Bit, Right Direction, True Output, CMOS, PDIP8, PLASTIC, DIP-8 | Serial In Serial Out, 1024-Bit, Right Direction, True Output, CMOS, MBCY10, METAL CAN, TO-100, 10 PIN |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | SMT | SMT | DIP | SMT |
| package instruction | DIP, DIP8,.3 | TO-100, CAN10,.23 | TO-100, CAN10,.23 | DIP, DIP8,.3 | TO-100, CAN10,.23 |
| Contacts | 8 | 10 | 10 | 8 | 10 |
| Reach Compliance Code | unknown | compliant | compliant | unknown | unknown |
| Counting direction | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT |
| JESD-30 code | R-PDIP-T8 | O-MBCY-W10 | O-MBCY-W10 | R-PDIP-T8 | O-MBCY-W10 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | SERIAL IN SERIAL OUT | SERIAL IN SERIAL OUT | SERIAL IN SERIAL OUT | SERIAL IN SERIAL OUT | SERIAL IN SERIAL OUT |
| Number of digits | 1024 | 512 | 1024 | 512 | 1024 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 10 | 10 | 8 | 10 |
| Maximum operating temperature | 70 °C | 125 °C | 125 °C | 70 °C | 70 °C |
| Output characteristics | OPEN-DRAIN | OPEN-DRAIN | OPEN-DRAIN | OPEN-DRAIN | OPEN-DRAIN |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | METAL | METAL | PLASTIC/EPOXY | METAL |
| encapsulated code | DIP | TO-100 | TO-100 | DIP | TO-100 |
| Encapsulate equivalent code | DIP8,.3 | CAN10,.23 | CAN10,.23 | DIP8,.3 | CAN10,.23 |
| Package shape | RECTANGULAR | ROUND | ROUND | RECTANGULAR | ROUND |
| Package form | IN-LINE | CYLINDRICAL | CYLINDRICAL | IN-LINE | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| propagation delay (tpd) | 100 ns | 150 ns | 150 ns | 100 ns | 100 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | WIRE | WIRE | THROUGH-HOLE | WIRE |
| Terminal location | DUAL | BOTTOM | BOTTOM | DUAL | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| minfmax | 7 MHz | 3 MHz | 3 MHz | 7 MHz | 7 MHz |
| Maker | - | - | AMD | AMD | AMD |
