GRM4.5122.013.C: DescriptionMains Power Connector, 0.5A, 125/250VAC, Male, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size690KB，6 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

GRM4.5122.013.C Overview

Mains Power Connector, 0.5A, 125/250VAC, Male, Solder Terminal, Socket, ROHS COMPLIANT

GRM4.5122.013.C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC/EN 60320-1/C14; UL 94V-0; UL 498; CSA C22.2; VDE, SHIELDED, QUICK CONNECT
Body/casing type	SOCKET
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	TIN/TIN COPPER
Contact completed and terminated	TIN/TIN COPPER
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3/e2
MIL compliance	NO
Power Connector Ratings	0.5A, 125/250VAC
Manufacturer's serial number	GRM4
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

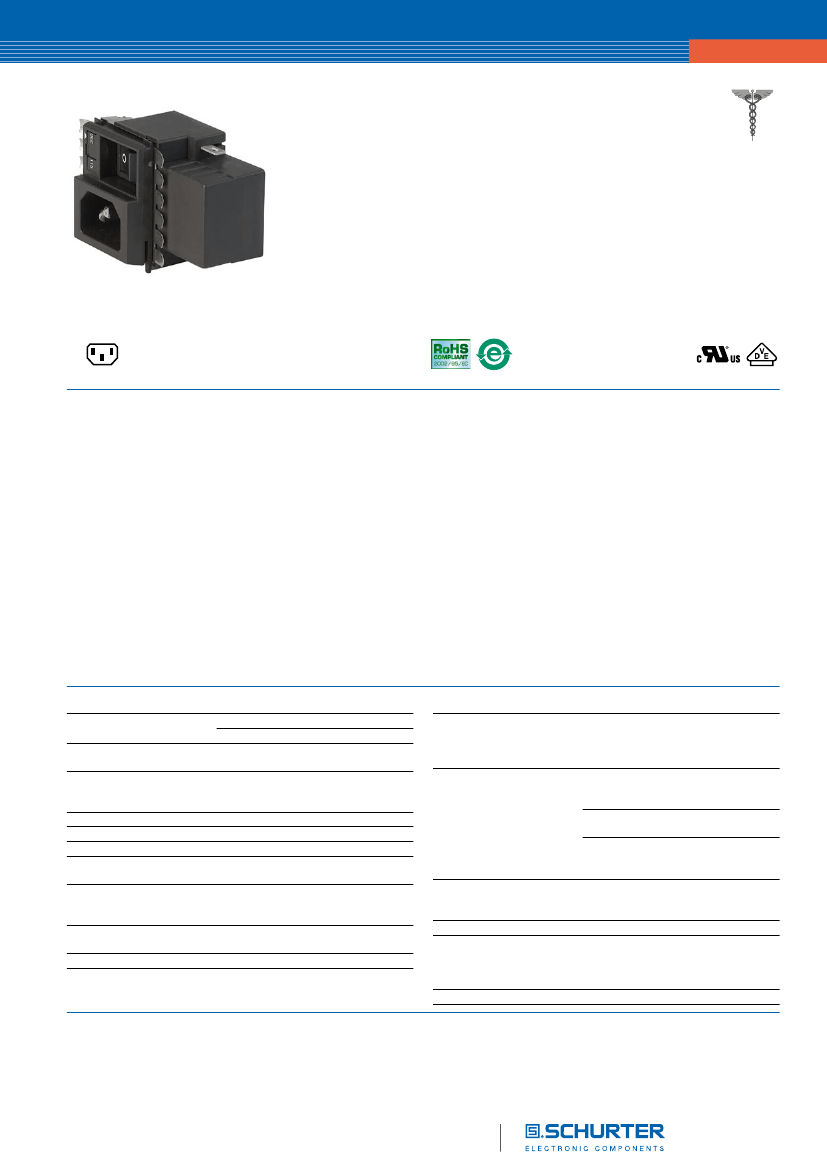

Power entry modules without line filter

www.schurter.com/pg05

IEC Appliance Inlet C14 with Filter, Fuseholder 1-or 2-pole, optional Voltage Selector (Series-Parallel), "Lock

and Shield" Mounting

GRM4

Standard- or Medical-Filter

GRM4: with shield and line filter

C14

70° C

- Panel Mount:

Snap-in version from rear-side

- 5 Functions:

Appliance Inlet Protection class I, Line Switch 2-pole, with or

without Fuseholder for fuse-links 5 x 20 mm, with or without voltage

selector, Line filter in standard and medical version

- On phase-out, not recommended for new design

Description

Approvals

Technical Data

Ratings IEC

Ratings UL/CSA

Leakage Current

Dielectric Strength

References

Weblinks

0.5 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

0.5 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz

standard < 0.5 mA (250 V / 60 Hz)

medical < 5 µA (250 V / 60 Hz)

> 1.7 kVDC between L-N

> 2.7 kVDC between L/N-PE

Test voltage (2 sec)

-25 °C to 85 °C

25/085/21acc. to, IEC 60068-1

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

Quick connect terminals 4.8 x 0.8 mm

Solder terminal on request

Solder terminals for voltage selector

Snap-in: 1.5 mm

(other on request)

Thermoplastic, black, UL 94V-0

Fuseholder

Line Switch

MTBF

- VDE Certificate Number: 118913

- UL File Number: E72928

- CSA File Number: 701867

Allowable Operation Temp.

Climatic Category

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

-O

Characteristics

- Ultra-compact design

Time saving “Lock and Shield” snap-in design for rear-panel mounting

- All single elements are already wired

- Fuseholder on the inside of the equipment prevents accidental use of

incorrect fuse-links by the user

- Voltage selector for two voltage ranges

Innovative EMC-shielding with flexible steel segments for an excellent

contact to the panel

- Insulation cover on the rear-side

- Qualified for use in equipment according IEC/EN 60950

Other versions on request

- Panel thickness 1.0 / 2 / 2.5 mm (max.)

- Fuseholder 1-pole

- Line switch 1-pole

- Voltage selector with other marking

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Store, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories

Appliance-Inlet/-Outlet

Rated Power Acceptance @

Ta 23 °C

Power Acceptance @ Ta >

23°C

Voltage Selectors

Line Filter

C14 acc. to IEC/EN 60320-1,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1

1 or 2 pole, Shocksafe category PC2

acc. to IEC 60127-6,

for fuse-links 5 x 20 mm

5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per

pole

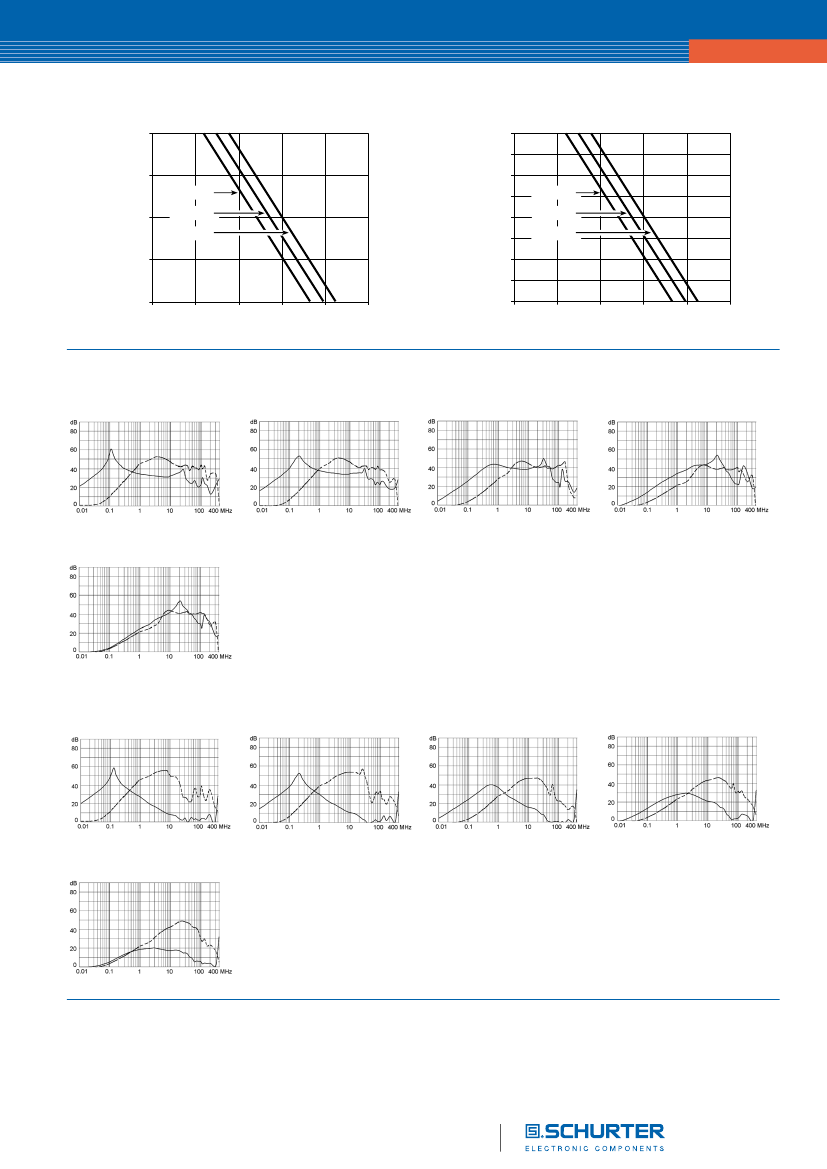

Admissible power acceptance at hig-

her ambient temperature see derating

curves

Rocker switch 2-pole, non-illuminated,

acc. to IEC 61058-1

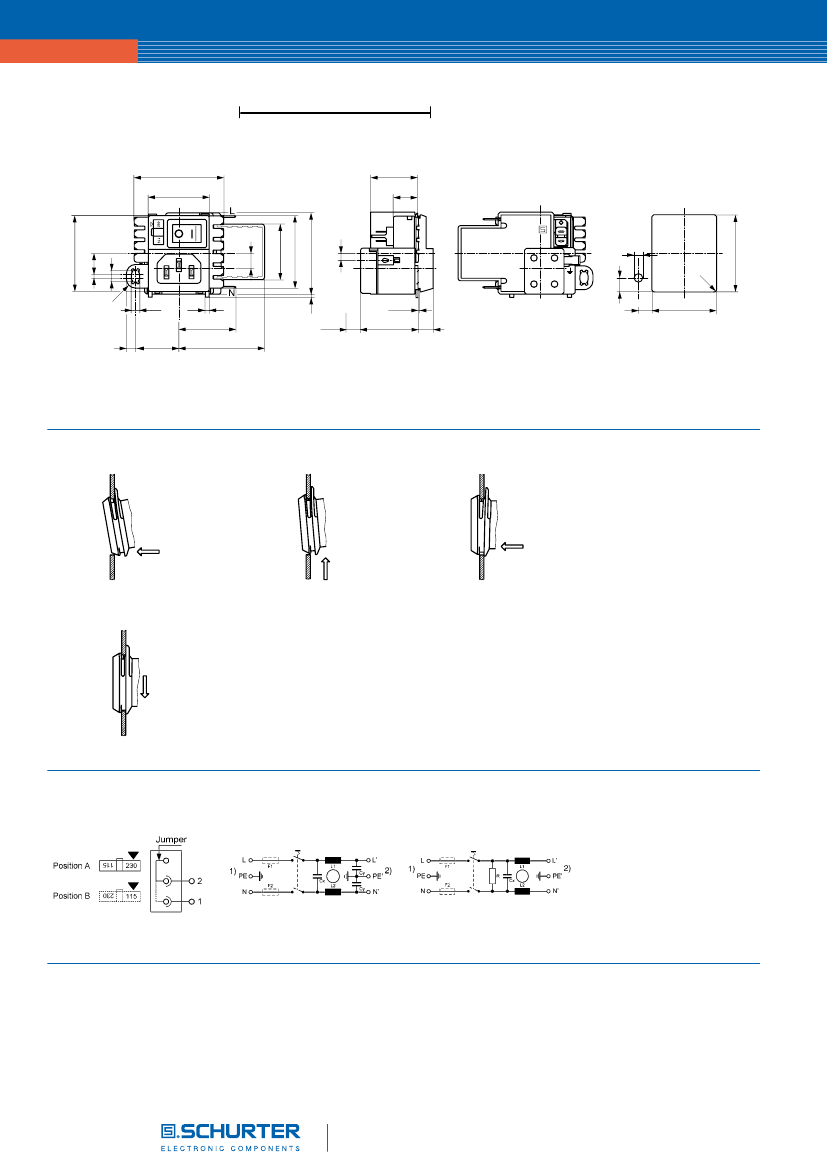

Technical details

optional, jumper, 2 pos.

Standard and Medical Version, IEC

60939, IEC 60601-1, UL 1283, UL 544,

EN 133 200, CSA C22.2 no. 8

Technical details

> 1'400'000 h acc. to MIL-HB-217 F
