DAJT3W3P1-A190 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DAJT3W3P1-A190

Preview

DAJT3W3P1-A190: DescriptionD Subminiature Connector, 3 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size75KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAJT3W3P1-A190 Overview

D Subminiature Connector, 3 Contact(s), Male, Solder Terminal, Plug,

DAJT3W3P1-A190 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41652, EMI/RFI SHIELDED
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	YES
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	PLASTIC
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

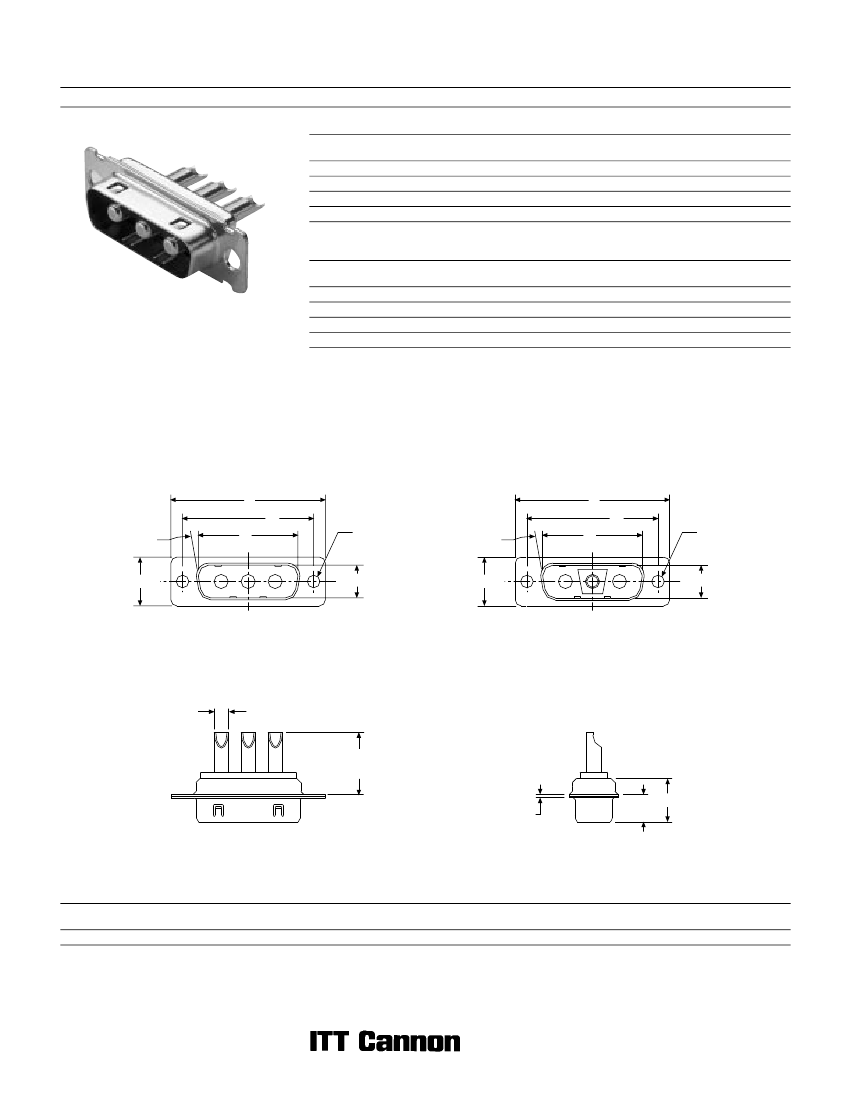

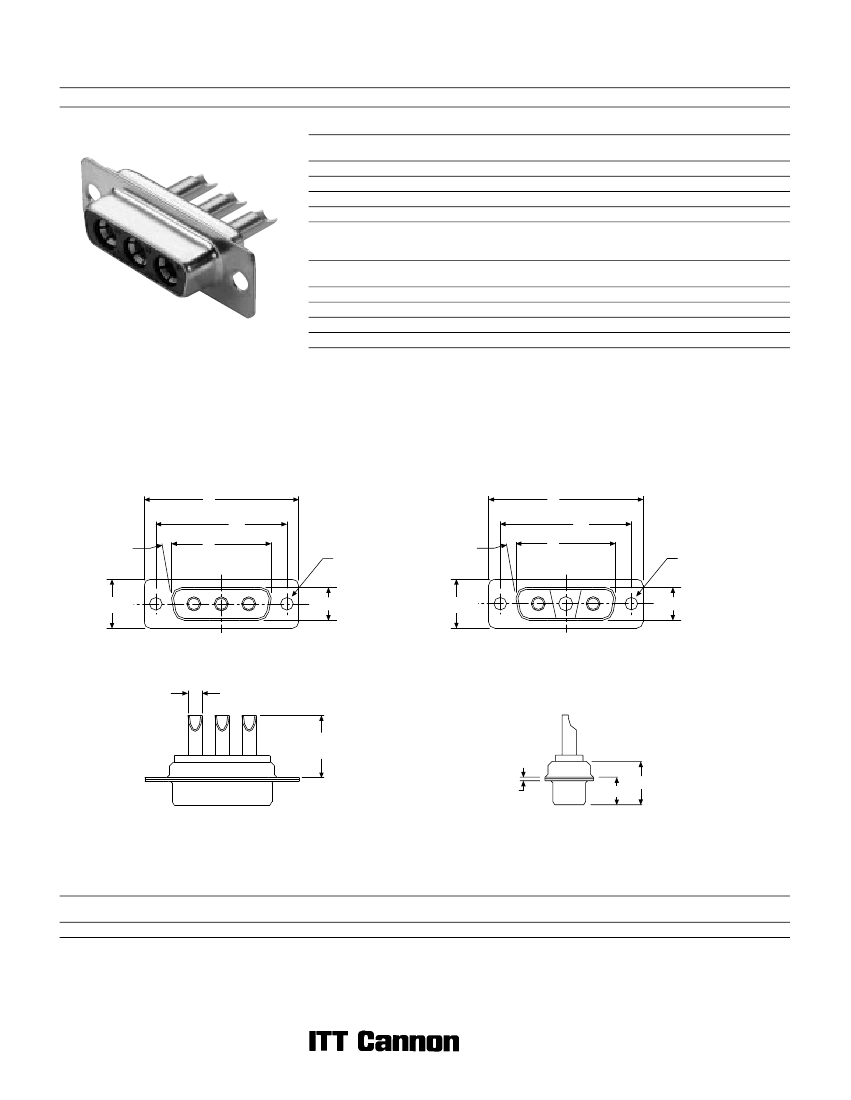

D Subminiature

D*JT Combo — High Power Solder Cup

Plug

Part Numbers

Filter

Capacitance

1000 pF

1500 pF

5000 pF

47000 pF

Through Hole

DAJT3W3P1

DAJT3W3P6

DAJT3W3P5

DAJT3W3P9

Clinch Nut

#4-40 UNC

DAJTE3W3P1

DAJTE3W3P6

DAJTE3W3P5

DAJTE3W3P9

Filter D

Clinch Nut

M3

DAJTX3W3P1

DAJTX3W3P6

DAJTX3W3P5

DAJTX3W3P9

Note: For performance class 1 add -A190. Example: DAJT3W3P6-A190

Part Numbers – Keyed Configuration

Filter

Capacitance

1000 pF

1500 pF

5000 pF

47000 pF

Through Hole

DAJT3WK3P1

DAJT3WK3P6

DAJT3WK3P5

DAJT3WK3P9

Clinch Nut

#4-40 UNC

DAJTE3WK3P1

DAJTE3WK3P6

DAJTE3WK3P5

DAJTE3WK3P9

Clinch Nut

M3

DAJTX3WK3P1

DAJTX3WK3P6

DAJTX3WK3P5

DAJTX3WK3P9

Reader’s Resource

For contact cavity arrangements,

see page 222.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

Note: For performance class 1 add -A190. Example: DAJT3WK3P6-A190

For electrical data, see page 107.

Engaging Face

Keyed Configuration

Engaging Face

A

C

10°

B

Ø 3,05

(.120)

A

C

10°

B

Ø 3,05

(.120)

A1

A3

A1

A3

E

D

E

D

Ø 3,63 (.143)

15,80

±

0,50

(.622

±

.011)

F

L

W

Dimensions

Shell Size

DA

A

±0,38

(.015)

39,14 (1.541)

B

±0,13

(.005)

25,25 (.994)

C

±0,13

(.005)

33,32 (1.312)

D

±0,13

(.005)

8,36 (.329)

E

±0,38

(.015)

12,55 (.494)

F

±0,25

(.010)

10,72 (.422)

W

±0,368

(.0145)

6,693 (.2635)

L

±0,25

(.010)

0,76 (.030)

128

Dimensions are shown in mm (inch)

Dimensions subject to change
