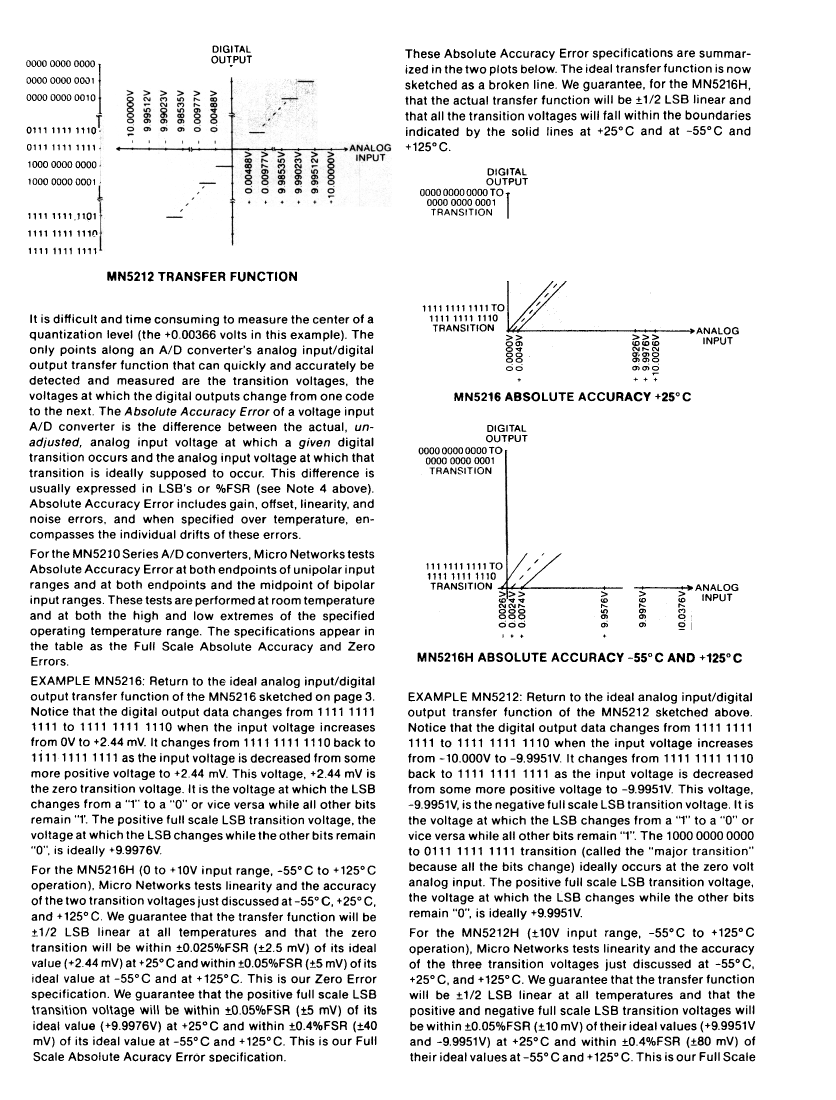

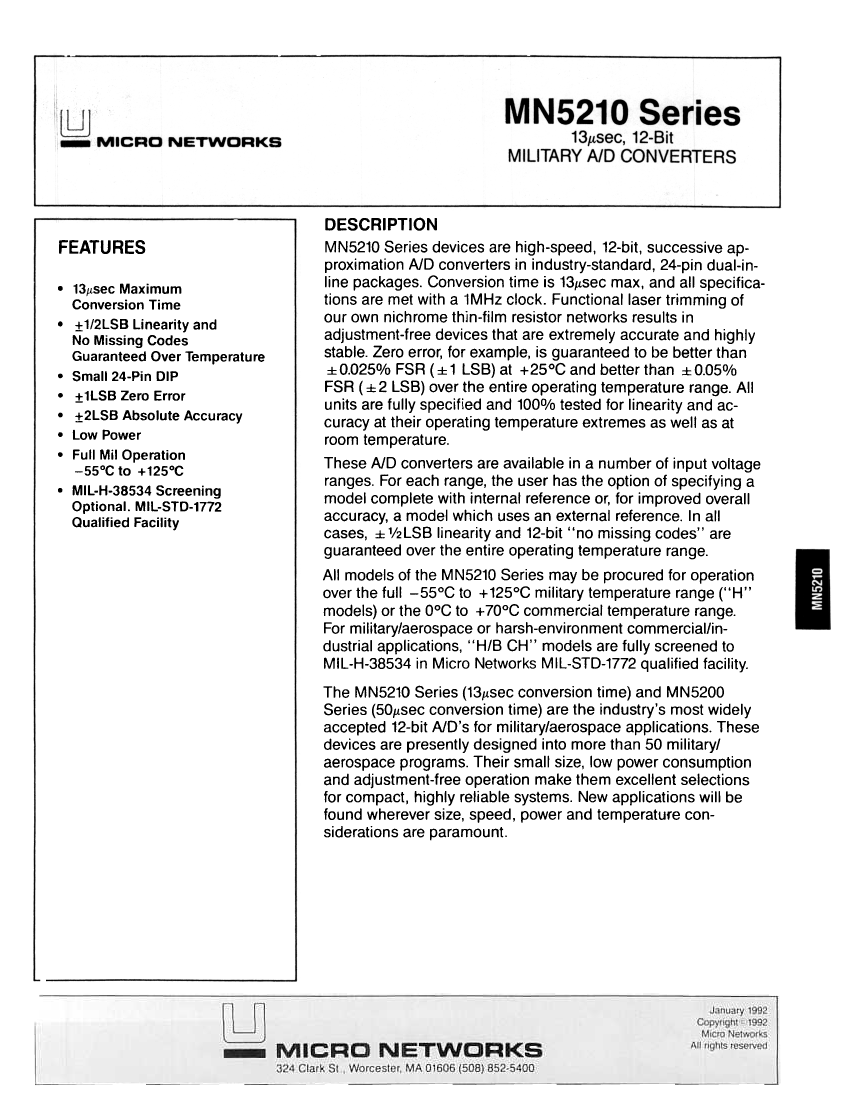

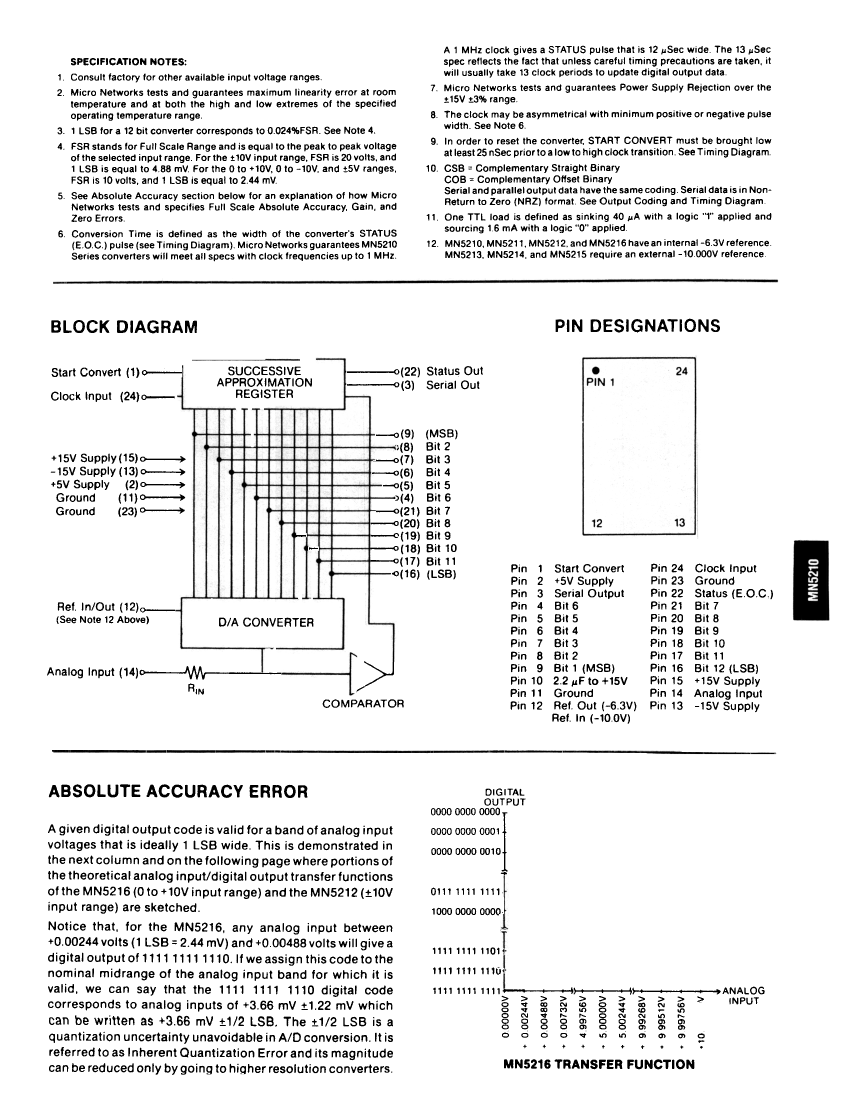

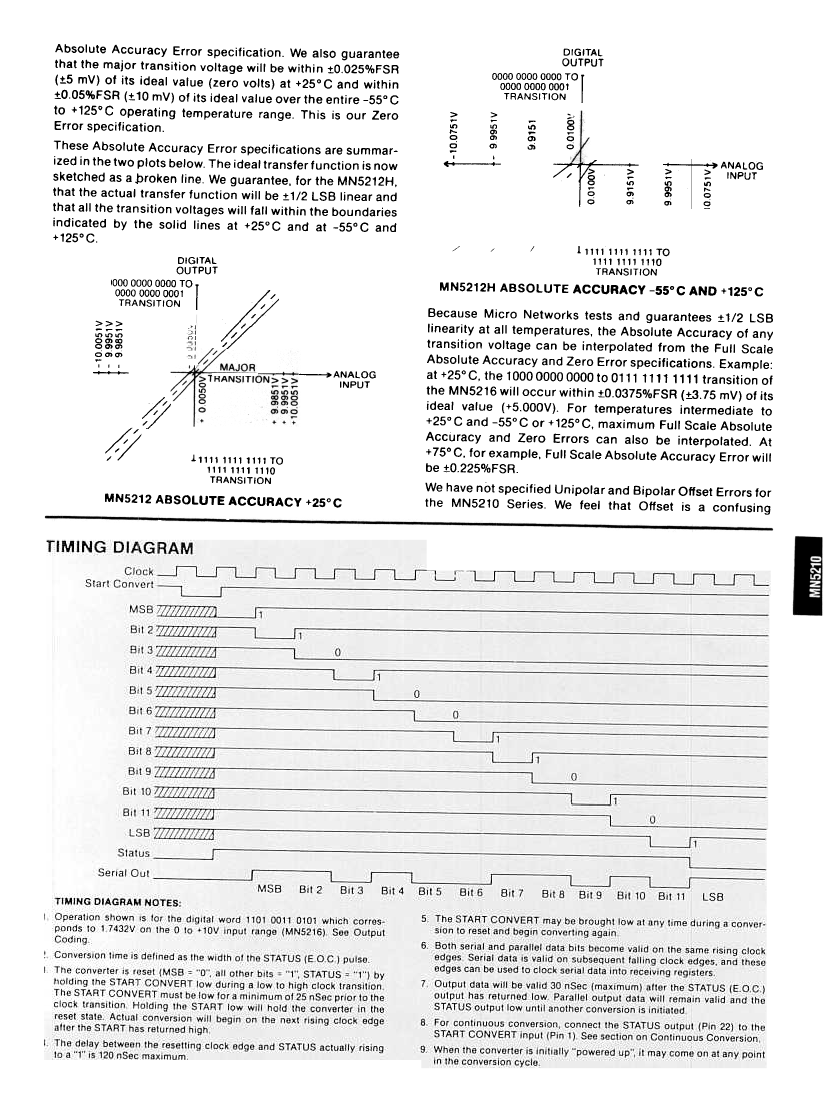

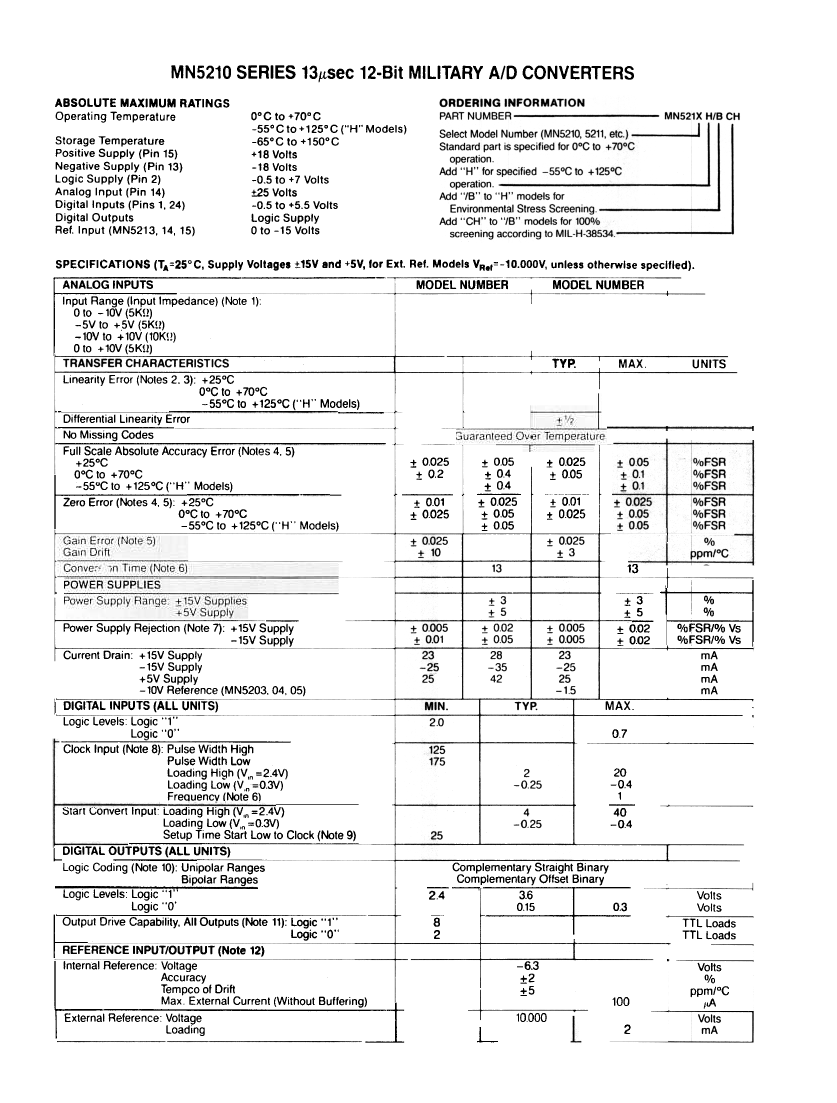

Preview

MN5210H: DescriptionADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, DIP-24; CategoryAnalog mixed-signal IC converter; File Size3MB，8 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MN5210H Overview

ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, DIP-24

MN5210H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage
Minimum analog input voltage	-10 V
Maximum conversion time	13 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
length	32.893 mm
Maximum linear error (EL)	0.0122%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Output format	SERIAL, PARALLEL, WORD
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Maximum seat height	5.21 mm
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MN5210H Related Products

	MN5210H	MN5210
Description	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, DIP-24	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, DIP-24
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	DIP, DIP24,.6	DIP, DIP24,.6
Contacts	24	24
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	EAR99
Minimum analog input voltage	-10 V	-10 V
Maximum conversion time	13 µs	13 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-XDIP-T24	R-XDIP-T24
JESD-609 code	e0	e0
length	32.893 mm	32.893 mm
Maximum linear error (EL)	0.0122%	0.0122%
Nominal negative supply voltage	-15 V	-15 V
Number of analog input channels	1	1
Number of digits	12	12
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	70 °C
Output bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Output format	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.21 mm	5.21 mm
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm
Base Number Matches	1	1
