MT4C2M8E7DW-7S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MT4C2M8E7DW-7S

MT4C2M8E7DW-7S: DescriptionEDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, SOJ-28; Categorystorage storage; File Size570KB，23 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT4C2M8E7DW-7S Overview

EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, SOJ-28

MT4C2M8E7DW-7S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOJ
package instruction	0.400 INCH, PLASTIC, SOJ-28
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
length	18.44 mm
memory density	16777216 bit
Memory IC Type	EDO DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	3.68 mm
self refresh	YES
Maximum standby current	0.00015 A
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.21 mm
Base Number Matches	1

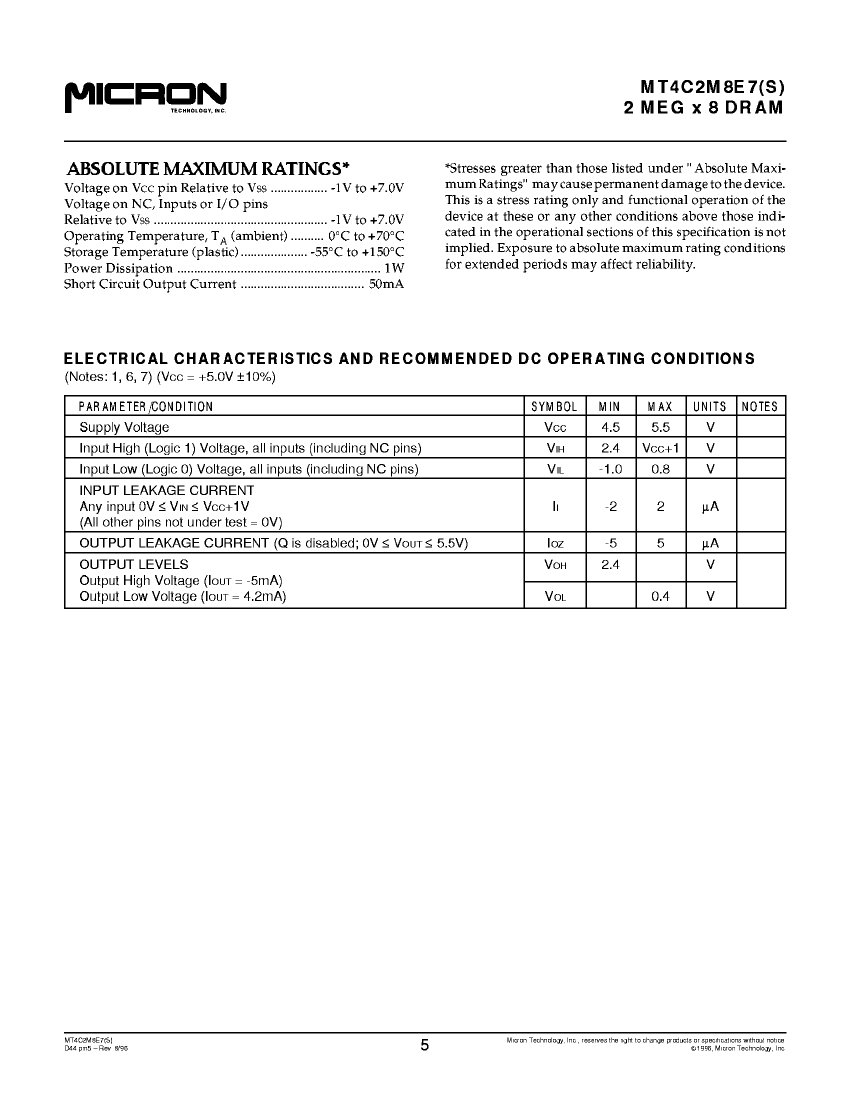

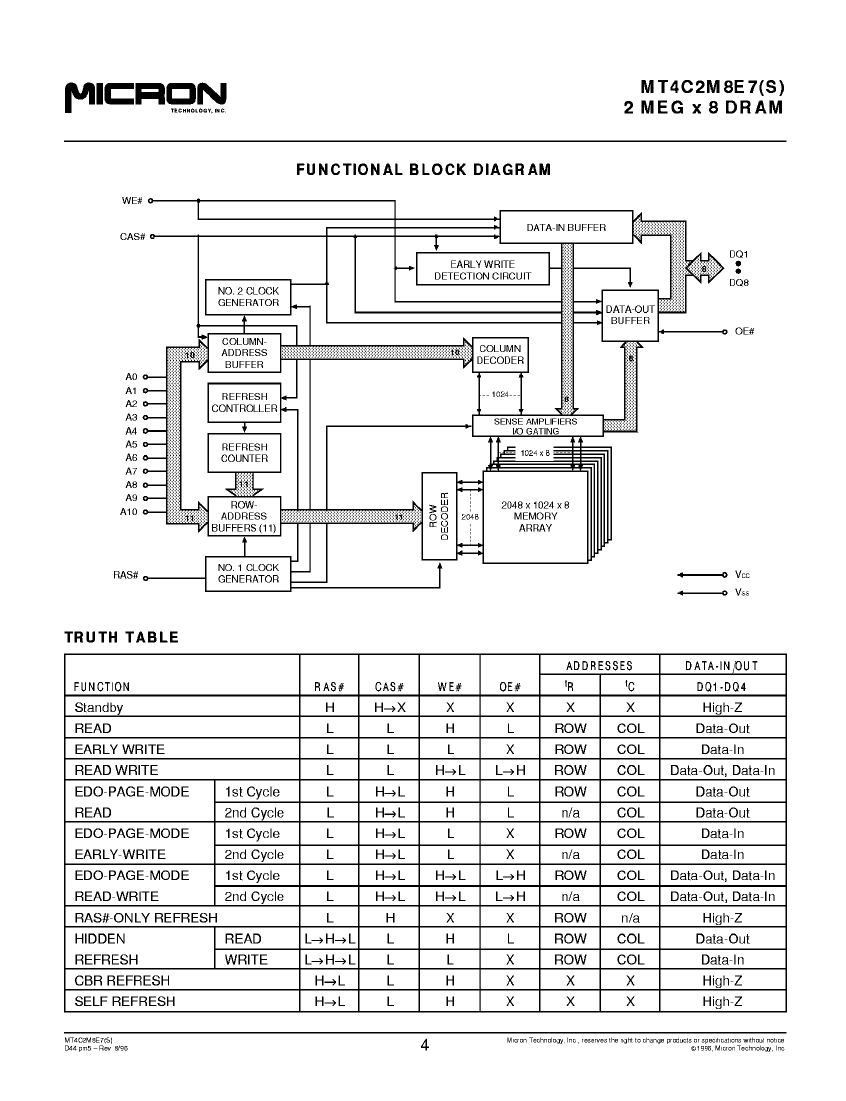

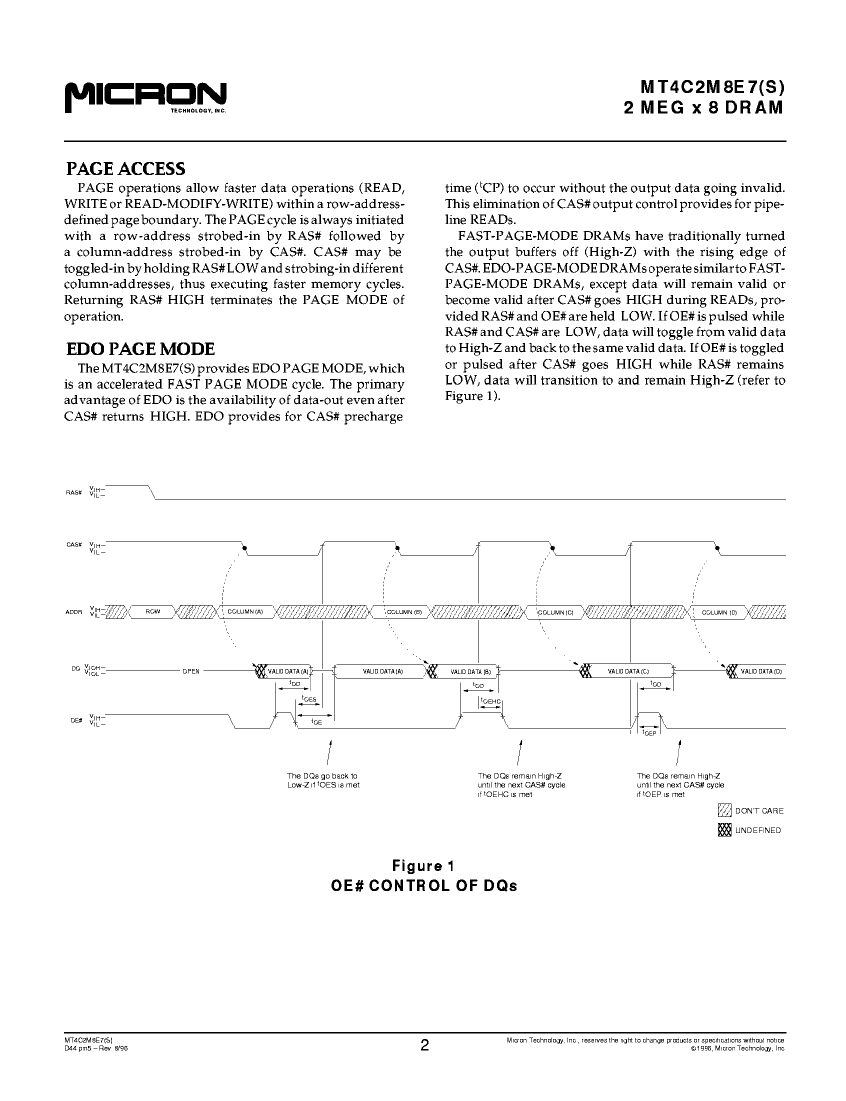

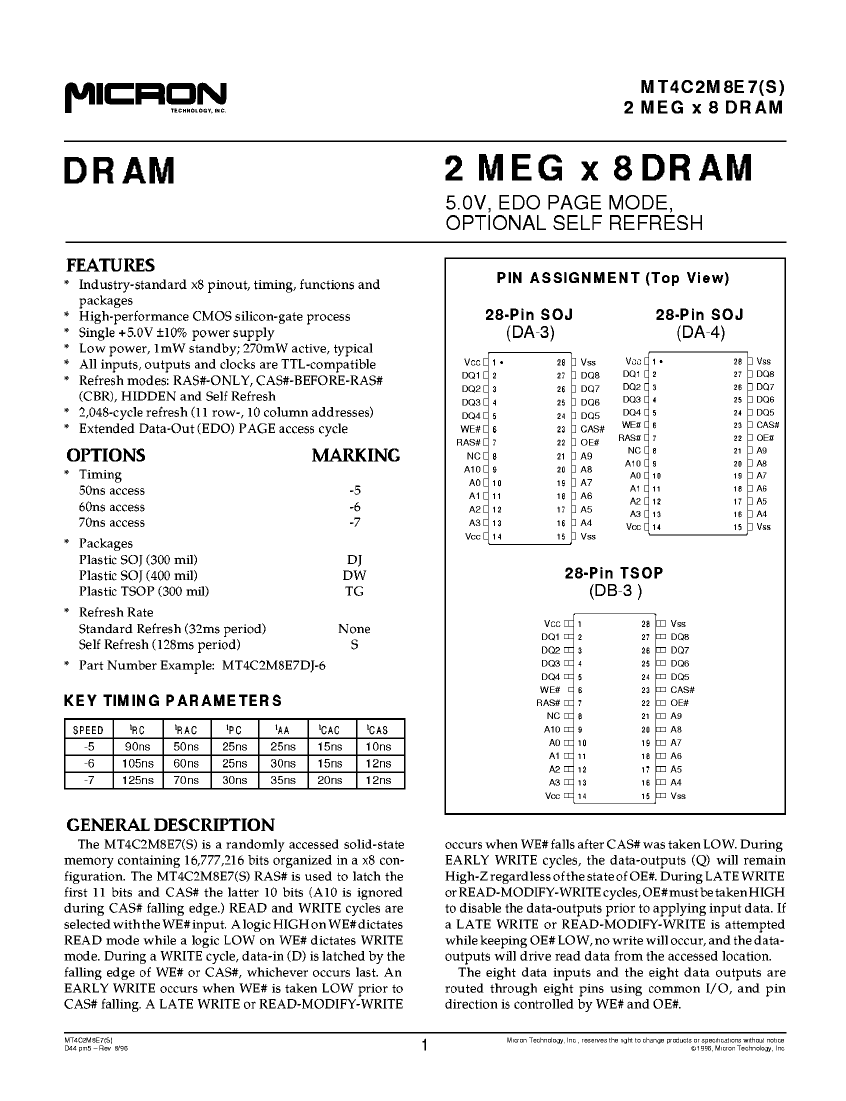

Preview

Download Datasheet

View All

MT4C2M8E7DW-7S Related Products

	MT4C2M8E7DW-7S	MT4C2M8E7DJ-7S	MT4C2M8E7DJ-7STR	MT4C2M8E7TG-7	MT4C2M8E7TG-7STR	MT4C2M8E7TG-7S	MT4C2M8E7TG-7TR	MT4C2M8E7DW-7	MT4C2M8E7DJ-7	MT4C2M8E7DJ-7TR
Description	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, SOJ-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, TSOP-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, TSOP-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, TSOP-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, TSOP-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, SOJ-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Parts packaging code	SOJ	SOJ	SOJ	TSOP	TSOP	TSOP	TSOP	SOJ	SOJ	SOJ
package instruction	0.400 INCH, PLASTIC, SOJ-28	0.300 INCH, PLASTIC, SOJ-28	SOJ,	0.300 INCH, PLASTIC, TSOP-28	TSOP2,	0.300 INCH, PLASTIC, TSOP-28	TSOP2,	0.400 INCH, PLASTIC, SOJ-28	0.300 INCH, PLASTIC, SOJ-28	SOJ,
Contacts	28	28	28	28	28	28	28	28	28	28
Reach Compliance Code	not_compliant	not_compliant	unknown	not_compliant	unknown	not_compliant	unknown	not_compliant	not_compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28
length	18.44 mm	18.44 mm	18.44 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.44 mm	18.44 mm	18.44 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28	28	28
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	TSOP2	TSOP2	TSOP2	TSOP2	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048	2048	2048	2048	2048	2048	2048
Maximum seat height	3.68 mm	3.61 mm	3.61 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	3.68 mm	3.61 mm	3.61 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	GULL WING	GULL WING	GULL WING	GULL WING	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.21 mm	7.67 mm	7.67 mm	7.67 mm	7.67 mm	7.67 mm	7.67 mm	10.21 mm	7.67 mm	7.67 mm
Is it lead-free?	Contains lead	Contains lead	-	Contains lead	-	Contains lead	-	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	-	incompatible	-	incompatible	-	incompatible	incompatible	-
I/O type	COMMON	COMMON	-	COMMON	-	COMMON	-	COMMON	COMMON	-
JESD-609 code	e0	e0	-	e0	e0	e0	e0	e0	e0	-
Encapsulate equivalent code	SOJ28,.44	SOJ28,.34	-	TSOP28,.34	-	TSOP28,.34	-	SOJ28,.44	SOJ28,.34	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5 V	5 V	-	5 V	-	5 V	-	5 V	5 V	-
self refresh	YES	YES	YES	NO	YES	YES	-	NO	NO	-
Maximum standby current	0.00015 A	0.00015 A	-	0.0005 A	-	0.00015 A	-	0.0005 A	0.0005 A	-
Maximum slew rate	0.12 mA	0.12 mA	-	0.12 mA	-	0.12 mA	-	0.12 mA	0.12 mA	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	1	1	1	1	1	1	-	-	-	-
