SMT inductors
SIMID series, SIMID 0603-C
Series/Type:
Date:
B82496C
July 2016
a~í~=pÜÉÉí
EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SMT inductors, SIMID series
SIMID 0603-C
Size 0603 (EIA) and/or 1608 (IEC)
Rated inductance 1 ... 220 nH
Rated current 110 ... 1800 mA
Construction
■
Copper-plated ceramic core
■
Laser-cut winding, epoxy-coated
B82496C
Features
■
■
■
■
■
■
■
Temperature range up to +150 °C
High resonance frequency
Close inductance tolerance
Free of polarization effect
High mechanical stability
Qualified to AEC-Q200
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020D
■
RoHS-compatible
Applications
Resonant circuits, impedance matching for
■
Multimedia
■
Car access systems
■
Wireless communication systems
■
TPMS (Tire Pressure Monitoring System)
■
GPS (Global Positioning System)
■
Digital cameras
Terminals
■
Base material Al
2
O
3
ceramic with Cu layer
■
Layer composition Ni, Sn (lead-free)
■
Electro-plated
Marking
■
No marking on component
■
Minimum data on reel:
Manufacturer, ordering code, L value,
quantity, date of packing
Delivery mode and packing unit
■
8-mm cardboard tape, wound on 180-mm
■
Packing unit: 4000 pcs./reel
reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
07/16
SMT inductors, SIMID series
SIMID 0603-C

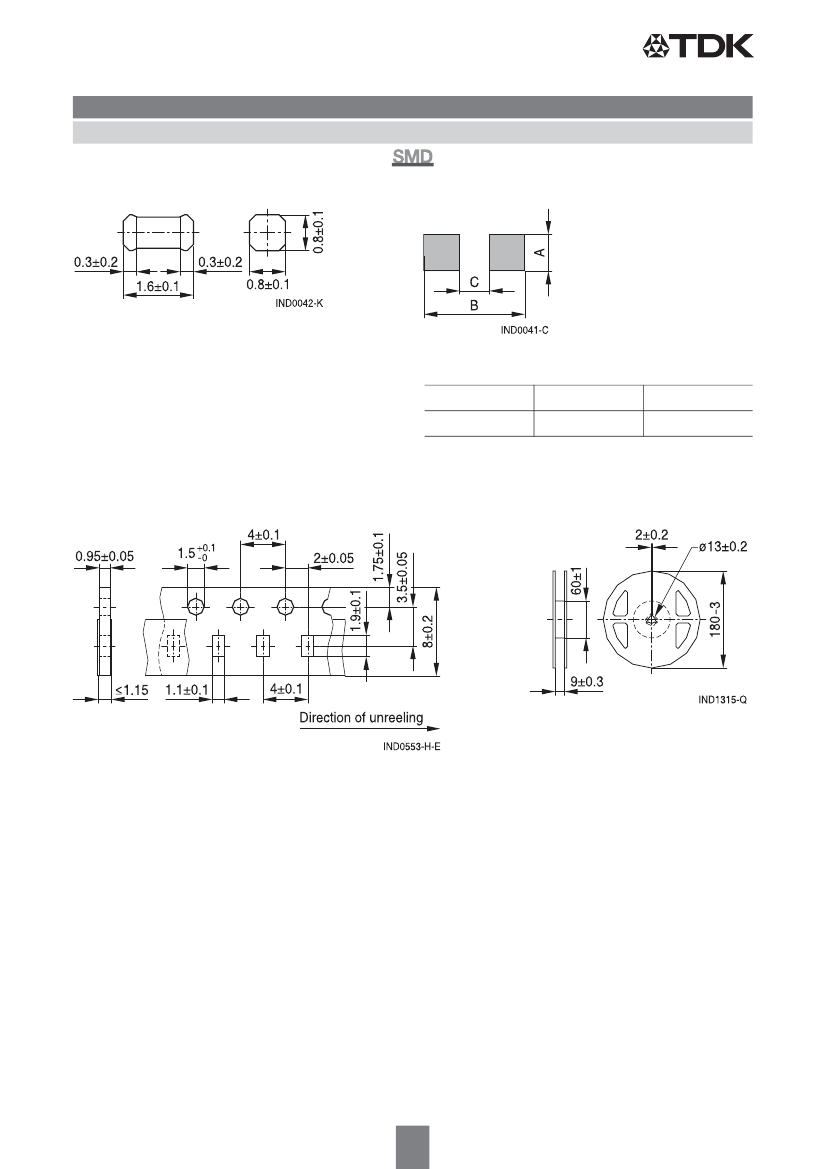

Dimensional drawing and layout recommendation
B82496C
A
Dimensions in mm
Taping and packing
Cardboard tape
0.8 0.1
B
2.3 0.3
C
0.9 0.1
Reel
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
07/16
SMT inductors, SIMID series
SIMID 0603-C
Technical data and measuring conditions
Rated inductance L
R
B82496C
Measured with impedance analyzer Agilent 4291A
and test fixture Agilent 16196A at frequency f
L
, 0.1 V,
+20 °C
Measured with impedance analyzer Agilent 4291A
and test fixture Agilent 16196A,
Q
min
measured at frequency f
Q
, +20 °C
+125 C
Maximum permissible DC with a temperature increase
of 15 K at rated temperature
Measured with network analyzer Agilent 8720D, +20 °C
Measured at +20 °C
Sn95.5Ag3.8Cu0.7: +(245 5) °C, (5 0.3) s
Wetting of soldering area 95%
(based on IEC 60068-2-58)
+260 C, 40 s (as referenced in JEDEC J-STD 020D)
55/150/56 (to IEC 60068-1)
Mounted: –55 °C … +150 °C
Packaged: –25 °C … +40 °C, 75% RH
Approx. 4 mg
Q factor Q
min
,
Q
typ
Rated temperature T
R
Rated current I
R
Self-resonance frequency f
res,min
DC resistance R
max
Solderability (lead-free)
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
07/16
SMT inductors, SIMID series
SIMID 0603-C
Characteristics and ordering codes
L
R
nH
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
5%
2%
^
^
B82496C
Tolerance
Q
min
Q
typ
(at
800 MHz)
60
60
50
50
50
40
40
40
40
40
40
40
40
40
40
40
40
35
35
35
35
35
35
35
30
30
30
25
25
f
L
; f
Q
MHz
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
I
R
mA
1800
1800
1500
1500
1500
1400
1200
1100
800
700
700
650
600
450
420
400
380
360
350
300
270
250
230
220
200
160
130
120
110
R
max
f
res,min
GHz
Ordering code
1)
(reel packing)
B82496C3109+000
B82496C3129+000
B82496C3159+000
B82496C3189+000
B82496C3229+000
B82496C3279+000
B82496C3339+000
B82496C3399+000
B82496C3479+000
B82496C3569+000
B82496C3689+000
B82496C3829+000
B82496C3100+000
B82496C3120+000
B82496C3150+000
B82496C3180+000
B82496C3220+000
B82496C3270+000
B82496C3330+000
B82496C3390+000
B82496C3470+000
B82496C3560+000
B82496C3680+000
B82496C3820+000
B82496C3101+000
B82496C3121+000
B82496C3151+000
B82496C3181+000
B82496C3221+000
0.3 nH
0.2 nH
^
^
A
Z
7
8
8
12
14
14
14
0.02
0.025
0.03
0.033
0.035
0.04
0.06
0.065
0.10
0.15
0.15
0.18
0.20
0.35
0.40
0.45
0.50
0.55
0.60
0.80
0.95
1.2
1.3
1.5
1.8
3.0
5.0
6.0
7.0
16
15
13
12
10
10
9
8
7
6
6
6
5
5
4.5
4.0
4.0
3.0
3.0
2.5
2.5
2.5
2.0
2.0
1.8
1.8
1.6
1.4
1.3
5%
^
J
0.2 nH
^
Z
14
14
14
14
14
J
G
14
14
14
14
14
14
14
14
14
14
14
14
14
5
5
4
4
Special versions on request.
Higher currents possible at temperatures <T
R
on request.
Sample kit available (see also chapter “Sample kits”. Ordering code: B82496X001
1) Replace the + by the code letter for the required inductance tolerance.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
07/16
