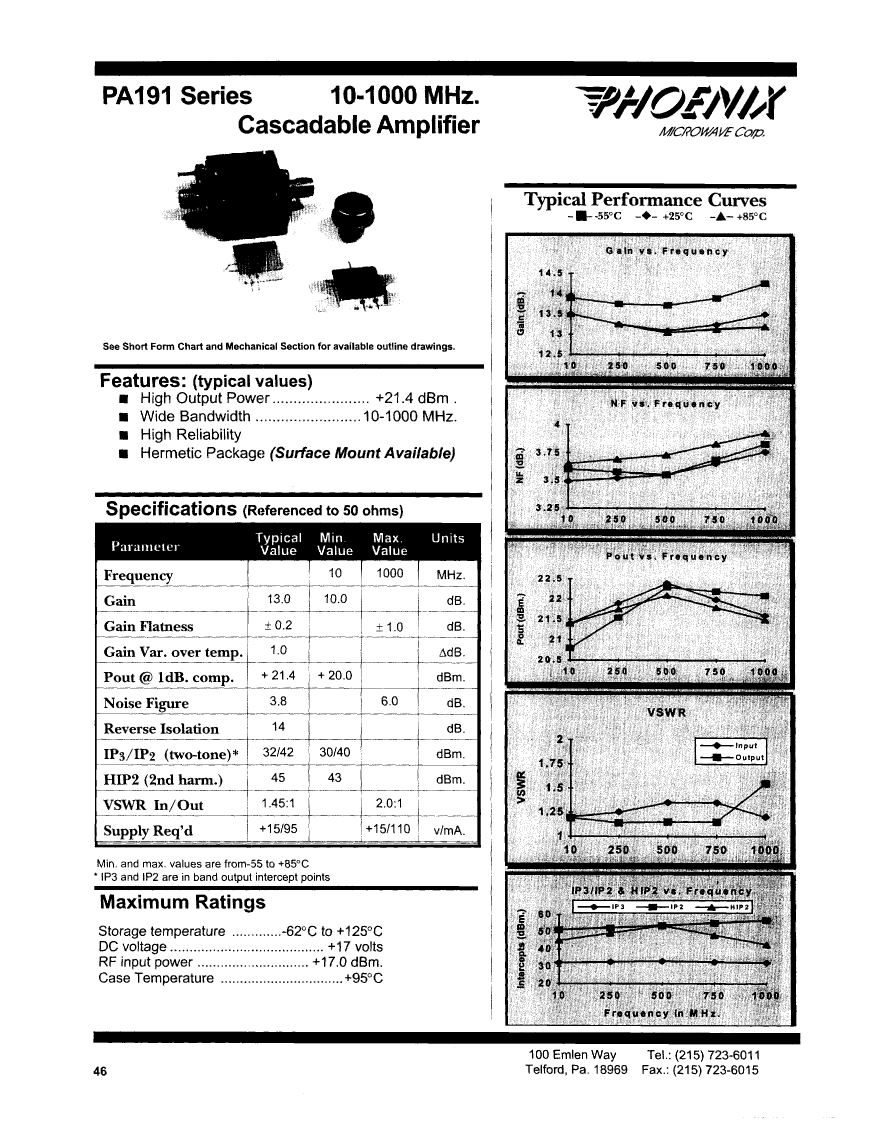

PA191F: DescriptionNarrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size322KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

PA191F Overview

Narrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	17 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

	PA191F	PA191	PA191C	PA191CS	PA191M	PA191FH	PA191MH
Description	Narrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,	Narrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,	Narrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,	Narrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,	Narrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,	Narrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,	Narrow Band Medium Power Amplifier, 10MHz Min, 1000MHz Max,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	17 dBm	17 dBm	17 dBm	17 dBm	17 dBm	17 dBm	17 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2	2	2	2
Base Number Matches	1	1	1	1	1	1	1
