502-900-0630N: DescriptionRF SMC Connector, Female, Cable Mount, Clamp/Crimp Terminal, Plug; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

502-900-0630N Overview

RF SMC Connector, Female, Cable Mount, Clamp/Crimp Terminal, Plug

502-900-0630N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012, APPLICABLE CABLE: RG-316/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	50
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP/CRIMP
voltage standing wave ratio	1.7
Base Number Matches	1

Preview

Download Datasheet

View All

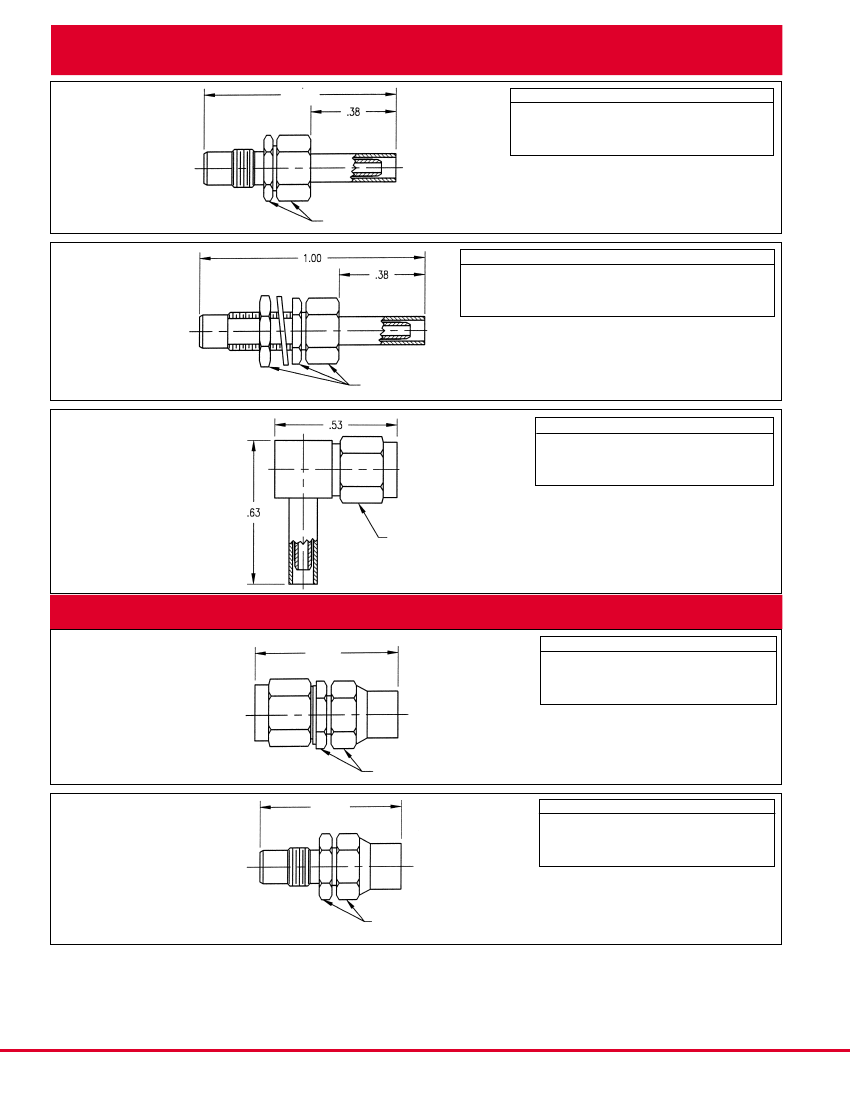

SMC:

Straight

Jack

Captive

Contact

Crimp / Clamp Flexible Cable

.84

Part Number

501-800-0360H

501-800-0630H

501-800-0631H

Cable

RG-178

RG-316

RG-316 double shielded

• See page 104 for cable assembly procedures: No. 8-02

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

1/4 HEX

Straight

Bulkhead

Jack

Captive

Contact

1/4 HEX

Part Number

501-880-0360H

501-880-0630H

501-880-0631H

Cable

Mounting Hole

RG-178

No. 080

RG-316

No. 080

RG-316 double shielded

No. 080

• See page 104 for cable assembly procedures: No. 8-02

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Part Number

502-900-0360H

502-900-0630H

502-900-0631H

Cable

RG-178

RG-316

RG-316 double shielded

Right Angle

Plug

1/4 HEX

• See page 110 for cable assembly procedures: No. 9-06

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

SMC:

Clamp Flexible Cable

.63

Straight

Plug

Captive

Contact

Part Number

500-700-0360H

500-700-0630H

500-700-0631H

Cable

RG-178

RG-316

RG-316 double shielded

• See page 99 for cable assembly procedures: No. 7-03

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

1/4 HEX

Straight

Jack

Captive

Contact

.59

Part Number

501-700-0360H

501-700-0630H

501-700-0631H

Cable

RG-178

RG-316

RG-316 double shielded

1/4 HEX

• See page 99 for cable assembly procedures: No. 7-03

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Note: Dimensions shown in inches.

Winchester/Retconn

RF/36

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com
