C75-016-020-IJBAA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> C75-016-020-IJBAA

Preview

C75-016-020-IJBAA: DescriptionRectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric View All

C75-016-020-IJBAA Overview

Rectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Plug,

C75-016-020-IJBAA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN (118)
Contact completed and terminated	TIN (118)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CAM-C75
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

MITSUMI

Power Supply Voltage & Signal

CAM-C75, CCM-C76

Connectors

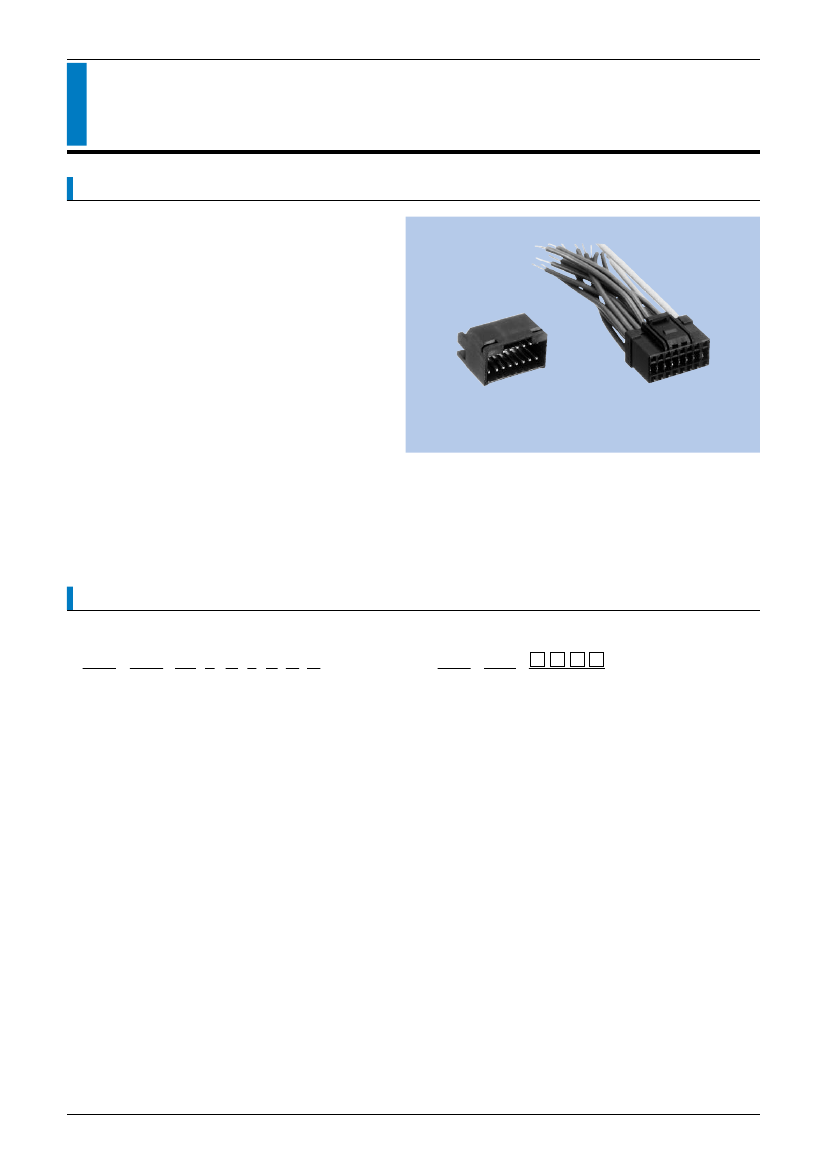

FEATURES

1. 16 pin power connector of an angle type on

the plug side.

2. One-touch locking mechanism ensures a

secure fitting.

3. The socket connector on the cable assembly

side is of double lance structure to enhance

the withdrawal strength from the housing.

4. The 4 pins is for power supply and 12 pins is

16 pins type for signal.

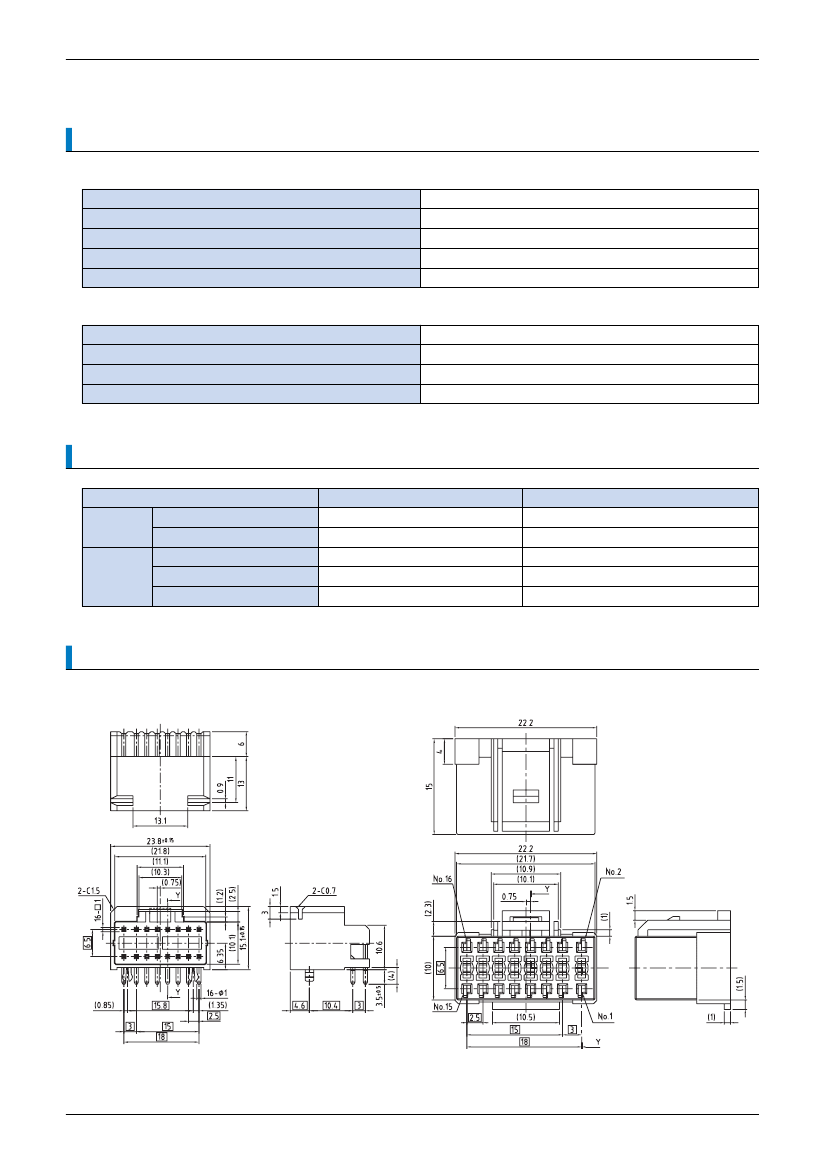

CAM-C75(Plug)

CCM-C76(Socket)

HOW TO ORDER

1.CAM-C75 (Plug)

2.CCM-C76 (Socket)

C75-016-02 0- I J B A A

1

2

3

4

5

6

7

8

9

1

2

3 4 5 6 7 8 9

Series No. (C75)

No. of contacts (016 : 16pins)

Housing material (02 : PBT resin)

Housing UL grade (0 : UL94V-0)

Contact plating (I : Tin reflow plating)

Contact plating thickness (J : 3.0µm)

Contact tail style (B : Angle)

Accessory for connector outside (A : none)

Accessory for connector inside (A : none)

C76-016-

1

2

3

1 Series No. (C76)

2 No. of contacts (016 : 16pins)

3 Running No. assigned by us
