EQCD-100-05-09.00-75-38-R datasheet, PDF

Datasheet> All Categories > The connector> The connector> EQCD-100-05-09.00-75-38-R

EQCD-100-05-09.00-75-38-R: DescriptionInterconnection Device; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EQCD-100-05-09.00-75-38-R Overview

Interconnection Device

EQCD-100-05-09.00-75-38-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

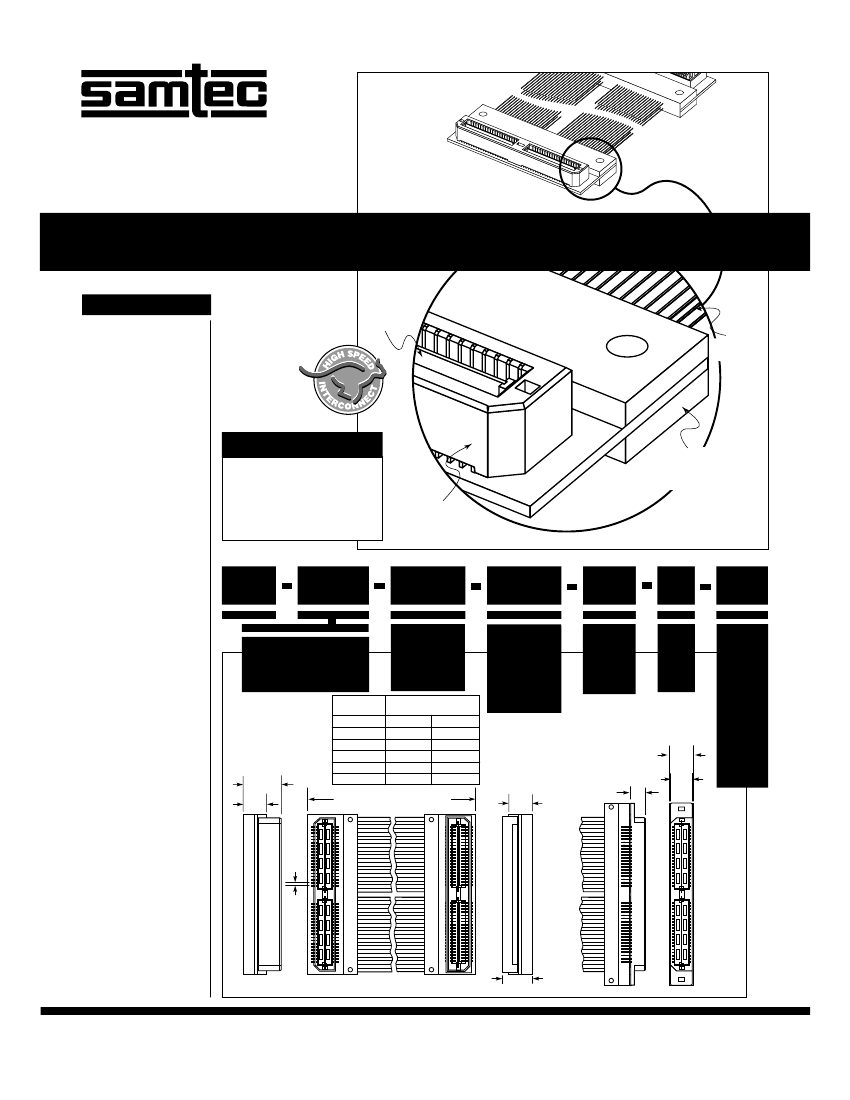

FACTSHEET F-200

EQCD–040–01–12.00–50–38

HI-SPEED CABLE

EQCD SERIES

SPECIFICATIONS

See www.samtec.com/design/

pdf_reports.asp; select EQCD

Mates with:

QTE, QSE

Surface Mount

ground plane

for full

SMT system

38 AWG

coax cable

ALSO AVAILABLE

Assemblies with 0,5mm pitch,

0,635mm pitch and MICTOR*

compatible PCB footprints

also available. Call Samtec.

*MICTOR is a registered trademark

of The Whitaker Corporation

Standard strain

relief housing and

full housing available

Choice of 50Ω

& 75Ω matched

impedance systems

EQCD

POSITIONS

PER ROW

END

ASSEMBLY

LENGTH

“XX.XX”

= Length in

INCHES

Example:

–09.00

= (22,86mm)

9.00"

SYSTEM

COAX

WIRE

OPTION

–020, –040,

–060, –080, –100

(40 total positions per bank)

END

ASSEMBLY

Specify

END

ASSEMBLY

from chart

TERMINATION

Male

Female

Male

Edge Mount

Male

Female

Edge Mount

Edge Mount Edge Mount

= 50 Ohms

= 38

AWG

Coax

cable

–F

= Gold

flash.

Leave

blank for

standard

plating

with 10

(0,25

Gold

= 75 Ohms

(11,43)

.450

(6,35)

.250

–01

–02

–03

–04

–05

–06

(6,35)

.250

(4,27)

.168

(5,97)

.235

–R

= Reversed

connectors

Assembly Length in INCHES

±(0,64mm)

1/4"

((153mm) 6 inches minimum)

(6,35)

.250

(0,80)

.0315

Note:

This Series is non-standard,

non-returnable.

MALE

FEMALE

(10,16)

.400

EDGE-MOUNT

SAMTEC USA

• Tel: 1-800-SAMTEC-9 or 812-944-6733 • Fax: 812-948-5047

SAMTEC UK

• Tel: 01236 739292 • Fax: 01236 727113

SAMTEC ASIA PACIFIC

• Tel: 65-745-5955 • Fax: 65-841-1502

SAMTEC GERMANY

• Tel: +49 (0) 89 / 89460-0 • Fax: +49 (0) 89 / 89460-299

SAMTEC FRANCE

• Tel: 01 60 95 06 60 • Fax: 01 60 95 06 61

SAMTEC ITALY

• Tel: 39 039 6890337 • Fax: 39 039 6890315

SAMTEC JAPAN

• Tel: 81-424-42-8318 • Fax: 81-424-42-8319

SAMTEC CHINA

• Tel: 86-21-5385-4089 • Fax: 86-21-5385-4047

SAMTEC TAIWAN

• Tel: (02) 2395-1677 • Fax: (02) 2395-1689

Due to technical progress, all designs, specifications and components are subject to change without notice.
