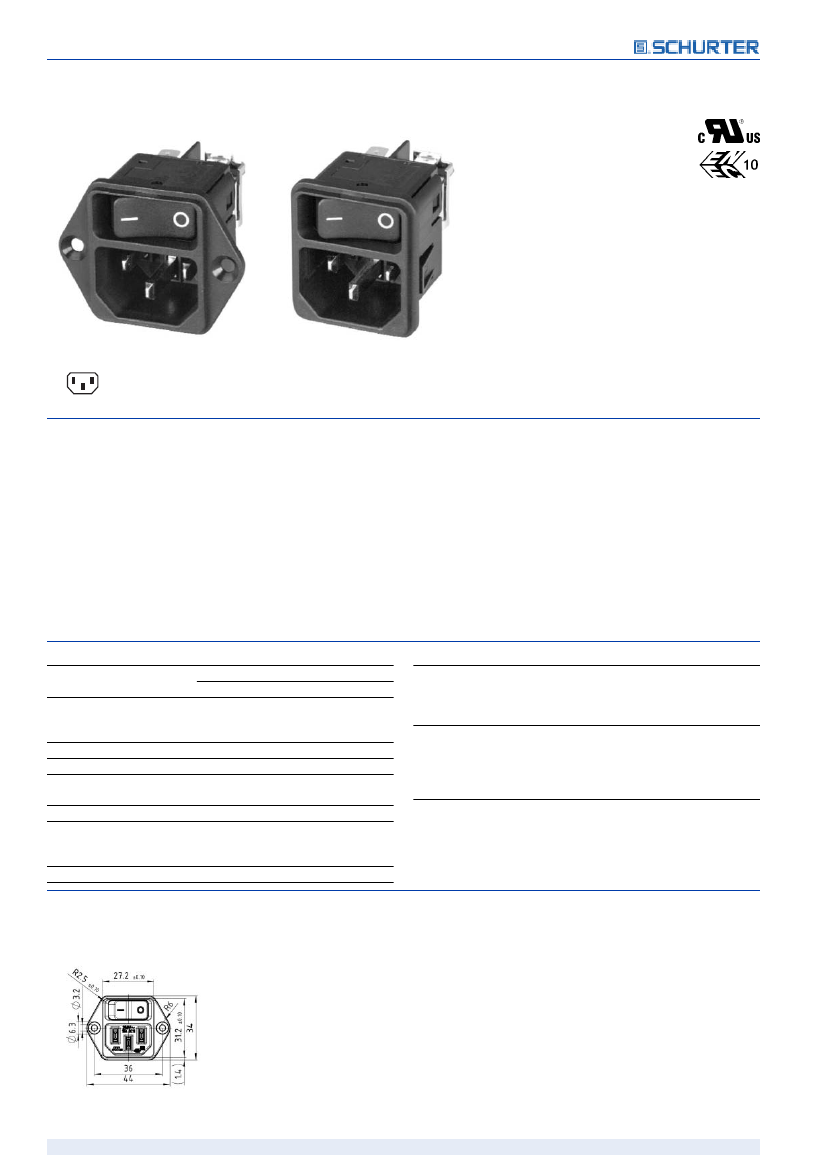

DC11

POWER ENTRY MODULES WITHOUT LINE FILTER

Actual information about approvals can be found on

http://www.schurter.com/approvals

C14

70° C

Description

- Panel mount:

Screw-on version from front or rear side, snap-in version from front

side

- 2 Functions:

Connector Protection class I, Line switch 1- or 2-pole

- Quick connect terminals 4.8 x 0.8 mm

- Alternative: version with line filter

DC12

- Substitute for type

KEB1; KEB2

Characteristics

- Ultra-compact design

- All single elements are already wired

Unwired versions available on request

- Line switch non-illuminated or illuminated

- Ideal for application with high transient loads

- Qualified for use in equipment according IEC/EN 60950

Other versions on request:

snap-in, panel thickness 1 and 3 mm

unwired versions

solder terminals

line switch with other rocker marking

line switch 1-pole

for protection class II

Technical data

Ratings IEC

Ratings UL/CSA

Dielectric strength

10 A / 250 VAC; 50 Hz

12 A / 250 VAC; 50/60 Hz

> 2.5 kVAC between L-N

> 3 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP40 acc. to IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

Quick connect terminals 4.8 x 0.8 mm

Screw-on: max 6 mm

Mounting screw torque max 0.5 Nm

Snap-in: 1/1.5/2/2.5/3 mm

Thermoplastic, black, UL 94V-2

Appliance-inlet /-outlet

C14 acc. to IEC/EN 60320-1,

UL 498, CSA C22.2 no. 42 (for cold

condition) pin-temperature 70 °C, 10 A,

Protection class I

Rocker switch 1- or 2-pole, non-illumi-

nated or illuminated red or green, acc.

to IEC 61058-1

Technical details

GENERAL PRO-

DUCT INFORMATION

Line switch

Allowable operation temp.

Degree of protection

Protection class

Terminals

Panel thickness s

Materials: Housing

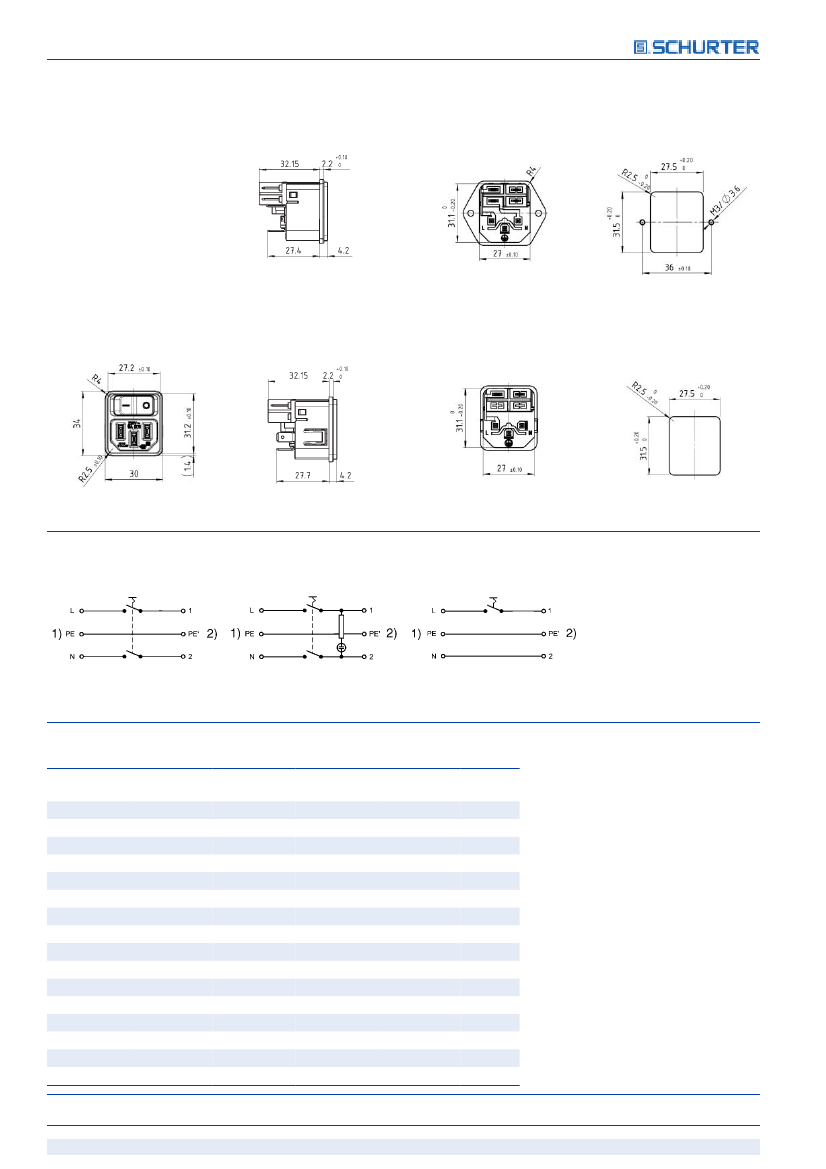

Dimensi ns

Screw-on

mounting

www.schurter.com
