T
Features
■
DC to 2 GHz
■
Terminals for PCB placement
■
Low VSWR
■
Aluminum Nitride ceramic
*R
oH
S
CO
M
This series is
not recommended for new designs.
PL
IA
N

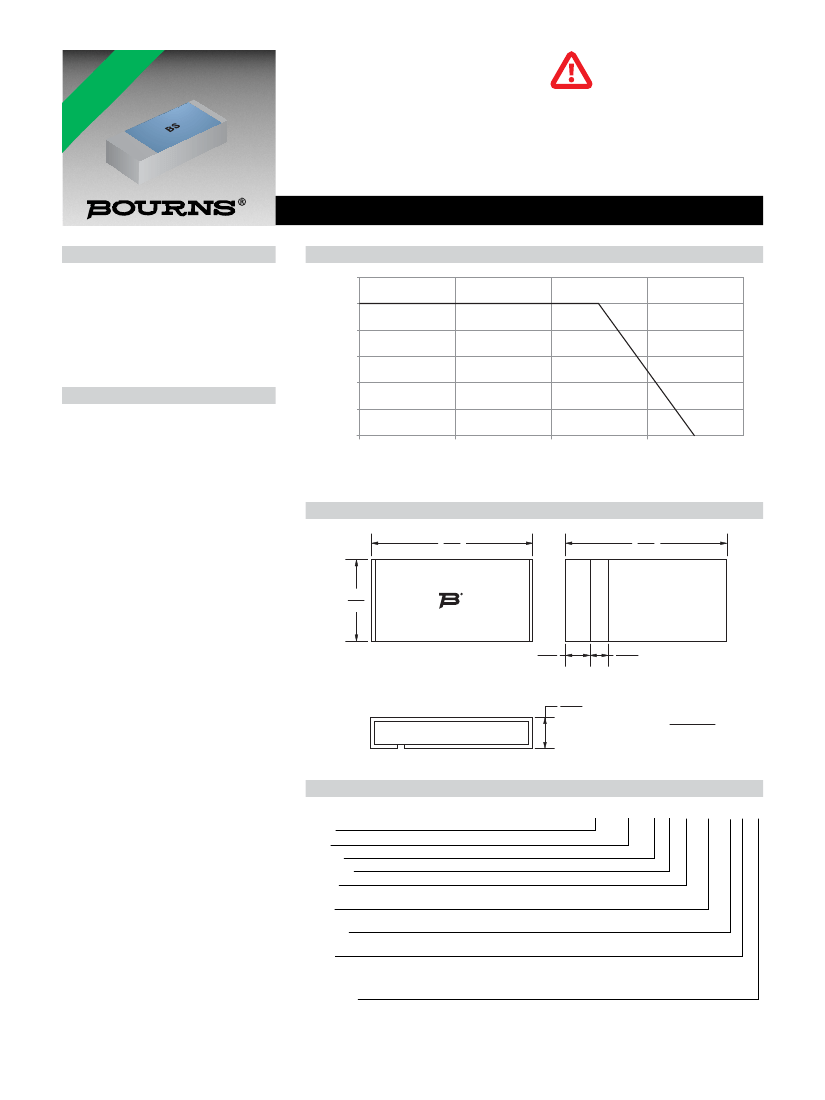

CHF2010CNP Series 10 W Power RF Chip Termination
General Specifications
Substrate .........................................ALN
Resistive Film ........................ Thick-Film
Terminals .......................................PtAg*
Resistance ...................................... 50
Ω
Tolerance ........................................±5 %
Packaging
Tape & Reel.............2000 pcs./7“” reel
Bulk ................................ 100 pcs./bag
Absolute Ratings
Power .............................................10 W
Frequency.....................................2 GHz
VSWR ............................... 1.2 Maximum
*Default, other finish options available
(see How to Order section).
2
0
Characteristic Curve
12
10
Power (Watts)
8
6
4
E
T
E
L
O
S
B
O
-55
0
100
Heat Sink Temperature (°C)
150
Product Dimensions
5.08
(0.2)
5.08
(0.2)
2.54
(0.1)
0.5
(0.02)
0.8
(0.03)
0.9906
(0.039)
DIMENSIONS =
MILLIMETERS
(INCHES)
How to Order
CHF 2010 C N P 500 L Y E
Model
Size
Version
Substrate
Mount
P = Printed Circuit Board
Value
500 = 50 Ohm
Function
L = Termination
Finish
Y = Pt Ag (Default)
Z = Sn Pb
X = Ni Au
Packaging
E = Tape & Reel (2,000 pcs./7 ” reel)
_ = Bulk (100 pcs./bag)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including
annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data
sheet can and do vary in different applications and
actual device performance may vary over time.
Users should verify actual device performance in their
specific applications.
Applications
■
RF amplifiers
■
Attenuators
■
Antenna feeds
CHF2010CNP Series 10 W Power RF Chip Termination
Packaging Dimensions
4.0 ± 0.2
(.157 ± .008)
2.8 ± 0.2
(.11 ± .008)
5.5 ± 0.2
(.216 ± .008)
12.0 ± 0.2
(.47 ± .008)
13.0 ± 0.5
(.512 ± .020)
4.0 ± 0.1
(.157 ± .004)
1.75 ± 0.1
(.050 ± .004)
2.0 ± 0.2
(.08 ± .008)
5.5 ± 0.2
(0.22 ± .008)
2.0
(.080)
1.0 ± 0.2
(.040 ± .008)
180.0 ± 0.2
(7.0 ± .008)
63.0 ± 0.2
(2.5 ± .008)
1.5 +0.1/-0
(.056 +.004/-0)
MAXIMUM THICKNESS:
1.0
(.040)
CUMULATIVE TOLERANCE OVER 10 HOLES:
E
T
E
L
O
S
B
O
0.2
(.008)
20.5
(.807)
12.5 ± 0.2
(0.5 ± .008)
DIMENSIONS:
MM
(INCHES)
REV. 12/15
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
