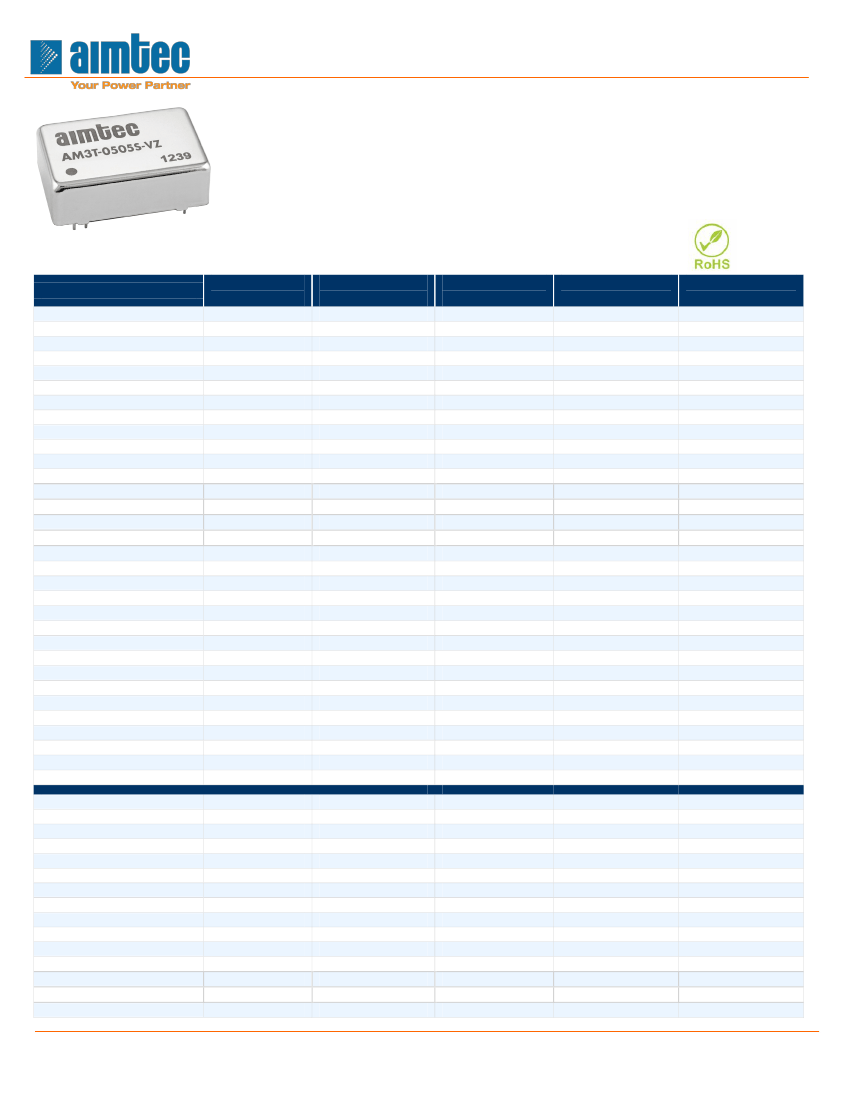

3 Watt | DC-DC Converter
FEATURES:
•
•
•
•
Wide 2:1 input range
24 Pin DIP Package
High efficiency up to 82%
Metal package
•
•
•
•
Operating temperature -40
o
C to + 85
o
C
Input / Output isolation 1500 or 3500VDC
Pin compatible with multiple manufacturers
Continuous short circuit protection
Series AM3T-VZ
Models
Single output
Model
AM3T-0503S-VZ
AM3T-0505S-VZ
AM3T-0507S-VZ
AM3T-0509S-VZ
AM3T-0512S-VZ
AM3T-0515S-VZ
AM3T-0518S-VZ
AM3T-0524S-VZ
AM3T-1203S-VZ
AM3T-1205S-VZ
AM3T-1207S-VZ
AM3T-1209S-VZ
AM3T-1212S-VZ
AM3T-1215S-VZ
AM3T-1218S-VZ
AM3T-1224S-VZ
AM3T-2403S-VZ
AM3T-2405S-VZ
AM3T-2407S-VZ
AM3T-2409S-VZ
AM3T-2412S-VZ
AM3T-2415S-VZ
AM3T-2418S-VZ
AM3T-2424S-VZ
AM3T-4803S-VZ
AM3T-4805S-VZ
AM3T-4807S-VZ
AM3T-4809S-VZ
AM3T-4812S-VZ
AM3T-4815S-VZ
AM3T-4818S-VZ
AM3T-4824S-VZ
AM3T-0503SH35-VZ
AM3T-0505SH35-VZ
AM3T-0507SH35-VZ
AM3T-0509SH35-VZ
AM3T-0512SH35-VZ
AM3T-0515SH35-VZ
AM3T-0518SH35-VZ
AM3T-0524SH35-VZ
AM3T-1203SH35-VZ
AM3T-1205SH35-VZ
AM3T-1207SH35-VZ
AM3T-1209SH35-VZ
AM3T-1212SH35-VZ
AM3T-1215SH35-VZ
AM3T-1218SH35-VZ
Input Voltage
(V)
4.5-9
4.5-9
4.5-9
4.5-9
4.5-9
4.5-9
4.5-9
4.5-9
9-18
9-18
9-18
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-72
36-72
36-72
36-72
36-72
36-72
36-72
36-72
4.5-9
4.5-9
4.5-9
4.5-9
4.5-9
4.5-9
4.5-9
4.5-9
9-18
9-18
9-18
9-18
9-18
9-18
9-18
Output Voltage
(V)
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
Output Current
max (mA)
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
Capacitive load,
max (μF)
2200
2200
1000
470
470
470
220
220
2200
2200
1000
470
470
470
220
220
2200
2200
1000
470
470
470
220
220
2200
2200
1000
470
470
470
220
220
2200
2200
1000
470
470
470
220
220
2200
2200
1000
470
470
470
220
Efficiency
(%)
73
70
72
72
74
74
74
70
73
76
74
77
79
79
79
79
70
80
77
80
82
82
79
80
77
77
78
78
80
80
77
80
73
70
72
72
74
74
74
70
73
76
74
77
79
79
79
www.aimtec.com
F 051e R12.D
Tel: +1 514 620 2722
1 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
3 Watt | DC-DC Converter
General Specifications
Switching frequency
Operating temperature
Storage temperature
Max Case temperature
Cooling
Humidity
Case material
Weight
Dimensions(L x W x H)
MTBF
Series AM3T-VZ
Units
KHz
o
C
o
C
o
C
Parameters
100% load
Full Load (see derating chart)
Conditions
Typical
100-400
-40 to +85
-40 to +125
Maximum
95
%
Nickel coated copper
15
g
Tolerance ±0.5 mm or ±0.02 inches
1.25 x 0.8 x 0.4 inches
31.75 x 20.32 x 10.16 mm
>2,200,000 hrs (MIL-HDBK -217F, Ground Benign, t=+25
o
C)
Free air convection
100
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Safety Specifications
Parameters
Agency approvals
Standards
CE
Designed to meet IEC 60950-1
Pin Out Specifications
Pin
1
2
3
9
10
11
12
13
14
15
16
22
23
24
+V Input
N.C.
N.C.
No pin
-V Output
+V Input
-V Output
-V Output
+V Input
-V Output
No pin
N.C.
N.C.
+V Input
1500 VDC Isolation
Single
Dual
+V Input
-V Input
Common
No pin
Common
+V Input
-V Output
-V Output
+V Input
Common
No pin
Common
-V Output
+V Input
No Pin
-V Input
-V Input
No pin
No pin
N.C.
No pin
No pin
+V Input
No pin
-V Input
+V Input
+V Input
No pin
3500 VDC Isolation
Single
Dual
No Pin
-V Input
-V Input
Common
No pin
-V Input
No pin
No pin
+V Input
No pin
Common
+V Input
+V Input
No pin
www.aimtec.com
F 051e R12.D
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
3 Watt | DC-DC Converter

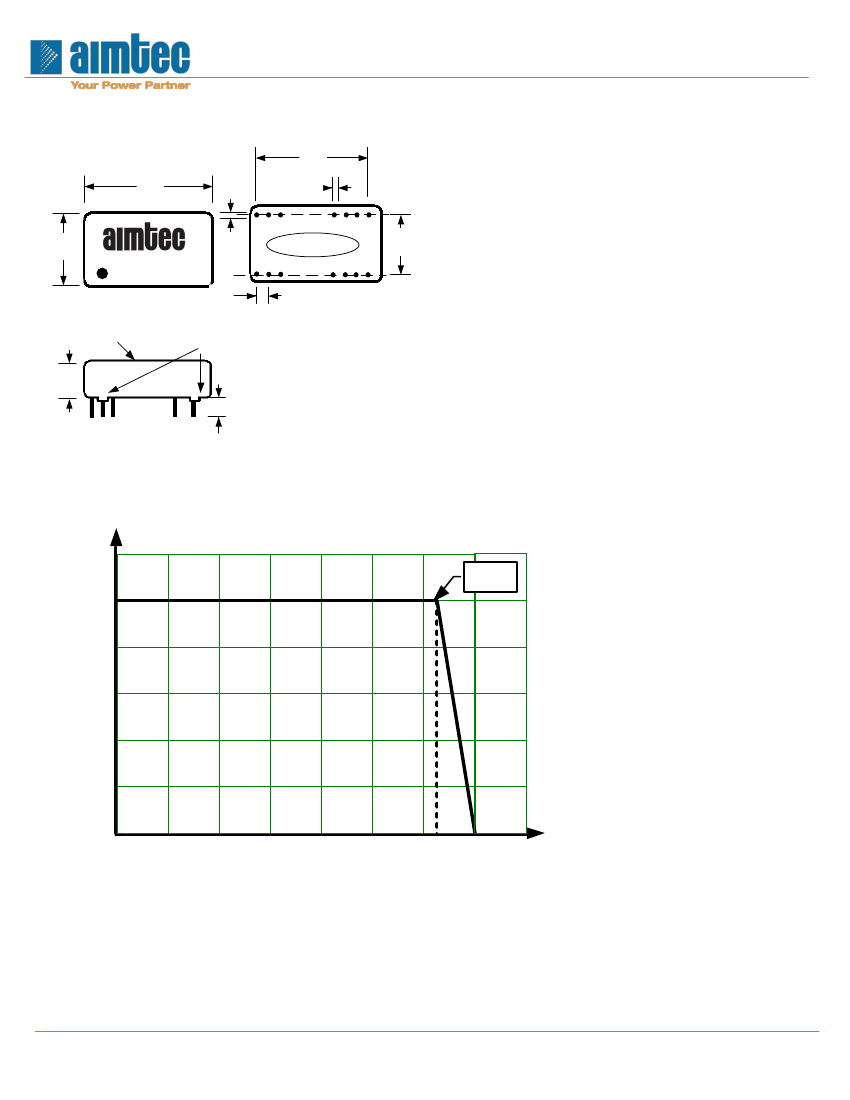

Dimensions
27.94
(1.10)
31.75
(1.25)
1 2 3
20.32
(0.80)
0.50
(0.02)
Series AM3T-VZ
0.50
(0.02)
9 10 1112
16 15 14 13
Bottom View
24 23 22
2.54
(0.10)
Printed Face
Built-in Stand-offs to
ease PCB cleaning
All dimensions are typical: millimeters (inches
Pin Diameter: 0.50 ± 0.05 (0.02 ± 0.002)
Pin Pitch Tolerance: ± 0.35 (±0.014)
Case Tolerence: ± 0.5 (±0.02)
3.05
(0.12)
Derating
10.16
(0.40)
Free Air Convection
85 º C
100
Output Power %
80
60
40
20
0
-40
0
25
50
75
85
100
Safe Operating Area
Ambient Temperature
º C
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
www.aimtec.com
F 051e R12.D
Tel: +1 514 620 2722
5 of 5
15.24
(0.60)
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
