isolation. It features an extremely low input control
current of only 0.25mA, which is the lowest available
in IXYS Integrated Circuits Division’s Solid State
Relay family.
Its optically coupled outputs, which use the patented
OptoMOS architecture, are controlled by a highly
efficient GaAIAs infrared LED.
The LCA182 can be used to replace mechanical
relays, and offers the superior reliability associated
with semiconductor devices. Because it has no
moving parts, it offers faster, bounce-free switching
in a more compact surface mount or through-hole
package.
Approvals
•
UL Recognized Component: File E76270
•
CSA Certified Component: Certificate 1175739
•
EN/IEC 60950-1 Certified Component:
TUV Certificate B 09 07 49410 004
Ordering Information
Part #
LCA182
LCA182S
LCA182STR
Description
6 Pin DIP (50/Tube)
6 Pin Surface Mount (50/Tube)
6 Pin Surface Mount (1000/Reel)
Features
•
Very Low Input Control Current (0.25mA)
•
3750V
rms
Input/Output Isolation
•
Low Drive Power Requirements
(TTL/CMOS Compatible)
•
No Moving Parts
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
No EMI/RFI Generation
•
Small 6-Pin Package
•
Machine Insertable, Wave Solderable
•
Surface Mount, Tape & Reel Version Available
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook,
PocketSize)
•
Hook Switch
•
Dial Pulsing
•
Ground Start
•
Ringing Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment Patient/Equipment Isolation
•
Aerospace
•
Industrial Controls
Pin Configuration
AC/DC Configuration
+ Control
– Control
Do Not Use
1
2
3
6
5
4
Load
Do Not Use
Load
DC Only Configuration
+ Control
– Control
Do Not Use
1
2
3
6
5
4
+ Load
– Load
Switching Characteristics of
Normally Open (Form A) Devices
Form-A
I
F
90%
Pb
DS-LCA182-R04
e
3
www.ixysic.com
I
LOAD
t
on
10%
t
off
1
I
NTEGRATED
C
IRCUITS
D
IVISION
Absolute Maximum Ratings @ 25°C
Parameter
Blocking Voltage
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation Voltage, Input to Output
Operational Temperature
Storage Temperature
1
2
LCA182
Ratings
350
5
50
1
150
800
3750
-40 to +85
-40 to +125
Units
V
P
V
mA
A
mW
mW
V
rms
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 1.33 mW / °C
Derate linearly 6.67 mW / °C
Electrical Characteristics @ 25°C
Parameter
Output Characteristics
Load Current, Continuous
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics
Input Control Current to Activate
1
Input Control Current to Deactivate
Input Voltage Drop
Reverse Input Current
Common Characteristics
Input to Output Capacitance
Conditions
Symbol
Min
Typ
Max
Units
-
t=10ms
I
L
=120mA
I
L
=200mA
V
L
=350V
P
I
F
=1mA, V
L
=10V
V
L
=50V, f=1MHz
I
L
=120mA
-
I
F
=1mA
V
R
=5V
-
I
L
I
LPK
R
ON
I
LEAK
t
on
t
off
C
OUT
I
F
I
F
V
F
I
R
C
I/O
-
-
-
-
23
7
-
-
-
25
-
-
1.2
-
3
120
200
350
35
10
1
3
3
-
0.25
-
1.4
10
-
mA
rms
/ mA
DC
mA
DC
mA
µA
-
-
-
-
-
0.05
0.9
-
-
ms
pF
mA
mA
V
µA
pF
1
It is recommended that the input control current be increased to 1mA in high temperature (>55ºC) operation.
2
www.ixysic.com
R04
I
NTEGRATED
C
IRCUITS
D
IVISION
PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical LED Forward Voltage Drop
(N=50, I
F
=5mA)
Typical Turn-On Time
(N=50, I
F
=2mA, I
L
=120mA
DC
)
LCA182
35
30
Device Count (N)
25
20
15
10
5
0
25
20
15
10
5
0
25
20
15
10
5
0
Typical Turn-Off Time
(N=50, I
F
=2mA, I
L
=120mA
DC
)
Device Count (N)
Device Count (N)
1.17
1.19
1.21
1.23
1.25
0.436
0.456
0.476
0.496
0.516
0.536
0.183
LED Forward Voltage Drop (V)
Turn-On Time (ms)
0.193 0.203 0.213 0.223
Turn-Off Time (ms)
0.233
35
30
Device Count (N)
Typical I
F
for Switch Operation
(N=50, I
L
=120mA
DC
)
35
30
Device Count (N)
Typical I
F
for Switch Dropout
(N=50, I
L
=120mA
DC
)
35
30
Device Count (N)
25
20
15
10
5
0
Typical On-Resistance Distribution
(N=50, I
L
=120mA
DC
)
25
20
15
10
5
0
0.10
0.15
0.20
0.25
LED Current (mA)
25
20
15
10
5
0
0.10
0.15
0.20
0.25
LED Current (mA)
21.5
21.7
21.9 22.1 22.3 22.5
On-Resistance ( )
22.7
Typical Blocking Voltage Distribution
(N=50)
35
30
Device Count (N)
25
20
15
10
5
0
390
400
410
420
430
440
450
Blocking Voltage (V
P
)
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
Turn-On Time (ms)
1.6
1.4
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
2
Typical Turn-On Time
vs. LED Forward Current
(I
L
=120mA
DC
)
Turn-Off Time (ms)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
Typical Turn-Off Time
vs. LED Forward Current
(I
L
=120mA
DC
)
I
F
=50mA
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
I
F
=10mA
I
F
=5mA
I
F
=0.25mA
4
6
8
10
12
14
16
18
20
0
2
4
6
8
10
12
14
16
18
20
LED Forward Current (mA)
LED Forward Current (mA)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
R04
www.ixysic.com
3
I
NTEGRATED
C
IRCUITS
D
IVISION

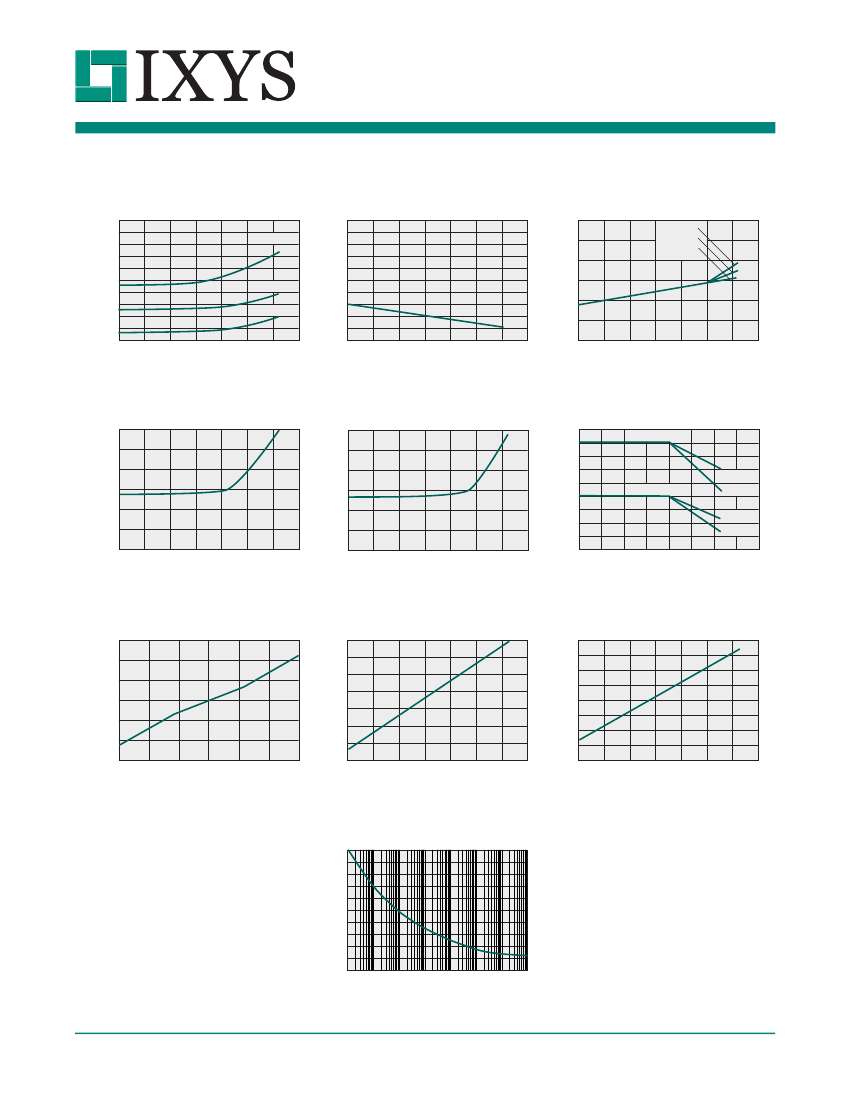

PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical Turn-On time
vs. Temperature
(I
L
=70mA
DC
)
Turn-Off Time (ms)
I
F
=0.25mA
LCA182
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
-40
-20
I
F
=0.5mA
I
F
=5mA
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-40
-20
Typical Turn-Off Time
vs. Temperature
(I
F
=0.25mA, I
L
=70mA
DC
)
On-Resistance ( )
60
50
40
30
20
10
0
Typical On-Resistance
vs. Temperature
(I
L
=70mA
DC
)
I
F
=1mA
I
F
=2mA
I
F
=5mA
Turn-On Time (ms)
0
20
40
60
80
100
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
Temperature (ºC)
0.30
0.25
LED Current (mA)
Typical I
F
for Switch Operation
vs. Temperature
(I
L
=70mA
DC
)
0.30
0.25
LED Current (mA)
0.20
0.15
0.10
0.05
Typical I
F
for Switch Dropout
vs. Temperature
(I
L
=70mA
DC
)
Load Current (mA)
Maximum Load Current
vs. Temperature
210
200
180
160
140
120
100
80
60
0
AC/DC Configuration
I
F
=2mA
I
F
=1mA
I
F
=2mA
I
F
=1mA
-40
-20
0
20
40
60
80
100
120
DC Configuration
0.20
0.15
0.10
0.05
0.00
-40
-20
0
20
40
60
80
100
Temperature (ºC)
0.00
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
150
Load Current (mA)
100
50
0
-50
Typical Load Current vs. Load Voltage
(I
F
=2mA)
Blocking Voltage (V
P
)
Typical Blocking Voltage
vs. Temperature
430
425
Leakage ( A)
420
415
410
405
400
395
-40
-20
0
20
40
60
80
100
0.016
0.014
0.012
0.010
0.008
0.006
0.004
0.002
0
-40
Typical Leakage vs. Temperature
(Measured across Pins 4 & 6)
-100
-150
-3
-2
-1
0
1
2
3
Load Voltage (V)
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
Energy Rating Curve
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
10 s 100 s 1ms 10ms 100ms
Time
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
Load Current (A)
1s
10s
100s
4
www.ixysic.com
R04
I
NTEGRATED
C
IRCUITS
D
IVISION
Manufacturing Information
Moisture Sensitivity
LCA182
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. IXYS Integrated
Circuits Division classified all of its plastic encapsulated devices for moisture sensitivity according to
the latest version of the joint industry standard,
IPC/JEDEC J-STD-020,
in force at the time of product
evaluation. We test all of our products to the maximum conditions set forth in the standard, and guarantee proper
operation of our devices when handled according to the limitations and information in that standard as well as to any
limitations set forth in the information or standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a
Moisture Sensitivity Level (MSL) rating
as shown below, and should be handled according
to the requirements of the latest version of the joint industry standard
IPC/JEDEC J-STD-033.
Device
LCA182 / LCA182S
Moisture Sensitivity Level (MSL) Rating
MSL 1
ESD Sensitivity
This product is
ESD Sensitive,
and should be handled according to the industry standard
JESD-625.
Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020
must be observed.
Device
LCA182 / LCA182S
Maximum Temperature x Time
250ºC for 30 seconds
Board Wash
IXYS Integrated Circuits Division recommends the use of no-clean flux formulations. However, board washing to
remove flux residue is acceptable. Since IXYS Integrated Circuits Division employs the use of silicone coating as
an optical waveguide in many of its optically isolated products, the use of a short drying bake could be necessary
if a wash is used after solder reflow processes. Chlorine- or Fluorine-based solvents or fluxes should not be used.
Cleaning methods that employ ultrasonic energy should not be used.
The U.S. Department of Commerce announced that it has granted five Chinese companies "legal end-user" (VEU) status for U.S. technology exports to China, four of which are chip manufacturers. The five ...
I changed a board and it can download normally. And some programs in the chip of this board with error message can run normally but cannot download the program. It prompts the error as shown in the pi...
Among movement disorders, Parkinson's disease (PD) is characterized by increased muscle tension and decreased movement. It was named after the British Janes Parkinson who first described it in 1817. A...
Ethernet, and especially Industrial Ethernet, has become a buzzword in the manufacturing industry lately.Although they are similar, they each have their own characteristics and advantages. Today we wi...
I bought a PIC32MZ curiosity development board from a PIC agent. The main controller is PIC32MZ2048EFM100. I downloaded 10 demonstration programs from the PIC official website, but only two of them co...
1. Introduction
RFID (radio frequency identification) is a non-contact automatic identification technology that emerged in the 1990s. It uses the characteristics of radio frequency signal prop...[Details]
0 Introduction
With the development of my country's economy, the number of motor vehicles continues to increase. The growth of existing roads and other hardware facilities can no longer meet t...[Details]
Remote keyless entry (RKE) systems have become popular with users, with more than 80% of new cars in North America and more than 70% in Europe equipped with RKE systems. In addition to the obvious ...[Details]
Electronic systems are located at different points on the automotive power bus and therefore often need to operate under very stringent power requirements. These include load dump, cold crank, very lo...[Details]
1. Introduction
Testing the temperature of steel billets before rolling is an important measure to ensure the quality of steel. Traditional manual testing is difficult to ensure product qu...[Details]
Only a small number of LED manufacturers can produce high-quality LEDs. For applications that are only used for simple indication, low-quality LEDs are sufficient. However, high-quality LEDs must...[Details]
1. Introduction
With the increasing popularity of fully automatic washing machines, consumers have higher and higher requirements for their environmenta...[Details]
Key Points
1. Now, in addition to high-end smartphones and tablets, users also expect to use touch screens in other applications, and they are gradually appearing in cars and instruments.
...[Details]
Currently, the commonly used solar cell technologies include monocrystalline silicon solar cells and polycrystalline silicon thin-film solar cells. Production process: Monocrystalline silicon solar...[Details]
Multimedia processors are often the most power-hungry devices in portable electronic devices. Common ways to reduce CPU power requirements are to reduce clock frequency or operating voltage, but th...[Details]
1. Introduction
AS-Interface bus technology is an intelligent network that uses a single cable to connect sensors and actuators to controllers, transmit data, and provide power. It can be used...[Details]
0 Introduction
The load with impact (rapid change) power in the power system will cause the voltage fluctuation and flicker of the power grid, causing many electrical equipment to fail to wo...[Details]
Automotive electronics are in a noisy environment
,
so automotive electronics must have excellent electromagnetic compatibility (EMC) performance. The most important part of automotive elec...[Details]
As the electromagnetic environment in space becomes increasingly complex, the shielded cables used to transmit weak signals in the test system are easily affected by external electromagnetic distur...[Details]
: Ambiguous operators need parenthesesAmbiguous
symbol ``xxx``Argument
list syntax errorArray
bounds
missingArray
size
toolargeBad
character
in paramentersBad
file
name format in i...[Details]
Automotive Electronics
京公网安备 11010802033920号
EEWORLD
