FDU0650 Series
IRON POWDER SURFACE MOUNT FIXED INDUCTOR
TYPE FDU0650
Inductance Range:
0.13 - 0.56μH
Frequency Range:
0.1 - 5MHz
Description
The TOKO FDU0650 Series is a compact, high-current surface
mount fixed inductor with a maximum DC current rating of 23.0
Amps at 0.13μH. Manufactured with a proprietary iron powder
composition and process, the product is specifically designed for
high current, space constrained DC-DC converter applications
in portable computing, point-of-load modules, and computer
peripherals.
Dimensions & Recommended Patterns:
Features
•
•
•
•
•
•
•
•
•
Compact size: 7.9mm x 7.0mm
Low profile: 5.0mm maximum
High DC current: 23.0A at 0.13μH
Magnetically shielded
Low DC resistance
Low audible noise
Reflow solderable
Packaged on 1000 piece reels
Lead-free terminations
½½½
½½½½½½½½
½½½
½½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
Unit: mm
Tolerance: ±0.3mm
STANDARD PARTS SELECTION GUIDE
(1) Inductance is measured by LCR-meter 4284A (Agilent) or equivalent.
(2) DC resistance is measured by Digital Multimeter 34420A (Agilent)
or equivalent.
(3) Maximum allowable DC current is that which causes a 20% inductance
reduction from the initial value, or coil temperature to rise by 40°C,
whichever is smaller. (Reference ambient temperature 20°C).
TYPE FDU0650
TOKO
Part
Number
FDU0650-R13M=P3
FDU0650-R24M=P3
FDU0650-R39M=P3
FDU0650-R56M=P3
Inductance
(µH)
(1)
0.13
0.24
0.39
0.56
Tolerance
(%)
±20
±20
±20
±20
Test
Freq.
(kHz)
100
100
100
100
DC
Resistance
( mΩ ) max.
(2)
1.3
2.0
2.6
3.2
Inductance
Decrease Current
[-20%] (A) max.
(3)
27.6
20.0
16.3
14.2
Temperature
Rise Current
[+40°C] (A) max.
(3)
23.0
19.6
17.5
15.6
Absolute
Max.
Voltage (V)
30
30
30
30
Note:
=P3
is added to each part number to indicate tape and reel packaging.
March 2006
© 2006 TOKO America, Inc.
All Rights Reserved
Printed in USA
CF-292-FDU0650
R-LOG0306A
1
FDU0650 Series
IRON POWDER SURFACE MOUNT FIXED INDUCTOR

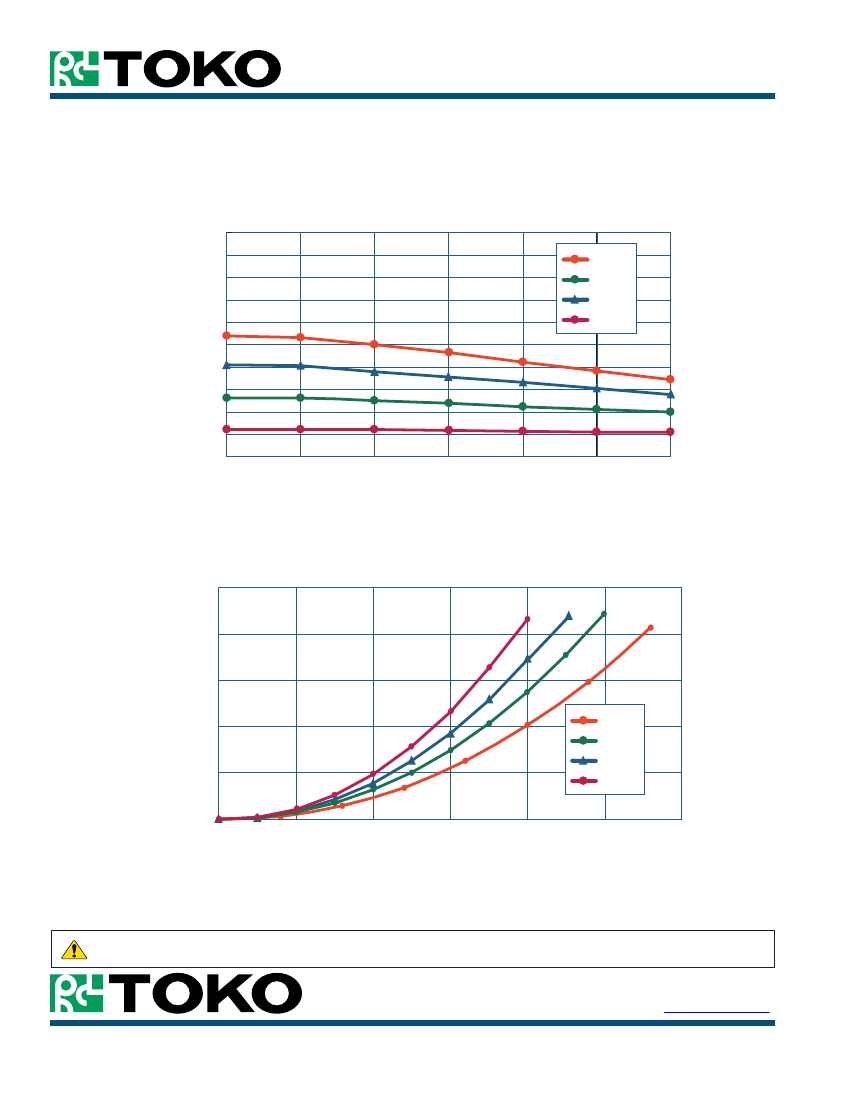

Typical Characteristics
½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½
½
½
½½
½½
½½½½½½½½½½½½½½½
½½
½½½½½½½½½½½½½µ½½
½½½½½½
½½½½½½
½½½½½½
½½½½½½
½½
½½
50
Temperature (°C)
40
30
20
10
0
0
5
10
15
DC Current (A)
The information furnished by TOKO, Inc. is believed to be accurate and reliable. However, TOKO reserves the right to make changes or improvements in the design, specification or manufacture
of its products without further notice. TOKO does not assume any liability arising from the application or use of any product or circuit described herein, nor for any infringements of patents or
other rights of third parties which may result from the use of its products. No license is granted by implication or otherwise under any patent or patent rights of TOKO, Inc.
½½½½½½
½½½½½½
½½½½½½
½½½½½½
20
25
30
TOKO America, Inc.
1250 Feehanville Drive, Mount Prospect, Illinois 60056
Tel: (847) 297-0070 Fax: (847) 699-7864 Web: http://www.tokoam.com
March 2006
© 2006 TOKO America, Inc.
All Rights Reserved
Printed in USA
CF-292-FDU0650
R-LOG0306A
2
