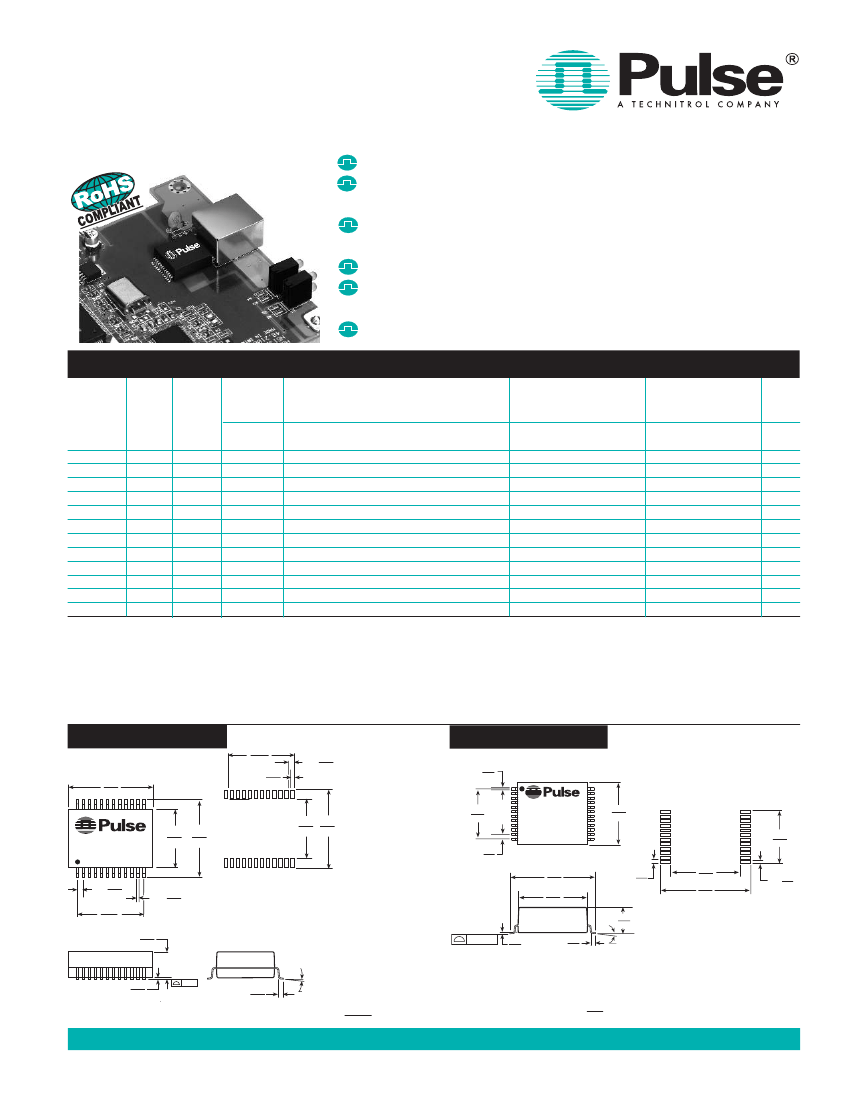

1000BASE-T
MAGNETICS MODULES
Designed to Support 1:1 Turns
Ratio Transceivers
For RoHS part add suffix
NL
7
RoHS “NL” peak solder rating 260°C,
non-RoHS peak solder rating 235°C
Designed for long haul Gigabit Ethernet
(10/100/1000BASE-T) applications
H5008/9 designed to fit behind 1x1 RJ45 connector
Cable interface for isolation and low common mode
emissions
Meets IEEE 802.3 specification
Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C
Insertion
Return Loss
Loss
(dB MIN)
Number
(dB MAX)
1-100
1-30
40
50
60-80
MHz
MHz
MHz
MHz
MHz
1
5, 6c
H5004
1
1
-18
-18
-16
-12
5, 6c
HX5004
1, 2
1
1
-18
-18
-16
-12
1, 3
6d
H5007
NL
1
1
-18
-18
-16
-12
5, 6c
H5008
1
1
-18
-18
-16
-12
2
5, 6a
HX5008
1
1
-18
-18
-16
-12
5, 6a
H5009
1
1
-18
-18
-16
-12
3
6a
H5012
NL
2
1.4
-16
-14.4
-13.1
-12
5, 6a
H5014
2
1.4
-16
-14.4
-13.1
-12
2
5, 6a
HX5014
2
1.4
-16
-14.4
-13.1
-12
5, 6a
H5015
1
1
-18
-18
-16
-12
H5020
NL
6c
2
1
-18
-14.4
-13.1
-12
5, 6c
HX5020
2
2
1
-18
-14.4
-13.1
-12
1. Footprint
compatible product to H1267
2. HX:
Extended temperature version -40°C to +85° C
3. Extended
temperature part not available, select HX5004 or HX5014
4.
For Tape & Reel packaging, add a
“T”
suffix at the end of the part number
when ordering. e.g. H5007T
Part 4
RoHS 7
Number
of
Ports
Differential to Common
Crosstalk
Hipot
Mode Rejection
(Vrms
(dB MIN)
(dB MIN)
MIN)
30
60
100
30
60
100
MHz
MHz
MHz
MHz
MHz
MHz
-43
-37
-33
-45
-40
-35
1500
-43
-37
-33
-45
-40
-35
1500
-43
-37
-33
-45
-40
-35
1500
-43
-37
-33
-45
-40
-35
1500
-43
-37
-33
-45
-40
-35
1500
-43
-37
-33
-45
-40
-35
1500
-45
-40
-35
-43.5 -37.5
-33
1500
-45
-40
-35
-43.5 -37.5
-33
1500
-45
-40
-35
-43.5 -37.5
-33
1500
-43
-37
-33
-45
-40
-35
1500
-40
-35
-30
-40
-35
-30
1500
-40
-35
-30
-40
-35
-30
1500
Contact Pulse for RoHS compliant part availability
MSL=Moisture Sensitivity Level a=1 b=2 c=3 d=4
Add suffix
NL
for RoHS compliant parts, e.g. H5007
changes to H5007NL or H5007NLT (for Tape and Reel)
100
MHz
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
5.
6.
7.

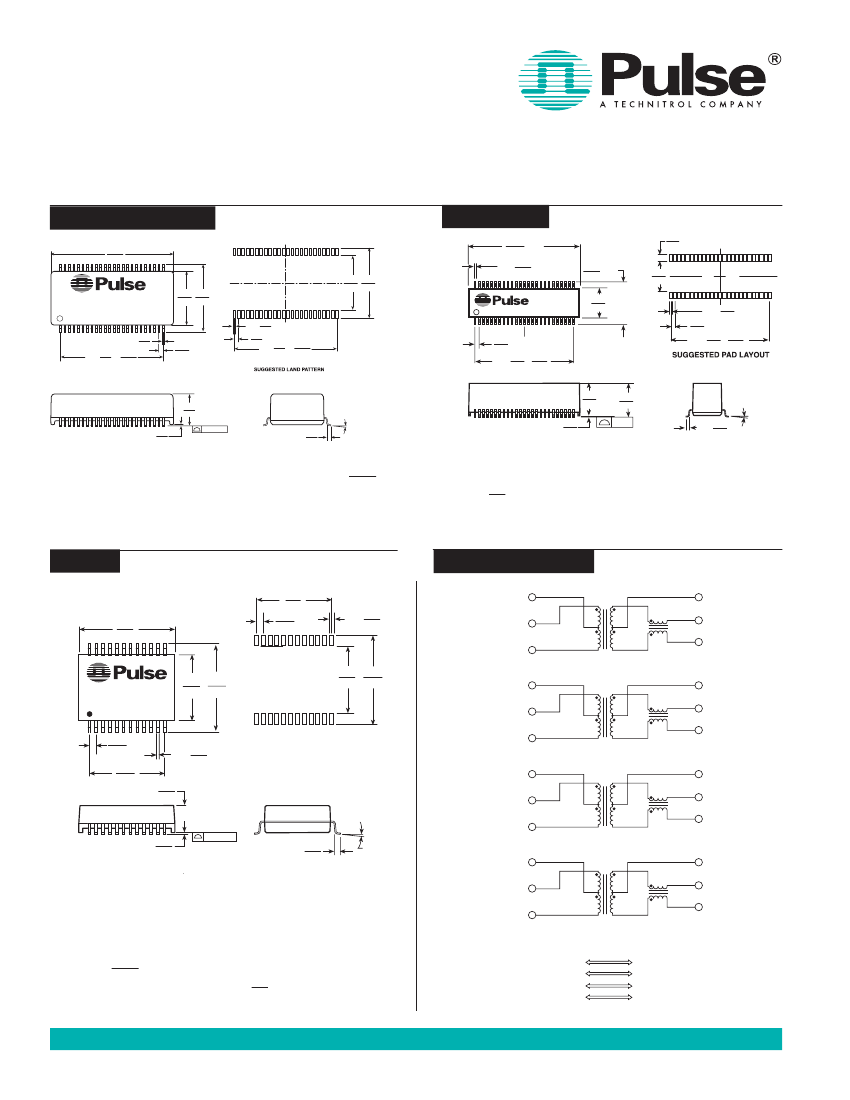

Mechanicals
H5004, HX5004, H5007*
.550
13,97
.690
17,53
24X
.030
0,76
11X
.050
1,27
H5008, HX5008, H5009
24X
.015
3,81
H5004/7
HX5004/7
DATE CODE CNTRY OF MFG
.480 .630
12,20 16,00
.500 .650
12,70 16,51
.429
10,90
H500X
HX500X
Date Code
Country of Origin
.537
13,64
.429
10,90
11X
.039
0,99
.740
18,80
.600
15,24
.225
5,72
11X .039
0,99
.620
15,75
.770
19,56
SUGGESTED PAD LAYOUT
11X
.050
1,27
SUGGESTED PAD LAYOUT
24X
.020
0,51
24X
.025
0,64
.550
13,97
.225
5,51
*
HX5004 and H5004/7 are footprint compatible
to 10/100BASE-TX part H1267
.004/0,10
24 Surfaces
.010
0,25
24X .045
1,14
0°-8°
.010
0,25
.004
24 SURFACES
24X
.045
1,14
0°8°
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
Weight
. . . . . . . . . .1.6 grams
Tape & Reel
. . . . . . . . . . .300
Tube
. . . . . . . . . . . . . . . . . .35
US 858 674 8100
●
UK 44 1483 401 700
●
France 33 3 84 35 04 04
●
Singapore 65 6287 8998
●
Taiwan 886 2 2698 0228
●
Hong Kong 852 2788 6588
●
http://www.pulseeng.com
1
HC500.E (1/05)
1000BASE-T
MAGNETICS MODULES
Designed to Support 1:1 Turns
Ratio Transceivers
Mechanicals
(continued)
H5012, H5014, HX5014
1.095
27,81
.490 .625
12,45 15,88
H5020, HX5020
1.100
MAX
27,94
.020
50 X
0,51
.075
TYP
1,91
.430
MAX
10,92
.297
MAX
7,54
.300
7,62
H50XX, HX50XX
DATE CODE
COUNTRY OF ORIGIN
.480 .600
12,19 15,24
.025
48X
0,64
.040
1,02
.040 (.920)
23X
=
1,02 (23,37)
DATE CODE
CNTRY OF ORIGIN
H5020
HX5020
50 X
.015
48X
0,38
.040 (.920)
23X
=
1,02 (23,37)
.040
1,02
.040
1,02
.040
1,02
.040 .960
24 X 1,02 = 24,38
.030
0,76
.040 .960
24 X 1,02 = 24,38
.285
7,24
.010
0,25
.004/0,10
.328
MAX .340 MAX
8,33
8,66
48X 0°- 8°
50 X 0°- 8°
48 Surfaces
48X
.036
0,91
.010
0,25
.004
50 SURFACES
50X
.036
0,91
Weight
. . . . . . . . . .4.0 grams
Tape & Reel
. . . . . . .250/reel
Tube
. . . . . . . . . . . . . .15/tube
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
Weight
. . . . . . . . . .1.6 grams
Tape & Reel
. . . . . . .250/reel
Tube
. . . . . . . . . . . . . .15/tube
Mechanicals
(continued)
H5015
.550
14,0
.050
1,27

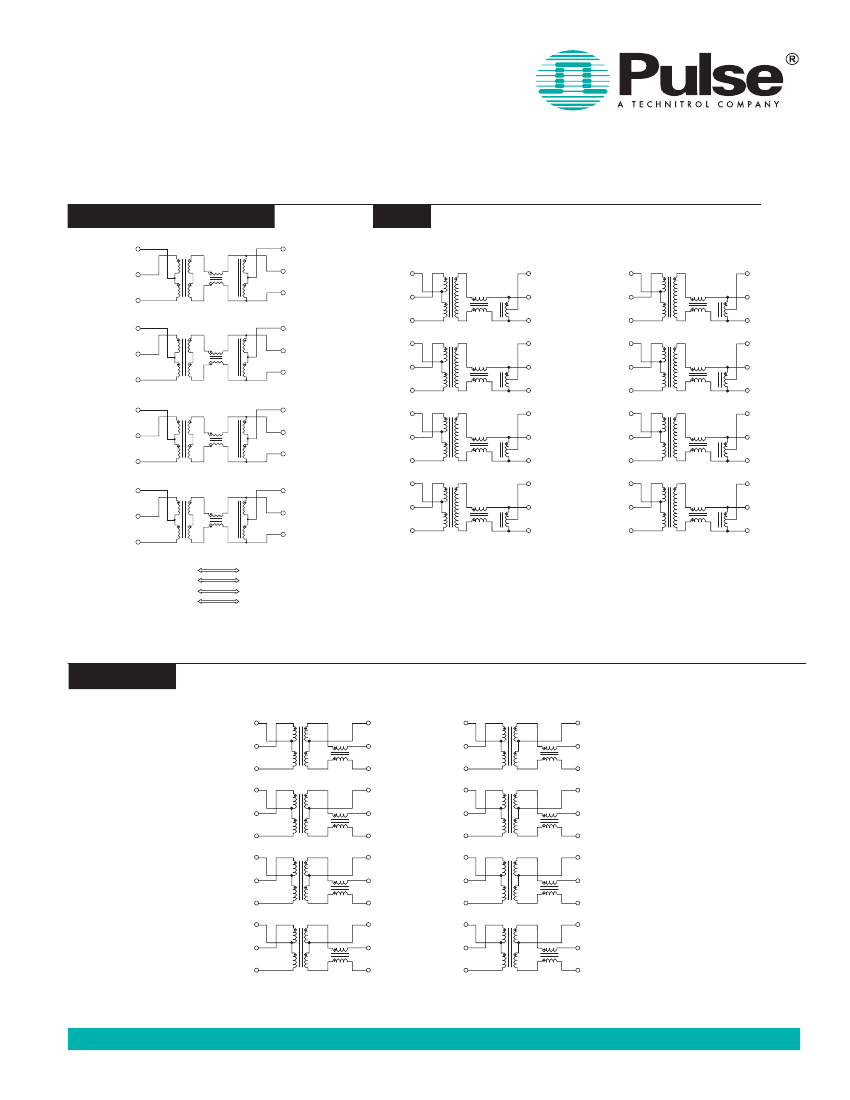

Schematics
H5004, HX5004, H5009
TCT1 1
24X
.030
0,76
Channel 1
24 MCT1
23 MX1+
22 MX1-
1:1
Channel 2
21 MCT2
20 MX2+
19 MX2-
1:1
Channel 3
18 MCT3
17 MX3+
16 MX3-
1:1
Channel 4
15 MCT4
14 MX4+
13 MX4-
1:1
LEGEND
.695
17,7
TD1+ 2
TD1- 3
H5015
DATE CODE
CNTRY OF MFG
.480
12,2
.620
15,8
.490 .645
12,5 16,3
TCT2 4
TD2+ 5
.050
1,27
.550
14,0
SUGGESTED LAND PATTERN
24X
.180
4,57
.020
0,51
TD2- 6
TCT3 7
TD3+ 8
TD3- 9
.040
24X
1,02
24X 0°8°
.010
0,25
.004/0,10
24 SURFACES
TCT4 10
TD4+ 11
Weight
. . . . . . . . . .1.5 grams
Tape & Reel
. . . . . . .400/reel
TD4- 12
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .005
0,13
CHIP SIDE
Td
Td
Td
Td
Mx
Mx
Mx
Mx
US 858 674 8100
●
UK 44 1483 401 700
●
France 33 3 84 35 04 04
●
Singapore 65 6287 8998
●
Taiwan 886 2 2698 0228
●
Hong Kong 852 2788 6588
●
http://www.pulseeng.com
MEDIA SIDE
HC500.E (1/05)
2
1000BASE-T
MAGNETICS MODULES
Designed to Support 1:1 Turns
Ratio Transceivers
Schematics
(continued)
H5007*, H5008, HX5008, H5015
Channel 1
TCT1 1
TD1 + 2
TD1 -
3
Channel 2
TCT2 4
TD2 + 5
TD2 -
6
Channel 3
18 MCT3
17 MX3 +
16 MX3 -
1:1
Channel 4
TCT4 10
TD4 + 11
TD4 - 12
15 MCT4
14 MX4 +
13 MX4 -
1:1
21 MCT2
20 MX2 +
19 MX2 -
1:1
24 MCT1
23 MX1 +
22 MX1 -
1:1
H5012 *
Channel 1 - Port 1
TCT1 1
TD1+ 2
TD1 3
Channel 2 - Port 1
TCT2 4
TD2+ 5
TD2 6
Channel 3 - Port 1
TCT3 7
TD3+ 8
TD3 9
Channel 4 - Port 1
TCT4 10
TD4+ 11
TD4 12
48 CMT1
47 MX1+
46 MX1
45 CMT2
44 MX2+
43 MX2
42 CMT3
41 MX3+
40 MX3
39 CMT4
38 MX4+
37 MX4
Channel 1 - Port 2
TCT5 13
TD5+ 14
TD5 15
Channel 2 - Port 2
TCT6 16
TD6+ 17
TD6 18
Channel 3 - Port 2
TCT7 19
TD7+ 20
TD7 21
Channel 4 - Port 2
TCT8 22
TD8+ 23
TD8 24
36 CMT5
35 MX5+
34 MX5
33 CMT6
32 MX6+
31 MX6
30 CMT7
29 MX7+
28 MX7
27 CMT8
26 MX8+
25 MX8
TCT3 7
TD3 + 8
TD3 -
9
LEGEND
CHIP SIDE
Td
Td
Td
Td
Mx
Mx
Mx
Mx
MEDIA SIDE
*
Extended temperature part for H5012 is not available. Select HX5014.
*
Extended temperature part for H5007 (HX5007) is not
available. Select HX5004.
H5014, HX5014
Channel 1 - Port 1
TCT1 1
TD1+ 2
TD1 3
Channel 2 - Port 1
TCT2 4
TD2+ 5
TD2 6
Channel 3 - Port 1
TCT3 7
TD3+ 8
TD3
9
48 CMT1
47 MX1+
46 MX1
45 CMT2
44 MX2+
43 MX2
42 CMT3
41 MX3+
40 MX3
39 CMT4
38 MX4+
37 MX4
Channel 1 - Port 2
TCT5 13
TD5+ 14
TD5 15
Channel 2 - Port 2
TCT6 16
TD6+ 17
TD6 18
Channel 3 - Port 2
TCT7 19
TD7+ 20
TD7
21
36 CMT5
35 MX5+
34 MX5
33 CMT6
32 MX6+
31 MX6
30 CMT7
29 MX7+
28 MX7
27 CMT8
26 MX8+
25 MX8
Channel 4 - Port 1
TCT4 10
TD4+ 11
TD4 12
Channel 4 - Port 2
TCT8 22
TD8+ 23
TD8 24
US 858 674 8100
●
UK 44 1483 401 700
●
France 33 3 84 35 04 04
●
Singapore 65 6287 8998
●
Taiwan 886 2 2698 0228
●
Hong Kong 852 2788 6588
●
http://www.pulseeng.com
3
HC500.E (1/05)
1000BASE-T
MAGNETICS MODULES
Designed to Support 1:1 Turns
Ratio Transceivers
H5020, HX5020
TCT1 2
TD1+ 1
TD1- 3
TCT2 5
TD2+ 4
TD2- 6
Schematics
(continued)
49 MCT1
48 MX1+
50 MX1-
TCT5 15
TD5+ 14
TD5- 16
TCT6 18
TD6+ 17
TD6- 19
Channel 1 - Port 1
Channel 1 - Port 2
36 MCT5
35 MX5+
37 MX5-
Channel 2 - Port 1
46 MCT2
47 MX2+
45 MX2-
Channel 2 - Port 2
33 MCT6
34 MX6+
32 MX6-
Channel 3 - Port 1
TCT3 8
TD3+ 7
TD3- 9
43 MCT3
42 MX3+
44 MX3-
Channel 3 - Port 2
TCT7 21
TD7+ 20
TD7- 22
30 MCT7
29 MX7+
31 MX7-
Channel 4 - Port 1
TCT4 11
TD4+ 10
TD4- 12
40 MCT4
41 MX4+
39 MX4-
TCT8 24
TD8+ 23
TD8- 25
Channel 4 - Port 2
27 MCT8
28 MX8+
26 MX8-
For More Information:
UNITED STATES
(Worldwide)
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
http://www.pulseeng.com
TEL: 858 674 8100
FAX: 858 674 8262
UNITED KINGDOM
(Northern Europe)
3 Huxley Road
Surrey Research Park
Guildford, Surrey GU2 5RE
United Kingdom
TEL: 44 1483 401700
FAX: 44 1483 401701
FRANCE
(Southern Europe)
Zone Industrielle
F-39270
Orgelet
France
TEL: 33 3 84 35 04 04
FAX: 33 3 84 25 46 41
SINGAPORE
(Southern Asia)
150 Kampong Ampat
#07-01/02
KA Centre
Singapore 368324
TEL: 65 6287 8998
FAX: 65 6280 0080
TAIWAN, R.O.C.
(Northern Asia)
3F-4, No. 81, Sec. 1
HsinTai Wu Road
Hsi-Chih, Taipei Hsien
Taiwan, R.O.C.
Tel: 886 2 2698 0228
FAX: 886 2 2698 0948
HONG KONG
(China/Hong Kong)
Unit 11, 11/F
Wah Lai Industrial Centre
10-14 Kwei Tei Street,
Fotan, Shatin, Hong Kong
TEL: 852 2788 6588
FAX: 852 2776 1055
DISTRIBUTOR
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product
names mentioned herein may be trademarks or registered trademarks of their respective owners.
© Copyright, 2005. Pulse Engineering, Inc. All right reserved.
HC500.E (1/05)
4
