EURO
QUARTZ
FEATURES
·
·
·
·
·
Micro-miniature 5.0mm x 3.2mm package
Frequency Range 16MHz to 50MHz
Low supply current <1.7mA at 1.8V supply
Supply voltage range, 1.8, 2.5V or 3.3Volts
Tristate function to conserve power
XOK53 Series Oscillators
5 x 3.2mm SMD Low Power Consumption Clock Oscillator

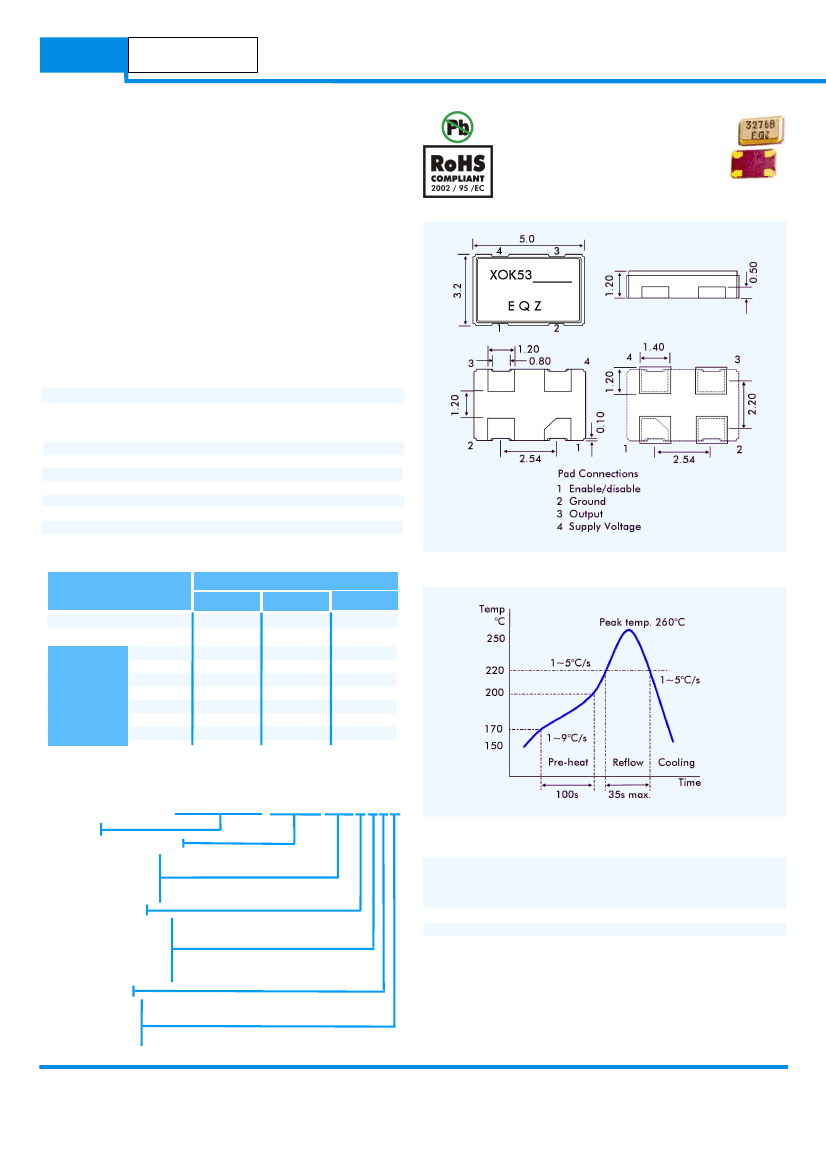

OUTLINE & DIMENSIONS
DESCRIPTION
XOK53 oscillators are designed for battery operated portable or
hand-held consumer electronic devices where small size and low
supply current consumption is mandatory. A XOK53 at 27MHz and
1.8 Volts supply consumes less than 1.7mA in operating mode and
less than 2 micro Amps in disabled mode. XOK53 phase noise is -
130dBc/Hz at 10kHz offset. The oscillator is available with supply
voltage at 1.8, 2.5 or 3.3 Volts.
SPECIFICATION
Frequency Range:
Frequency Stability
Commercial:
Industrial:
Output Logic:
Rise/Fall Time:
Current Consumption:
Symmetry:
Start-up Time:
Load:
Voltage Sensitivity:
Period Jitter (RMS)
16.0MHz to 56.0MHz
±25ppm to ±100ppm 0° to +70°C
±25ppm to ±100ppm -40° to +85°C
HCMOS
4ns typical (10% to 90%Vdd)
12mA typical (+3.0V)
45% minimum, 55% maximum
10ms typical (Vdd reaches 1.62V)
15pF
±0.8ppm typical (10%Vdd variation)
2.1ps typical with capacitive
decoupling between Vdd and Gnd.
Supply Voltage (±10%)
+1.8V
+2.5V
+3.3V
SOLDER TEMPERATURE PROFILE
Supply Voltage
Dependant Parameters
Output Voltage HIGH ‘1’:
Output Voltage LOW ‘0’:
16.000MHz
20.945MHz
Current
25.000MHz
Consumption
27.000MHz
mA typical
30.000MHz
38.000MHz
50.000MHz
+1.40Vmin. +2.0Vmin. +2.4Vmin.
+0.2Vmax. +0.3Vmax. +0.4Vmax.
1.05mA
1.34mA
1.54mA
1.69mA
1.93mA
2.27mA
2.60mA
1.51mA
1.86mA
2.17mA
2.35mA
2.74mA
3.26mA
3.90mA
2.12mA
2.58mA
3.00mA
3.25mA
3.77mA
4.48mA
4.95mA
Tristate (Pad 1 grounded): 2uA typical 4uA max. (oscillator is off)
PART NUMBERING
Example:
27.000MHz XOK53050UCTC
NOTES
Pad 1 Options:
Pad 1 connected to ground, output disabled
No connection/Logic HIGH, output enabled
Disable time 10ms typical
Enable time 10ms typical
±5ppm per year max.
2000V max., human body model
12mm tape, 8mm pitch. 1000 pieces/reel
Frequency
Series Designation XOK53
Stability
100 = ±100ppm
050 = ±50ppm
025 = ±25ppm
Output Universal
Operating Temp. Range
C = Commercial
(0°~70°C)
I = Industrial
(-40°~+85°C)
Tristate Function
Supply Voltage
A = 3.3 Volts
B = 2.5 Volts
C = 1.8 Volts
Ageing:
ESD Protection:
Packaging:
PHASE NOISE
Offset
dBc/Hz
100Hz
-80
1kHz
-110
10kHz
-130
100kHz
-138
1MHz
-145
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
