ISL78444AVEZ-T7A: Description100V Boot, 4A Peak, Half-Bridge Driver with Single PWM Input and Adaptive Dead Time Control; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size2MB，34 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

ISL78444AVEZ-T7A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ISL78444AVEZ-T7A	-	-	View	Buy Now

ISL78444AVEZ-T7A Overview

100V Boot, 4A Peak, Half-Bridge Driver with Single PWM Input and Adaptive Dead Time Control

ISL78444AVEZ-T7A Parametric

Parameter Name	Attribute value
Brand Name	Renesas
Maker	Renesas Electronics Corporation
Parts packaging code	TSSOP-EP
package instruction	,
Contacts	14
Manufacturer packaging code	M14.173B14
Reach Compliance Code	compliant
Interface integrated circuit type	HALF BRIDGE BASED MOSFET DRIVER
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

ISL78424, ISL78434, ISL78444

100V Boot, 4A Peak, Half-Bridge Driver with Single PWM Input and Adaptive

Dead Time Control

The

ISL78424, ISL78434,

and

ISL78444

are Automotive

Grade (AEC-Q100 Grade 1) high voltage, high

frequency, half-bridge NMOS FET drivers for driving

the gates of up to 70V half-bridge topologies.

The family of half-bridge drivers feature 3A sourcing,

4A sinking peak gate drive current. The ISL78424 and

ISL78444 feature a single tri-level PWM input for

controlling both gate drivers. The ISL78434 has dual

independent inputs for controlling the high-side and

low-side driver separately. The ISL78424 and ISL78434

have independent sourcing and sinking pins for each gate

driver while ISL78444 has a single combined

sourcing/sinking output for each gate driver.

Strong gate drive strength and the Adaptive Dead Time

(ADT) feature allow this family of drivers to switch high

voltage, low r

DS(ON)

power FETs in half-bridge

topologies at high operating frequencies while providing

shoot-through protection and minimizing dead time

switching losses.

The ISL78424, ISL78434, and ISL78444 are offered in a 14

Ld HTSSOP package that complies with 100V conductor

spacing per IPC-2221B. The ISL78444 is pin compatible

with the ISL78420. All devices are specified across a

wide ambient temperature range of -40°C to +140°C.

FN9357

Rev.0.00

Sep 10, 2018

Features

• Patented gate-sensed adaptive dead time control

provides shoot-through protection and mimized dead

time

• Unique tri-level PWM input for integration with

Renesas multiphase controllers (for example,

ISL78225 and ISL78226)

• 3A sourcing and 4A sinking output current

• On-chip 3Ω bootsrap FET switch

• Programmable dead time delay with single resistor

• Tri-level PWM input (ISL78424, ISL78444)

• Independent HI/LI inputs (ISL78434)

• Separate source/sink pins at driver outputs

(ISL78424, ISL78434)

• Bootstrap and VDD Undervoltage Lockout (UVLO)

• Wide supply range: 8V to 18V

• Bootstrap supply maximum voltage: 100V

• Maximum phase voltage: 86V

• Minimum phase voltage: -10V

Applications

• Automotive half-bridge and 3-phase motor driver

• 12V to 24V and 12V to 48V bidirectional DC/DC

(with ISL78226, ISL78224 controllers)

• Multi-phase boost (with ISL78220 and ISL78225

controllers)

Related Literature

For a full list of related documents, visit our website:

•

ISL78424, ISL78434, ISL78444

product pages

SINK

V_BUS

12V

48V

BOOT

SOURCE

VDD

LO_H

LO_L

VSS

PWM

RDT

SINK

SOURCE

VOUT

PWM

VDD

RDT

PWM1

PWM2

ISL78226 PWM3

6-Phase

DC/DC PWM4

Controller PWM5

PWM6

VSS

EPAD

HO_H

HO_L

ISL78444

ISL78424

AGND

Phase #1

Phase #2

Phase #3

Phase #4

Phase #5

Phase #6

From

Controller

Figure 1. Independent Source and Sink Outputs for

Optimizing Gate Drive Current and Adaptive Dead Time

Sensing

Figure 2. NMOS Half-Bridge Driver for 12V-48V Bi-Directional

DC/DC Controller

FN9357 Rev.0.00

Sep 10, 2018

Page 1 of 34

ISL78424, ISL78434, ISL78444

Contents

1.1

1.2

1.3

1.4

2.1

2.2

2.3

2.4

2.5

2.6

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

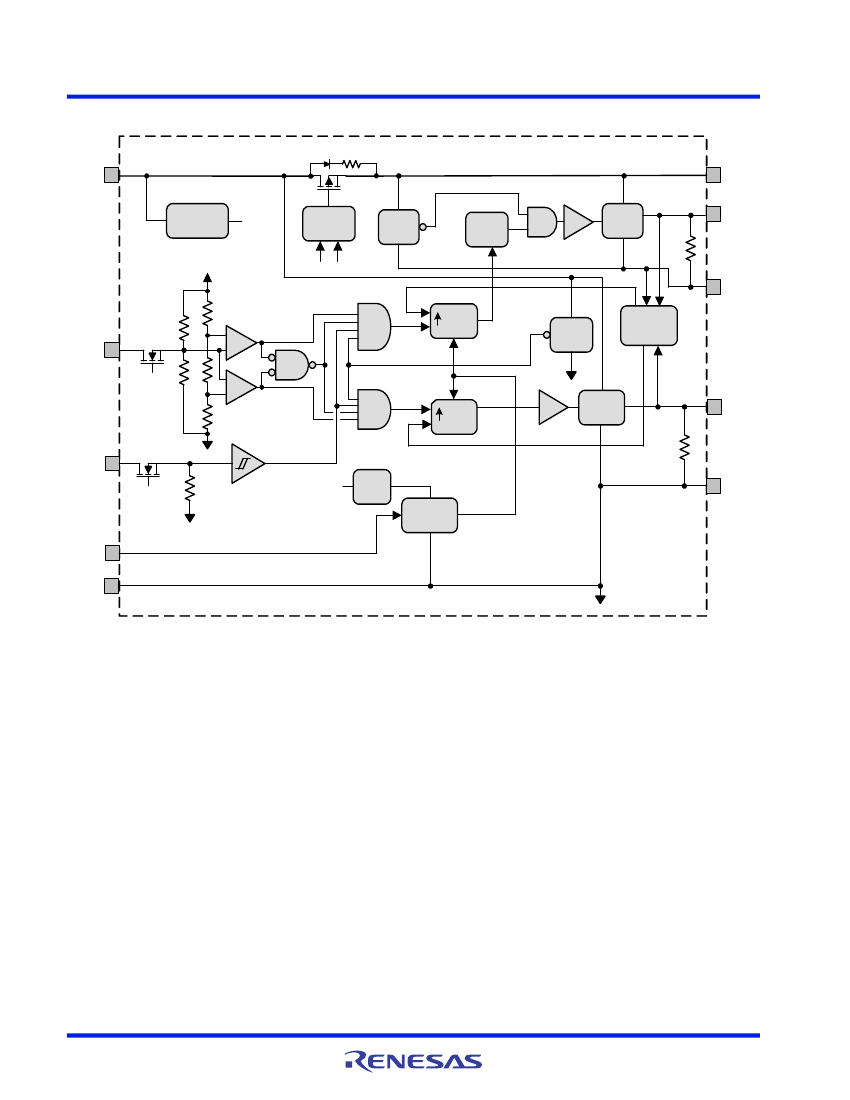

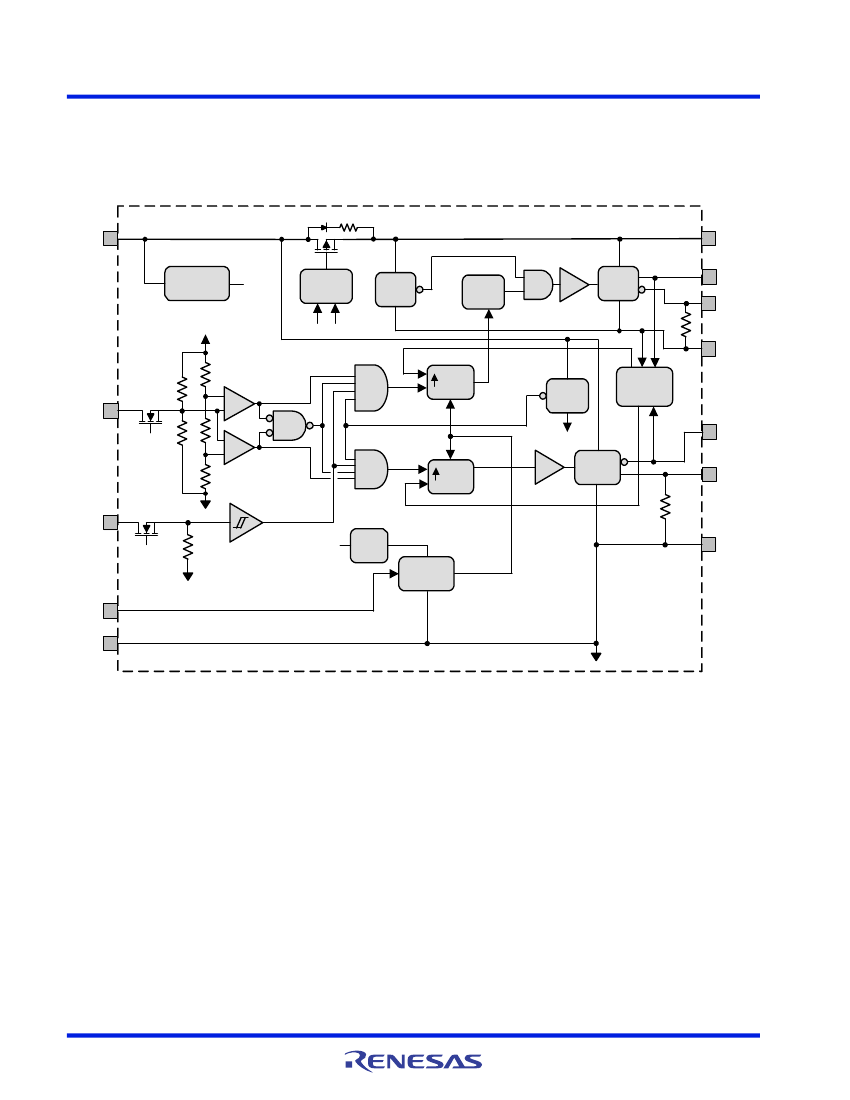

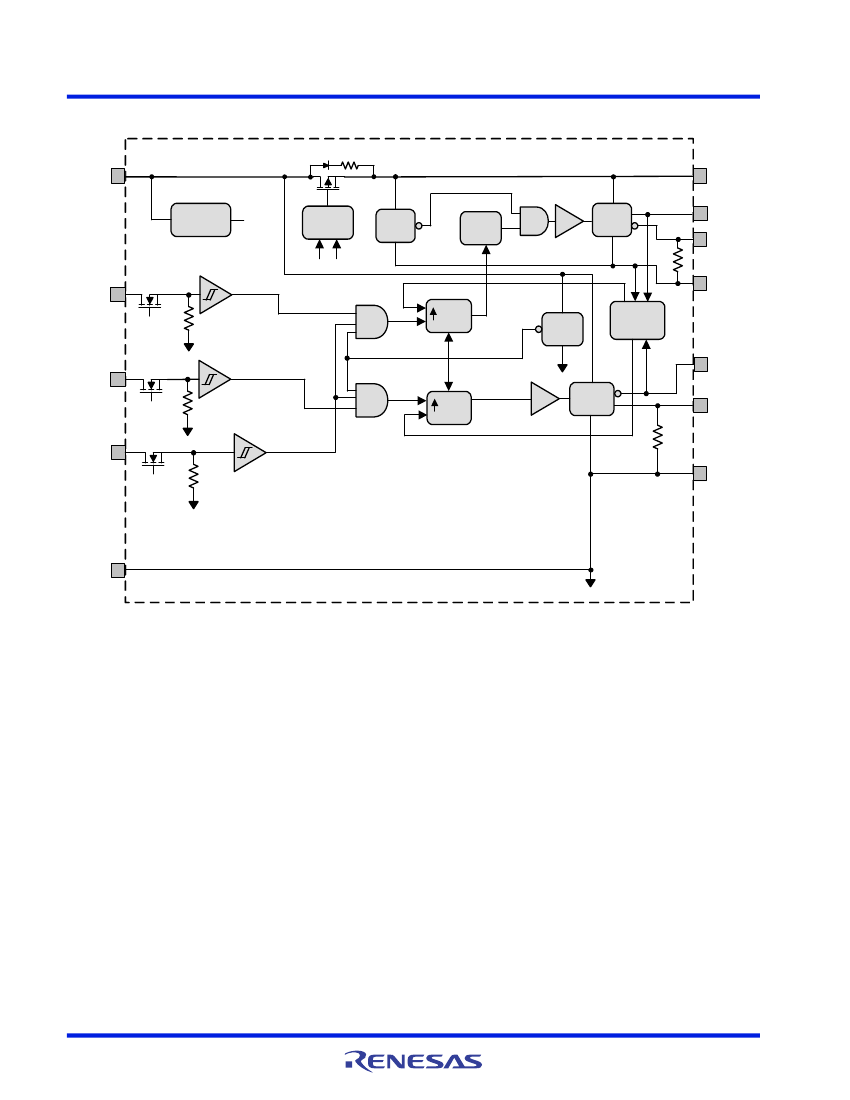

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pin Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pin Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Thermal Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Switching Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Timing Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Typical Performance Curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Product Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.1

Single PWM or Independent HI/LI Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2

ISL78424 and ISL78444 PWM Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.3

ISL78434 HI/LI Lockout Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4

Separate Source and Sink Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.5

Peak Gate Drive Currents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.6

Shoot-Through Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.7

Shoot-Through and Dead Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.8

Adaptive Dead Time Control (ADTC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.9

Adaptive Dead Time and Gate Resistors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.10

Falling Thresholds for ADTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.11

Adjustable Dead Time Delay (RDT Pin) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.12

Integrated Bootstrap Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.13

Bootstrap Capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.14

EN Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.15

UVLO Protection - VDD and Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1

5.2

5.3

5.4

5.5

5.6

Applications Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Supply Voltage Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bootstrap Capacitor Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Gate Drive Limiting Resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adaptive Dead Time Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjustable Dead Time Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Dissipation Calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PCB Layout Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Package Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

FN9357 Rev.0.00

Sep 10, 2018

Page 2 of 34
