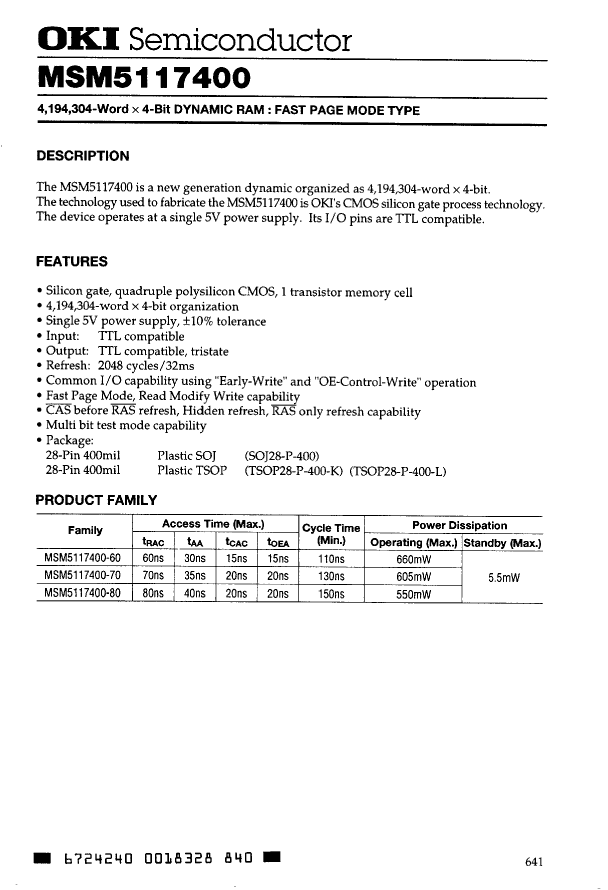

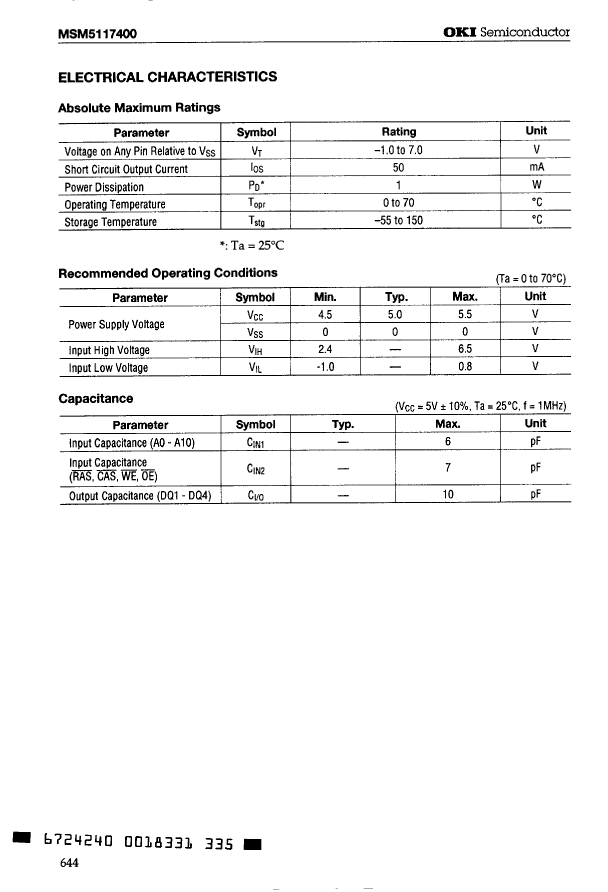

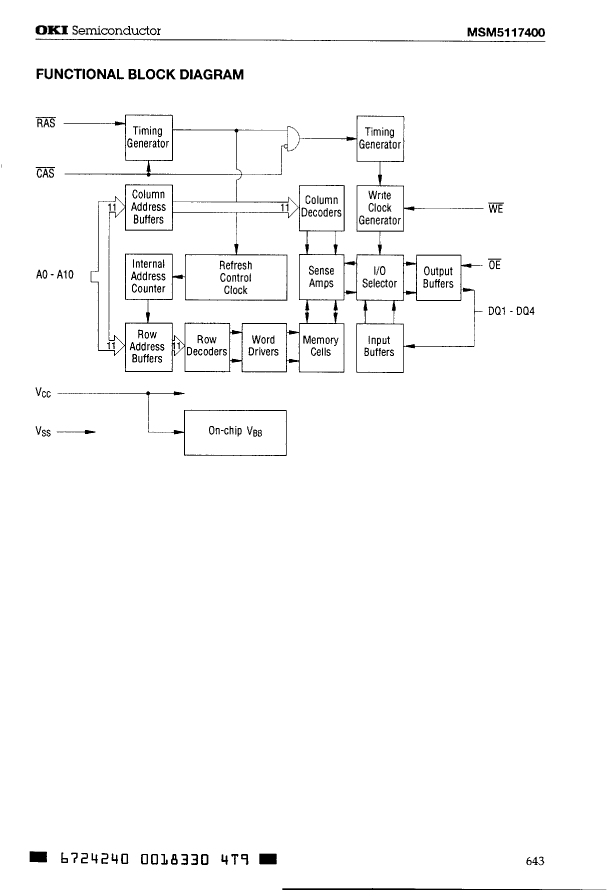

Fast Page DRAM, 4MX4, 70ns, CMOS, PDSO24

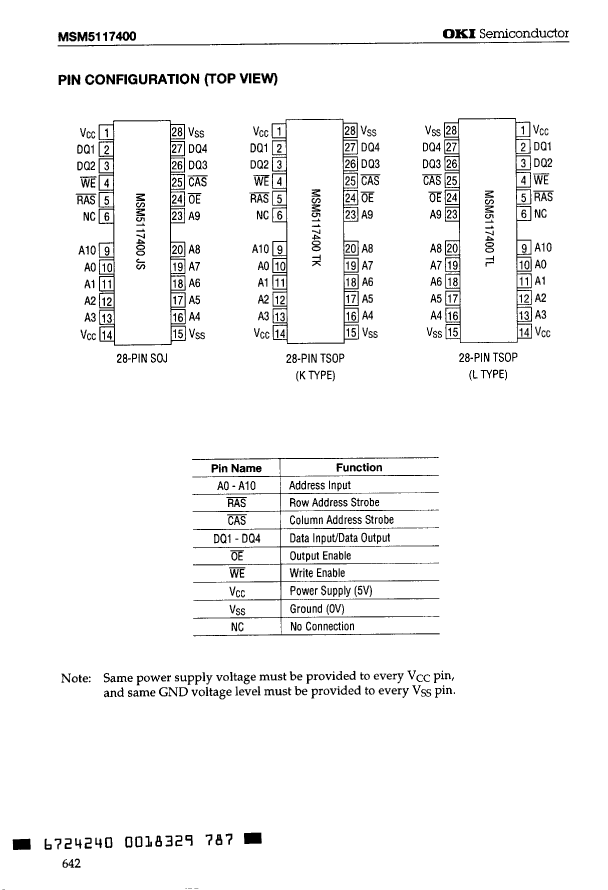

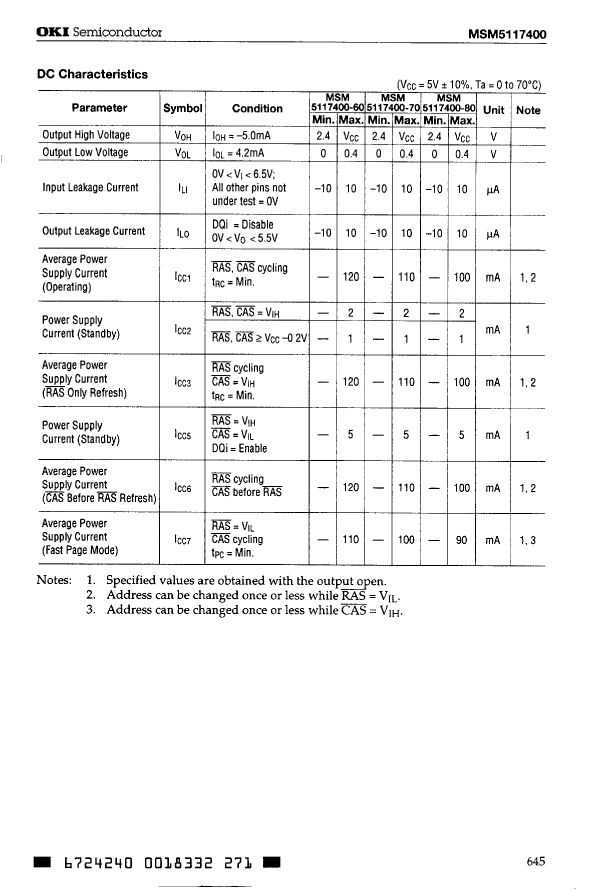

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | TSOP, TSOP24/28,.46 |
| Reach Compliance Code | unknow |
| Maximum access time | 70 ns |
| I/O type | COMMON |
| JESD-30 code | R-PDSO-G24 |
| JESD-609 code | e0 |
| memory density | 16777216 bi |
| Memory IC Type | FAST PAGE DRAM |
| memory width | 4 |
| Number of terminals | 24 |
| word count | 4194304 words |
| character code | 4000000 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 4MX4 |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSOP |
| Encapsulate equivalent code | TSOP24/28,.46 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE |
| power supply | 5 V |
| Certification status | Not Qualified |
| refresh cycle | 2048 |
| self refresh | NO |
| Maximum standby current | 0.001 A |
| Maximum slew rate | 0.11 mA |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| MSM5117400-70TS-K | MSM5117400-80JS | MSM5117400-70TS-L | MSM5117400-80TS-K | MSM5117400-80TS-L | |
|---|---|---|---|---|---|
| Description | Fast Page DRAM, 4MX4, 70ns, CMOS, PDSO24 | Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24 | Fast Page DRAM, 4MX4, 70ns, CMOS, PDSO24 | Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24 | Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | TSOP, TSOP24/28,.46 | SOJ, SOJ24/28,.44 | TSOP, TSOP24/28,.46 | TSOP, TSOP24/28,.46 | TSOP, TSOP24/28,.46 |
| Reach Compliance Code | unknow | unknow | unknow | unknown | unknown |
| Maximum access time | 70 ns | 80 ns | 70 ns | 80 ns | 80 ns |
| I/O type | COMMON | COMMON | COMMON | COMMON | COMMON |
| JESD-30 code | R-PDSO-G24 | R-PDSO-J24 | R-PDSO-G24 | R-PDSO-G24 | R-PDSO-G24 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| memory density | 16777216 bi | 16777216 bi | 16777216 bi | 16777216 bit | 16777216 bit |
| Memory IC Type | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM | FAST PAGE DRAM |
| memory width | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 24 | 24 | 24 | 24 | 24 |
| word count | 4194304 words | 4194304 words | 4194304 words | 4194304 words | 4194304 words |
| character code | 4000000 | 4000000 | 4000000 | 4000000 | 4000000 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 4MX4 | 4MX4 | 4MX4 | 4MX4 | 4MX4 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TSOP | SOJ | TSOP | TSOP | TSOP |
| Encapsulate equivalent code | TSOP24/28,.46 | SOJ24/28,.44 | TSOP24/28,.46 | TSOP24/28,.46 | TSOP24/28,.46 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| refresh cycle | 2048 | 2048 | 2048 | 2048 | 2048 |
| self refresh | NO | NO | NO | NO | NO |
| Maximum standby current | 0.001 A | 0.001 A | 0.001 A | 0.001 A | 0.001 A |
| Maximum slew rate | 0.11 mA | 0.1 mA | 0.11 mA | 0.1 mA | 0.1 mA |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | J BEND | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Maker | - | LAPIS Semiconductor Co., Ltd. | - | LAPIS Semiconductor Co., Ltd. | LAPIS Semiconductor Co., Ltd. |
