MID550-12A4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> MID550-12A4

Preview

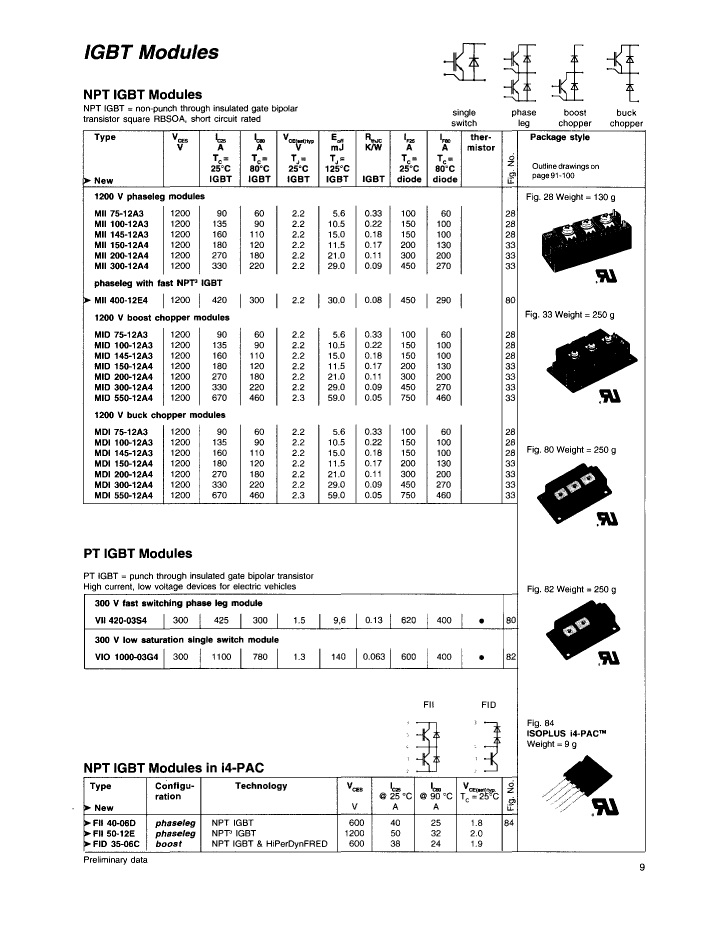

MID550-12A4: DescriptionInsulated Gate Bipolar Transistor, 670A I(C), 1200V V(BR)CES, N-Channel, MODULE-7; CategoryDiscrete semiconductor The transistor; File Size44KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MID550-12A4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MID550-12A4	-	-	View	Buy Now

MID550-12A4 Overview

Insulated Gate Bipolar Transistor, 670A I(C), 1200V V(BR)CES, N-Channel, MODULE-7

MID550-12A4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	FLANGE MOUNT, R-XUFM-X5
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Maximum collector current (IC)	670 A
Collector-emitter maximum voltage	1200 V
Configuration	SINGLE WITH BUILT-IN DIODE
Gate-emitter maximum voltage	20 V
JESD-30 code	R-XUFM-X5
Number of components	1
Number of terminals	5
Maximum operating temperature	150 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	2750 W
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	POWER CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	690 ns
Nominal on time (ton)	160 ns
VCEsat-Max	2.8 V
Base Number Matches	1

Preview

Download Datasheet

View All

MID550-12A4 Related Products

	MID550-12A4	MID150-12A4	MID200-12A4	MDI150-12A4	MII150-12A4	MII200-12A4	MDI550-12A4
Description	Insulated Gate Bipolar Transistor, 670A I(C), 1200V V(BR)CES, N-Channel, MODULE-7	Insulated Gate Bipolar Transistor, 180A I(C), 1200V V(BR)CES, N-Channel, MODULE-7	Insulated Gate Bipolar Transistor, 270A I(C), 1200V V(BR)CES, N-Channel, MODULE-7	Insulated Gate Bipolar Transistor, 180A I(C), 1200V V(BR)CES, N-Channel, MODULE-7	Insulated Gate Bipolar Transistor, 180A I(C), 1200V V(BR)CES, N-Channel, MODULE-7	Insulated Gate Bipolar Transistor, 270A I(C), 1200V V(BR)CES, N-Channel, MODULE-7	Insulated Gate Bipolar Transistor, 670A I(C), 1200V V(BR)CES, N-Channel, MODULE-7
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	FLANGE MOUNT, R-XUFM-X5	FLANGE MOUNT, R-XUFM-X5	FLANGE MOUNT, R-XUFM-X5	FLANGE MOUNT, R-XUFM-X5	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X5
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	670 A	180 A	270 A	180 A	180 A	270 A	670 A
Collector-emitter maximum voltage	1200 V	1200 V	1200 V	1200 V	1200 V	1200 V	1200 V
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Gate-emitter maximum voltage	20 V	20 V	20 V	20 V	20 V	20 V	20 V
JESD-30 code	R-XUFM-X5	R-XUFM-X5	R-XUFM-X5	R-XUFM-X5	R-XUFM-X7	R-XUFM-X7	R-XUFM-X5
Number of components	1	1	1	1	2	2	1
Number of terminals	5	5	5	5	7	7	5
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	2750 W	830 W	1250 W	830 W	830 W	1250 W	2750 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	POWER CONTROL	POWER CONTROL	POWER CONTROL	POWER CONTROL	MOTOR CONTROL	MOTOR CONTROL	POWER CONTROL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal off time (toff)	690 ns	570 ns	700 ns	570 ns	570 ns	700 ns	690 ns
Nominal on time (ton)	160 ns	170 ns	150 ns	170 ns	170 ns	150 ns	160 ns
VCEsat-Max	2.8 V	3 V	3 V	3 V	3 V	3 V	2.8 V
Base Number Matches	1	1	1	1	-	-	-
Maker	-	-	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse
