DPE3232V-200B datasheet, PDF - EEWORLD Datasheet

DPE3232V-200B: DescriptionEEPROM Module, 128KX8, 200ns, Parallel, CMOS, CPGA66, PGA-66; Categorystorage storage; File Size209KB，6 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric View All

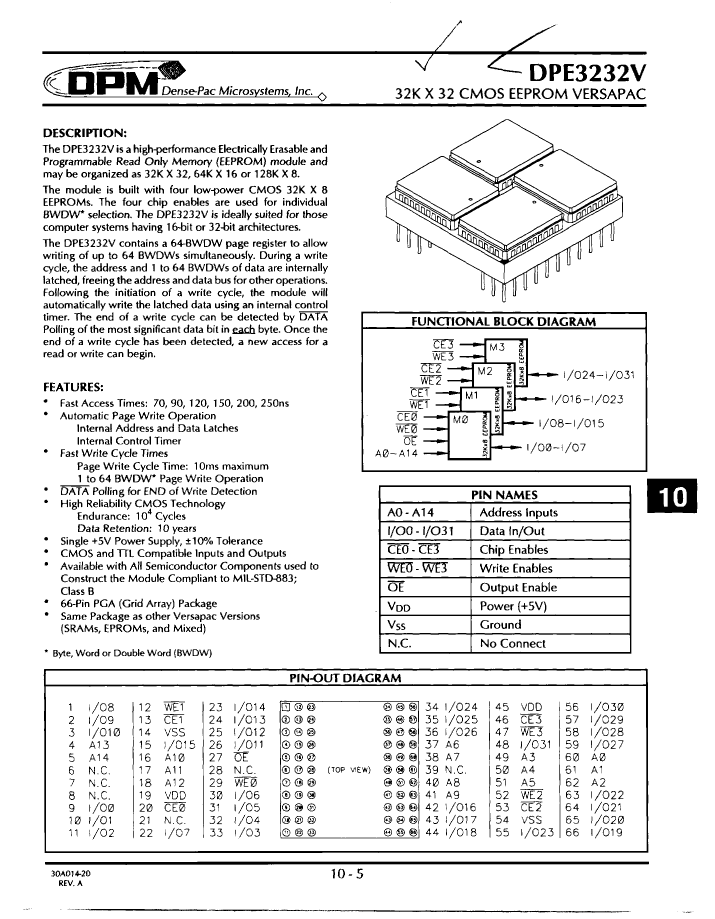

DPE3232V-200B Overview

EEPROM Module, 128KX8, 200ns, Parallel, CMOS, CPGA66, PGA-66

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	PGA
package instruction	PGA, PGA66,11X11
Contacts	66
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C

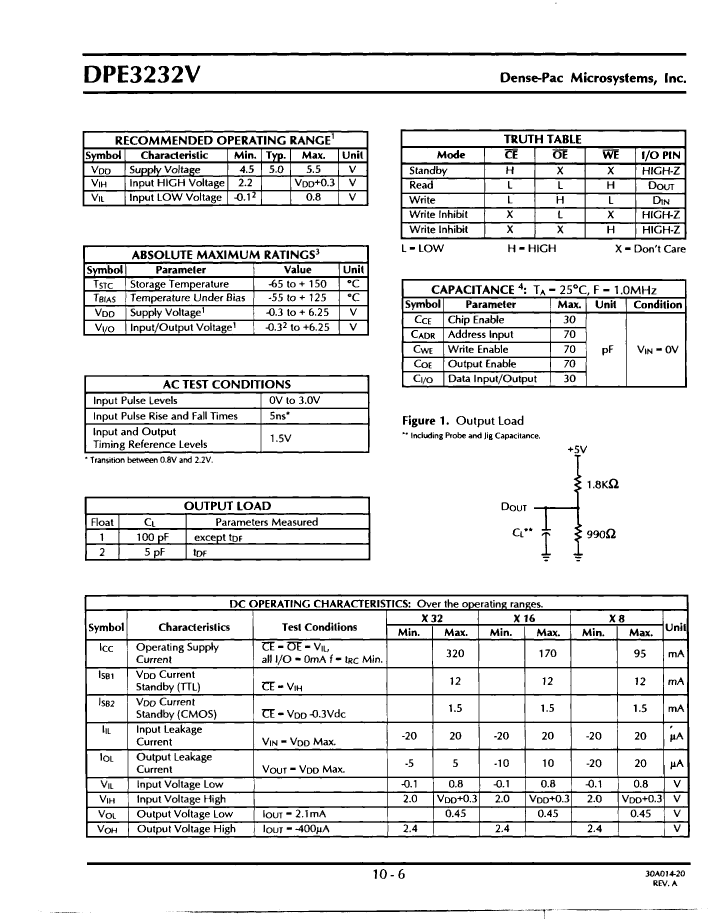

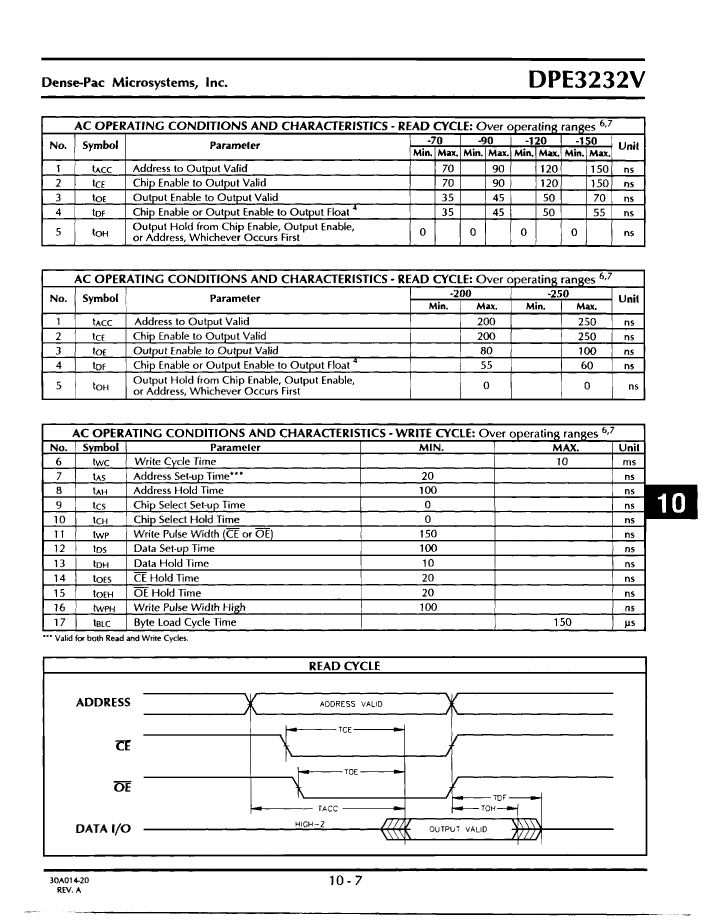

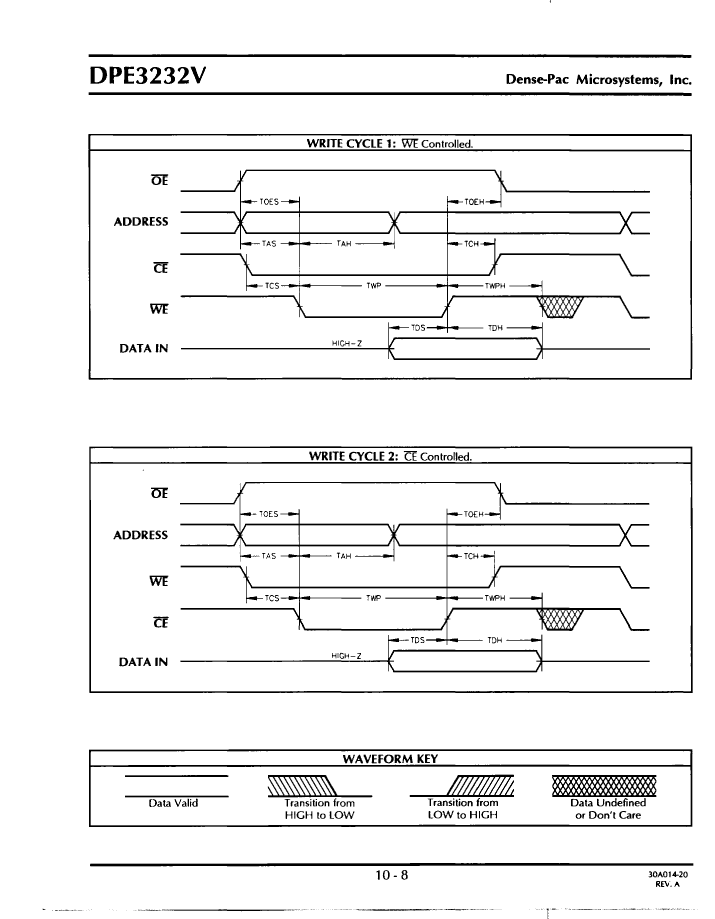

Maximum access time	200 ns
Other features	DATA RETENTION = 10 YEARS; CONFIGURABLE AS 32K X 32; AUTOMATIC WRITE
Spare memory width	16
Data polling	YES
Data retention time - minimum	10
JESD-30 code	S-CPGA-P66
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	EEPROM MODULE
memory width	8
Number of functions	1
Number of terminals	66
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	128KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA66,11X11
Package shape	SQUARE
Package form	GRID ARRAY

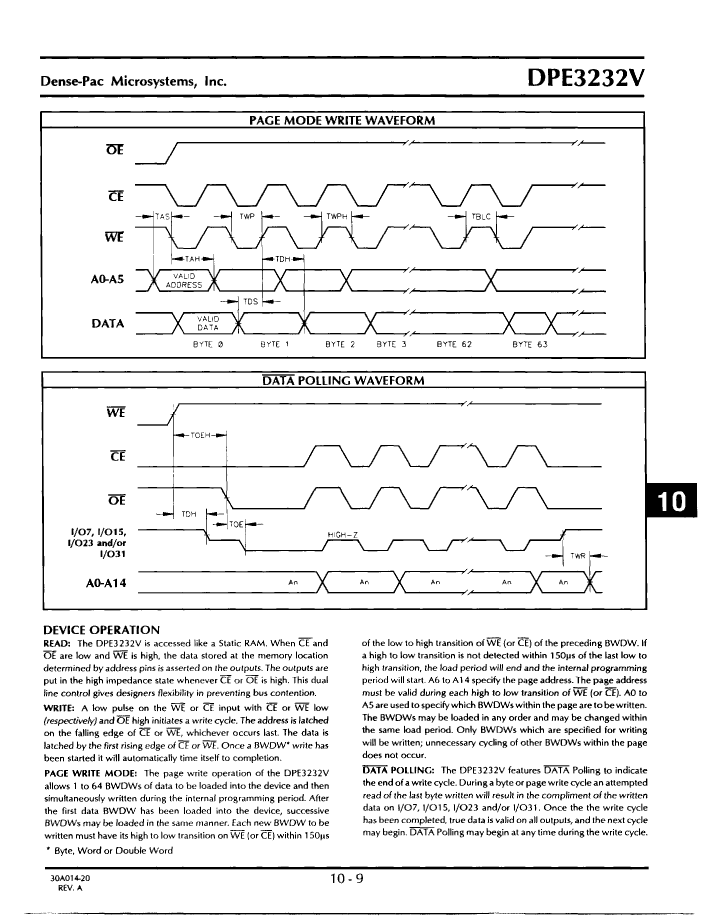

page size	64 words
Parallel/Serial	PARALLEL
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Maximum seat height	7.62 mm
Maximum standby current	0.0015 A
Maximum slew rate	0.32 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
switch bit	NO
write protect	SOFTWARE
Base Number Matches	1
