ASPI-0603T-1R5K datasheet, PDF

Datasheet> All Categories > Passive components> inductor> ASPI-0603T-1R5K

ASPI-0603T-1R5K: DescriptionGeneral Purpose Inductor, 1.5uH, 10%, 1 Element, SMD, 2616, CHIP, 2616, ROHS COMPLIANT; CategoryPassive components inductor; File Size388KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASPI-0603T-1R5K Overview

General Purpose Inductor, 1.5uH, 10%, 1 Element, SMD, 2616, CHIP, 2616, ROHS COMPLIANT

ASPI-0603T-1R5K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	2616
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2616
DC Resistance	0.06 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASPI-0603T
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.8 A
self resonant frequency	115 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

SMD POWER INDUCTOR

ASPI - 0603T

FEATURES:

• Very small foot print, low profile in space conscious applications

• Flat-top for pick & place

• Supper low resistance with high current rating

RoHS

Compliant

APPLICATIONS:

• Ideal for Palm-Top and Laptop

• DC to DC converters

• PDA's flash memory

• Step-up, step-down converters

6.6 x 4.45 x 2.92mm

ELECTRICAL SPECIFICATIONS:

Abracon P/N:

ASPI-0603T

ABRACON

P/N

ASPI-0603-1R0M/K

ASPI-0603T-1R5M/K

ASPI-0603T-2R2M/K

ASPI-0603T-3R3M/K

ASPI-0603T-4R7M/K

ASPI-0603T-6R8M/K

ASPI-0603T-100M/K

ASPI-0603T-150M/K

ASPI-0603T-220M/K

ASPI-0603T-330M/K

ASPI-0603T-470M/K

ASPI-0603T-680M/K

ASPI-0603T-101M/K

ASPI-0603T-151M/K

ASPI-0603T-221M/K

ASPI-0603T-331M/K

ASPI-0603T-471M/K

ASPI-0603T-681M/K

ASPI-0603T-102M/K

IND.

(µH)

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

1000

DCR

(Ω Max.)

0.060

0.070

0.080

0.14

0.16

0.20

0.31

0.43

0.51

0.84

1.22

1.77

2.40

3.76

5.71

8.50

11.23

19.5

SAT

DC (A)

2.90

2.60

2.30

2.00

1.50

1.20

1.10

0.90

0.70

0.58

0.50

0.40

0.31

0.27

0.22

0.18

0.16

0.14

0.10

RMS

(A)

2.00

1.80

1.60

1.40

1.00

0.84

0.77

0.63

0.49

0.40

0.35

0.28

0.21

0.18

0.15

0.13

0.11

0.10

0.07

SRF Typ

(MHz)

130

115

120

5.5

NOTE

Tolerance: K=10%, M=20%

Testing Conditions: 100KHz, 0.1V

RMS

Marking: Color code

Ind. drop = 10% typ. at I

∆T

= 40°C temperature rise max at I

Add -T for Tape and Reel

Operating Temperature: -40°C to +85°C

RoHS Compliance product, effective Date Code 0523.

Label on reel and box

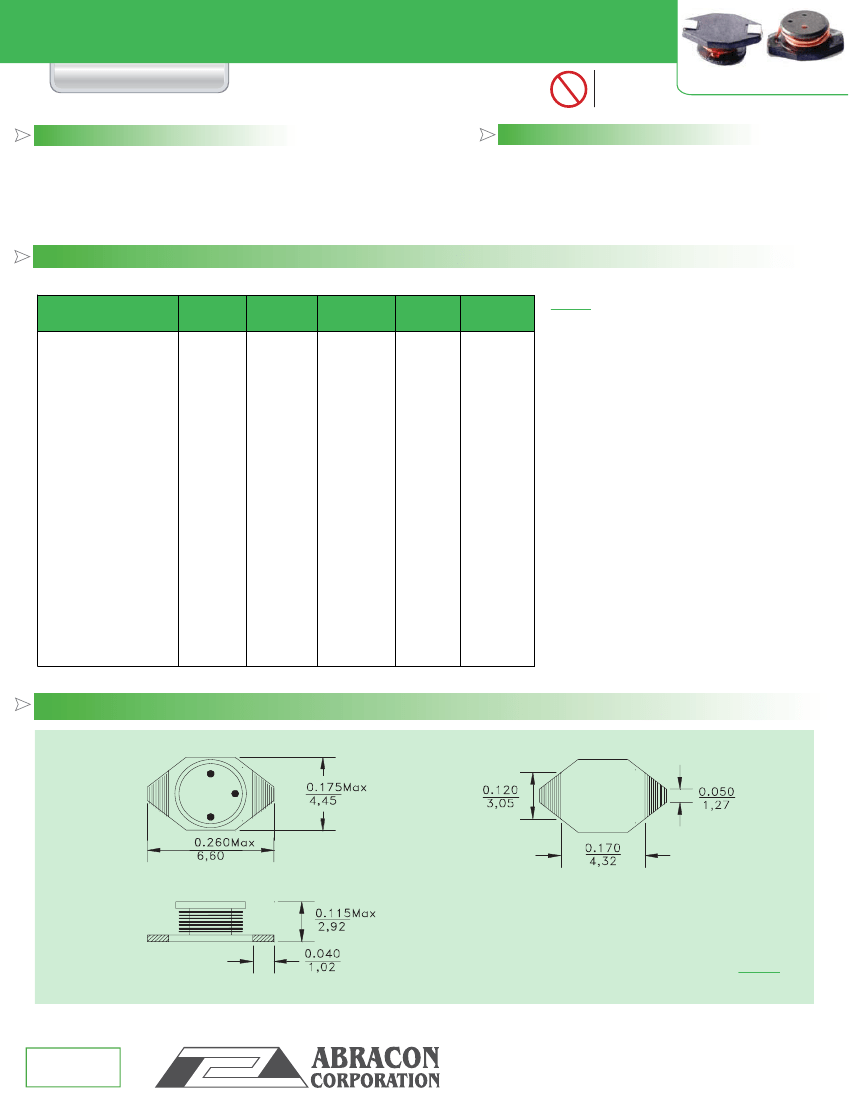

OUTLINE DRAWING:

Dimensions: Inches

(mm)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised:05.13.09
