MH71FCD-R80.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MH71FCD-R80.0000MHZ

MH71FCD-R80.0000MHZ: DescriptionHCMOS Output Clock Oscillator, 1MHz Min, 80MHz Max, 80MHz Nom,; CategoryPassive components oscillator; File Size590KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

MH71FCD-R80.0000MHZ Overview

HCMOS Output Clock Oscillator, 1MHz Min, 80MHz Max, 80MHz Nom,

MH71FCD-R80.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	DIP4/8,.3
Reach Compliance Code	unknown
JESD-609 code	e1
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	80 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	80 MHz
Maximum operating temperature	85 °C
Minimum operating temperature
Oscillator type	HCMOS
Package body material	METAL
Encapsulate equivalent code	DIP4/8,.3
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	60 mA
Nominal supply voltage	5 V
surface mount	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Base Number Matches	1

Preview

Download Datasheet

View All

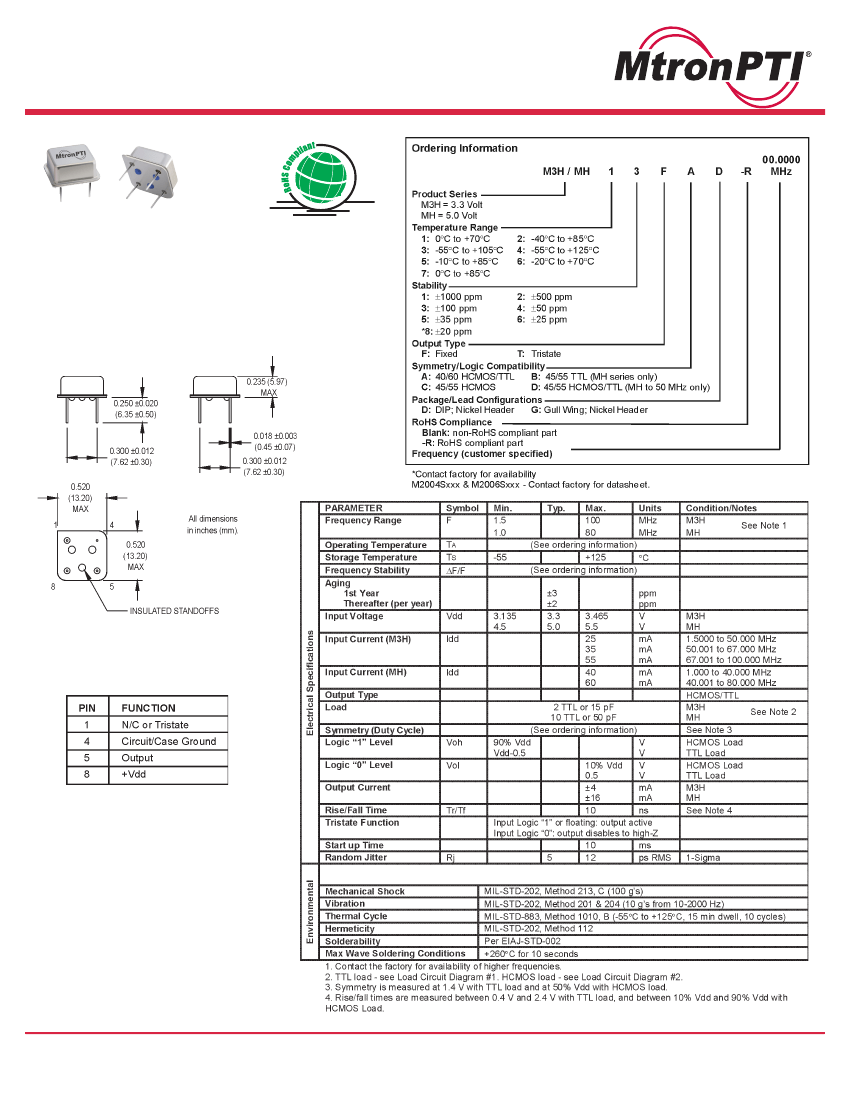

M3H & MH Series

8 pin DIP, 3.3 or 5.0 Volt, HCMOS/TTL Clock Oscillator

•

Standard 8 DIP Package

3.3 or 5.0 Volt Versions

RoHs Compliant Version available (-R)

Low Jitter

Tristate Option

Wide Operating Temperature Range

OBSOLETE

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Rev: 7/25/2012
