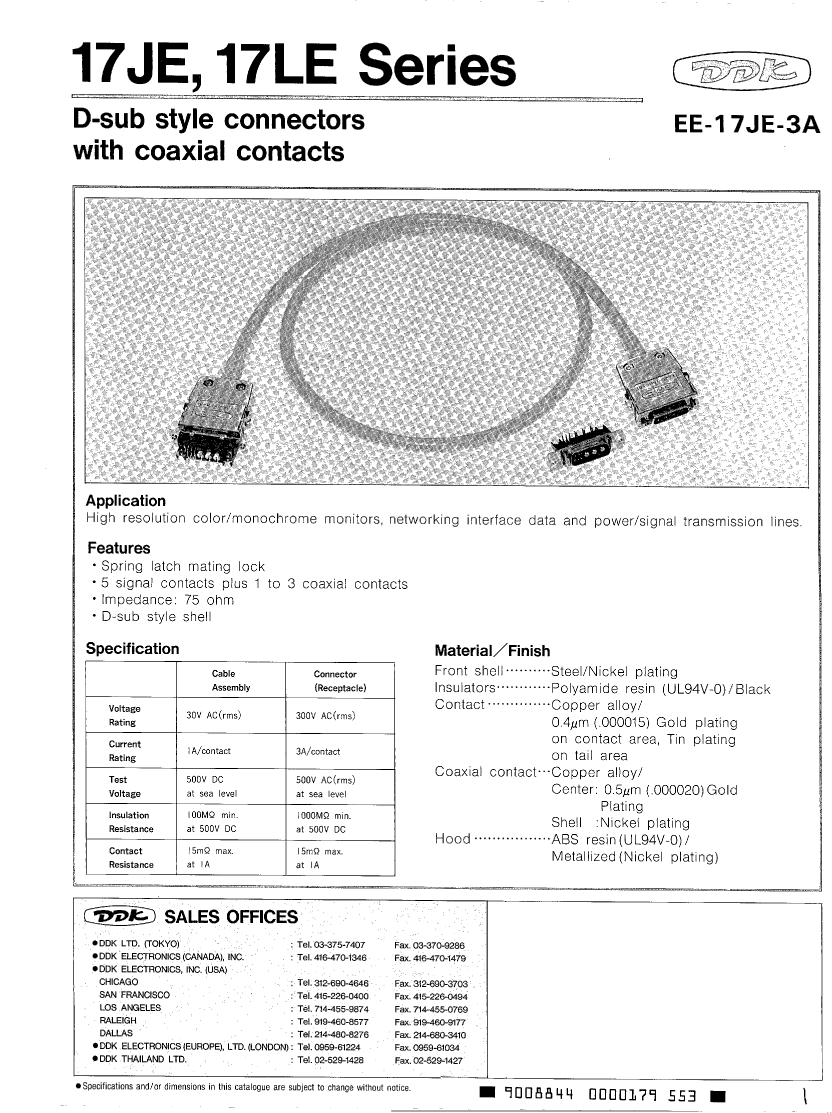

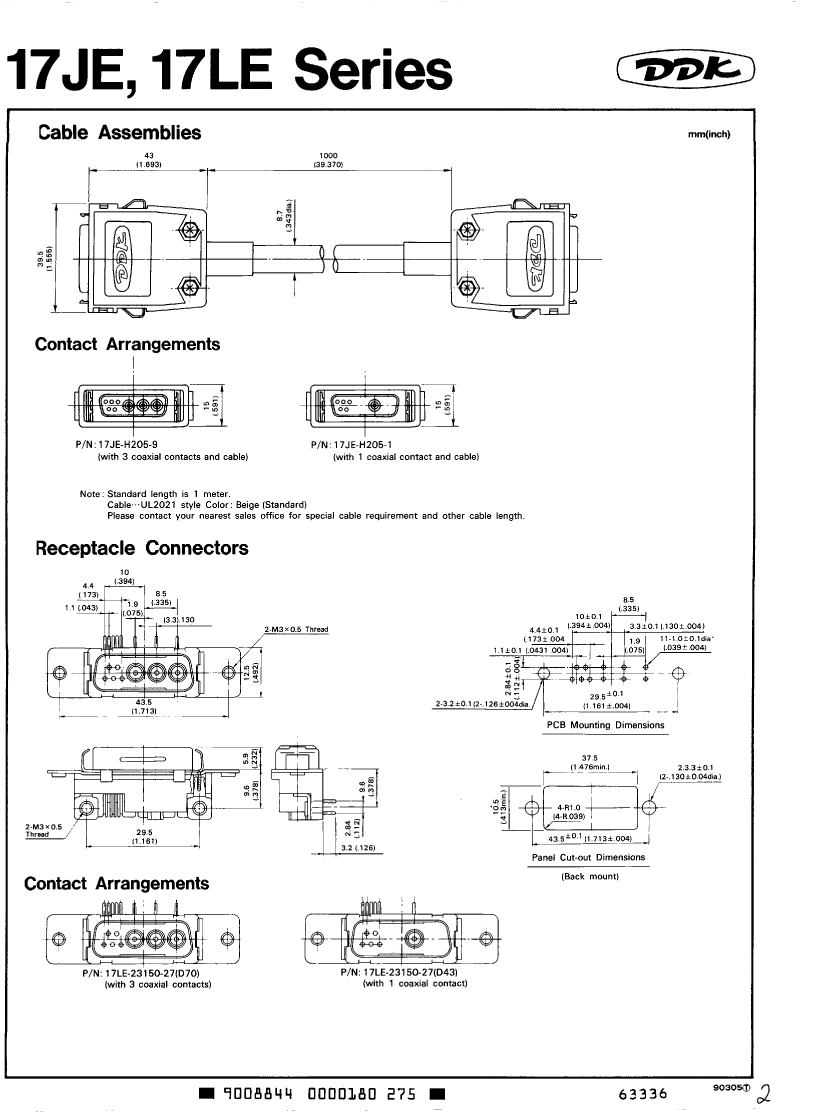

D Type Connector, 8 Contact(s), Female, Solder Terminal, Latch, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| body width | 0.492 inch |
| subject depth | 0.434 inch |
| Body/casing type | PLUG |
| Contact arrangement | S5C3 |
| Contact to complete cooperation | AU |
| Contact completed and terminated | GOLD |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 15 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 500VAC V |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYAMIDE RESIN |
| Manufacturer's serial number | 17LE |
| Mixed contacts | YES |
| Installation option 1 | LATCH |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| Plating thickness | 15u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | STEEL |
| Terminal length | 0.126 inch |
| Termination type | SOLDER |
| Total number of contacts | 8 |
| Base Number Matches | 1 |
| 17LE-23150-27(D70) | ATS-17A-128-C2-R0 | 17JE-H205-1 | 17JE-H205-9 | |
|---|---|---|---|---|
| Description | D Type Connector, 8 Contact(s), Female, Solder Terminal, Latch, Plug | pushPIN™ HS ASMBLY,COARSE-PITCH,XCUT, HOLE PATTERN:4-CORNER,BLUE,T766 | D Type Connector, 6 Contact(s), Male, Solder Lug Terminal, Latch, Receptacle | D Type Connector, 8 Contact(s), Male, Solder Lug Terminal, Latch, Receptacle |
| Reach Compliance Code | unknow | - | unknow | unknow |
| ECCN code | EAR99 | - | EAR99 | EAR99 |
| body width | 0.492 inch | - | 0.591 inch | 0.591 inch |
| subject depth | 0.434 inch | - | 1.693 inch | 1.693 inch |
| Body/casing type | PLUG | - | RECEPTACLE | RECEPTACLE |
| Contact arrangement | S5C3 | - | S5C1 | S5C3 |
| Contact to complete cooperation | AU | - | AU | AU |
| Contact completed and terminated | GOLD | - | GOLD | GOLD |
| Contact point gender | FEMALE | - | MALE | MALE |
| Contact material | COPPER ALLOY | - | COPPER ALLOY | COPPER ALLOY |
| Contact resistance | 15 mΩ | - | 15 mΩ | 15 mΩ |
| Contact style | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 500VAC V | - | 500VDC V | 500VDC V |
| Insulation resistance | 1000000000 Ω | - | 100000000 Ω | 100000000 Ω |
| Insulator color | BLACK | - | BLACK | BLACK |
| insulator material | POLYAMIDE RESIN | - | POLYAMIDE RESIN | POLYAMIDE RESIN |
| Manufacturer's serial number | 17LE | - | 17JE | 17JE |
| Mixed contacts | YES | - | YES | YES |
| Installation option 1 | LATCH | - | LATCH | LATCH |
| Installation option 2 | LOCKING | - | LOCKING | LOCKING |
| Installation type | BOARD | - | PANEL | PANEL |
| Plating thickness | 15u inch | - | 15u inch | 15u inch |
| Rated current (signal) | 3 A | - | 1 A | 1 A |
| Guideline | UL | - | UL | UL |
| reliability | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Shell surface | NICKEL | - | NICKEL | NICKEL |
| Shell material | STEEL | - | STEEL | STEEL |
| Termination type | SOLDER | - | SOLDER LUG | SOLDER LUG |
| Total number of contacts | 8 | - | 6 | 8 |
