CSD-5H-1.85G: DescriptionDirectional Coupler, 1500MHz Min, 2200MHz Max, 0.25dB Insertion Loss-Max, LEADLESS, SURFACE MOUNT PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size118KB，2 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CSD-5H-1.85G Overview

Directional Coupler, 1500MHz Min, 2200MHz Max, 0.25dB Insertion Loss-Max, LEADLESS, SURFACE MOUNT PACKAGE-4

CSD-5H-1.85G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	51.76 dBm
Maximum insertion loss	0.25 dB
Maximum operating frequency	2200 MHz
Minimum operating frequency	1500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

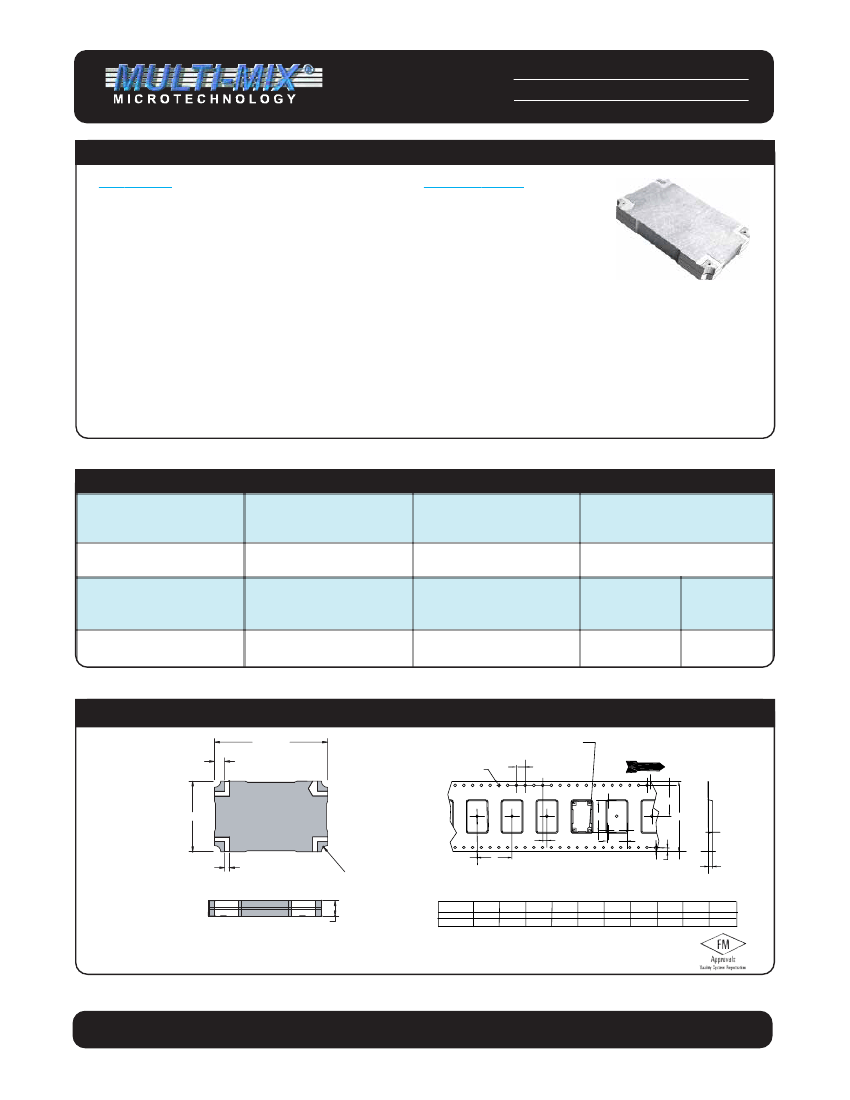

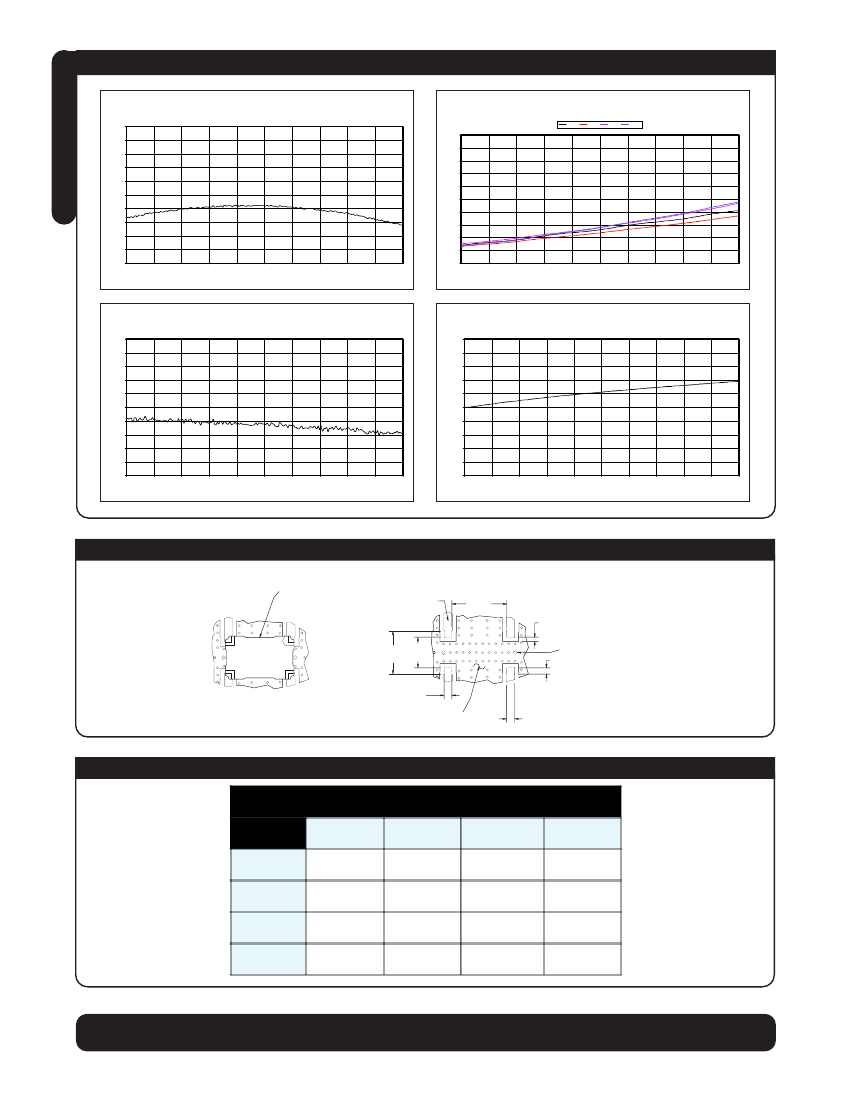

CSD-5H-1.85G

DIRECTIONAL COUPLER

PRELIMINARY

REV: 001, 12/01/04

TECHNICAL DESCRIPTION

FEATURES

• 1.5 - 2.2 GHz

• LOW LOSS

• HIGH DIRECTIVITY

• EXCELLENT COUPLING ACCURACY

• SURFACE MOUNT

• TAPE & REEL AVAILABLE

APPLICATIONS

• DCS 1800 BASE STATION

RF SUBSYSTEMS

• PCS 1900 BASE STATION

RF SUBSYSTEMS

• MILITARY COMMUNICATIONS

• TELEMETRY

The Multi-Mix

®

CSD series provides a 5 dB coupling with low insertion loss, low VSWR, and high

directivity. Accurate coupling factors make this series ideal for use in power amplifiers and RF signal distri-

bution and processing equipment.

CSD-5 directional couplers are fusion bonded multilayer stripline devices. The fusion bonding process

yields a homogeneous monolithic dielectric structure with reliability, ruggedness, and electrical performance

that is superior to conventional adhesive bonding techniques.

GENERAL SPECIFICATIONS

FREQUENCY RANGE

(GHz)

1.7 - 2.0

1.5 - 2.2

FREQUENCY SENSITIVITY

(dB MAX)

± 0.15

±0.25

INSERTION LOSS

(dB MAX)

0.22

0.25

DIRECTIVITY

( dB MIN)

18

16

MEAN COUPLING

(dB)

5.0 ± 0.4

5.0 ± 0.5

INPUT POWER

(CW @ 1.2:1 LOAD VSWR)

RF

INTERFACE

Leadless Surface

Mount

VSWR

(MAX, ALL PORTS)

1.20:1

1.25:1

OPERATING

TEMPERATURE

150

-55° TO +85° C

PACKAGE OUTLINE / TAPE & REEL ORIENTATION

.560 [14.22]

.050 [1.27]

PAD 1

\U+2205 Do

Po

DIRECTION

OF FEED

2

.350 [8.89]

1

F

CSD-5H-1.85G

3

.024 [0.61]

.062 PLATED THRU

4 PLACES [1.57]

Bo

W

Ao

E1

Ko

4

P1

P2

.075 [1.91]

W

P1

E

F

Do

Po

P2

Ao

Bo

Ko

ENGLISH 1.2598 0.6299 0.0689 0.5590 0.0591 0.1575 0.0787 0.3598 0.5697 0.0799

2.030

METRIC 32.000 16.000 1.750 14.199 1.500 4.000 2.000

THE MULTI-MIX MICROTECHNOLOGY

®

GROUP IS ISO 9001:2000 REGISTERED

U.S. Patent 6,099,677 and other Patents Pending.

Merrimac Industries / 41 Fairfield Place, West Caldwell, NJ 07006

Tel: 1.888.434.MMFM / Fax: 973.882.5990 / Email: MMFM@merrimacind.com / www.Multi-Mix.com
