B250C7000-5000 datasheet, PDF - EEWORLD Datasheet

B250C7000-5000: DescriptionBridge Rectifier Diode, 1 Phase, 4.8A, 600V V(RRM), Silicon, 32 X 5.60 MM, 17 MM HEIGHT, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size181KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric View All

B250C7000-5000 Overview

Bridge Rectifier Diode, 1 Phase, 4.8A, 600V V(RRM), Silicon, 32 X 5.60 MM, 17 MM HEIGHT, PLASTIC PACKAGE-4

Parameter Name	Attribute value
package instruction	R-PSIP-W4
Contacts	4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4
Maximum non-repetitive peak forward current	250 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	4.8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

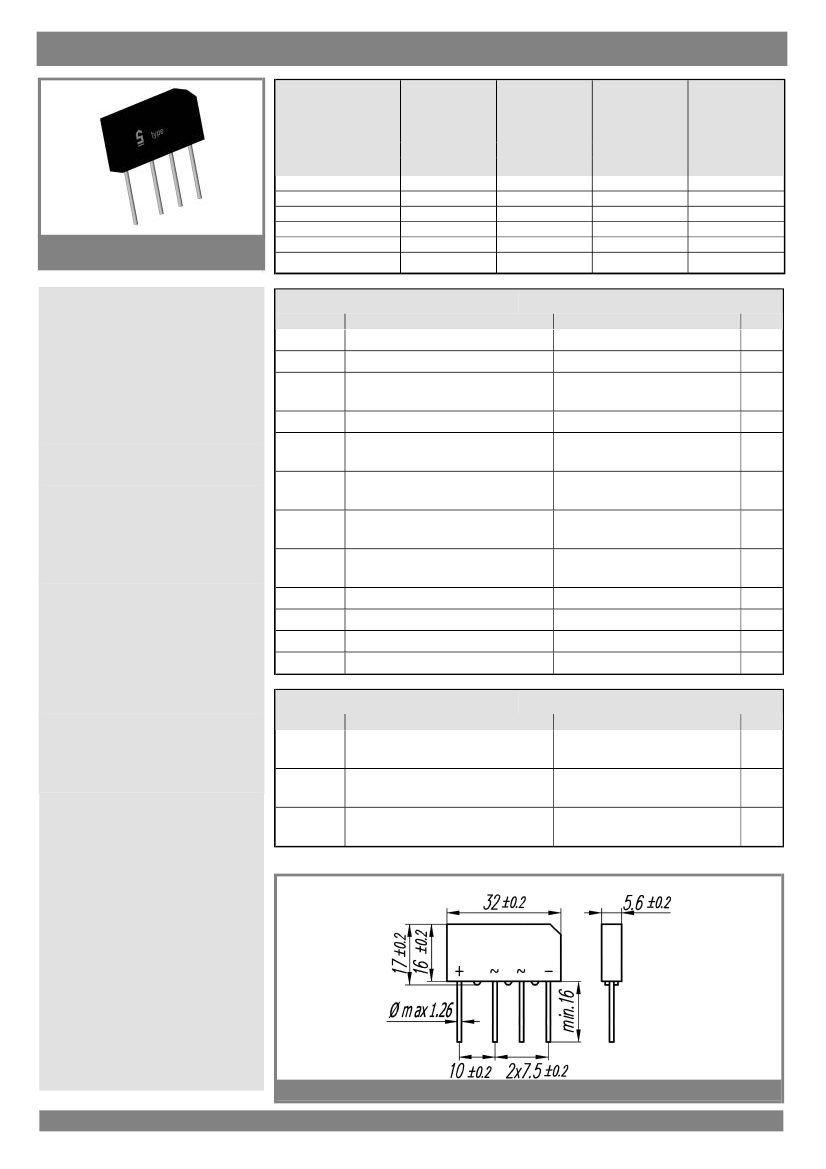

B ...C7000-4000

Inline bridge

Silicon-Bridge Rectifiers

B ...C7000-4000

Forward Current: 7 / 4 A

Reverse Voltage: 80 to 1000 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Publish Data

Features

Mechanical Data

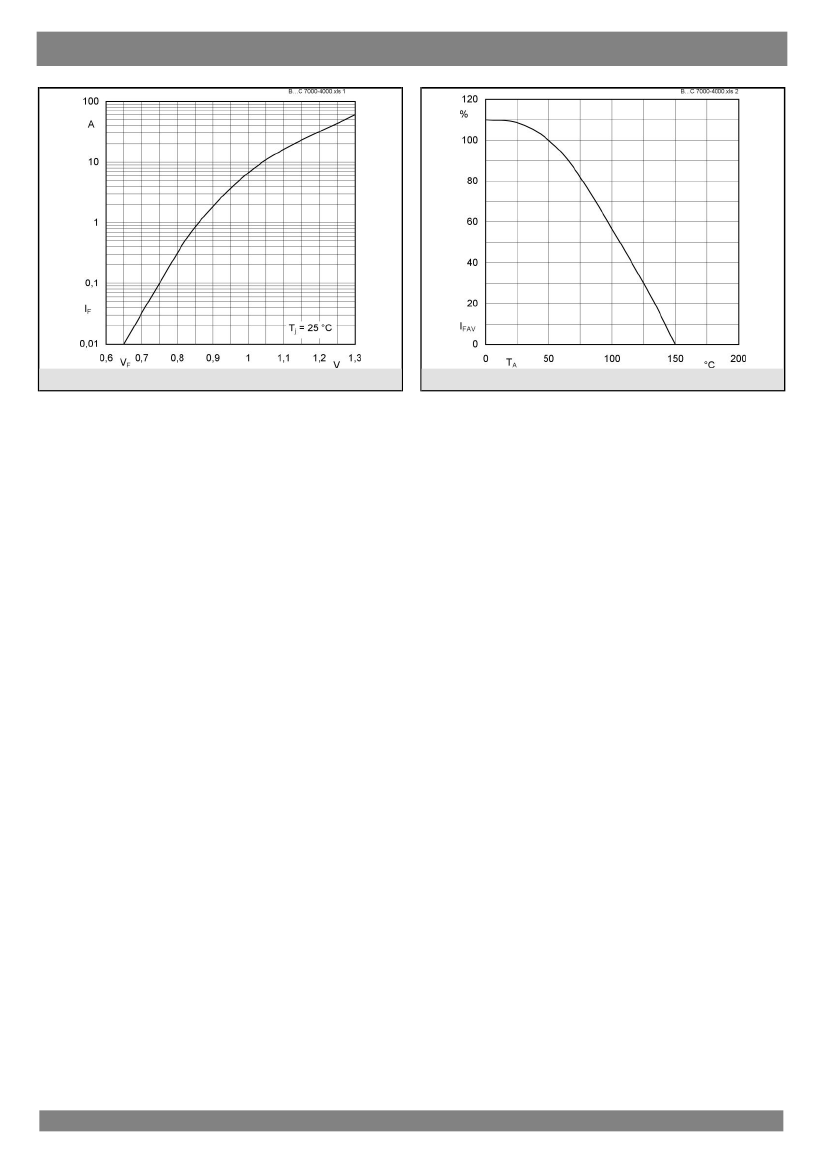

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

1

10-04-2006 SCT
