104118-9 datasheet, PDF - EEWORLD Datasheet

104118-9: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

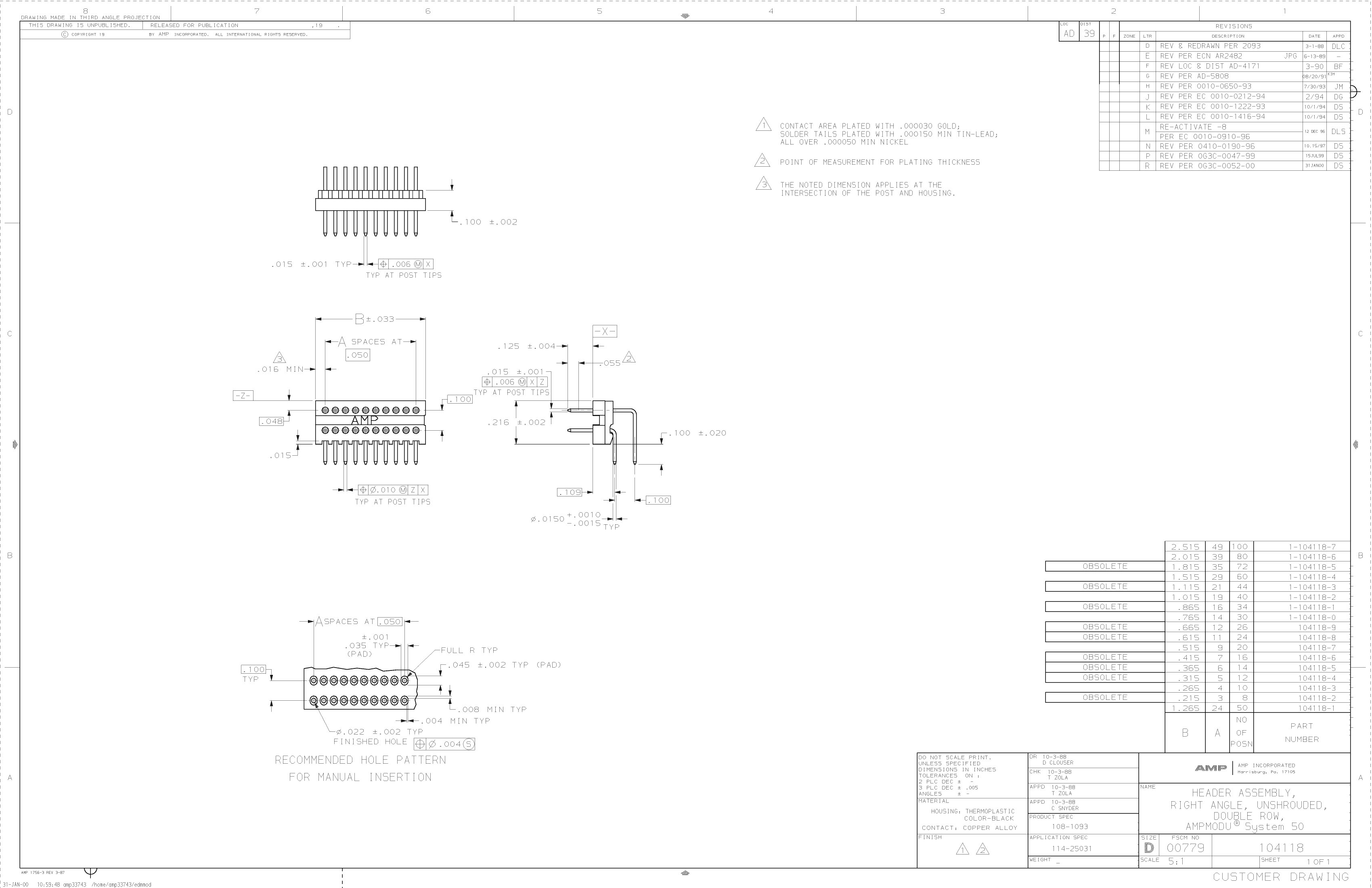

104118-9 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	7142949279
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.15
body width	0.216 inch
subject depth	0.209 inch
body length	0.665 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	200 Cycles
Electromagnetic interference shielding	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Power Connector Ratings	3.6A
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	3.6 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Evacuation force-minimum value	.2224 N

	104118-9	1-104118-1	1-104118-3	2N5616	104118-4	1-104118-5	104118-8	104118-2
Description	HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,44 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	SPTECH Silicon NPN Power Transistors	HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,72 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,24 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK
Reach Compliance Code	compliant	unknow	unknow	-	compliant	unknow	unknow	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
DIN compliance	NO	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	NO	NO	-	NO	NO	NO	NO
MIL compliance	NO	NO	NO	-	NO	NO	NO	NO
