SIS5D28N-101R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SIS5D28N-101R

SIS5D28N-101R: DescriptionGeneral Purpose Inductor, 100uH, 30%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size58KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric View All

SIS5D28N-101R Overview

General Purpose Inductor, 100uH, 30%, 1 Element, SMD, ROHS COMPLIANT

SIS5D28N-101R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.52 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SIS5D28
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum rated current	0.42 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.01 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

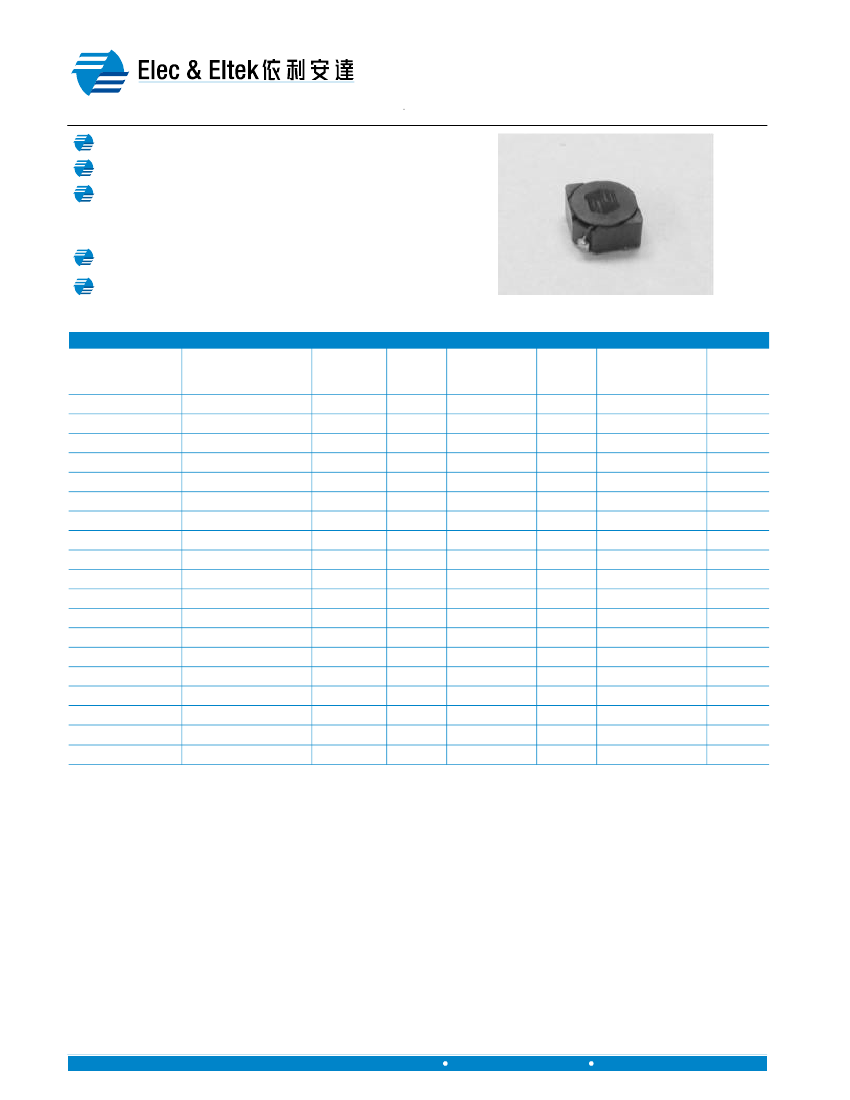

E & E Magnetic Products Limited

SHIELDED SURFACE MOUNT

POWER INDUCTOR

Drum Type, SIS5D28 Series

Magnetically Shielded

Miniature in size and high energy storage

Ideal for high current requirements of notebook,

video recorders and other DC-DC conversion

applications

Custom inductance value or tolerance is available

RoHS compliant versions are available

LECTRICAL

PECIFICATION

@ 25

Part

Number

SIS5D28N-2R5

SIS5D28N-3R0

SIS5D28N-4R2

SIS5D28N-5R3

SIS5D28N-6R2

SIS5D28N-8R2

SIS5D28N-100

SIS5D28N-120

SIS5D28N-150

SIS5D28N-180

SIS5D28N-220

SIS5D28N-270

SIS5D28N-330

SIS5D28N-390

SIS5D28N-470

SIS5D28N-560

SIS5D28N-680

SIS5D28N-820

SIS5D28N-101

RoHS

Part Number

SIS5D28N-2R5R

SIS5D28N-3R0R

SIS5D28N-4R2R

SIS5D28N-5R3R

SIS5D28N-6R2R

SIS5D28N-8R2R

SIS5D28N-100R

SIS5D28N-120R

SIS5D28N-150R

SIS5D28N-180R

SIS5D28N-220R

SIS5D28N-270R

SIS5D28N-330R

SIS5D28N-390R

SIS5D28N-470R

SIS5D28N-560R

SIS5D28N-680R

SIS5D28N-820R

SIS5D28N-101R

Inductance

(uH)

2.5

3.0

4.2

5.3

6.2

8.2

100

Tolerance

(%)

±30

Test Frequency

(kHz)

DCR

Ω

Max)

103

110

122

175

189

212

250

305

355

463

520

Rated DC Current

(A)

2.6

2.4

2.2

1.9

1.8

1.6

1.3

1.2

1.1

1.0

0.9

0.85

0.75

0.70

0.62

0.58

0.52

0.46

0.42

Marking

(XYYY)

N2R5

N3R0

N4R2

N5R3

N6R2

N8R2

N100

N120

N150

N180

N220

N270

N330

N390

N470

N560

N680

N820

N101

Notes:

1. Test frequency is specified as the frequency for measuring the inductance.

2. Rated D.C. current indicates the value of the current when the inductance is 35% lower than its initial value

or the current when temperature rising

∆

T=30 C at D.C. superposition.

3. Operating temperature range: -25ºC to +85ºC.

4. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the

operating temperature under worst case operating conditions. Circuit design, component placement, PWB

trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part

temperature should be verified in the end application.

5. Contact EEMPL for RoHS compliant version availability.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PI058(02)

Revised in 06/07
