DG201ABK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG201ABK

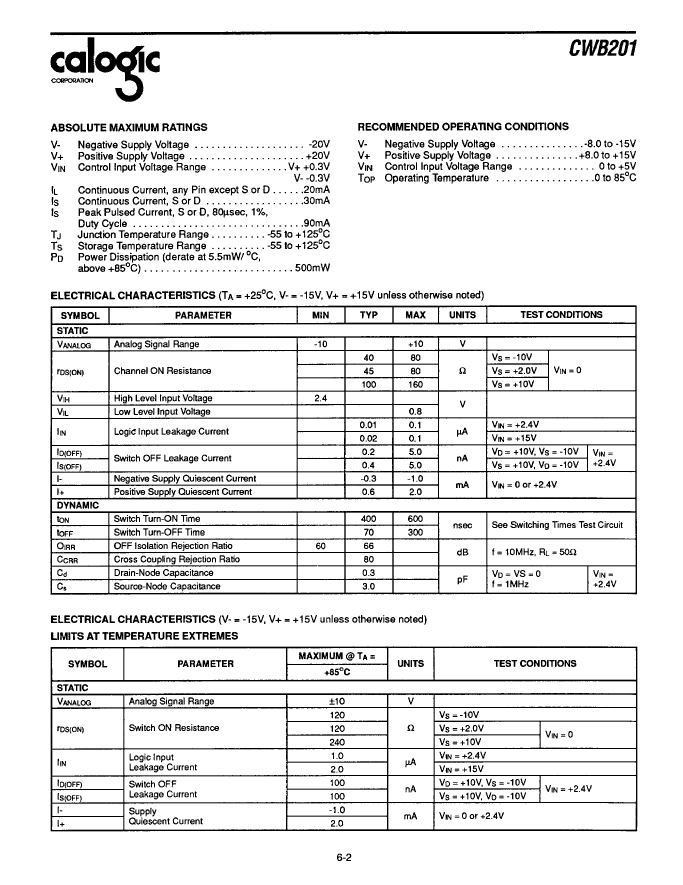

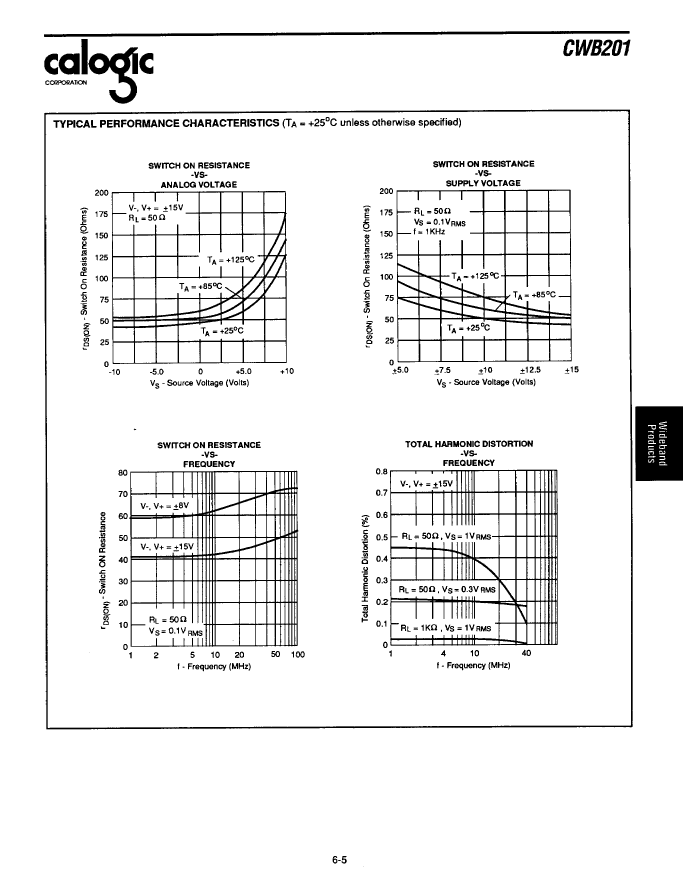

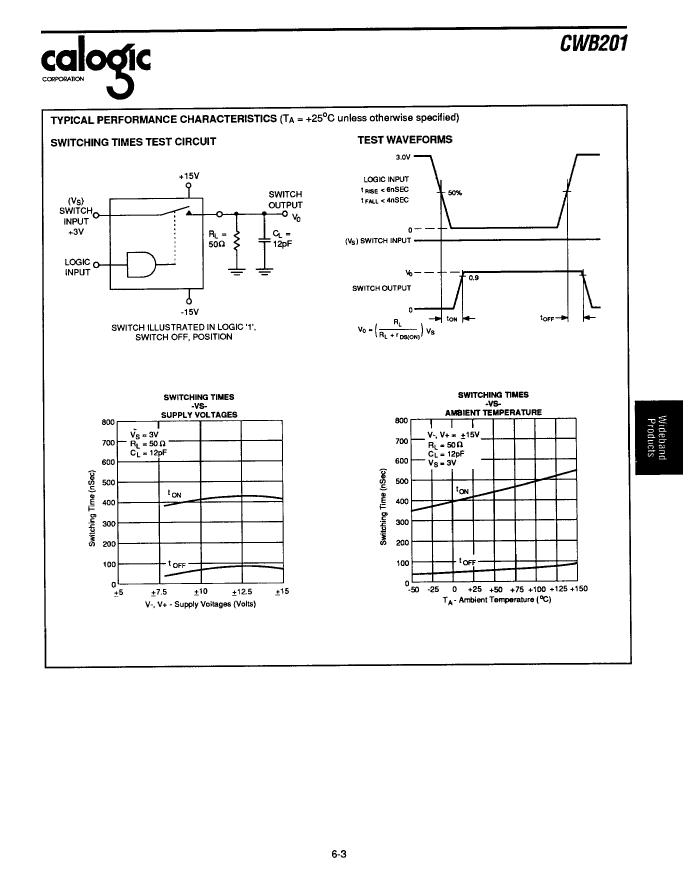

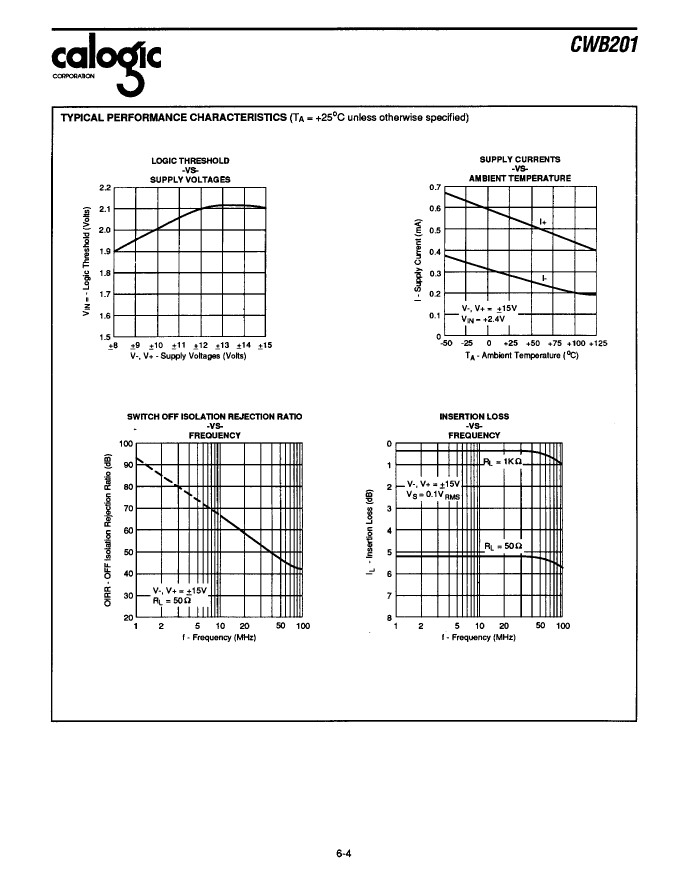

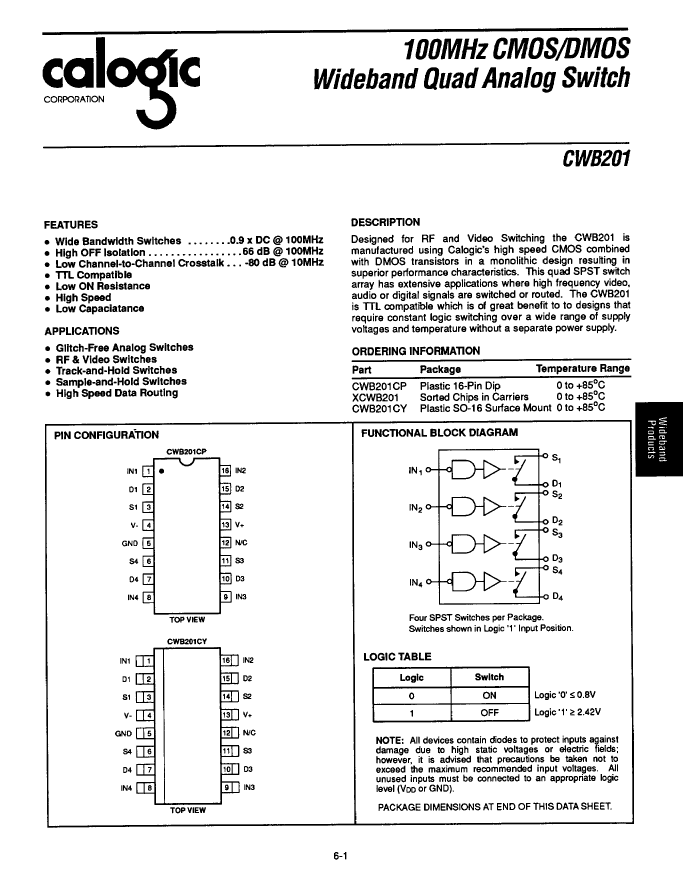

DG201ABK: DescriptionMultiplexers/Switches, 4 Func, CMOS, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size271KB，6 Pages; ManufacturerCalogic; Websitehttp://www.calogic.net/

Download Datasheet Parametric Compare View All

DG201ABK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG201ABK	-	-	View	Buy Now

DG201ABK Overview

Multiplexers/Switches, 4 Func, CMOS, CDIP16

DG201ABK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of functions	4
Number of terminals	16
Maximum on-state resistance (Ron)	250 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum connection time	600 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

DG201ABK Related Products

	DG201ABK	DG201ACJ	DG201ADY	DG201ACK	DG201AAK
Description	Multiplexers/Switches, 4 Func, CMOS, CDIP16	Multiplexers/Switches, 4 Func, CMOS, PDIP16	Multiplexers/Switches, 4 Func, CMOS, PDSO16,	Multiplexers/Switches, 4 Func, CMOS, CDIP16	Multiplexers/Switches, 4 Func, CMOS, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-XDIP-T16	R-PDIP-T16	R-PDSO-G16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
normal position	NC	NC	NC	NC	NC
Number of functions	4	4	4	4	4
Number of terminals	16	16	16	16	16
Maximum on-state resistance (Ron)	250 Ω	250 Ω	250 Ω	250 Ω	250 Ω
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	125 °C
Minimum operating temperature	-25 °C	-	-40 °C	-	-55 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	SOP16,.25	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	NO	NO
Maximum connection time	600 ns	600 ns	600 ns	600 ns	600 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	COMMERCIAL	INDUSTRIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3	-
Base Number Matches	1	1	1	1	-
