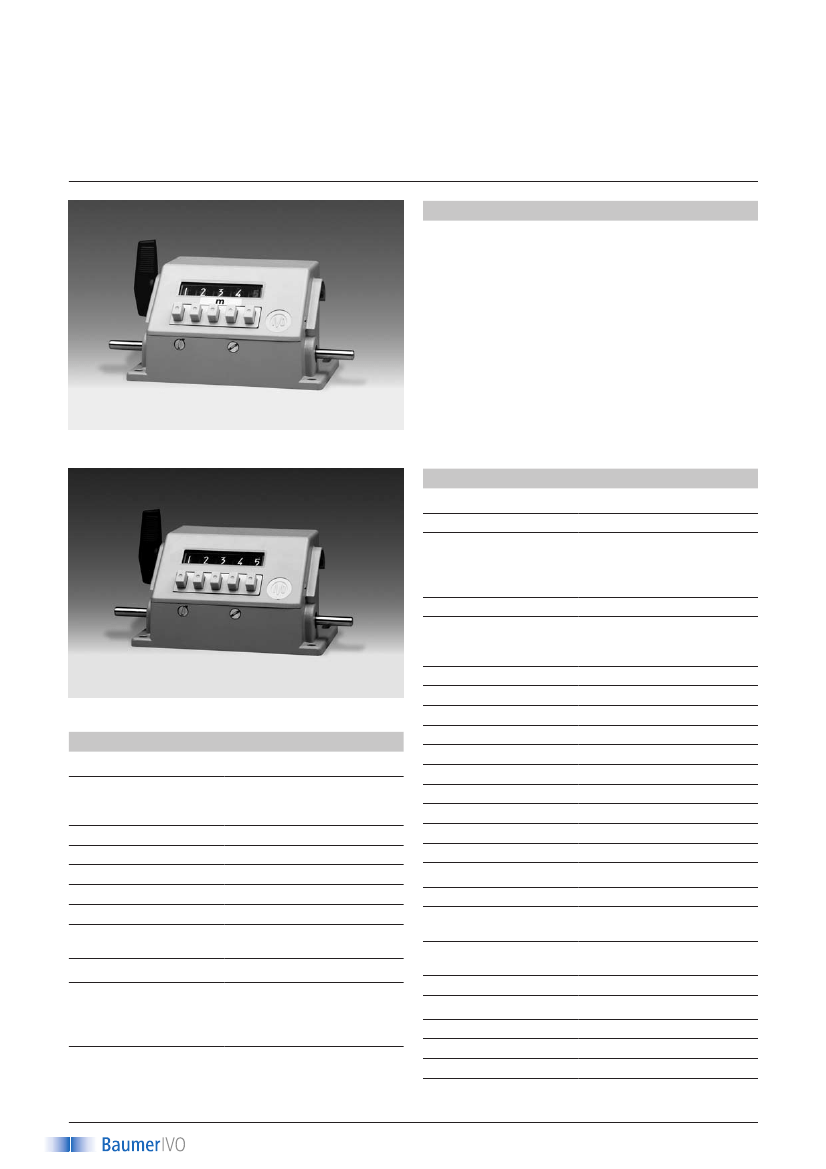

Preset counters mechanic
Large meter and revolution counters, subtracting
Display 5 digits, manual reset by lever
ME230, UE230
Features
– Preset counter with one preset
– Meter or revolution counter
– Subtracting
– Display 5-digits
– Reset by lever
– ME230 with precontact
ME230 - Meter counter
Technical data - mechanical design
Number of digits
Digit height
Count mode
5-digits
7 mm
Adding in a rotational direction
to be indicated, subtracing in
reverse direction.
See part number key
Both sides, ø7 mm
By reset lever to preset value.
Do not let snap lever or make
jerky movements.
See ordering part number
0...+60 °C
Surface mount housing
Grey
Subject to modification in technic and design. Errors and omissions excepted.
2/12/2008
Drive shaft
Reset
Measuring range
UE230 - Revolution counter
Technical data - electrical ratings
Preset
Preset setting
1 preset
Press reset button and hold.
Enter desired value in any
order. Release reset button.
Trigger at zero (subtracting)
Change-over contact
230 VAC / VDC
2A
100 VA / 30 W
Recommended for inductive
load
Permanent precontact as
permanent contact
(please indicate desired value
when ordering)
Operating temperature
Housing type
Housing colour
Dimensions W x H x L
Mounting
Weight approx.
Material
E-connection
ME230
Function
Display
Measuring speed
Measuring precision
UE230
Function
Display
Operating speed
126 x 88 x 78 mm
Base plate, 4 mounting holes
950 g
Aluminium die cast alloy
Terminal block connector
Meter counter with preset
White numbers on black
Decimal digits in red
2 revs. = 1 digit = <2500 m/min
2 revs. = 10 di. = <250.0 m/min
1 m, 1 dm
Revolution counter with preset
White numbers on black
≤5000 rpm
Dimensions mounting plate 142 x 88 mm
Limit switch
Output contact
Switching voltage
Switching current
Switching capacity
Spark extinguisher
ME230
Precontact
1
www.baumerivo.com
Large meter and revolution counters, subtracting
Display 5 digits, manual reset by lever
Preset counters mechanic
ME230, UE230
Part number
Meter counter
ME230.0
0
A
Measuring range / trigger
99 999 m / permanent
contact at 00000
9999.9 m / permanent
contact at 00000
89 999 m / permanent
contact at 99999,
with permanent
precontact
8999.9 m / permanent
contact at 99999,
with permanent
precontact
Revolution counter
UE230.0
1
0
A
A
Measuring range
A
99 999
Count mode /Direction of
rotation
11
1 rev. = 1 digit / I
12
1 rev. = 1 digit / II
Housing
A Surface mount housing, grey
Trigger
1
Permanent contact at 00000
Direction of strokes and rotation
A
B
G
H
03
04
13
14
Count mode /Direction of
rotation
2 revs. = 10 digits / I
2 revs. = 10 digits / II
2 revs. = 1 digit / I
2 revs. = 1 digit / II
Housing
A Surface mount housing, grey
Trigger
1
Permanent contact at 00000
5
Permanent contact at 99999, with permanent
precontact
Away from user
Sense of rotation I
Accessories
Measuring wheels for ME230
Towards user
Sense of rotation II
MR512.07A Circumf. 50 cm, knurled aluminium
MR542.07D Circumf. 50 cm, smooth Hytrel TPE-E
MR552.07A Circumf. 50 cm, smooth Vulkollan PUR
MR562.07A Circumf. 50 cm, knopped rubber NBR Nitril
MR592.07D Circumf. 50 cm, grooved Hytrel TPE-E
Subject to modification in technic and design. Errors and omissions excepted.
2/12/2008

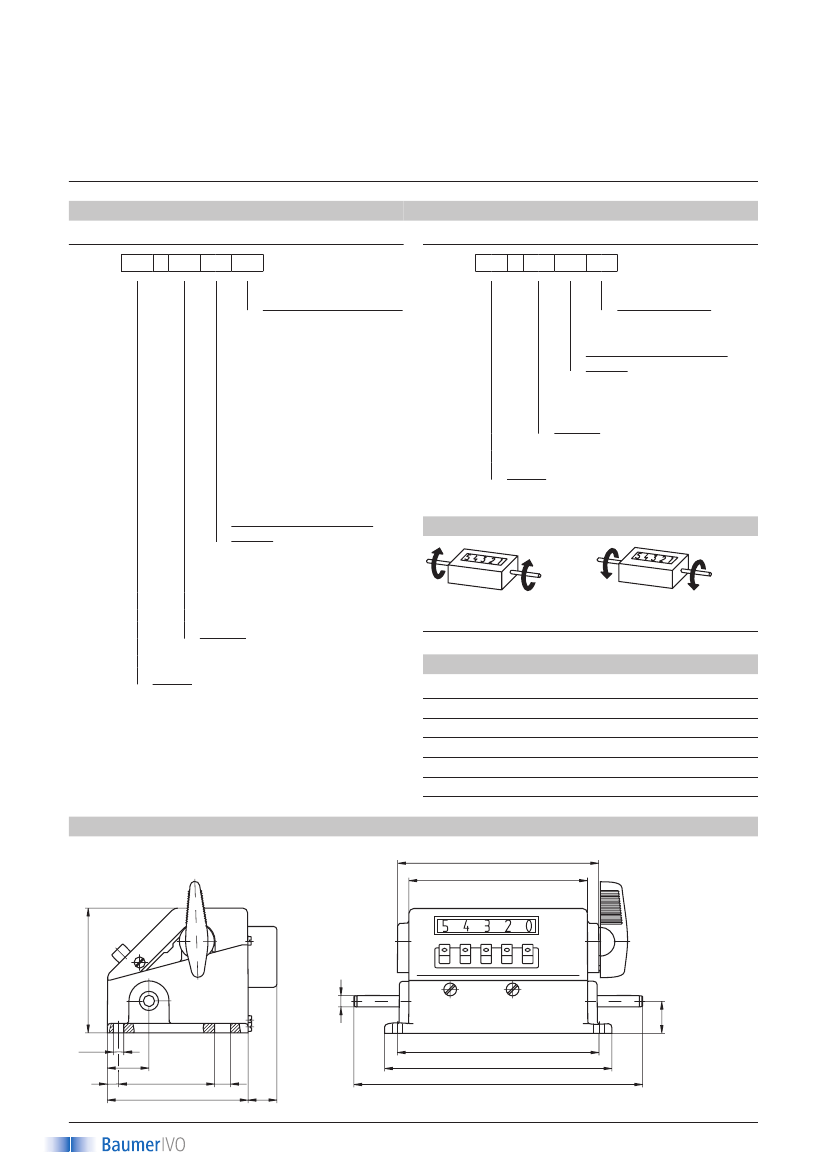

Dimensions
126
112
78
ø7
ø6.5
26
7
60
88
10
18
126
142
180.5
2
www.baumerivo.com
20
