1-225608-1 datasheet, PDF - EEWORLD Datasheet

1-225608-1: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, SMA CONNECTOR, N/S, JACK; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

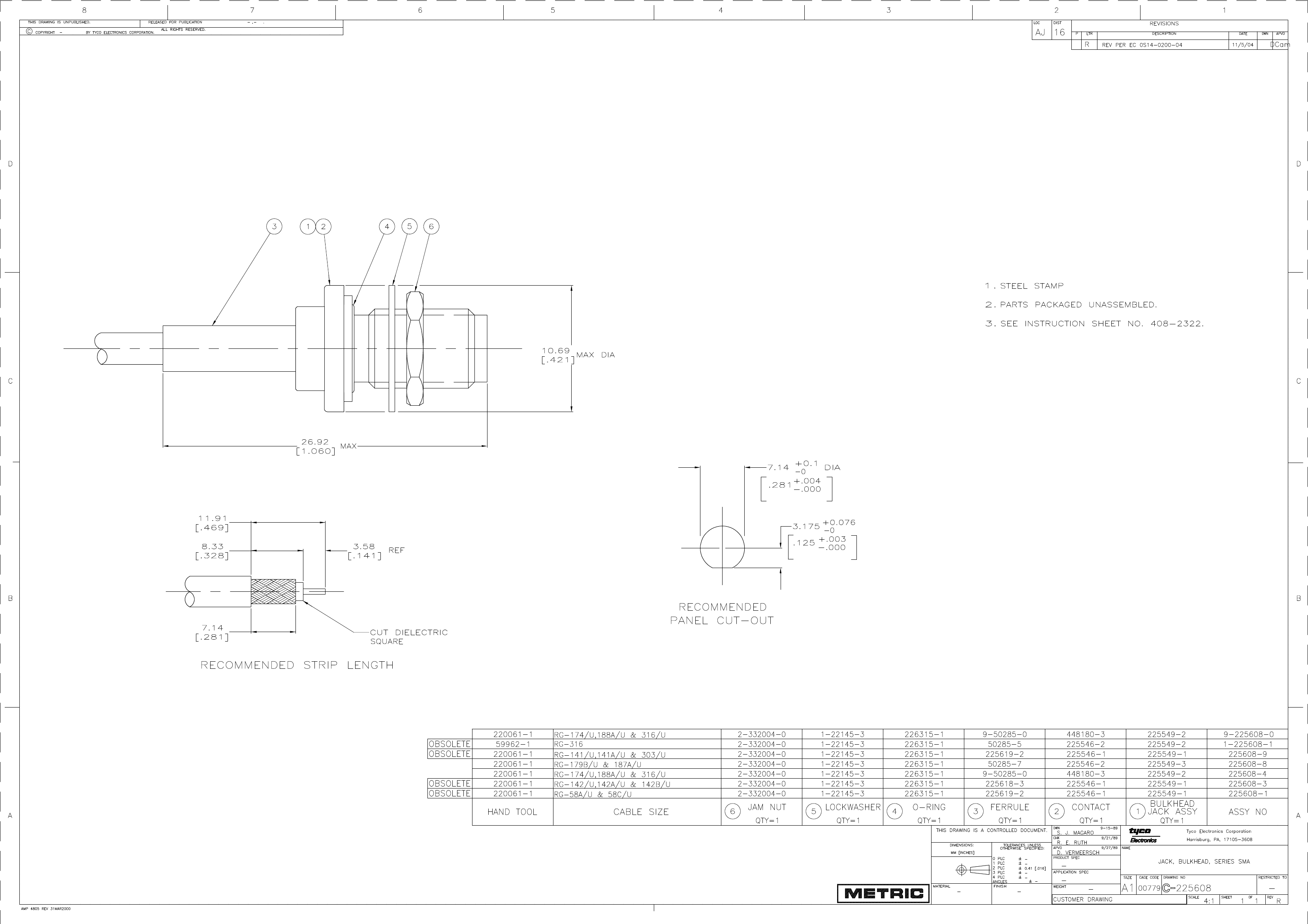

1-225608-1 Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, SMA CONNECTOR, N/S, JACK

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 316
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.21 dB
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	225608
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	N/S
Base Number Matches	1

	1-225608-1	225608-9	225608-3	225608-8
Description	CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, SMA CONNECTOR, N/S, JACK	CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, SMA CONNECTOR, N/S, JACK	CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, SMA CONNECTOR, N/S, JACK	PANEL MOUNT, CABLE TERMINATED, FEMALE, SMA CONNECTOR, N/S, JACK
Reach Compliance Code	unknow	unknown	unknown	unknown
Other features	APPLICABLE CABLES: RG 316	APPLICABLE CABLES: RG 141/U; RG 141A/U , RG 303/U	APPLICABLE CABLES: RG 142/U; RG 142A/U; RG 142B/U	APPLICABLE CABLES: RG 179B/U; RG 187A/U
Body/casing type	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	TEFLON	TEFLON	TEFLON	STEEL
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	225608	225608	225608	225608
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES
Termination type	N/S	N/S	N/S	N/S
Insertion loss	0.21 dB	0.21 dB	0.21 dB	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Maximum operating frequency	12.4 GHz	12.4 GHz	12.4 GHz	-
