Z139005 Overview

Accessories & Service

Accessories & Service

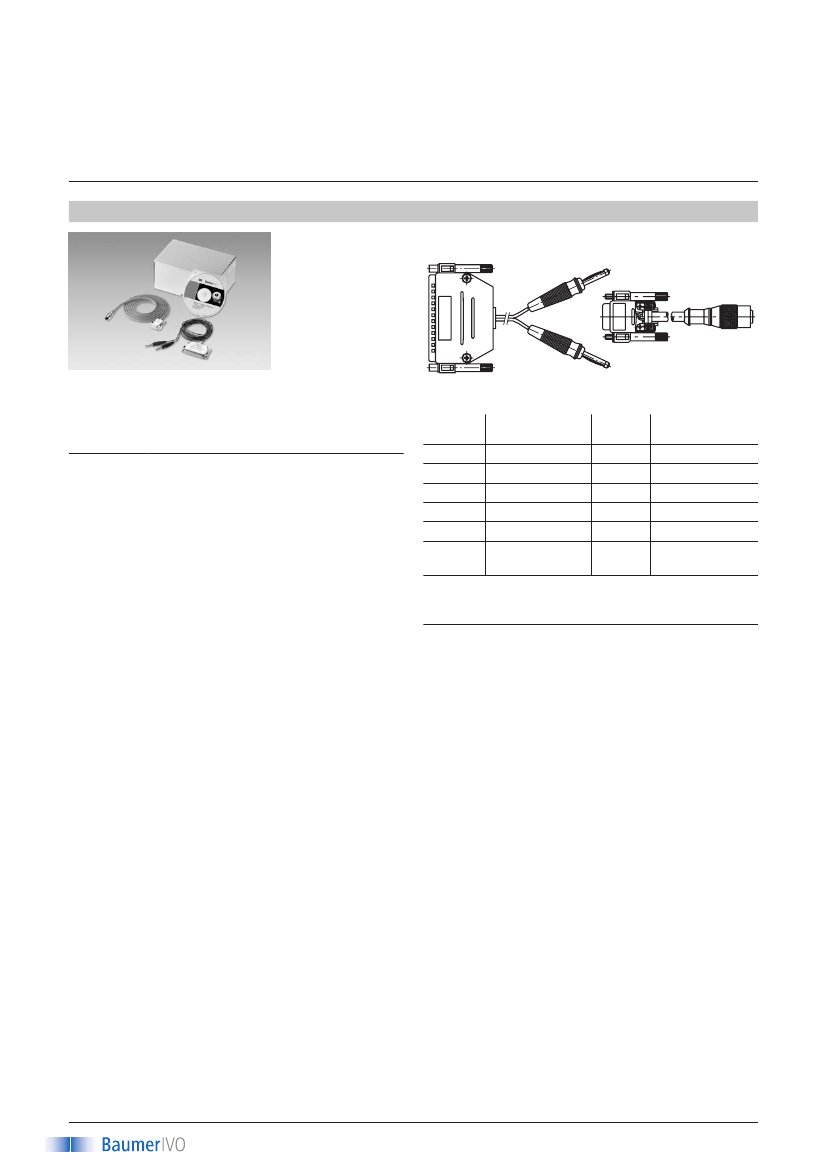

Programming accessories
Programming accessories
Dimensions
Part number
Z 139.005
Programming cable for parallel shaft
encoders, CD with ProGeber software and
manual
Terminal assignment
Encoder
function
RxD
GND
TxD
Mating connector Core
M12, 5-pins
colour
Pin 1
Pin 2
Pin 3
Pin 5
brown
white
blue
black
grey
PC connector
D-SUB, 9-pins
Pin 3
Pin 5
Pin 5
Pin 2
Jumper 4-6 and
Jumper 7-8
Connect encoder to voltage supply (UB/red/pin 36 and
GND/blue/pin 37) using the supplementary 37-pin D-SUB
connector.
P/R Mode Pin 4
1
www.baumerivo.com
30/10/2008
Subject to modification in technic and design. Errors and omissions excepted.
